Forlinx Embedded Product Manual

NXP Series System on Modules

FET-MX9596-C SoM

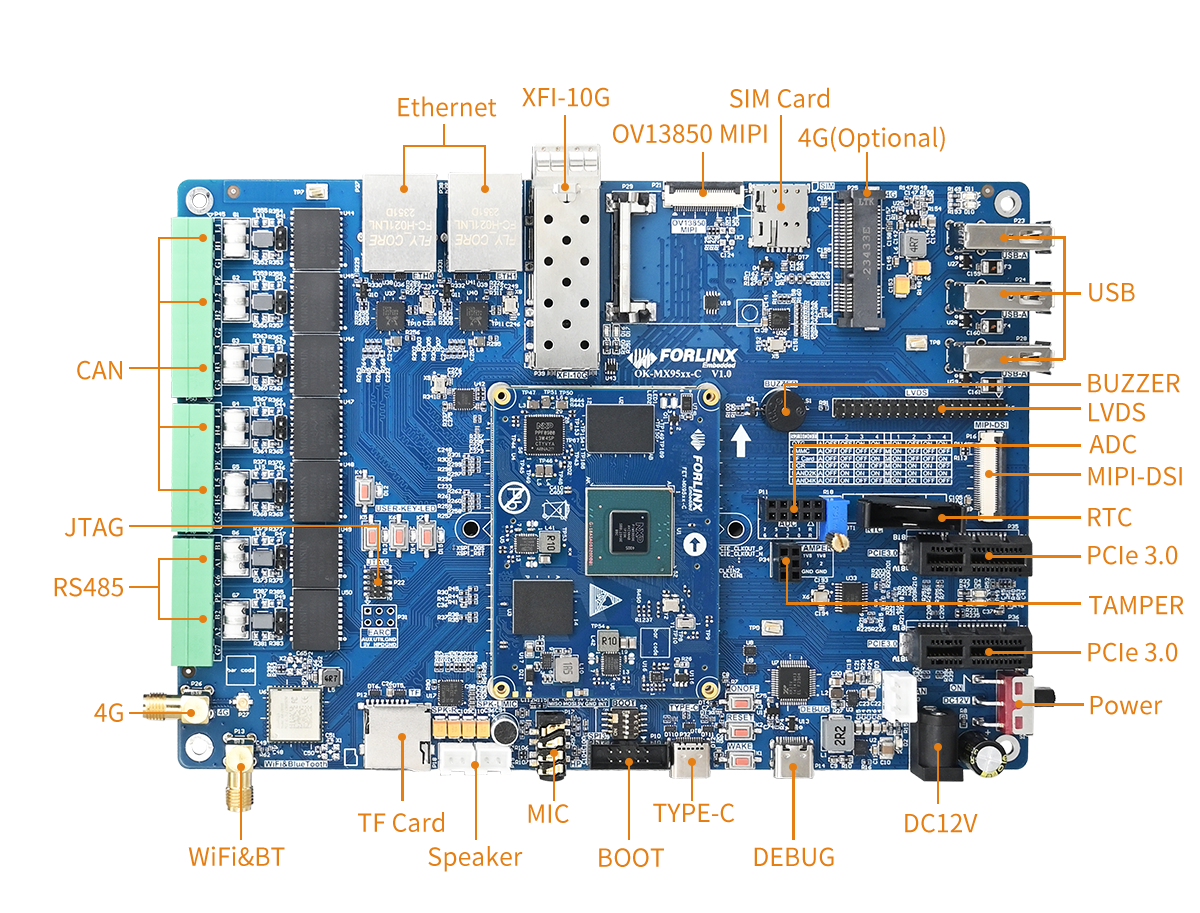

FET-MX9596-C	OK-MX9596-C

SoM Parameter

Item	Parameter	Item	Parameter
CPU	NXP i.MX9596	NPU	2 TOPS
Architecture	6 × Cortex-A55 + 1 × Cortex-M7 + 1 × Cortex-M33	VPU	H.264/H.265 decoding and encoding, up to 4K@30fps
Clock	1.8GHz + 800MHz + 333MHz	JTAG	1 x, supporting 4-pin JTAG debugging interface
RAM	8GB LPDDR4X	UART	≤ 8 x, up to 5 Mbps
ROM	64GB eMMC	SPI	≤ 8 x, supporting master-slave mode
OS	Linux	XSPI	≤ 1 x, supporting 2 x SPI Flash
Working Voltage	12V	CAN-FD	≤ 5 x, supporting ISO11898-1, CAN 2.0B
Operating Temperature	−40℃ ~ +85℃	SD Card	≤ 1 x（SD 3.0）
Connection	Board to board connector （40 × 80pin,0.5mm spacing）	SDIO	≤ 1 x（SDIO 3.0）
Mechanical dimensions	50mm × 68mm	USB 3.0	1 x, Host/Device
GPU	Mali-G310, supporting OpenGL ES 3.2, Vulkan 1.2, OpenCL 3.0	USB 2.0	1 x, Host/Device
PCIe	2 x, PCIe Gen3	LVDS	Up to 1080P@60Hz, 2×4-lane or 1 × 8-lane
MIPI-DSI	1 x, 350MHz 4-lane	PDM	≤ 1
IIC	≤ 7	PWM	≤ 6
SPDIF	≤ 1

Application Areas

Industrial Automation
Medical Electronics
Power Inspection
Smart Cockpit
Environmental Monitoring
IoT Terminal

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

FET-MX8MPQ-SMARC SoM

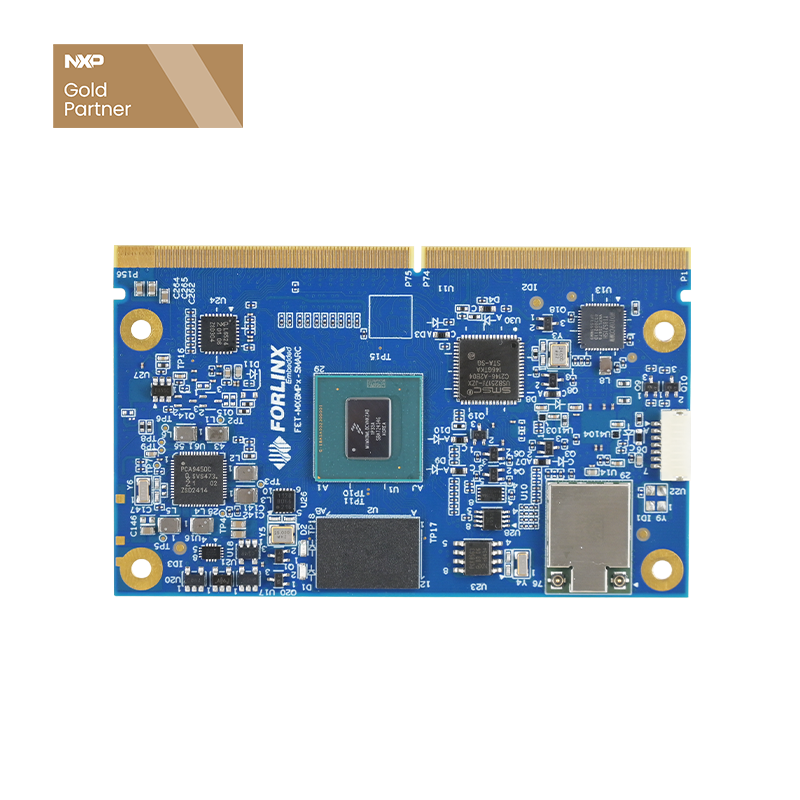

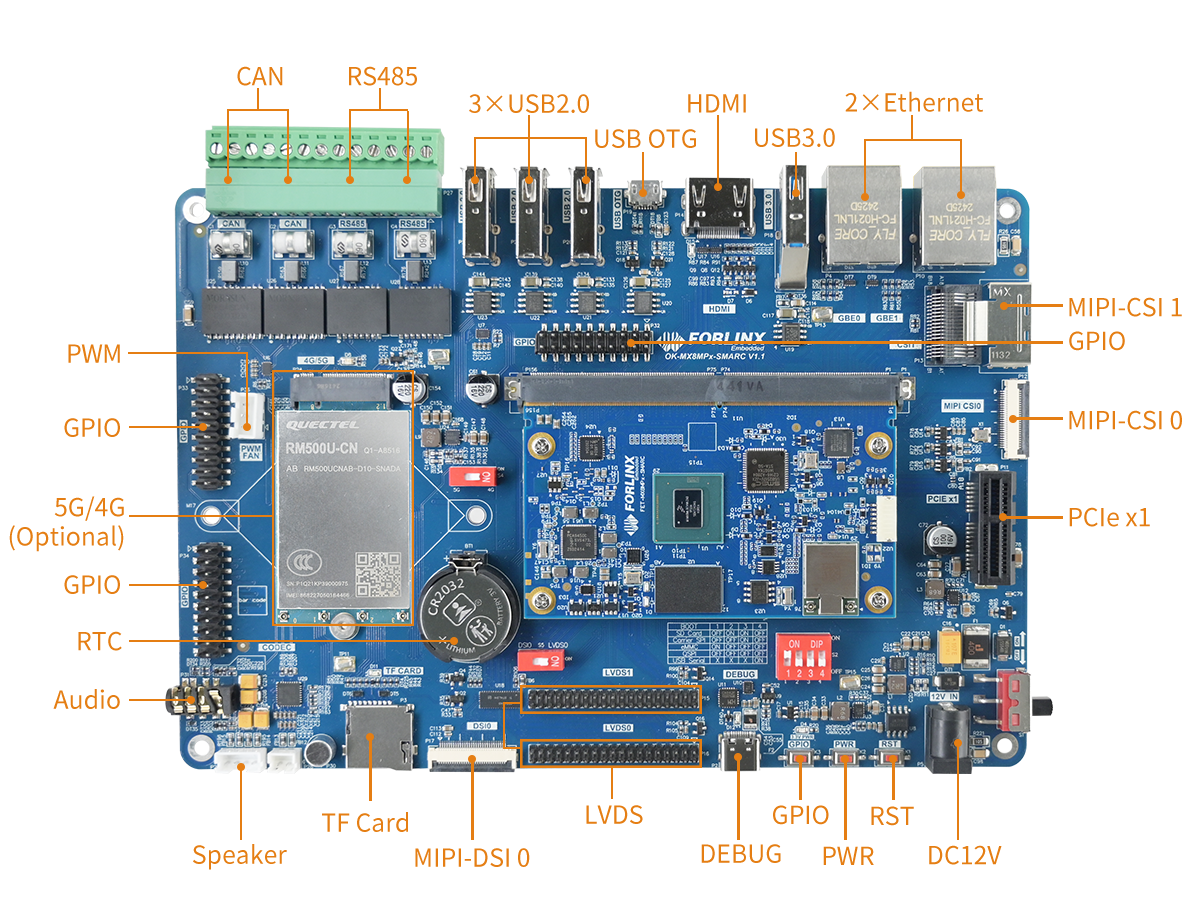

FET-MX8MPQ-SMARC	OK-MX8MPQ-SMARC

SoM Parameter

Item	Parameter	Item	Parameter
CPU	NXP i.MX8MPQ	USB 3.0	≤ 2
Architecture	4 × Cortex-A53 + Cortex-M7	USB 2.0	≤ 5
Clock	1.6GHz + 800MHz	MIPI CSI	≤ 2
RAM	2GB / 4GB LPDDR4	LVDS	2 x, up to 1920×1080p60
ROM	16GB / 32GB eMMC	HDMI	1 x, 4K@30
OS	Linux 6.1	Ethernet	2 x Gigabit, 1 x supports TSN
Working Voltage	5V	PCIe	1 x, PCIe Gen3
Operating Temperature	−40℃ ~ +85℃	CAN-FD	≤ 2
Connection	SMARC 2.1	SDIO	1 x（SDIO 3.0）
Mechanical Dimensions	50mm × 80mm	IIS	≤ 2
NPU	2.3 TOPS	SPI	≤ 2
MIPI-DSI	1 x	PWM	≤ 3
VPU	H.264/H.265/VP9/VP8 decoding 1080p@60fps; H.264/H.265 encoding 1080p@60fps	IIC	≤ 5
		UART	4 x, up to 4 Mbps

Application Areas

5G Gateway
High Definition Video Processing
Industrial Internet
Smart Home
Medical Equipment
Smart Transportation

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

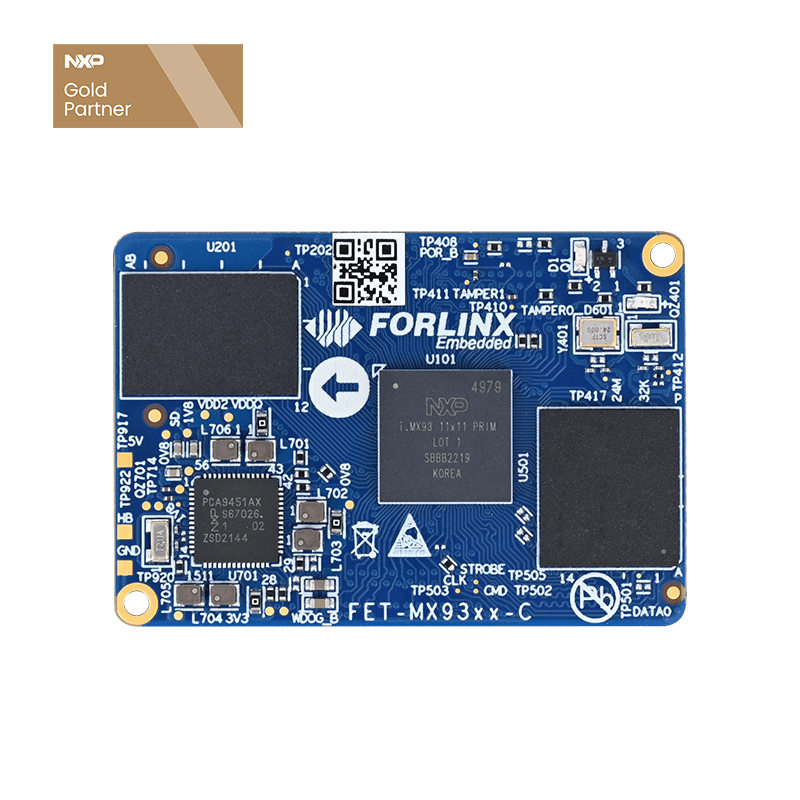

FET-MX9352-C SoM

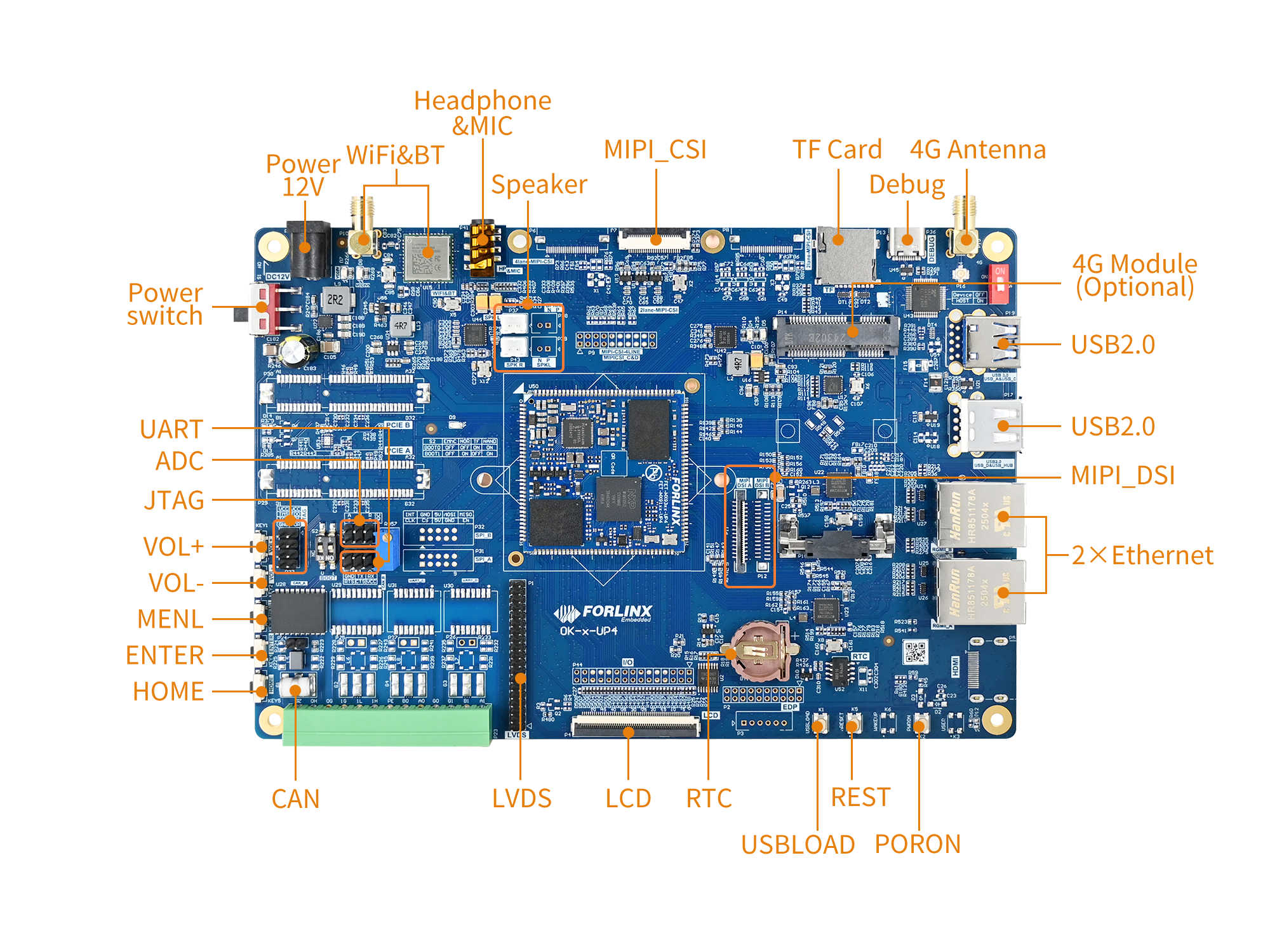

FET-MX9352-C	OK-MX9352-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX 9352	NPU	0.5 TOPS
Architecture	2 × Cortex-A55 + Cortex-M33	UART	≤8
Clock	1.7 GHz	CAN-FD	≤2
RAM	1GB LPDDR4	USB	≤2
ROM	8GB eMMC	SDIO	≤1
OS	Linux 5.15.52	SPDIF	Supports original capture mode
Working Voltage	5V	PDM	24 bit PDM module, supporting linear phase response
Operating Temperature	-40℃~+85℃	SPI	≤8, supporting master-slave mode configuration
Connection	Board to board connection （2×100pin, spacing 0.4mm）	I2C	≤8, supporting standard mode, fast mode, and ultra-fast mode
Mechanical Dimensions	33mm x 48mm	ADC	≤4, 1 x 12-bit 4-channel 1MS/s ADC
LCD	24 bit parallel RGB, supporting up to 1366 × 768p60 or 1280 × 800p60	JTAG	1 x, used for Cortex-M33 debugging
LVDS	Single channel (4-lane), supporting up to 720p60/1366 × 768p60/1280 × 800p60
MIPI DSI	Supports 1 x 4-lane MIPI DSI, pixels from LCDIF, compatible with DSI v1.2/D-PHY v1.2, maximum pixel clock of 200 MHz
Ethernet	Supports 2 x RGMII, 1 x supports TSN at 10/100/1000 Mbps

Application Areas

Edge Machine Learning Application Acceleration
Automotive Electronics, Industrial Edge Gateway
Smart Healthcare, Power Energy, Industrial Automation
Security and Communication

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

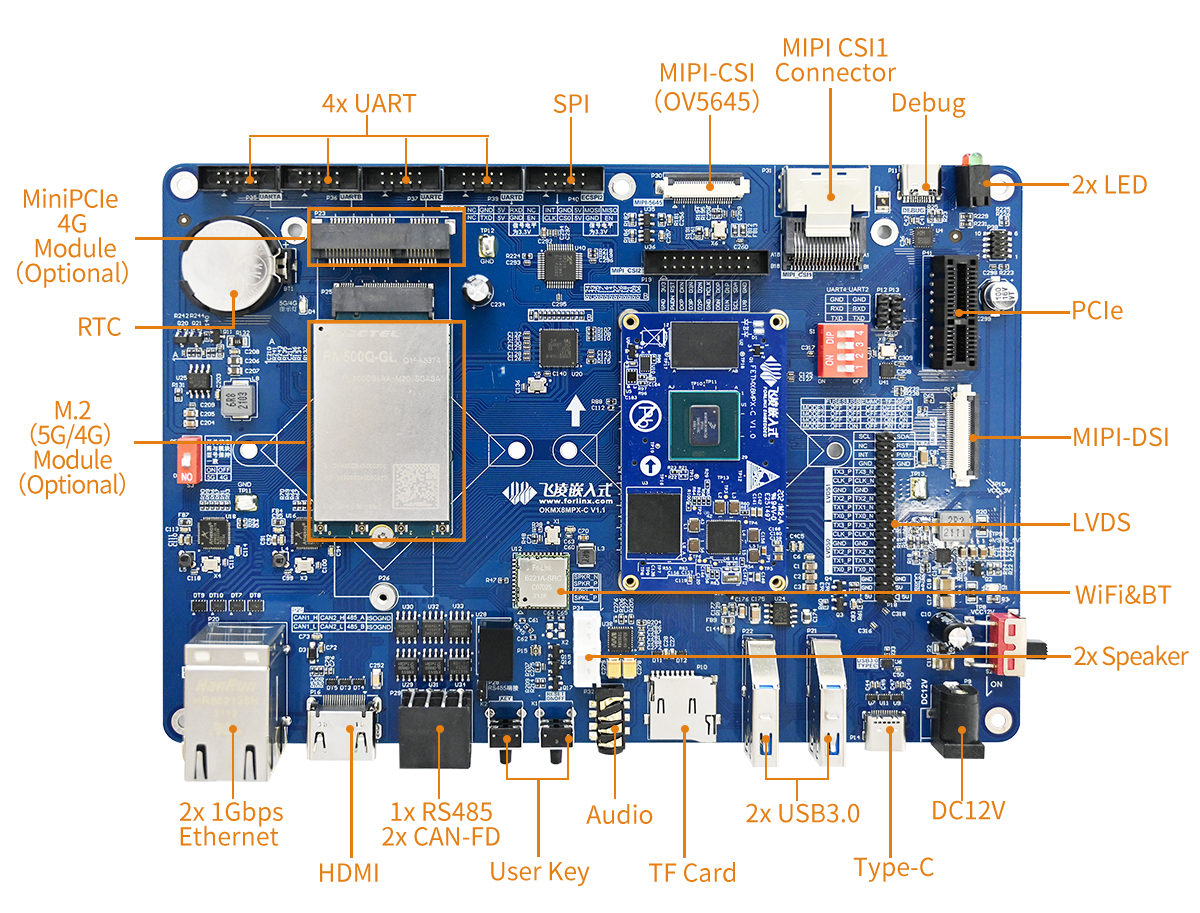

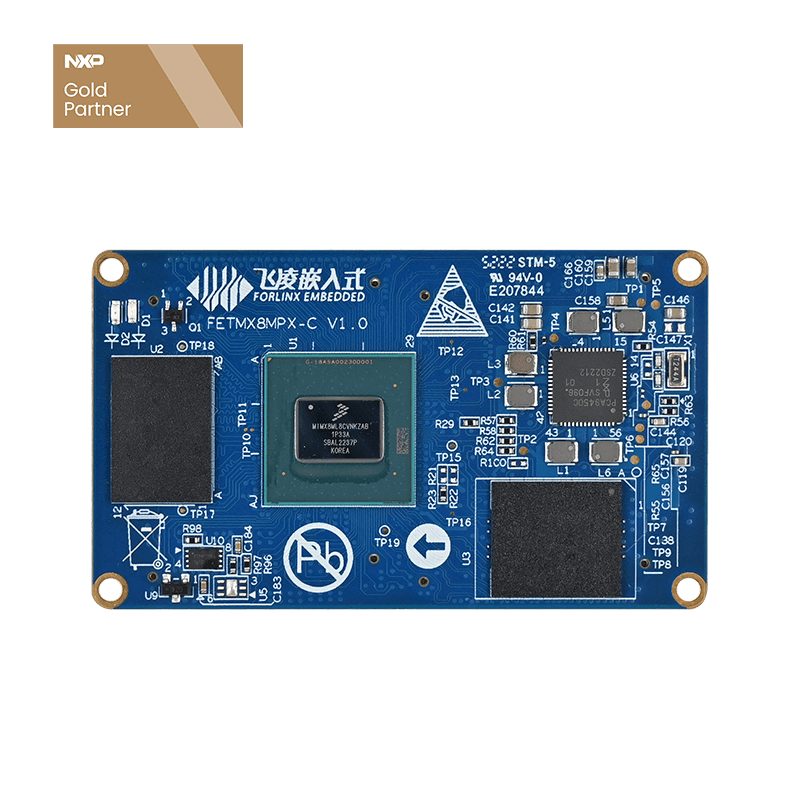

FET-MX8MP-C SoM

FET-MX8MP-C	OK-MX8MP-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX8M Plus	Ethernet	2 x RGMII, 1 x supports TSN
Architecture	4×Cortex-A53 + Cortex-M7	UART	≤4
Clock	1.6 GHz	CAN-FD	≤ 2
RAM	1G/2G/4G LPDDR4	USB	2 x, USB 3.0/2.0 Host
ROM	8/16GB eMMC	PCIe	1 x, supporting PCI Express Gen3
OS	Linux 5.4.70 / Android 11	SDIO	1 x
Working Voltage	5V	SPI	≤ 3, configurable master-slave mode
Operating Temperature	-40℃~+85℃	IIC	≤5, up to 400Kbps
Connection	Board to board connector（4 x 80Pin 0.5mm spacing）	PWM	≤4
Mechanical Dimensions	36mm x 62mm	Camera	2 x MIPI-CSI, 4 channels per lane
NPU	2.3 TOPS	ISP	375 Mpixel/s HDR
GPU	OpenGL ES 3.1/3.0 / Vulkan / OpenCL	Audio	≤ 6, synchronous audio interfaces (SAI), supporting I2S/AC97/TDM
Display	HDMI2.0a 3840×2160@30Hz,LVDS 1920×1200@60Hz, MIPI-DSI 2560x1440, supporting simultaneous output of 3 screens 2x 1080p60 + 1x 4kp30（HDMI）
Video Coder	Hardware decoding 1080p60 HEVC/H.265/VP9/AVC/H.264, encoding 1080p60 AVC/H.264/HEVC/H.265

Application Areas

Machine Learning and Vision
Advanced Multiproduct_catalog Processing
High Reliability Industrial Automation
Smart City, Industrial Internet, Smart Healthcare, Smart Transportation

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

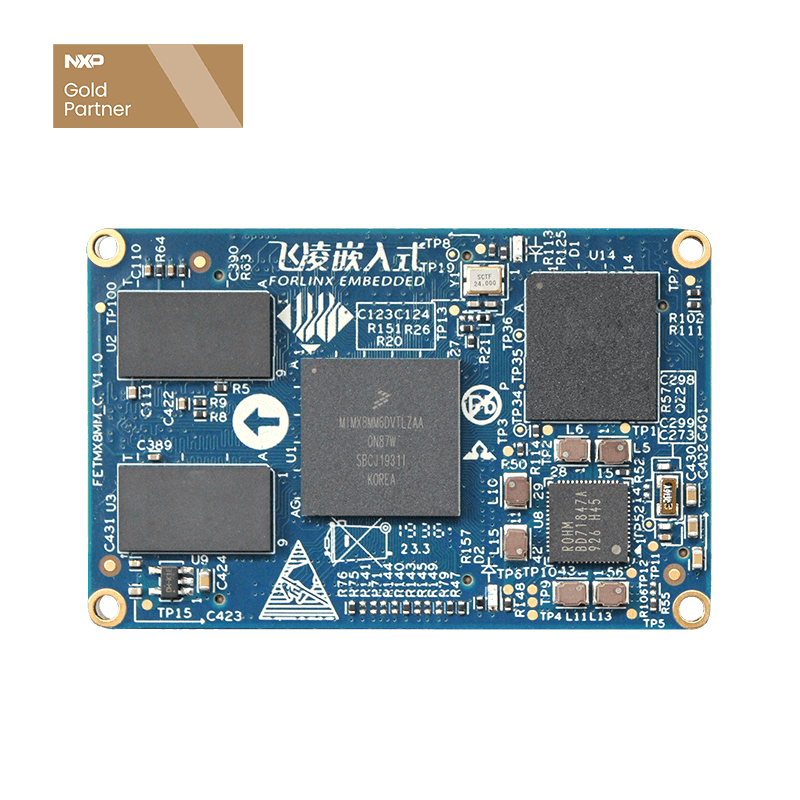

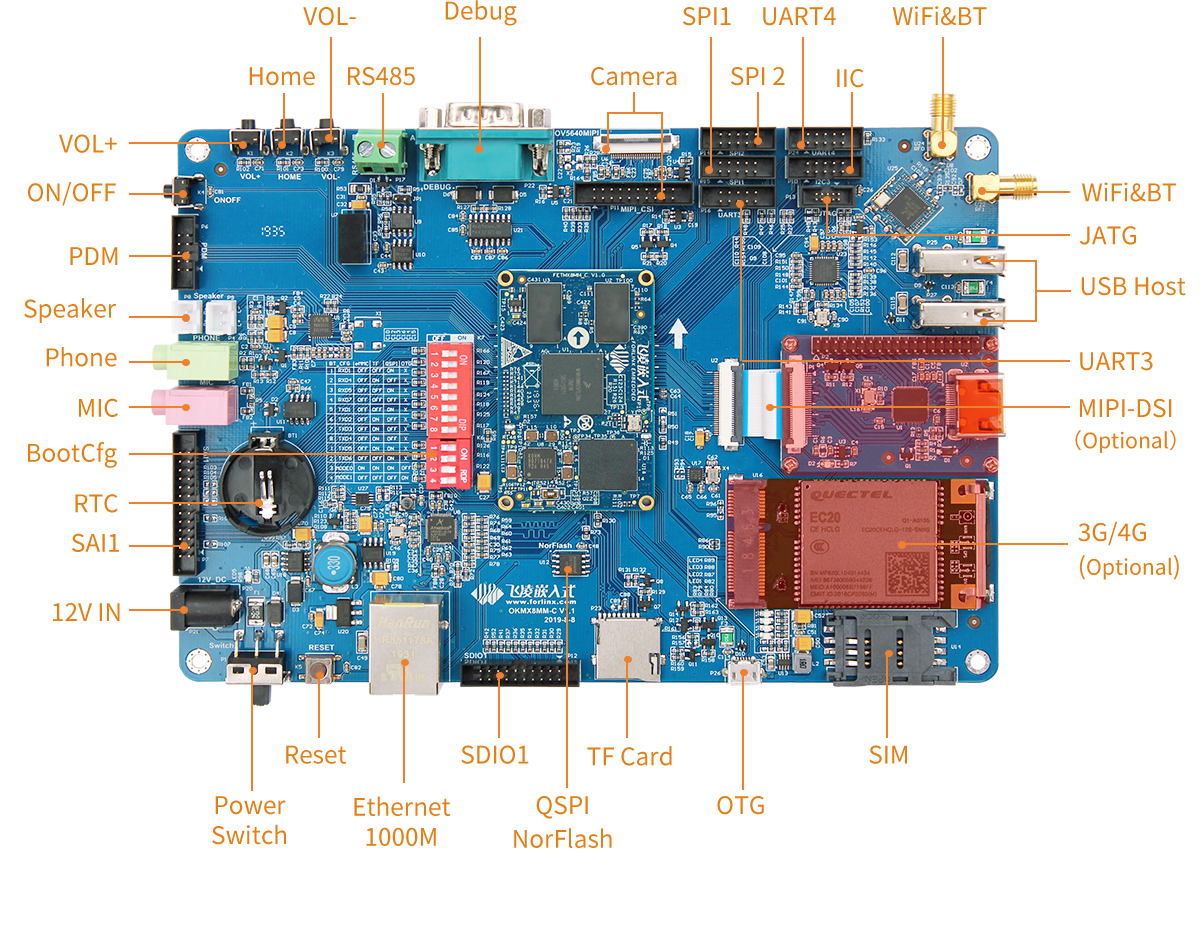

FET-MX8MM-C SoM

FETMX8MM-C	OKMX8MM-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX8M Mini	Display	1 x 4-wire MIPI-DSI
Architecture	4×Cortex-A53 + Cortex-M4	SAI	≤ 5
Clock	≤1.8GHz	UART	≤ 4
RAM	2GB DDR4	IIC	≤ 4
ROM	8GB eMMC	eCSPI	≤ 3
OS	Linux 4.14.78 / Android 9.0	FlexSPI	1 x
Working Voltage	5V	Camera	1 x 4-wire MIPI-CSI
Operating Temperature	0℃~+70℃ / -40℃~+85℃	SD/SDIO	≤ 2
Connection	Board to board connector (3 x 80Pin 0.5mm spacing )	USB	2 x USB 2.0, all configured as OTG
Mechanical Dimensions	56mm x 36mm	PCIe	1 x PCIe 2.0
Power Management	BD71847AMWV-E2	PWM	≤ 4
GPU	3D: GC NanoUltra / 2D: GC320	JTAG	1 x
Video Coder	1080p60 H.265, VP9, H.264, VP8, Hardware decoding/hard encoding	PDM	1 x
Ethernet	1 x 10/100/1000Mbps self-adaptive

Application Areas

HMI
Streaming product_catalog Playback
Machine Learning
Industrial Control and Automation

🌐 Product Page 🎬 Video ✉️ Contact Us

FETMX6Q-C / FETMX6DL-C SoM

FETMX6Q-C / FETMX6DL-C	OKMX6Q-C / OKMX6DL-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6Quad / i.MX6Dual Lite	UART	≤ 5
Architecture	4×Cortex-A9 / 2×Cortex-A9	CAN	≤ 2
Clock	1 GHz	IIC	≤ 3
RAM	1GB DDR3（optional 2GB）	SPI	≤ 5
ROM	8GB eMMC	EIM	32-bit data bus, 27 bit address bus
OS	Android 4.4.2 / Android 6.0 / Linux3.0.35 / Linux4.1.15	Camera	1 x DVP, 1 x MIPI CSI
Working Voltage	4.2V	SD/MMC/SDIO	≤ 3
Operating Temperature	-40℃~+85℃ / 0℃~+70℃	USB	1 x USB 2.0 Host, 1 x USB 2.0 OTG
Connection	Board to board connection （4 x 80Pin, 0.5mm spacing）	SATA	1 x（only FETMX6Q-C）
Mechanical Dimensions	40mm x 70mm	PCIe	1 x
Battery Management	MMPF0100NPEP	PWM	≤ 3
GPU	Vivante GC355 / Vivante GC320	MLB	1 x product_catalog Local Bus
Video Coder	Hardware encoding	SPDIF	1 x
Display	1 x RGB 24 bit, 2 x single 8-bit LVDS, 1x HDMI	JTAG	1 x
IIS	≤ 4	EINT/GPIO	Support
Ethernet	1 x 10/100/1000Mbps self-adaptive

Application Areas

Rich Multiproduct_catalog Function, Powerful Encoding & Decoding;
Industrial Control, Medical, Multiproduct_catalog, Security, Automotive, Finance, etc.

🌐 Product Page ✉️ Contact Us

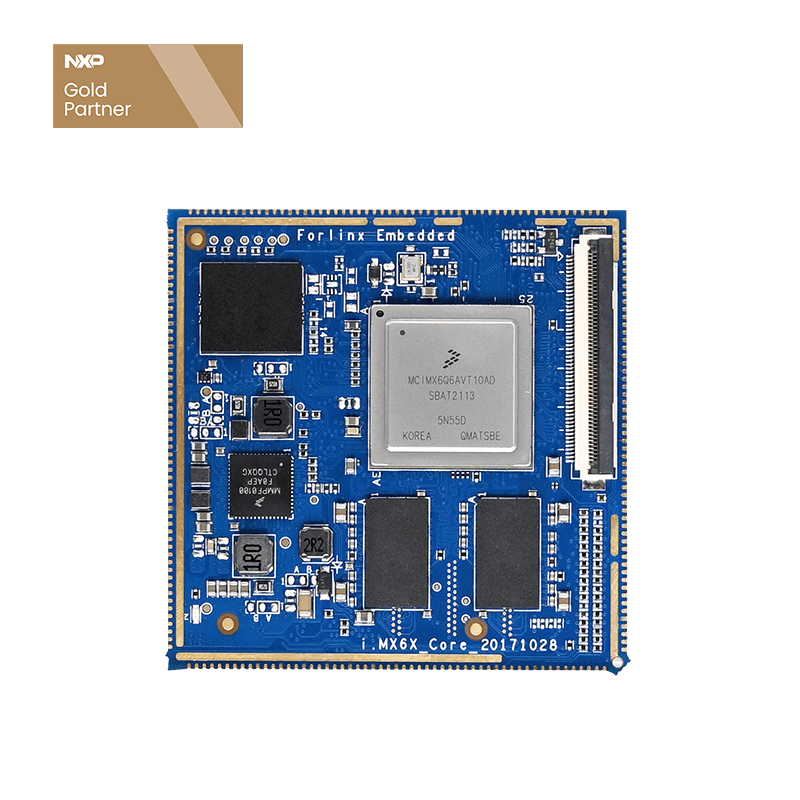

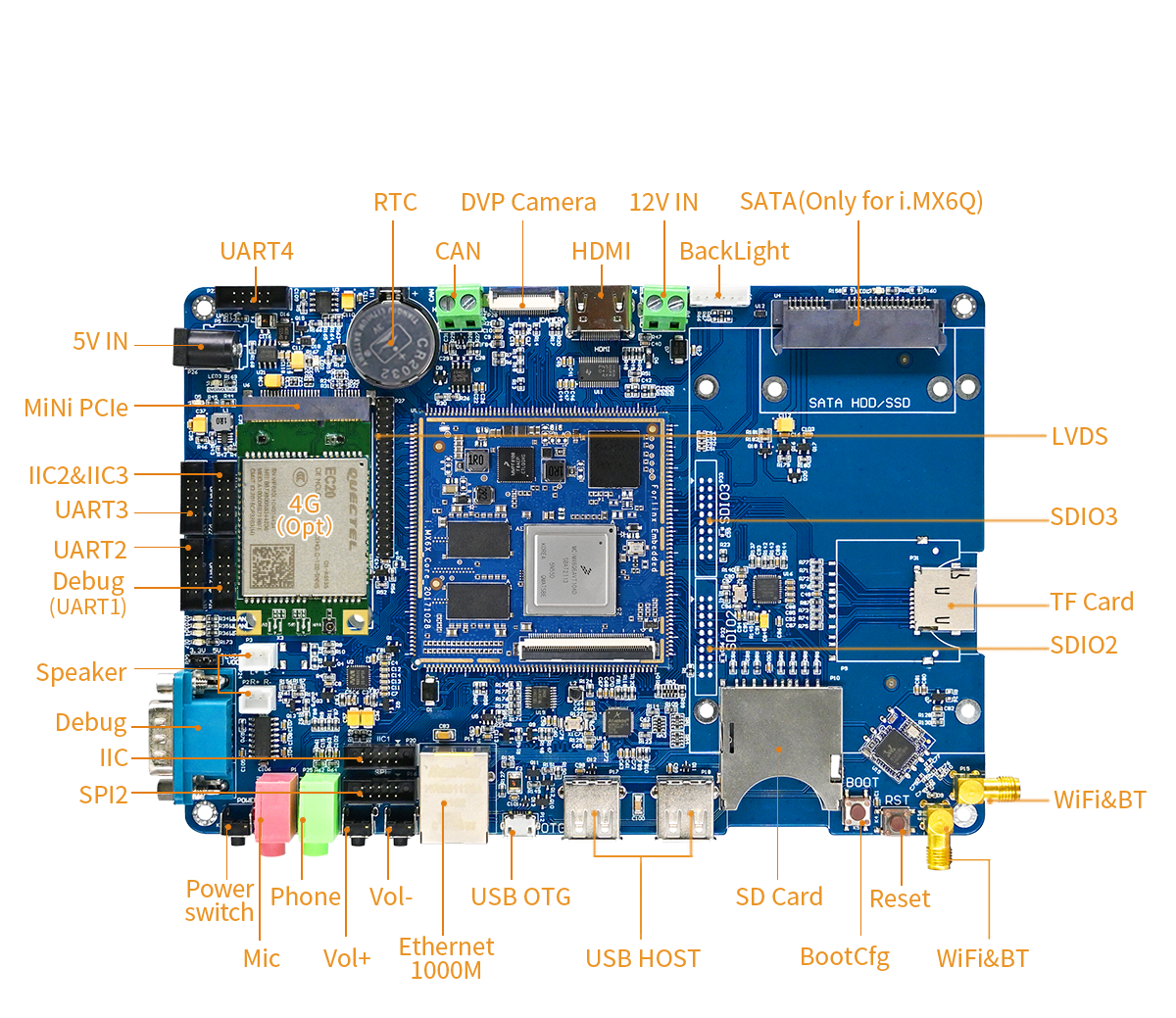

FETMX6Q-S / FETMX6DL-S SoM

FETMX6Q-S / FETMX6DL-S	OKMX6Q-S / OKMX6DL-S

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6Quad / i.MX6Dual Lite	Display	1 x RGB 24 bit, 2 x 8 bit LVDS, 1 x HDMI
Architecture	4 × Cortex-A9 / dual-core Cortex-A9	IIS	1 x
Clock	1 GHz	Ethernet	1 x 10/100/1000Mbps self-adaptive
RAM	1GB DDR3（optional 2GB）	UART	≤ 4
ROM	8GB eMMC	CAN	≤ 2
OS	Android4.4 / Android6.0 / Linux3.0.35 / Linux4.1.15	IIC	≤ 3
Working Voltage	4.2V	SPI	≤ 2
Operating Temperature	-40℃~+85℃ / 0℃~+70℃	Camera	1 x DVP
Connection	Stamp-hole（220Pin, 1mm spacing）	SD/MMC/SDIO	≤ 2
Mechanical dimensions	60mm x 60mm	USB	1 x USB 2.0 Host, 1 x USB 2.0 OTG
Battery Management	MMPF0100NPEP	SATA	1 x（Only FETMX6Q-S）
GPU	Vivante GC355 / Vivante GC320	PCIe	1 x
Video Coder	Hardware Encoding	EINT/GPIO	Support

Application Areas

Rich Multiproduct_catalog Functions, Powerful Encoding and Decoding;
Industrial Control, Medical, Multiproduct_catalog, Security, Automotive, Finance, etc.

🌐 Product Page ✉️ Contact Us

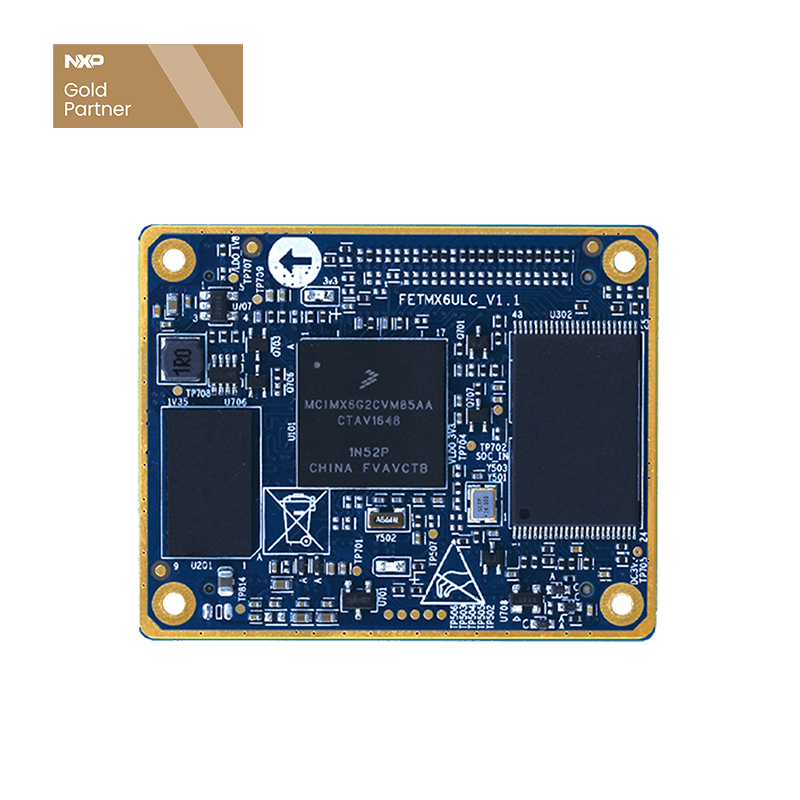

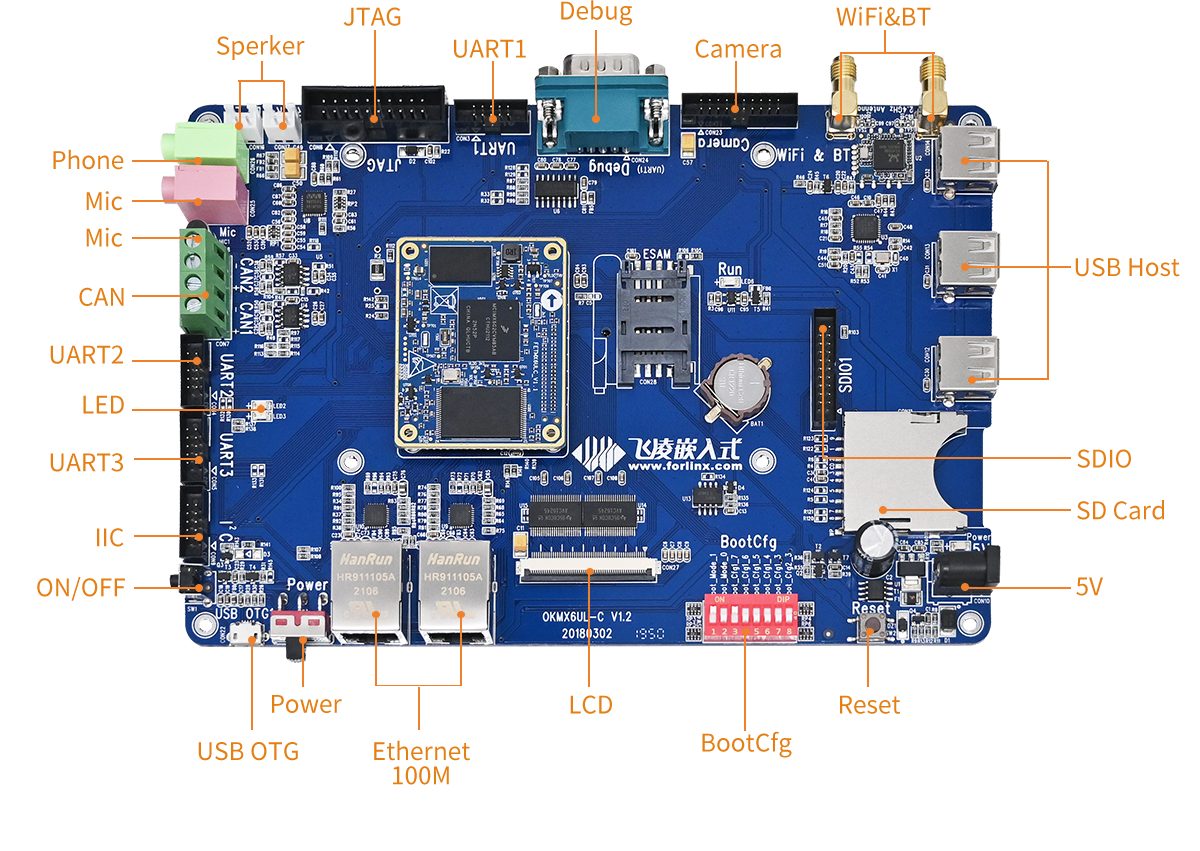

FETMX6UL-C SoM

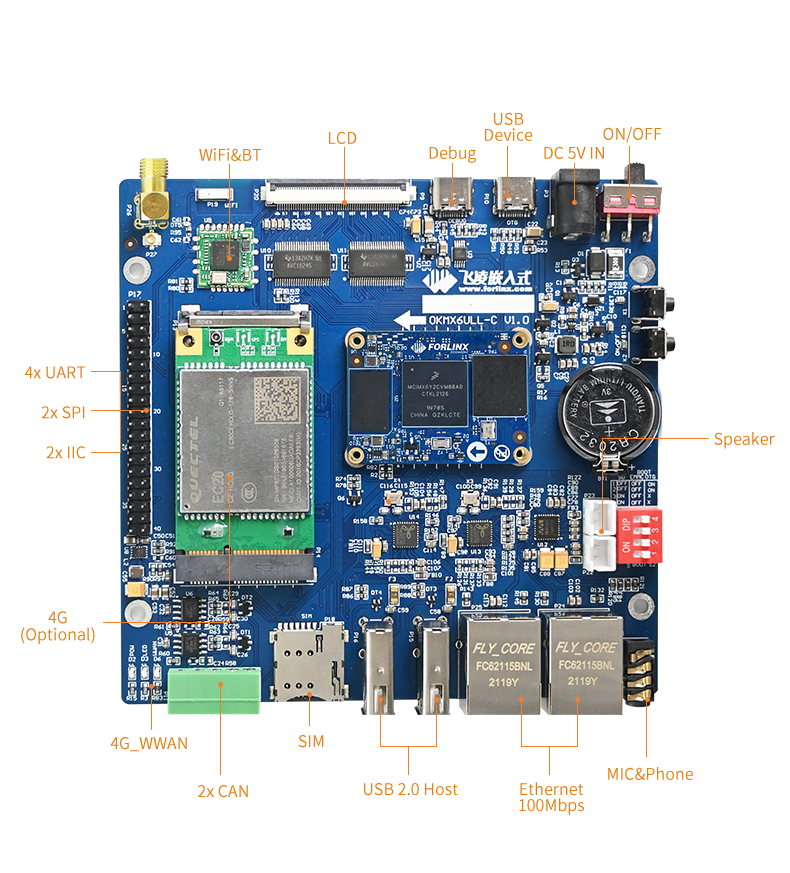

FETMX6UL-C	OKMX6UL-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6UltraLite	CAN	≤ 2
Architecture	Cortex-A7	IIC	≤ 4
Clock	528 MHz	SPI	≤ 4
RAM	256MB / 512MB	EIM	16-bit data bus, 16 bit address bus
ROM	256MB NandFlash /1GB /8GB eMMC	Camera	1 x DVP
OS	Linux3.14.38 / Linux4.1.15	SD/MMC/SDIO	≤ 2
Operating Temperature	-40℃~+85℃ / 0℃~+70℃	USB	2 x USB 2.0 OTG
Working Voltage	5V	PWM	8 x
Connection	Board to board connector（2 x 80Pin 0.8mm spacing）	SPDIF	1 x
Mechanical dimensions	40mm x 50mm	JTAG	1 x
Video Coder	Software encoding	EINT/GPIO	Support
Display	1 x RGB 24 bit	Keypad Port	1 x, supporting 8 × 8 matrix keyboard
IIS	≤ 3	ADC	≤ 10
Ethernet	2 x 10/100Mbps self-adaptive	QSPI	1 x
UART	8 x	ISO7816-3	≤ 2

Application Areas

SoM Version: Commercial Grade and Industrial Grade;
Vehicle, Industrial Control, Teaching, Electric Power, Communication, Finance, Smart home, Display Control Equipment, etc.

🌐 Product Page ✉️ Contact Us

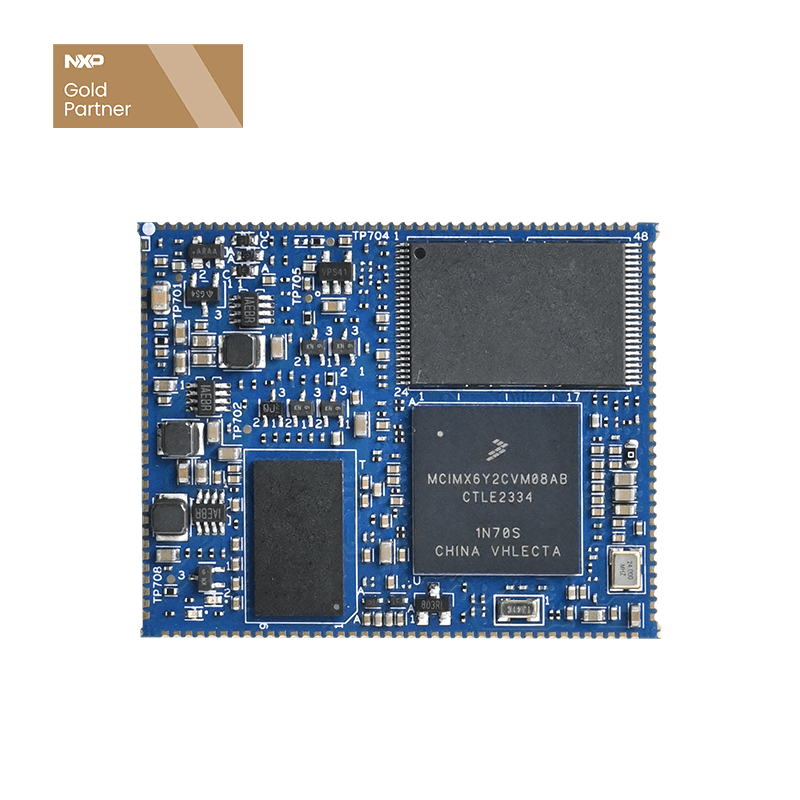

FETMX6ULL-S SoM

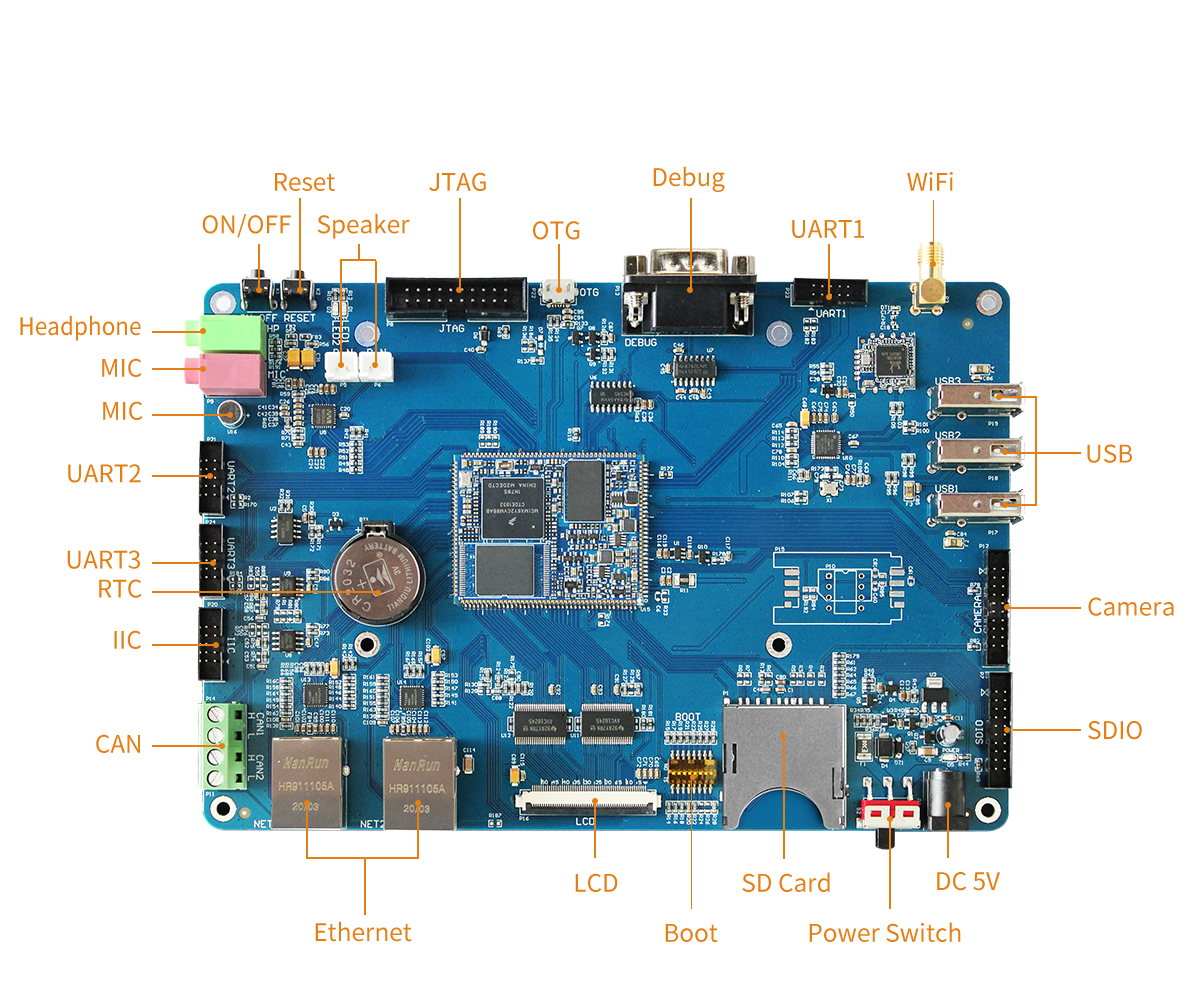

FETMX6ULL-S	OKMX6ULL-S

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6ULL	UART	≤8, each supports up to 5.0 Mbps
Architecture	Cortex-A7	eCSPI	≤ 4, supporting master/slave mode
Clock	800 MHz	I2C	≤4
RAM	256MB / 512MB	Camera	1 x, 8-bit DVP
ROM	256MB NandFlash / 8GB eMMC	SD/MMC/SDIO	≤2, supporting 1-bit or 4-bit transfer modes
OS	Linux4.1.15	USB	2 x, USB 2.0
Operating Temperature	-40℃~+85℃ / -25℃~+85℃	CAN	≤2, CAN 2.0B
Working Voltage	5V	Ethernet	≤2, 10/100Mbps self-adaptive
Connection	Stamp-hole	PWM	≤8, 16 bit
Mechanical Dimensions	44mm x 35mm	KeyPad Port	Supports 8 × 8 matrix keyboard
LCD	Supports up to RGB888, 1366×768@60Hz	ADC	≤10, 12-bit analog-to-digital converter (ADC)
SAI	≤3, supporting up to 3 x I2S Audio	SPDIF	1 x

Application Areas

IoT, Power, Medical Equipment, Environmental Monitoring, HMI, Smart Agriculture, Charging Piles

🌐 Product Page ✉️ Contact Us

FETMX6ULL-C SoM

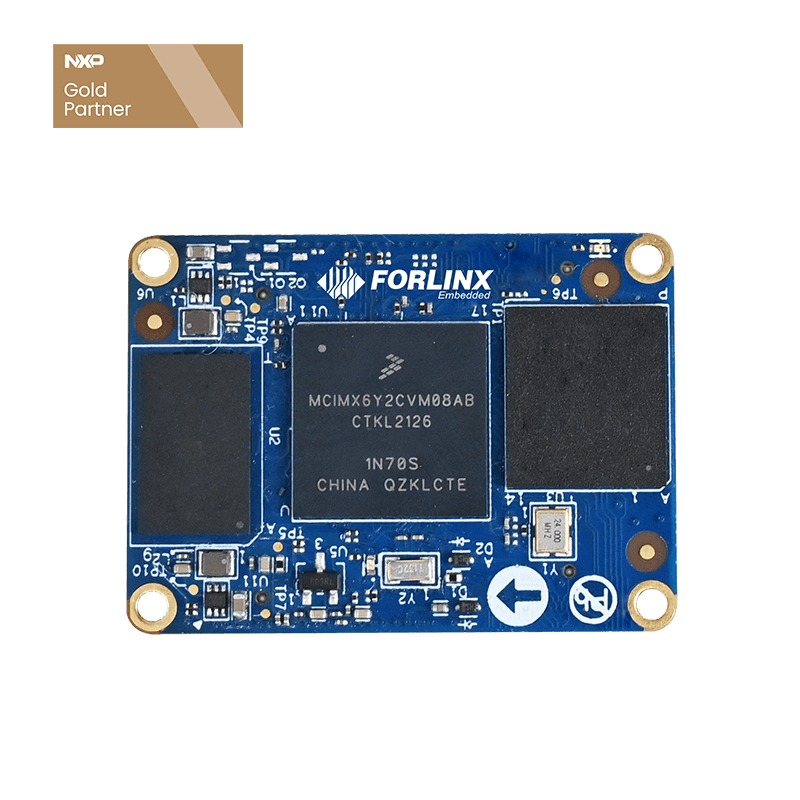

FETMX6ULL-C	OKMX6ULL-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6ULL	I2C	≤ 4
Architecture	Cortex-A7	SPI	≤ 4
Clock	800 MHz	CAN	≤ 2
RAM	512MB DDR3	USB	≤ 2
ROM	8GB eMMC	SD/MMC/SDIO	≤ 2
OS	Linux4.1.15	Ethernet	2 x 10/100 Mbps
Operating Temperature	-40℃~+85℃	UART/IrDA	8 x
Working Voltage	3.3V	EINT/GPIO	Support
Connection	Board to board connector （2×80pin 0.5mm spacing）	Video Coder	Software encoding
Mechanical Dimensions	29mm x 40mm	Camera	1 x 8-bit parallel interface (DVP)
LCD	RGB 24 bit, supporting up to WXGA 1366×768	PWM	8 x
Audio	≤ 3	ADC	≤ 10
eSAI	1 x	SPDIF	1 x
Keypad Port	8×8

Application Areas

Electric Power, Medical Care, Industrial Control and Automation, Smart Home, Consumer Electronics, Handheld Devices, Gateways, HMI, etc.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

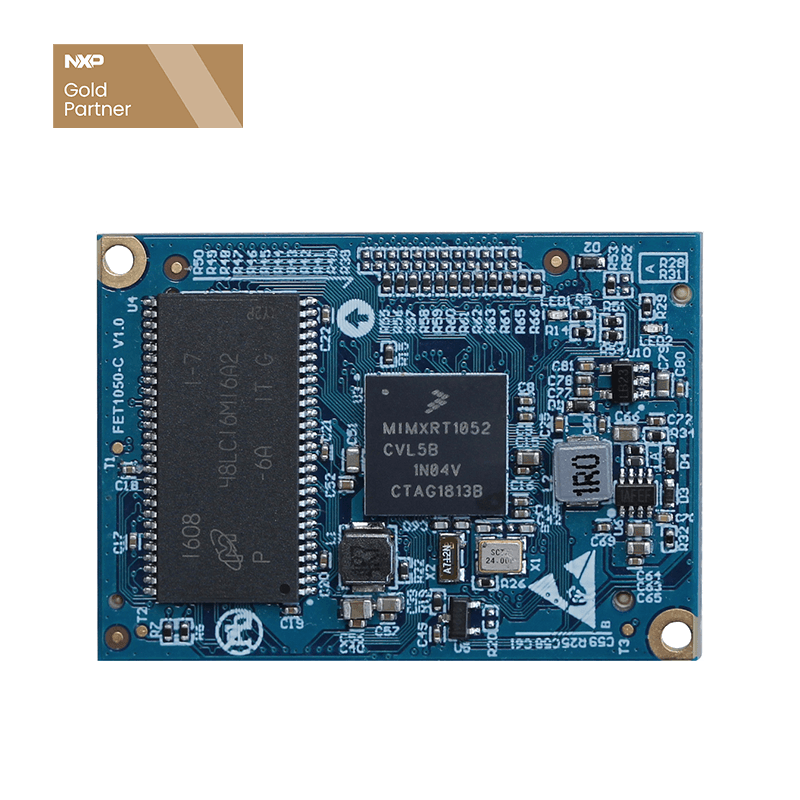

FET1052-C SoM

FET1052-C	OK1052-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX RT1052	UART	8 x
Architecture	Cortex-M7	CAN	≤ 2
Clock	528 MHz	IIC	≤ 4
RAM	SRAM 512KB; SDRAM 16MB/32MB	SPI	≤ 4
ROM	QSPI Nor Flash 4MB/16MB	Camera	1 x DVP
OS	uCLinux, FreeRTOS, RT-Thread, bare machine	SD/SDIO	≤ 2
Working Voltage	5V	USB	≤ 2
Operating Temperature	-40℃~+85℃	PWM	≤ 32
Connection	Board to board connector（2 x 80pin 0.8mm spacing ）	SPDIF	1 x
Mechanical Dimensions	31mm x 43mm	SWD	1 x
Display	1 x RGB	Keypad port	1 x, 8 × 8 matrix keyboard
SAI	≤ 3	ADC	20 x
Ethernet	1 x 10/100Mbps self-adaptive	QSPI	≤ 2

Application Areas

The SoM integrates high performance, low power consumption and ease of use;
It is widely used in PLC, motor control, indoor air conditioning systems, metering data concentrators, etc.

🌐 Product Page ✉️ Contact Us

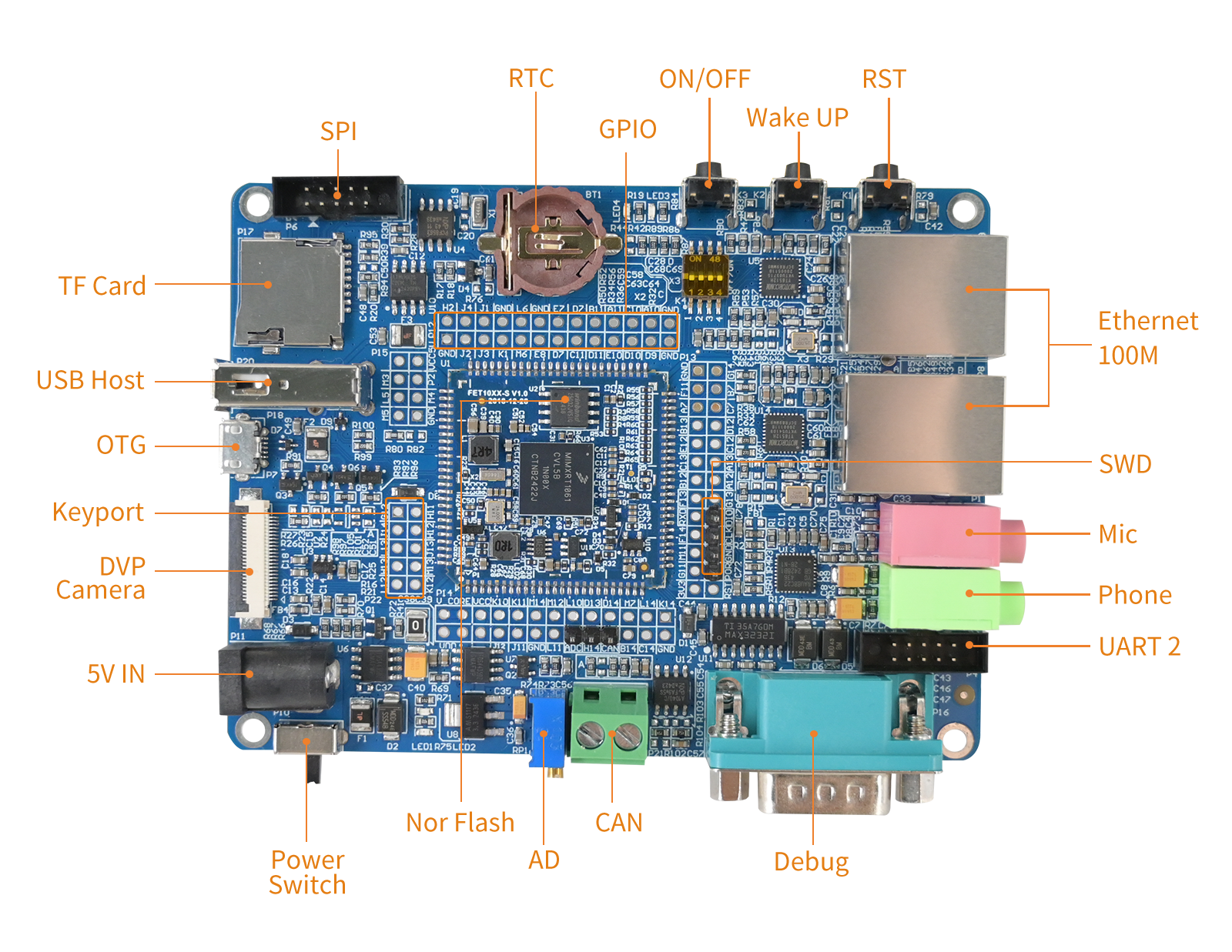

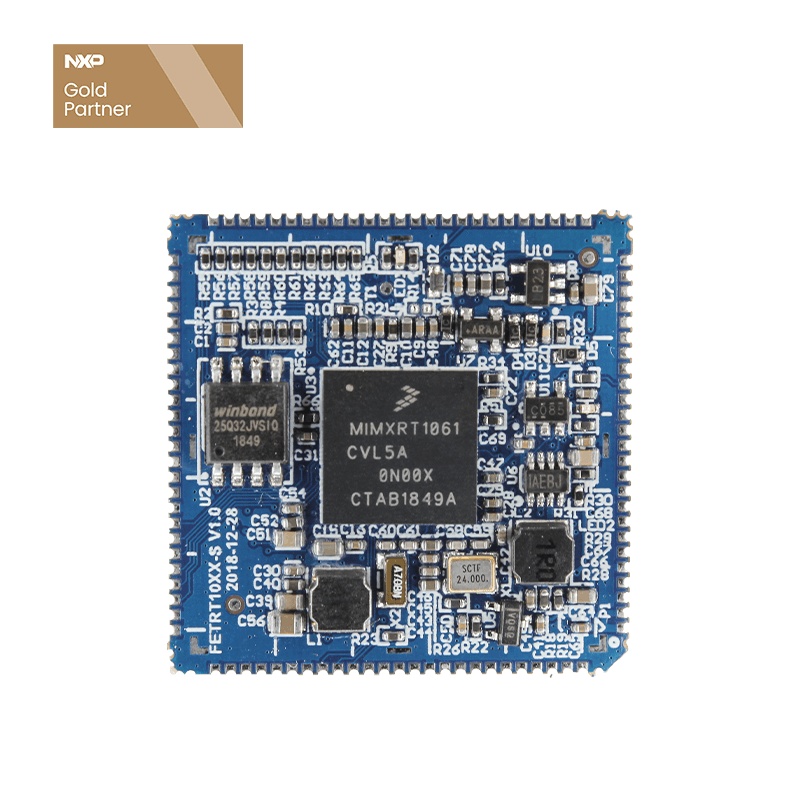

FET1061-S SoM

FET1061-S	OK1061-S

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX RT1061	CAN	≤ 2
Architecture	Cortex-M7	IIC	≤ 4
Clock	528 MHz	SPI	≤ 3
RAM	1MB On Chip SRAM	SD/SDIO	≤ 2
ROM	4MB（Optional 16MB）	USB	≤ 2
OS	FreeRTOS, RT-Thread, bare machine	PWM	≤ 26
Working Voltage	5V	SPDIF	1 x
Operating Temperature	-40℃~+85℃	SWD	1 x
Connection	Stamp-hole（4 x 25pin, 1.0mm spacing）	Keypad port	1 x , 8 × 8 matrix keyboard
Mechanical Dimensions	30mm x 30mm	ADC	20 x
SAI	≤ 2	QSPI	1 x
Ethernet	2 x, 10/100Mbps self-adaptive	CAN FD	1 x
UART	7 x	HS-GPIO	≤ 32

Application Areas

High Performance, High Scalability;
Drones, Motion Control and Robotics, Intelligent Lighting, Commercial Solar Inverters, etc.

🌐 Product Page ✉️ Contact Us

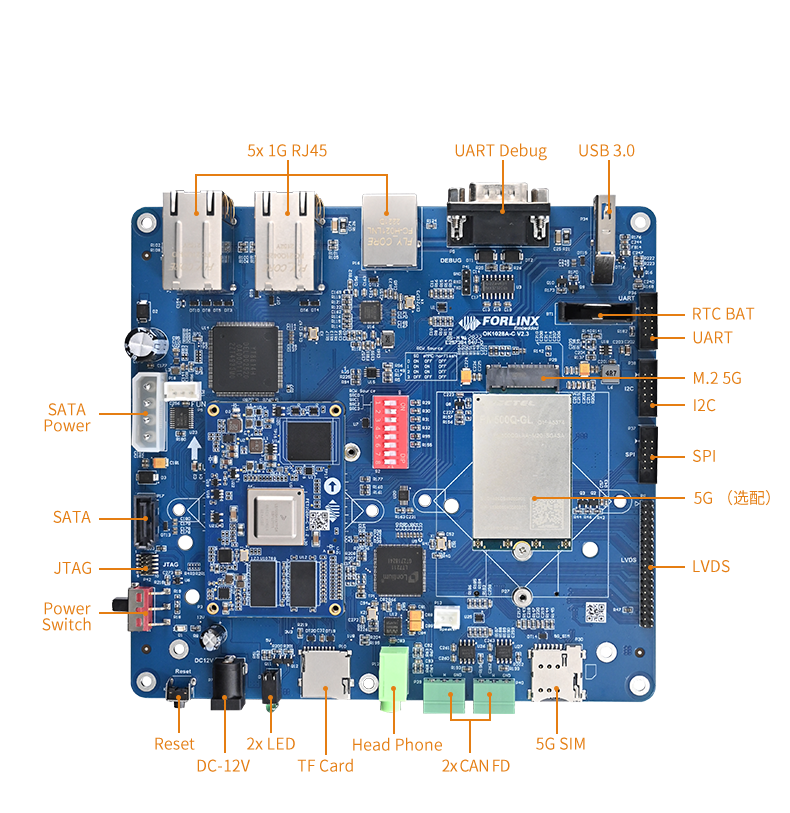

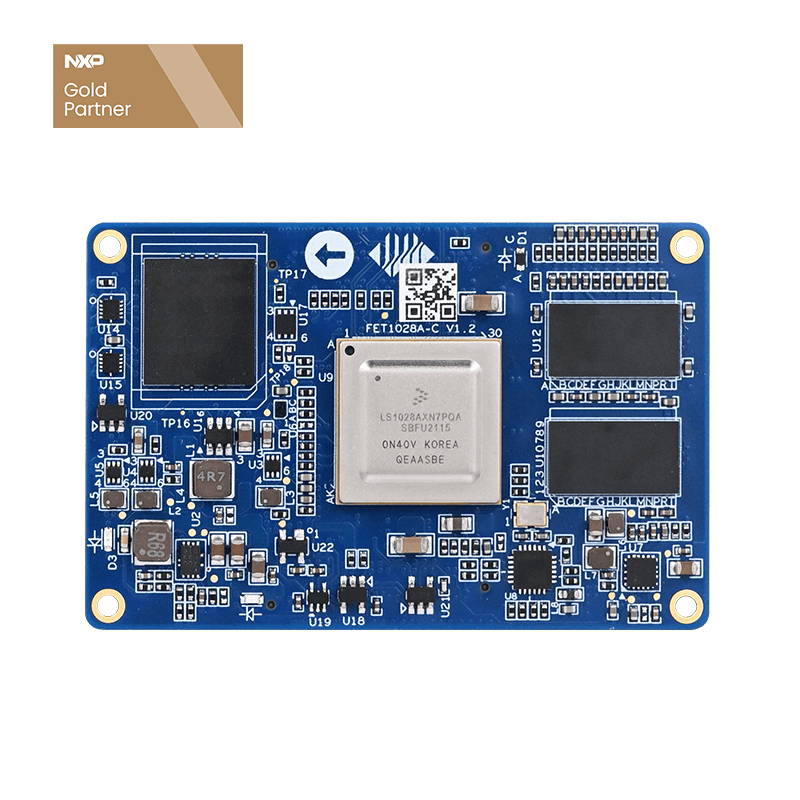

FET1028A-C SoM

FET1028A-C	OK1028A-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP LS1028A	eSDHC	≤1, supporting SD3.0
Architecture	2×Cortex-A72	Ethernet	≤6, the CPU has 6 x native MAC and supports TSN.
Clock	1.5 GHz	PCIe3.0	≤ 2, the speed is up to 8GT/s
RAM	2GB DDR4	SATA3.0	≤1, the speed is up to 6Gbps
ROM	8GB eMMC	USB3.0	≤2, up to 5Gbps.
OS	Ubuntu 20.04	UART	≤4, supporting 1 x DUART or 4 x UART
Power supply	DC 12V	CAN FD	≤2
Operating Temperature	-40℃~+85℃	IIC	≤6
Connection	Board to board connector （2 x 80Pin, 0.5mm spacing ）	SPI	≤2
Mechanical Dimensions	42mm x 65mm	IIS	≤6
Display Port	≤1, supporting DP1.3 and eDP1.4, up to 4Kp60	SerDes	1 x 4Lane SerDes, can be configured multiple combinations

Application Areas

Industrial Routers TSN, SD-WAN, 5G CPE, Edge Computing Gateway IP-PBX.

🌐 Product Page ✉️ Contact Us

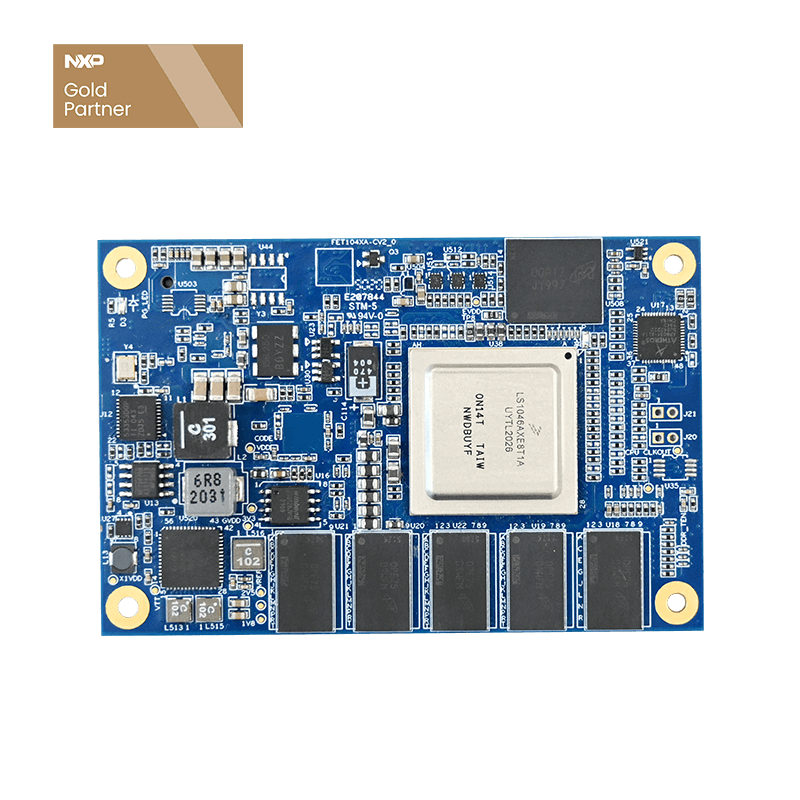

FET1046A-C SoM

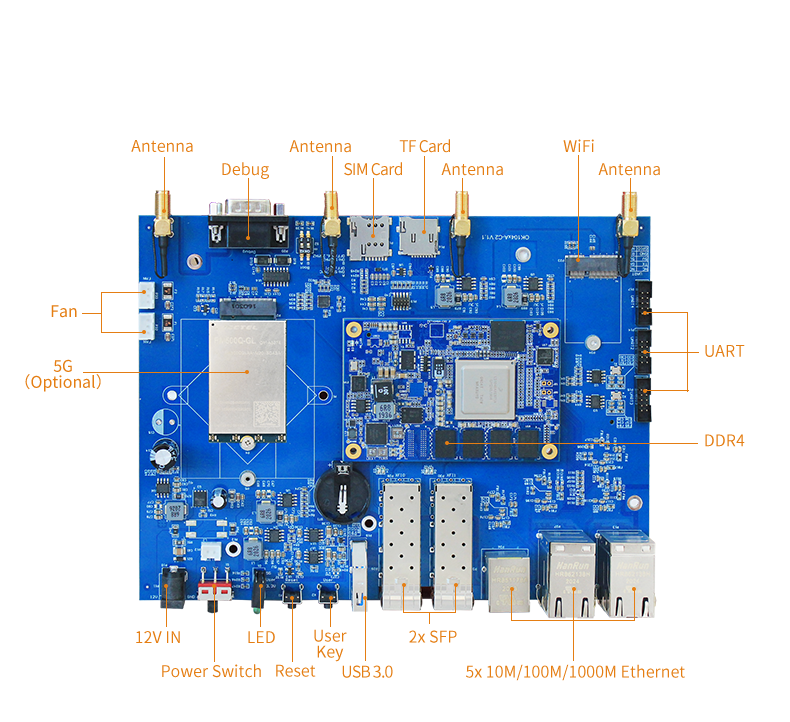

FET1046A-C	OK1046A-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP LS1046A	Mechanical dimensions	84mm x 55mm
Architecture	4×Cortex-A72	Ethernet	≤ 8, CPU with 8 x native MAC, can be combined as follows: • 8 x 1Gbps • 1 x 10Gbps+7 x 1Gbps • 2 x 10Gbps+5 x1Gbps
Clock	≤1.8GHz	PCIe3.0	≤ 3, configured through SerDes, supporting x1/x2/x4, with a maximum of 8GT/s per channel
RAM	2GB/4GB DDR4	SATA3.0	≤1, configured with SerDes, up to 6Gbps
ROM	8GB emmc, 16MB QSPI, NorFlash	USB3.0	≤3, up to 5Gbps
OS	Ubuntu-18.04.1 / OpenWrt v18.06.0-rc2	UART	≤4, 1 x is Debug serial port
Working Voltage	12V	IIC	≤2
Operating Temperature	-40℃~+75℃	eSDHC	≤1, supporting SD3.0 / EMMC4.5, can be used as a card starting or flashing system
Connection	COM Express（220pin, 0.5mm spacing）	JTAG	Supports the official NXP Code Warrior TAP debugger
SerDes	8 x high-speed interface channel （SATA 3.0 / SGMII / XFI / QSGMII / PCIe 3.0）

Application Areas

Smart Light Poles, Industrial Safety, Information Security, Intelligent Transportation, Energy IoT, Smart Cities, Video Control, etc.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

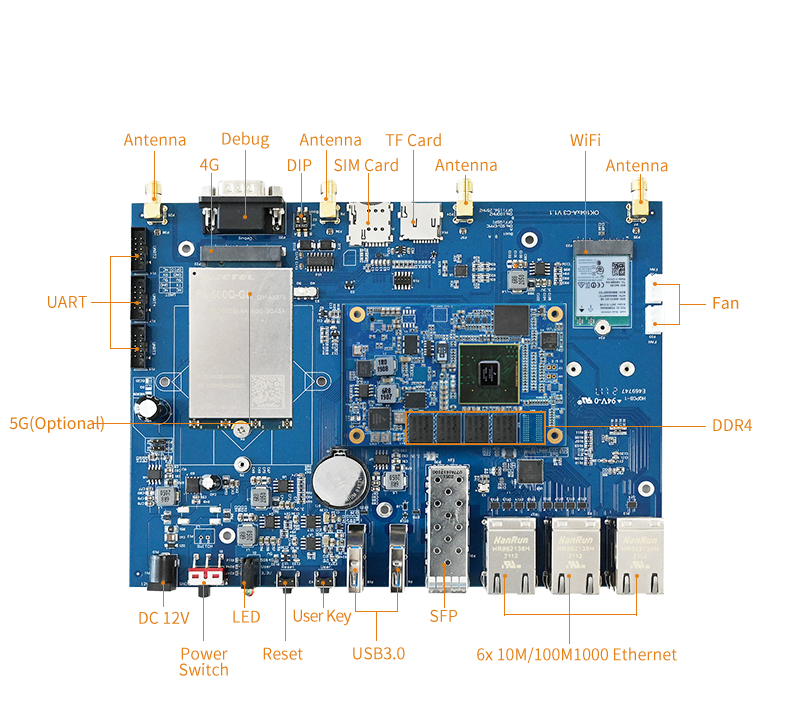

FET1043A-C SoM

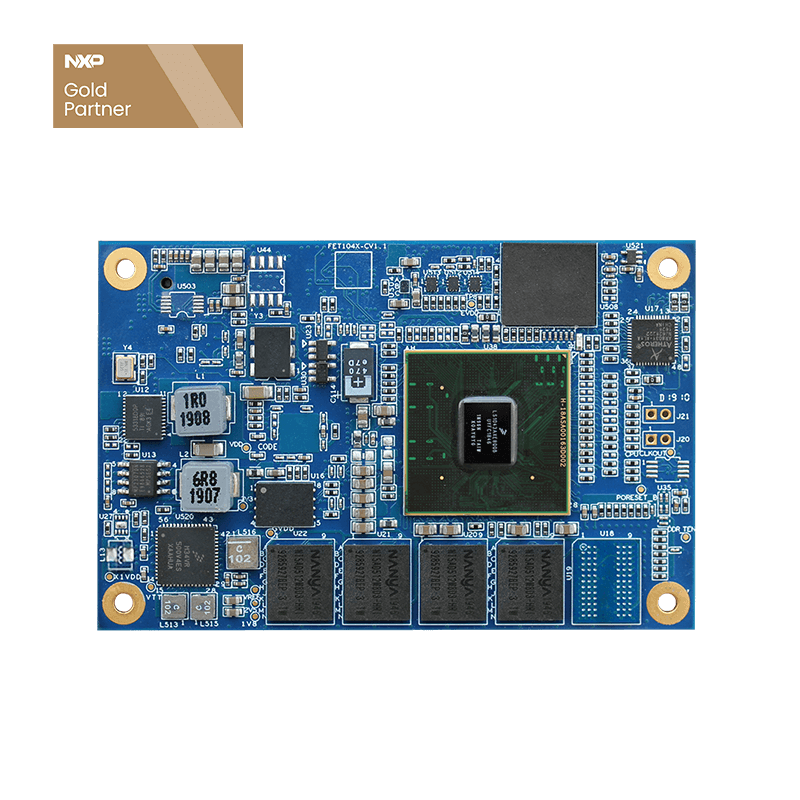

FET1043A-C	OK1043A-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP LS1043A	Mechanical dimensions	84mm x 55mm
Architecture	4× Cortex-A53	Ethernet	≤7, CPU with 7 x native MAC, up to 1 x 10Gbps + 6 x 1Gbps
Clock	≤1.6GHz	PCIe2.0	≤3, configured with SerDes, up to 5Gbps
RAM	2GB DDR4	SATA3.0	≤1, configured with SerDes, up to 6Gbps
ROM	8GB eMMC, 16MB QSPI, NorFlash	USB3.0	≤3, up to 5Gbps
OS	Ubuntu-18.04.1 / OpenWrt v18.06.0-rc2	UART	≤4, 1 x is Debug serial port
Working Voltage	12V	IIC	≤2
Operating Temperature	-40℃~+80℃	eSDHC	≤1, supporting SD3.0 / EMMC4.5, can be used as a card starting or flashing system
Connection	COMe（220pin,0.5mm spacing）	JTAG	Supports the official NXP Code Warrior TAP debugger
SerDes	4 x high-speed interface channel （PCIe 2.0 / SATA 3.0 / SGMII / XFI / QSGMII）

Application Areas

Industrial Routers, Edge Computing Gateways, IP - PBX, Edge Computing, Energy IoT, Smart Cities, Industrial Automation

🌐 Product Page ✉️ Contact Us

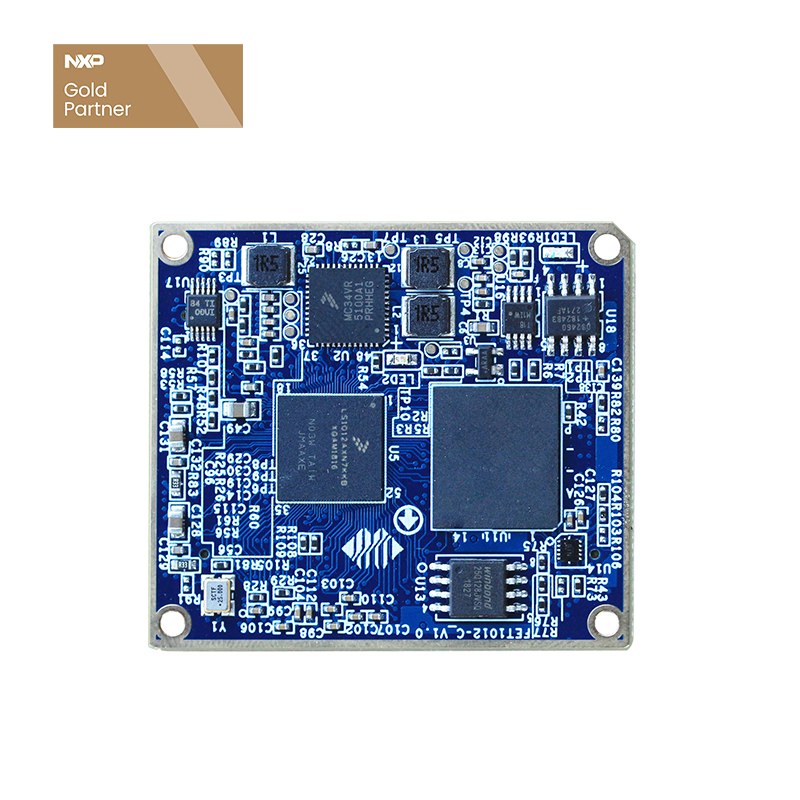

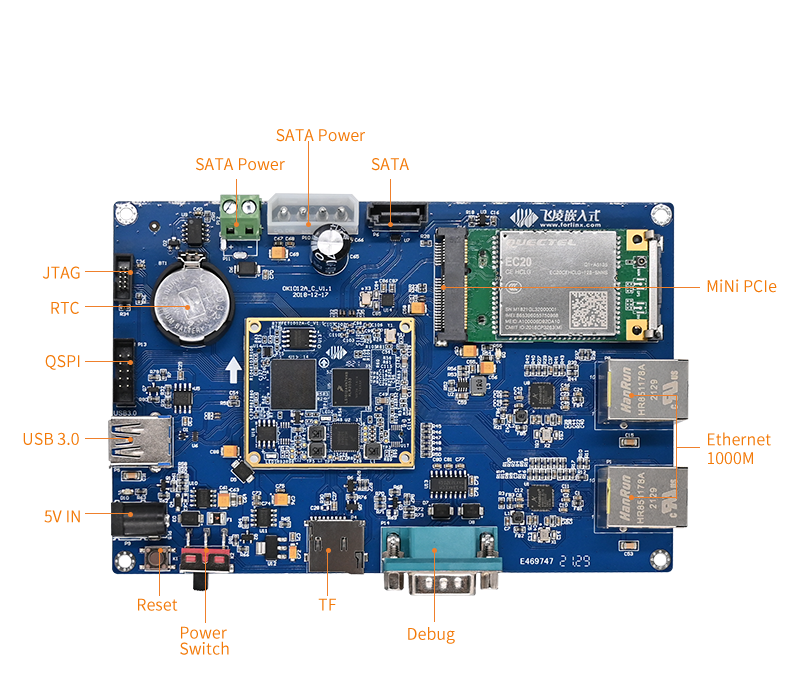

FET1012A-C SoM

FET1012A-C	OK1012A-C

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP LS1012A	Ethernet	≤2, 10/100/1000Mbps
Architecture	Cortex-A53	PCIe2.0	≤ 1, up to 5Gbps, expandable Gigabit Ethernet or dual-band WiFi module
Clock	≤1GHz	SATA3.0	≤1, up to 6Gbps
RAM	512MB DDR3L	USB3.0	1 x, up to 5Gbps
ROM	8GB eMMC, 16MB QSPI, NorFlash	QSPI	1 x , SoM QSPI nor flash download program interface
OS	Ubuntu-18.04.1 / OpenWrt v18.06.0-rc2	SAI	≤5
Working Voltage	4.2V	UART	≤2, 1 x is debug serial port
Operating Temperature	-40℃~+80℃	IIC	≤1
Connection	Board to board connector	SDHC	1 x, supporting SD storage card
Mechanical Dimensions	45mm x 40mm	JTAG	1 x

Application Areas

NAS, IoT Gateway, Industrial Router, Industrial Automation, and Low-power Market Applications

🌐 Product Page ✉️ Contact Us

Rockchip Series System on Modules

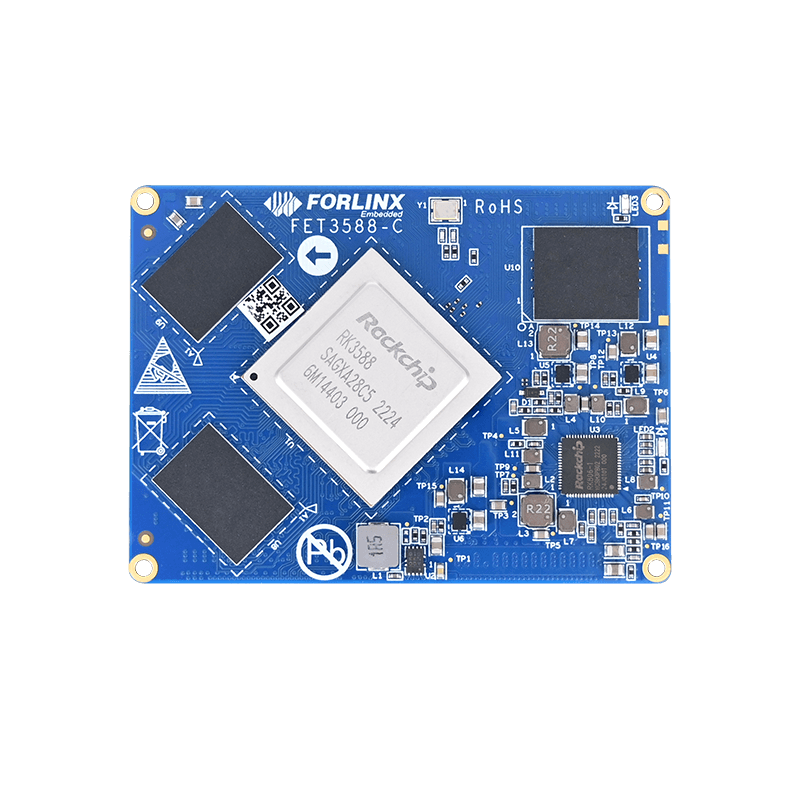

FET3588-C SoM

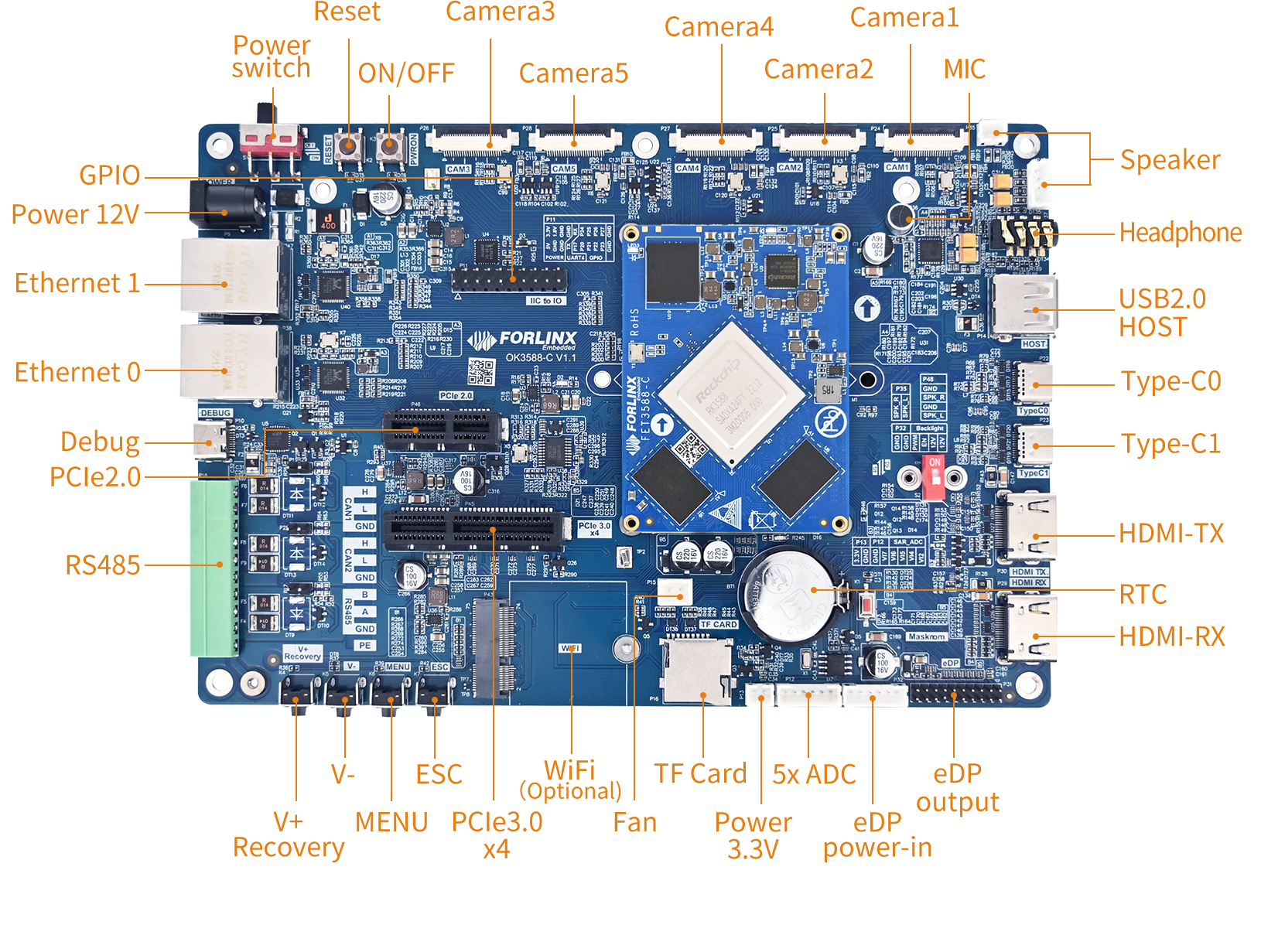

FET3588-C	OK3588-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Rockchip RK3588/RK3588J	GPU	Mali-G610 MP4,OpenGLES 1.1/2.0/3.2, OpenCL2.2, Vulkan1.2
Architecture	4 × Cortex-A76@2.4GHz + 4 × Cortex-A55@1.8GHz	NPU	6TOPS, supporting INT4/INT8/INT16/FP16 mixing operation
RAM	4GB/8GB LPDDR4x	ROM	32GB/64GB eMMC
VPU	Hardware decoding: H.265/VP9 up to 8K@60fps, H.264 up to 8K@30fps, AV1 up to 4K@60fps; Hardware encoding H.265/H.264 up to 8K@30fps	OS	Android 12, Ubuntu 20.04, Linux 5.10.66
Working Voltage	12V	Connection	Board to board connector （4x100pin, pin pitch 0.4mm）
Structural Dimensions	50 x 68 mm	Operating Temperature	0℃~+80℃ / -20℃~+85℃ / -40℃~+85℃
Flashing Method	TF card, USB OTG	MIPI DC PHY	Supports DPHY or CPHY. For 4 - channel MIPI DPHY V2.0, the maximum speed per line is 4.5Gbps. For 3 - channel MIPI CPHY V1.1, the maximum speed per line is 2.5Gbps.
MIPI CSI DPHY	2 - channel MIPI DPHY V1.2. Every 2 lanes can be combined into 4 - lane DPHY.	DP TX	Supports 2 DP TX 1.4a interfaces, with a resolution of up to 8192x4320@30Hz, and supports HDCP2.3/1.3.
DVP	8/10/12/16 - bit standard DVP interface, with a maximum frequency of 150MHz, and supports BT.601/BT.656/BT.1120 VI interfaces.	MIPI DSI	Supports 2 MIPI DPHY 2.0 or CPHY 1.1, with dual - display in left - right mode, and supports RGB/YUV.
HDMI RX	Supports HDMI 2.0/1.4b, with HDCP1.3/1.4/2.3.	BT.1120 Output	Supports 8bit RGB format, with a maximum frequency of 150MHz and a resolution of 1920x1080@60Hz.
Ethernet	2 x GMAC, providing RGMII / RMII, and supporting data transmission of 10/100/1000Mbps.	SATA	3 x SATA3.0 controllers, supporting PCIe2.0, USB HOST2, and eSATA 6Gbps.
UART	It has 2 x built - in 64bit FIFO for TX/RX, supporting the sending and receiving of 5/6/7/8 - bit serial data. All 10 x UART support automatic flow control.	CAN	Supports 3 x CAN 2.0B, and supports standard frames and extended frames.
SDIO	Supports SDIO3.0	USB 2.0	2 x USB2.0 Host + 1 x USB2.0 OTG
PCIe3.0	2 x PCIe3.0, 1x2 Lanes or 2x1 Lane, with a maximum speed of 8Gbps per Lane, and only supports RC mode.	PWM	16 x, 32bit timers/counters.
I2C	5 x, supporting 7bits/10bits address modes, up to 1 Mbit/s.	Display	Supports simultaneous output of three channels of RGB, LVDS, MIPI DSI, HDMI, and eDP.

Application Areas

The FET3588 - C SoM has undergone rigorous testing and provides stable performance support for high - end applications;
AGV, Edge Computing, Smart Large - screen Displays, High - end Tablets, Intelligent NVR, Visualization Gateways.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

FET3568-C SoM

FET3568-C	OK3568-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Rockchip RK3568/RK3568J	GPU	Mali-G52-2EE, OpenGL ES 1.1/2.0/3.2, Vulkan1.0/1.1, OpenCL2.0
Architecture	4 × Cortex-A55@2.0/1.8GHz	NPU	1TOPS, supporting INT8/INT16/FP16/BFP16 mixing operation.
RAM	1/2/4/8GB DDR4（standard configuration 2GB）	ROM	8/16/32GB eMMC
VPU	Hardware decoding: H.264/H.265/VP9 up to 4096 x 2304@60fps, VP8 up to 1920 x 1088@60fps, VC1/MPEG-4/MPEG-2/MPEG-1 up to 1920x1088@60fps, H.263 up to 720x576@60fps; Hardware encoding H.264/H.265 up to 1920x1080@60fps	OS	Linux 4.19/5.10, Android11, Ubuntu, Debian, OpenHarmony4.1
Working Voltage	5V	Connection	Board to board connector （4 x 80pin 0.5mm spacing ）
Structural Dimensions	45 x 70 mm	Operating Temperature	0℃~+80℃ / -40℃~+85℃
Audio	4 x, 1x8ch I2S/TDM, 2x2ch I2S, 1x8ch PDM	Camera	2 x, supporting 1 x DVP + 1 x 4 Lanes MIPI-CSI
SDIO	2 x, supporting SDIO3.0, up to 104MB/s	Ethernet	2 x GMAC, RGMII/RMII
USB 2.0	2 x, 1 x Host + 1 x OTG	USB 3.0	2 x, 1 x Host + 1 x OTG
SATA	3 x SATA3.0, up to 6Gb/s, supporting eSATA	PCIe2.1	1 x PCIe2.1 x1, up to 5Gbps RC mode
PCIe3.0	2 x, 1x2 Lanes or 2x1 Lane, each Lane up to 8Gbps, supporting RC/EP mode	CAN	3 x CAN 2.0B
SPI	4 x, supporting master-slave mode, software configurable	PWM	16 x, 32bits timer/counter
I2C	5 x I2C, supporting 7bits/10bits address modes, up to 1 Mbit/s.	Display	Supports simultaneous output of three channels of RGB, LVDS, MIPI DSI, HDMI, and eDP.

Application Areas

The FET3568-C SoM has comprehensive advantages of high performance, low cost, multi-function, and industrial grade;
Industry, Medical, Power, Vehicle Transportation, Environmental Monitoring, Security, New energy, and Communication.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

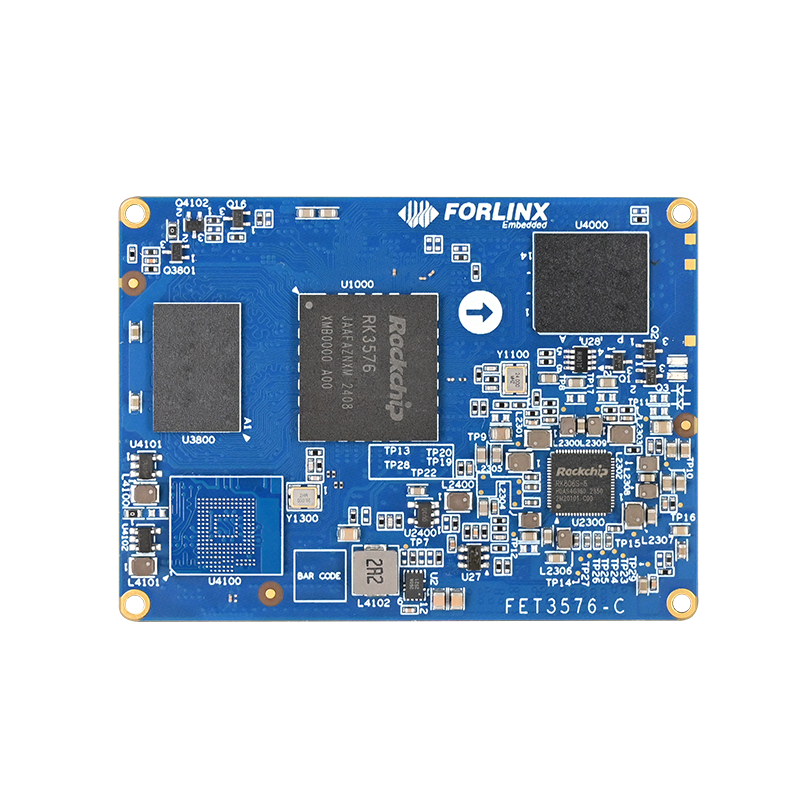

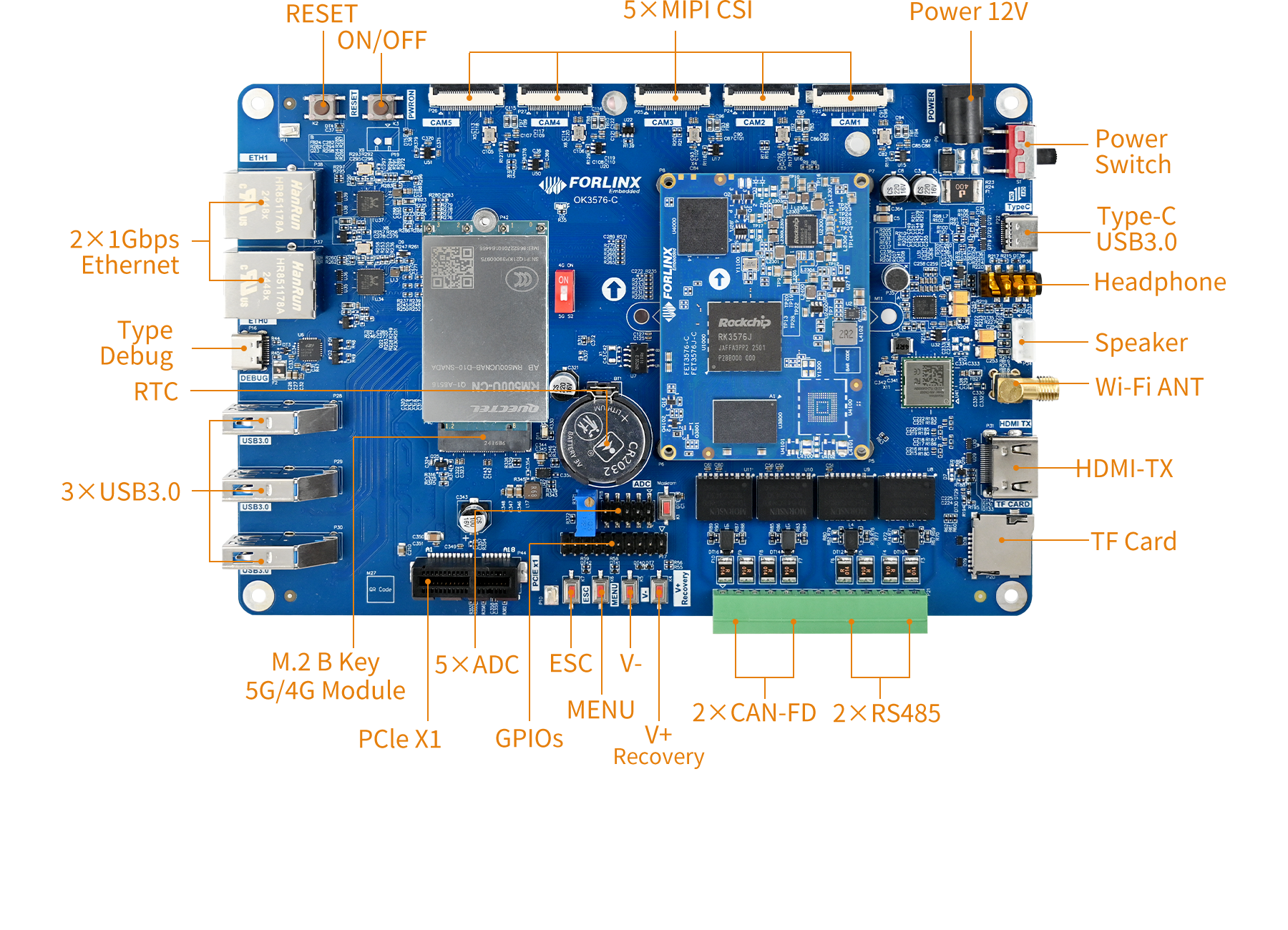

FET3576-C SoM

FET3576-C	OK3576-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Rockchip RK3576	GPU	Mali GPU + NPU 6 TOPS
Architecture	4 × Cortex-A72 + 4× Cortex-A53	NPU	6 TOPS, supporting INT8/FP16
RAM	2/4GB LPDDR4	ROM	32GB eMMC
VPU	Supports H.264/H.265/VP9 4K video decoding	OS	Linux 6.1 / Android / Ubuntu / Debian
Working Voltage	12V	Connection	Board to board connector（4×100pin）
Structural Dimensions	68×50 mm	Operating Temperature	0℃~+70℃ / -40℃~+80℃
Audio	5 x SAI, supporting I2S/TDM/PCM	Camera	5 × MIPI-CSI
USB	3 × USB3.0, Type-C supports DP AltMode	Ethernet	2× 1Gbps
PCIe	1 x PCIe2.1/SATA combo	CAN-FD	≤ 2
I2C	≤ 10	UART	≤ 12
SPI	≤ 5	Display	HDMI 2.1 / eDP 1.3 / MIPI-DSI / EPaper / RGB / LVDS

Application Areas

Industrial, AIoT, Edge Computation, Smart Mobile Terminal;
Digital Multiproduct_catalog Related Application

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

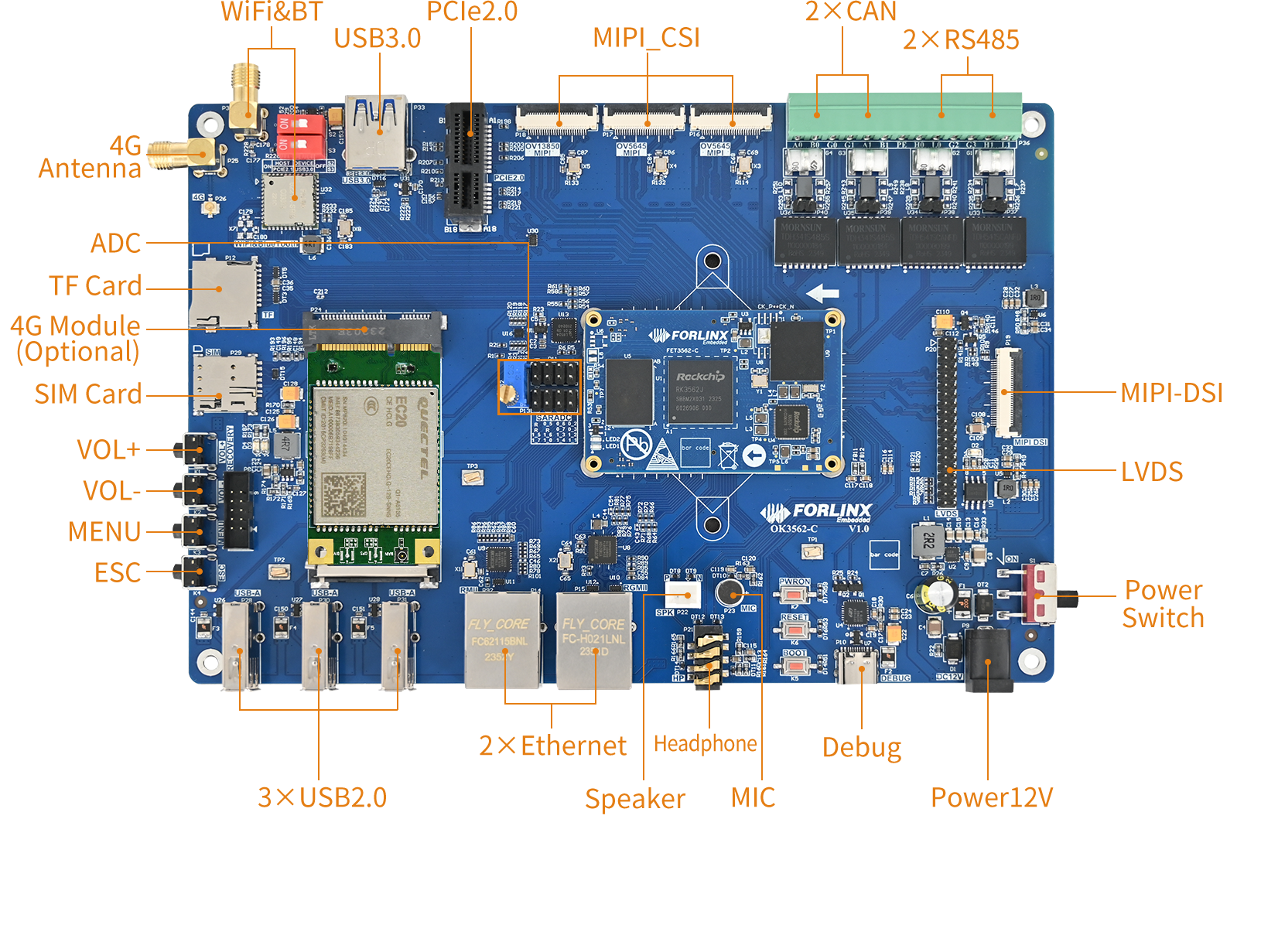

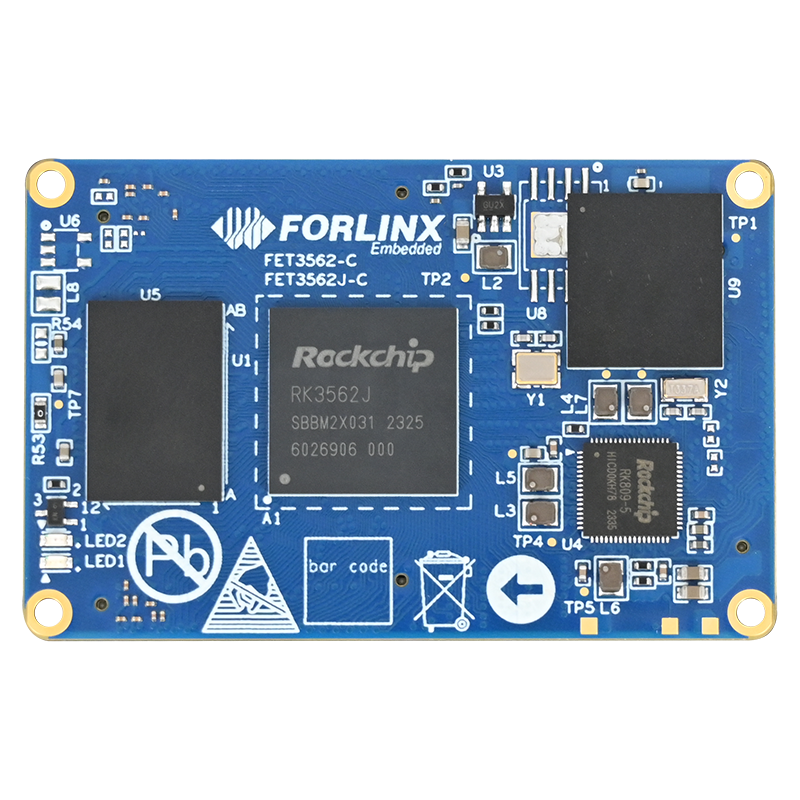

FET3562J-C SoM

FET3562J-C	OK3562J-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Rockchip RK3562J	GPU	Mali GPU（On-board video decoding/encoding support）
Architecture	4 × Cortex-A53@1.8GHz	NPU	-
RAM	1/2GB LPDDR4	ROM	8/16GB eMMC
VPU	Hardware decoding: H.264/H.265 1080p@60fps, 4K@30fps; Hardware encoding H.264 1080p@60fps	OS	Linux 5.10/RT/AMP
Working Voltage	12V	Connection	Board to board connector（various interfaces）
Structural Dimensions	56×36 mm	Operating Temperature	-40℃~+80℃
Audio	SoM built-in codec, supporting Speaker, MIC, headphone output	Camera	4 x MIPI-CSI
SDIO	1 x	Ethernet	2 x GMAC, supporting RGMII/RMII
USB 2.0	1 x	USB 3.0	1 x, supporting master-slave mode
PCIe	1 x PCIe 2.0	CAN	2 x CAN
I2C	≤5	ADC	≤16 10bit, the sampling rate is up to 1MS/s
SPI	≤3	LVDS	1 x
Display	MIPI-DSI / RGB / LVDS	-	-

Application Areas

Industrial, Medical, Power, New Energy, Communications and Other Industries, Consumer Electronics, Power Systems, Environmental Monitoring, Security, Smart Cities, etc.

🌐 Product Page 🎬 Video ✉️ Contact Us

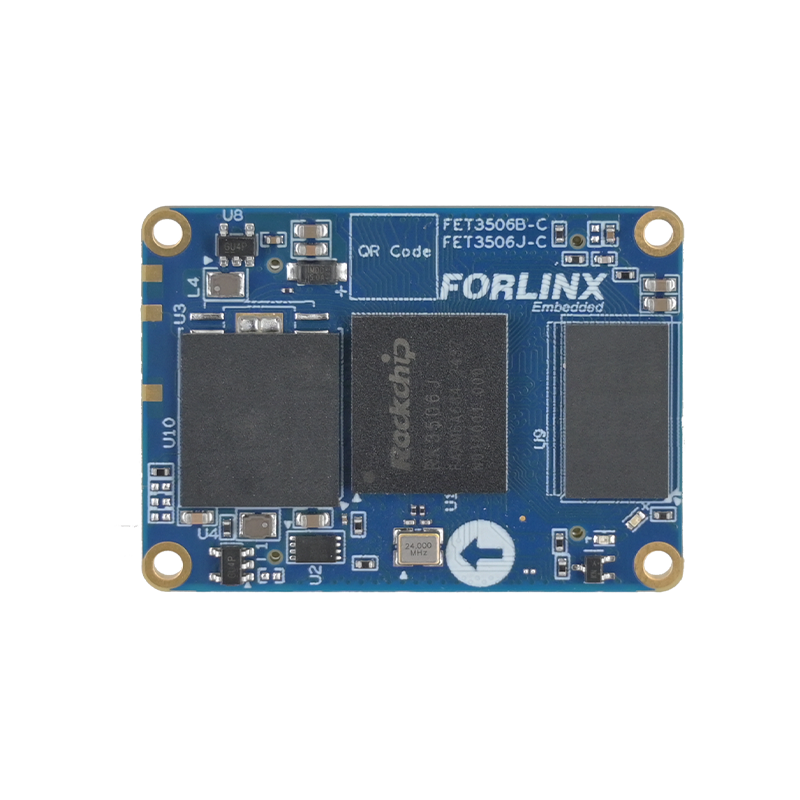

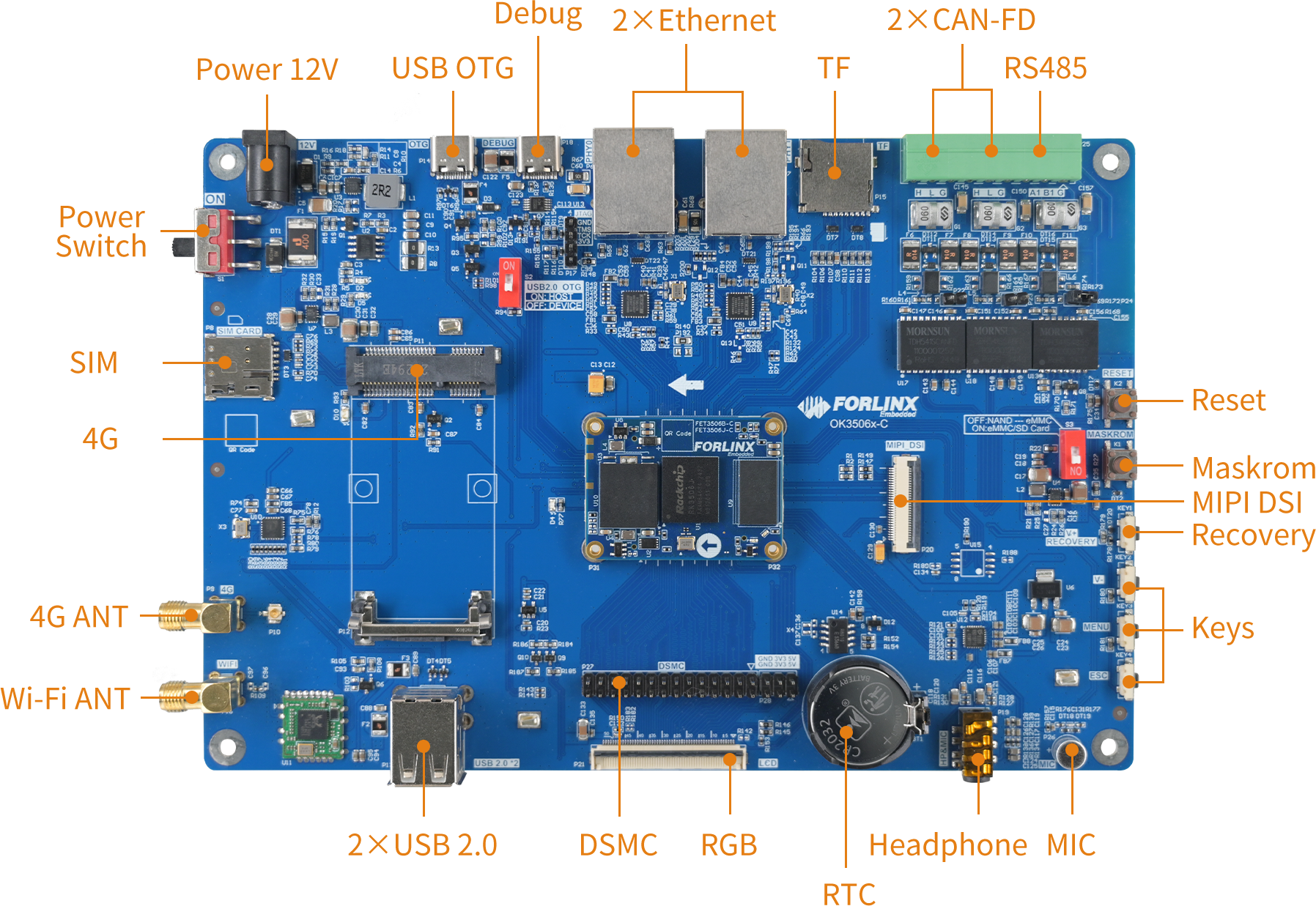

FET3506J-C SoM

FET3506J-C	OK3506J-C

SoM Parameter

Item	Parameter	Item	Parameter
CPU	Rockchip RK3506J; 3× Cortex-A7（1.5GHz）,1× Cortex-M0（200MHz）; 2D GPU	Display	1 x MIPI DSI; ≤ 1 x RGB; single VOP controller
RAM	256MB / 512MB DDR3	Audio	1 x 4ch PDM; 1 x Audio ADC; 2 x Audio DSM
ROM	256MB Nand Flash / 8GB eMMC	SAI	≤ 3
Operating Temperature	−40℃ ~ +85℃	SPDIF	1 x SPDIF TX/RX
Working Voltage	DC 5V	Ethernet	2 × RMII,10/100 Mbps
Connection	Board to board connector（2 × 80PIN, 0.5mm spacing）	UART	≤6, the UART0 is debug serial port
OS	Linux 6.1	CAN-FD	2 x, supporting CAN2.0 and CAN- FD
Mechanical Dimensions	40mm × 29mm	SPI	≤ 3
PWM	≤ 11	FSPI	≤ 1, supporting FSPI
TOUCH KEY	≤ 8	I2C	≤ 3
GPIO	≤ 76	SDMMC	≤ 1, SDIO（eMMC without the function）
JTAG	≤ 1	USB 2.0	2 x USB2.0（1 x supports OTG）
		FLEXBUS	1 x, high-speed IO switching
		DSMC	≤ 1 x, supporting master-slave mode
		SARADC	≤4, 10 bits, up to 1MS/s

Application Areas

Industrial Automation
Consumer Electronics
Smart Medical
New Energy
Communication Device

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

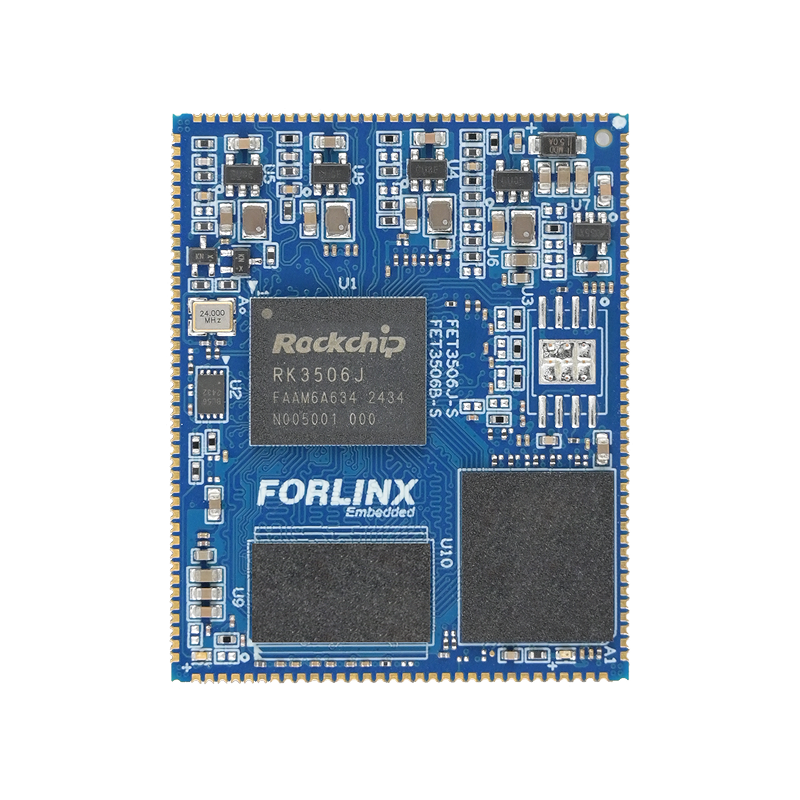

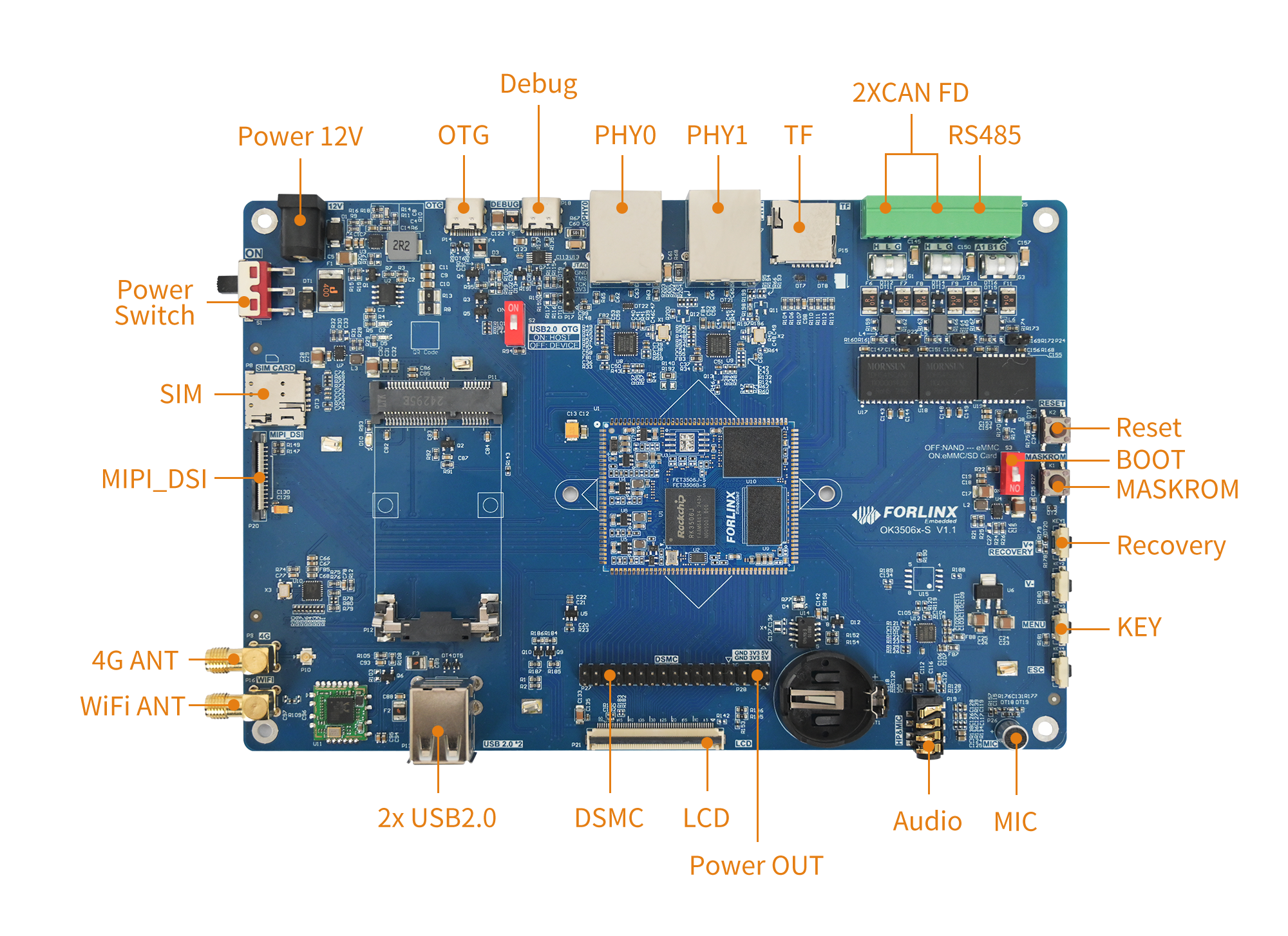

FET3506J-S SoM

FET3506J-S	OK3506J-S

SoM Parameter

Item	Parameter Description	Item	Parameter Description
CPU	Rockchip RK3506J	Architecture	3×Cortex-A7 up to 1.5GHz; 1×Cortex-M0
RAM	256MB / 512MB DDR3	ROM	256MB Nand Flash / 8GB eMMC
GPU	2D GPU	Operating Temperature	−40℃ ~ +85℃
Mechanical Dimensions	44mm × 35mm	Connection	Stamp-hole
OS	Linux 6.1	MIPI DSI	≤1, 2-lane,1.5Gbps/Lane
RGB	≤1, RGB888 24 bit, up to 1280×1280@60Hz	FLEXBUS	1 x flexible parallel FLEXBUS, bus high-speed IO
DSMC	Supports PSRAM / FPGA expansion, master/slave mode ×8/×16	USB 2.0	2 x, hight speed USB2.0, 1 x supports OTG
SDMMC	≤1 x SDIO 4bits	Ethernet	2 x RMI, 10/100Mbps, full-duplex/half-duplex
CAN-FD	2 x, supports CAN2.0 & CAN-FD	SPI	3x: SPI0/1 master-slave configurable; SPI2 slave mode
UART	≤ 6, UART0 is the debugging port	I2C	3 x, 7/10-bit address, master-slave mode, up to 1Mbps
FSPI	≤1	SARADC	≤4
PWM	≤11	JTAG	≤1
GPIO	≤76

Application Areas

Industrial Automation, Consumer Electronics, Intelligent Medical Treatment, Power, New Energy, Communications and Other Industries and Related Application Scenarios.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

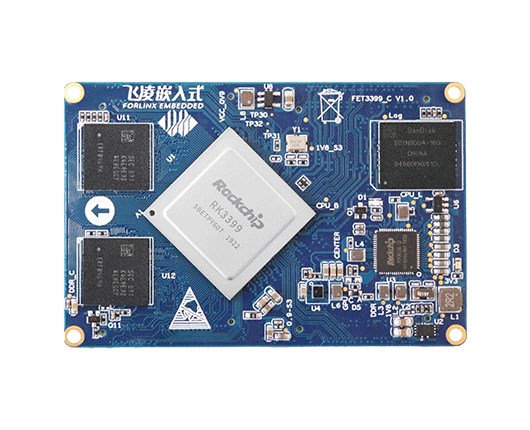

FET3399-C SoM

FET3399-C	OK3399-C

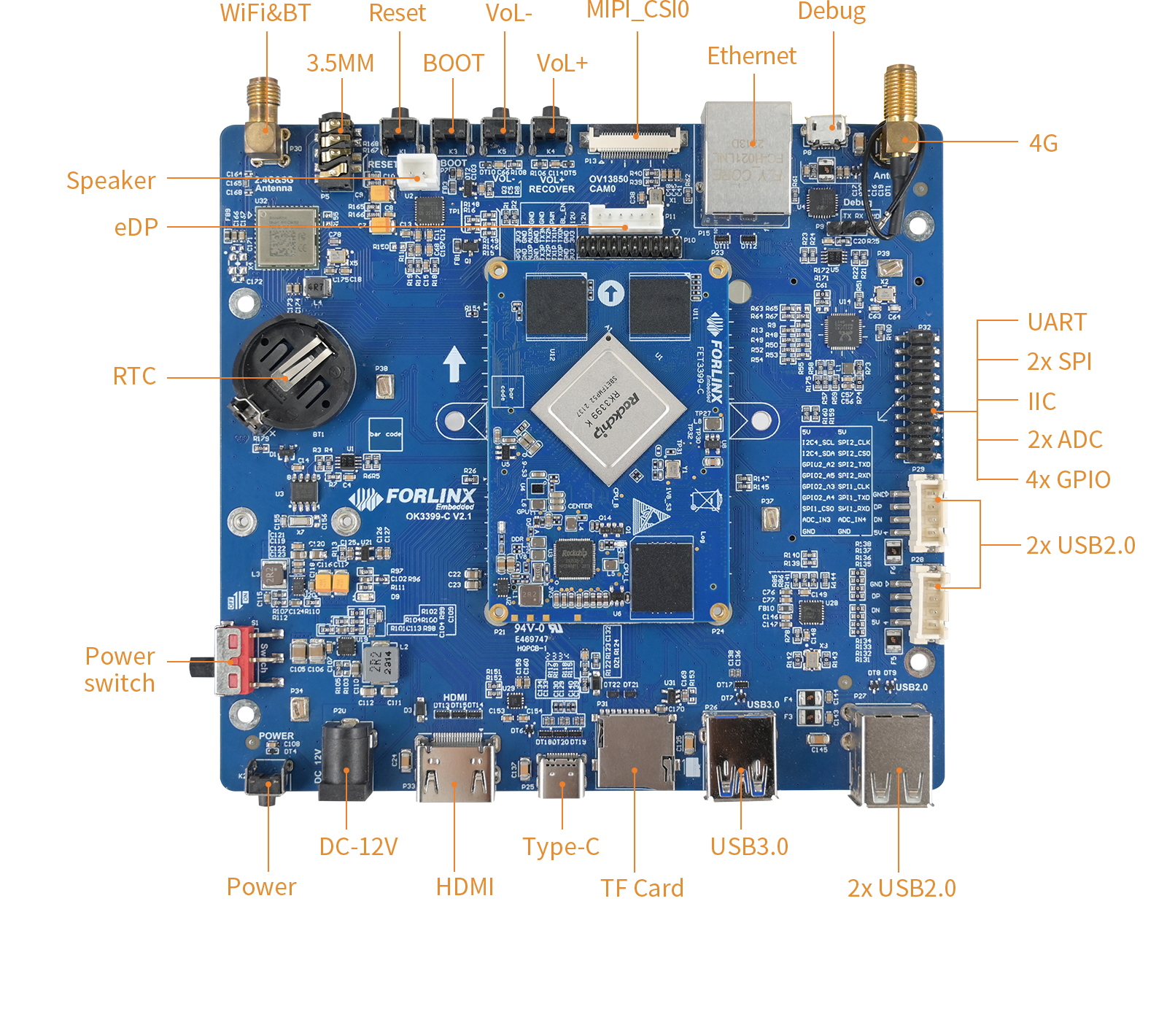

SoM Parameter

Item	Specification	Item	Specification
CPU	Rockchip RK3399/RK3399K	GPU	Mali-T860MP4
Architecture	2×Cortex-A72@1.8GHz + 4×Cortex-A53@1.4GHz	NPU	-
RAM	2/4GB LPDDR3	ROM	16/32GB eMMC
VPU	H.264/H.265/VP8/VP9 high performance video decoding	OS	Linux 4.4 / Android 7.1 / Forlinx Desktop / 18.04
Working Voltage	12V	Connection	Board to board connector （4×80pin, spacing 0.5mm）
Structural Dimensions	46×70 mm	Operating Temperature	0℃~+80℃ / -20℃~+80℃
Audio	3 x IIS/PCM, 1x8ch I2S/TDM, 2x2ch I2S	Camera	≤2 MIPI-CSI, supporting 1 x 13-megapixel or 2 x 8-megapixel cameras
USB 2.0	≤ 2	USB 3.0	1 x Host
SD/MMC	2 x, SD/MMC/SDIO3.0	PCIe	1 x PCIe2.0 x4
SPI	≤ 5	UART	≤ 5
I2C	7 x	PWM	3 x 32bit
ADC	5 x 10bit	Display	HDMI 2.0 / DP1.2 / MIPI-DSI / eDP / dual display engine 4K60 / 2560x1600

Application Areas

Self-service Equipment, Edge Computing, Facial Recognition, 5G Smart Terminals, 3D Printing, POS Machines, VOIP, Video Conferencing, and IoT.

🌐 Product Page 🎬 Video ✉️ Contact Us

Allwinner Series System on Modules

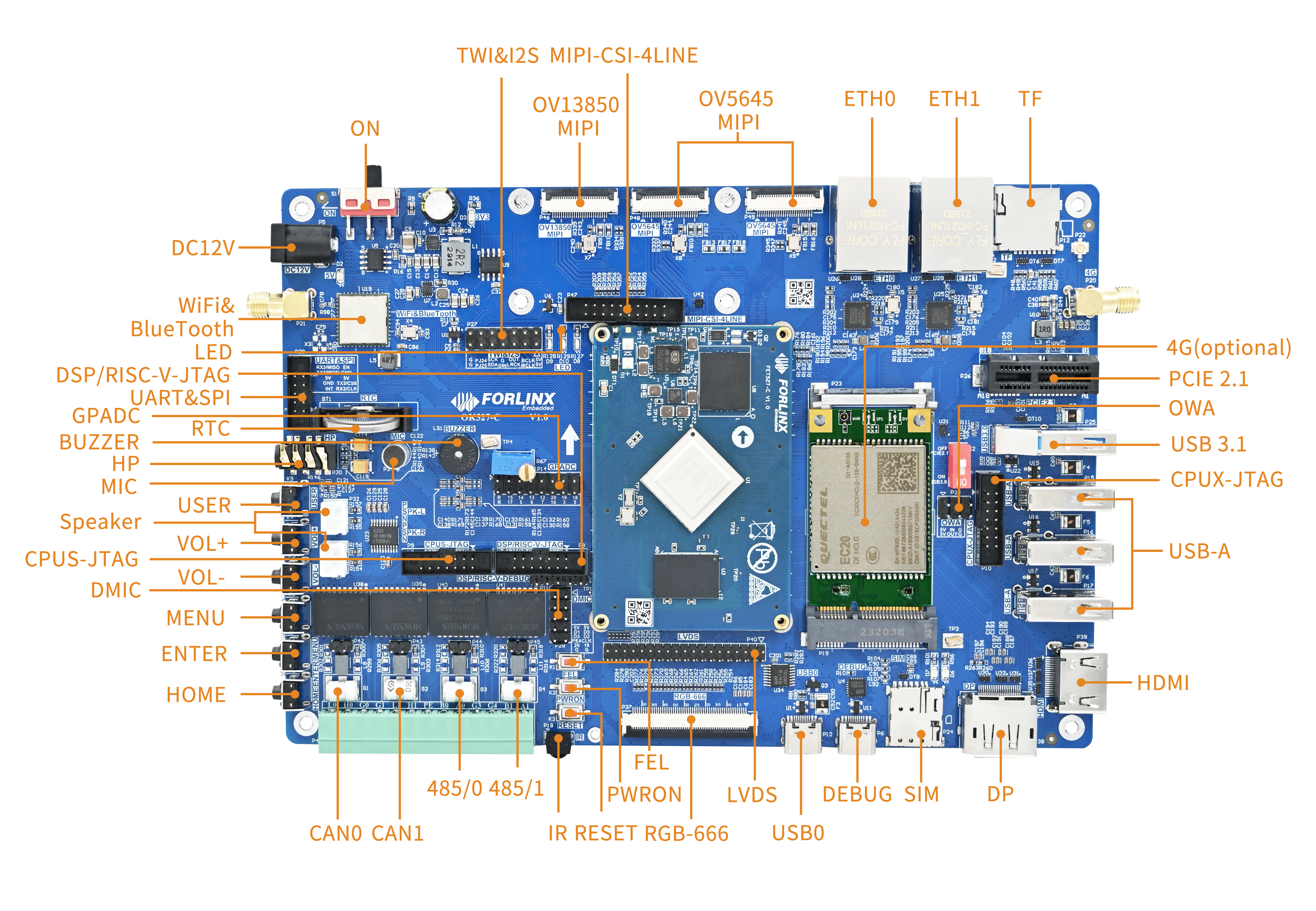

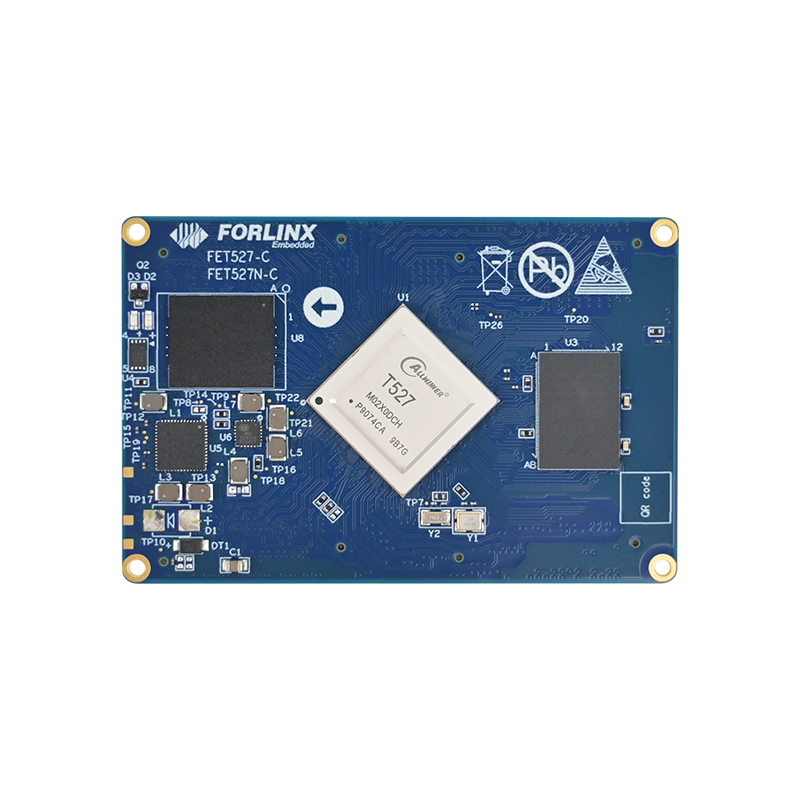

FET527N-C SoM

FET527N-C	OK527N-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Allwinner T527	RISC-V	200 MHz
Architecture	4 × Cortex-A55 + 4 × Cortex-A55	RGB	≤2
Clock	1.8GHz + 1.4GHz	LVDS	≤2
RAM	2GB/4GB LPDDR4	MIPI DSI	≤2
ROM	16GB/32GB eMMC	HDMI2.0	1 x, supporting 2D/3D display, 4K@30/60fps
OS	Linux 5.15	eDP1.3	1 x, supporting 2.5K@60fps and 4K@30fps
Working Voltage	5V	MIPI CSI	≤4
Operating Temperature	-40℃~+85℃	Parallel CSI	1 x, supporting 8/10/12/16-bit width
Connection	Board to board connector （4×80Pin, 2.0mm spacing ）	Ethernet	≤2 , GMAC, supporting RMII/RGMII
Mechanical Dimensions	46mm x 70mm	UART	≤10
GPU	ARM G57 MC1	CAN	≤2, the baud rate is up to 1Mbps
NPU	2TOPS	USB 2.0	≤2, USB0: USB2.0 OTG 480Mbps; USB1; USB2.0 Host 480Mbps
PCIe 2.1	≤1, only supporting RC mode, 1-lane 5Gbps	USB 3.1	≤1, USB3.1 DRD mode 5Gbps
SDIO	≤ 2, used for SD card, up to 200MHz SDR mode	SPI	≤ 4, supporting master-slave mode, up to 100MHz

Application Areas

Commercial Displays, Cash Registers, Cloud Computers, Robots, Industrial Intelligence, Edge Computing Gateways, Aftermarket Central Control Systems, Commercial Vehicles, Industrial Control Computers, etc.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

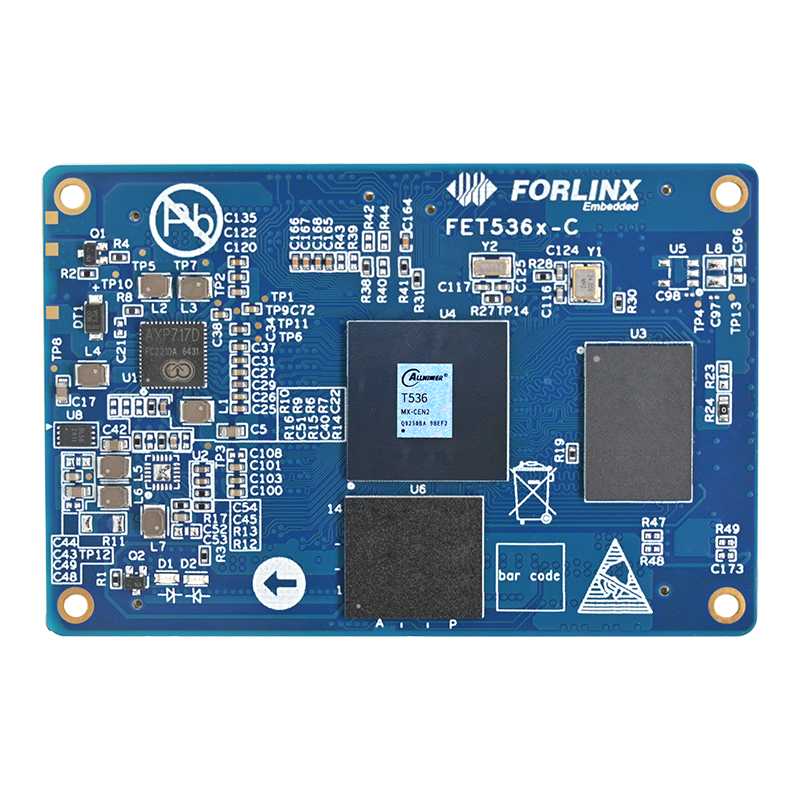

FET536-C SoM

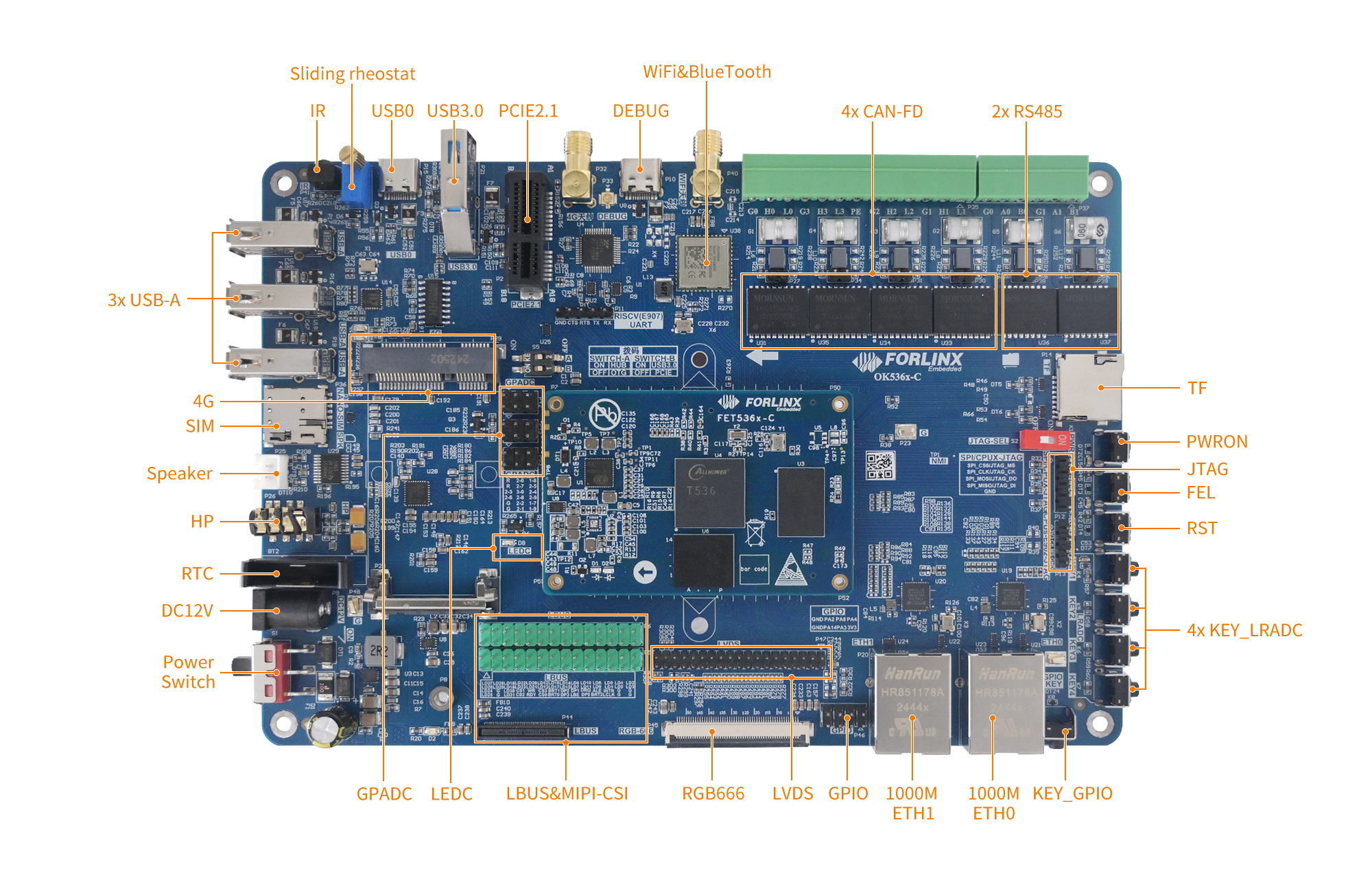

FET536-C	OK536-C

FET536-C SoM Parameter

Item	Parameter	Item	Parameter
CPU	Allwinner T536	ARM	4 × Cortex-A55 @ 1.6GHz
RISC-V	XuanTie E907 @ 600MHz	NPU	2 TOPS
Video Decoding	MJPEG 4K@15fps; JPEG 1080p@60fps	Video encoding	H.264 4K@25fps; MJPEG 4K@15fps
ISP	8M@30fps; WDR; 3DNR	RAM	1GB / 2GB LPDDR4
ROM	8GB / 16GB eMMC	Operating Temperature	−40℃ ~ +85℃
Working Voltage	DC 5V	Display	MIPI DSI / RGB LCD / ≤2 LVDS
Camera	≤1 Parallel CSI; ≤4 MIPI CSI	Audio	Codec / DMIC / I2S / Single line audio
GMAC	≤2, 10/100/1000 Mbps	UART	≤17
CAN-FD	≤4	TWI	≤8 （compatible with I2C）
SPI	≤5, up to 100MHz	USB	USB3.1 ×1; USB2.0 HOST ×1; USB2.0 DRD ×1
SDIO	≤2	PCIe2.1	≤1, 1-lane, 5Gbps
ADC	≤28 GPADC; 1 x LRADC; 1 x TPADC	PWM	≤34, 0~24MHz / 0~100MHz
Local Bus	≤1, 8/16/32 bit width, 100MHz	Connection	Board to board connector （4×80Pin, 0.5mm spacing ）
OS	Linux 5.10

Application Areas

Concentrator, DTU, Charging pile, Traffic, Robot, Industrial Control

🌐 Product Page 🎬 Video ✉️ Contact Us

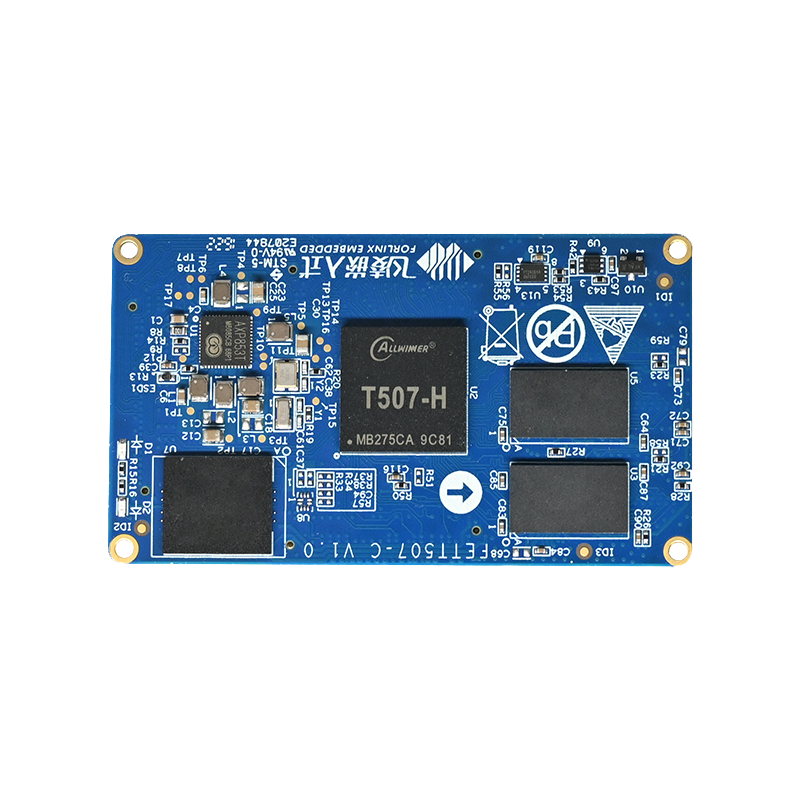

FETT507-C SoM

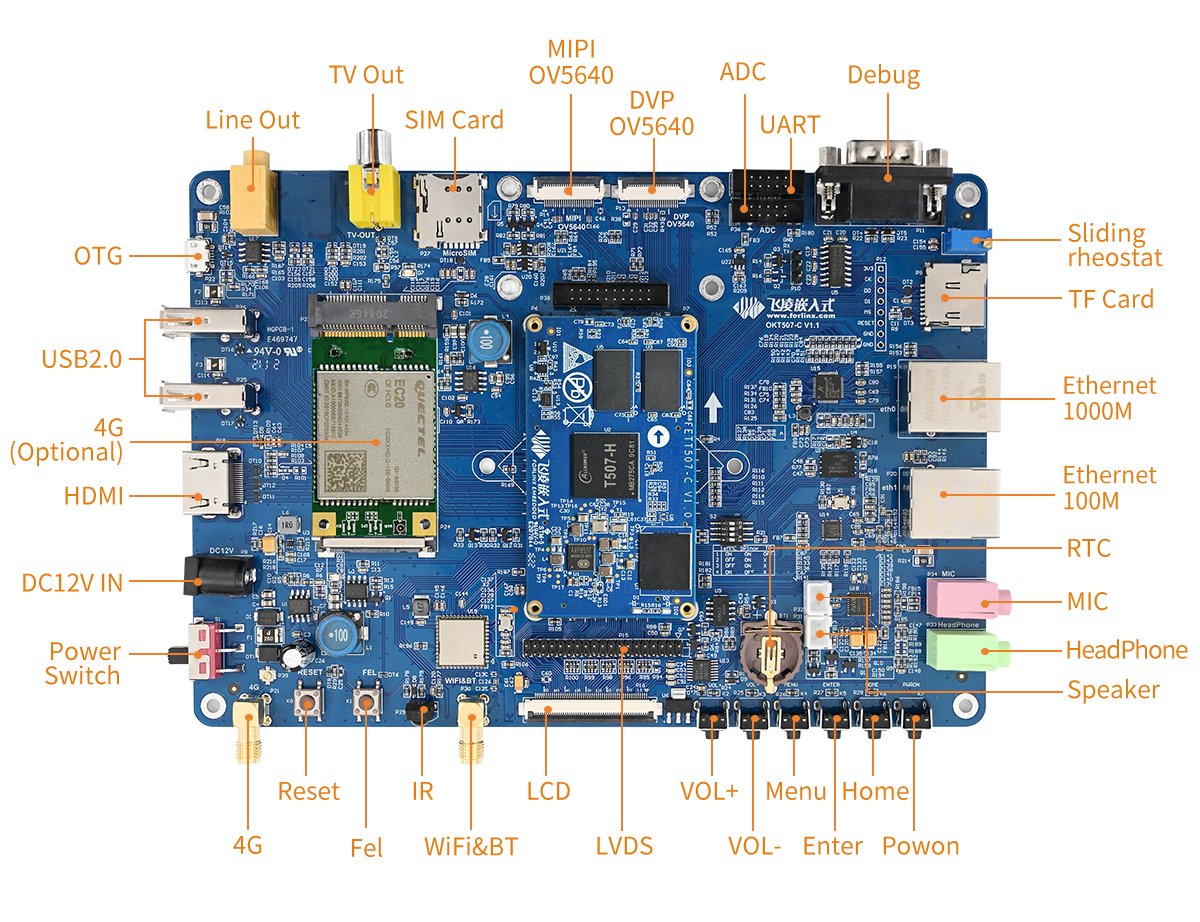

FETT507-C	OKT507-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Allwinner T507	UART	≤6, the speed is up to 4Mbit/s
Architecture	4 × Cortex-A53	IIC	≤5
Clock	1.5 GHz	SPI	≤1
RAM	2GB DDR3L	SD/MMC/SDIO	≤ 2
ROM	8GB eMMC	USB	4 x USB2.0, 1 x OTG, 3 x Host
OS	Linux 4.9, Ubuntu18.04, Android 10	PWM	≤6
Working Voltage	5V	Audio CODEC	1 x
Operating Temperature	-40℃~+85℃	GPADC	Supports 4 x general ADC
Connection	Board to board connector （3x80Pin, 0.5mm spacing ）	SCR	1 x, supporting ISO/IEC 7816-3
Mechanical Dimensions	40mm x 70mm	CIR	1 x, supporting remote control or wireless keyboard
GPU	G31 MP2, supporting OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0	IIS/PCM	≤ 4, supporting 3 x external equipment + 1 x internal HDMI
Display	CVBS output（NTSC/PAL）, HDMI2.0a 4K@60fps, RGB/LVDS 1920x1080@60fps	Ethernet	2 x: 1 x 10/100Mbps RMII, 1 x 10/100/1000 Mbps RGMII
Video Coder	Hardware decoding: H.265, VP9, VP8, AVS2, up to 4K @ 60fps; H.264 up to 4K @ 30fps; Hardware encoding: H.264 up to 4K @ 25fps; MJPEG up to 4K @ 15fps	Camera	1 x 4 lane MIPI_CSI up to 8M@30fps or 4×1080p@25fps, 1 x DVP up to 5M@15fps or 1080p@30fps

Application Areas

Automotive Electronics, Power Industry, Medical Electronics, Industrial Control, IoT, Intelligent Terminals and Other Fields With High Stability Requirements.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

FET153-S SoM

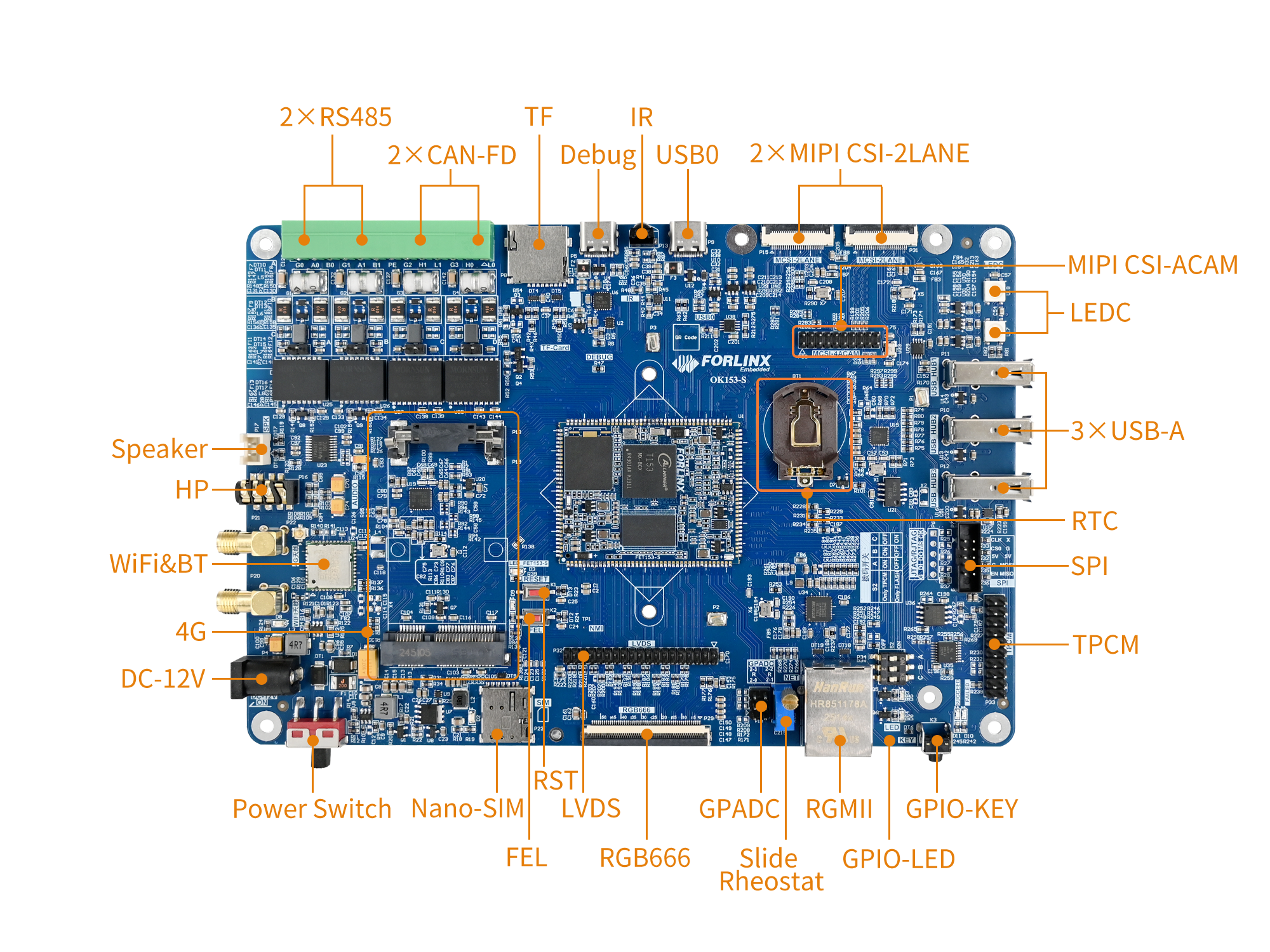

FET153-S	OK153-S

SoM Parameter

Item	Parameter	Item	Parameter
CPU	Allwinner T153	Architecture	4× Cortex-A7
Clock	1.6 GHz	RISC-V	E907, up to 600MHz
GPU	G2D	RAM	256MB / 512MB / 1GB DDR3
ROM	256MB/512MB NandFlash / 8GB eMMC	Operating Temperature	−40℃ ~ +85℃
Connection	Stamp-hole + LGA	Mechanical dimensions	44mm × 35mm
OS	Linux 5.10	Parallel CSI	≤1, 8/10/12/16 bit width
MIPI CSI	≤2, 4-lane or 2+2-lane	MIPI DSI	≤1, 4-lane, 1920×1200@60fps
RGB LCD	≤1, RGB888/666/565	LVDS	≤2, 1920×1080@60fps（Dual link）
SDIO	≤2, SMHC0 is applicable to SD card	Audio	≤1, built-in Codec
I2S	≤3, 8kHz~384kHz	DMIC	≤1, 8ch,8kHz~48kHz
OWA IN/OUT	≤1, single line audio	USB2.0 DRD	1 x, both master & slave mode are OK.
USB OTG	1 x, only supporting master mode

Application Areas

Industrial Control, Power, New Energy, Transportation, and Healthcare

🌐 Product Page 🎬 Video ✉️ Contact Us

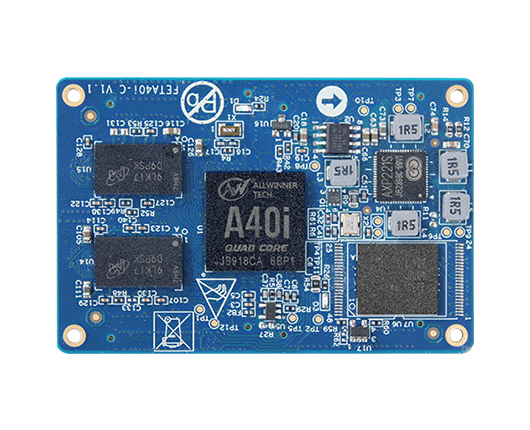

FETA40i-C SoM

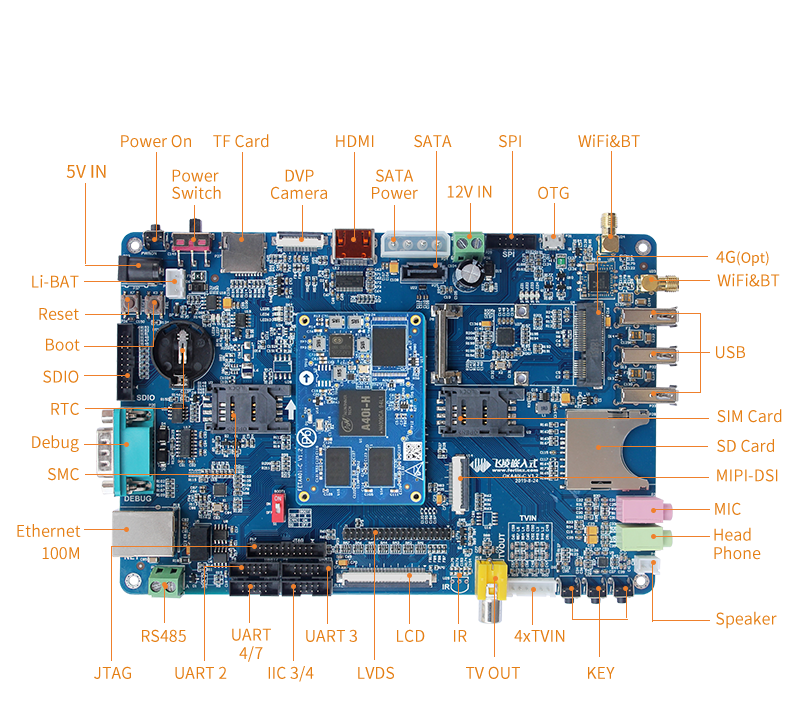

FETA40i-C	OKA40i-C

SoM Parameter

Item	Specification	Item	Specification
CPU	Allwinner A40i	UART	8 x
Architecture	4 × Cortex-A7	IIC	≤ 5
Clock	1.2 GHz	SPI	≤ 4
RAM	1GB DDR3（Optional 2GB）	Camera	2 x DVP, 4 x TVIN
ROM	8GB eMMC	SD/MMC/SDIO	≤ 4
OS	Linux5.10, Android7.1	USB	2 x USB 2.0 HOST, 1 x USB 2.0 OTG
Working Voltage	5V	SATA	1 x
Operating Temperature	-25℃~+85℃ / -40℃~+85℃	PWM	8 x
Connection	Board to board connector (4 x 80Pin 0.5mm spacing )	AUDIO CODEC	1 x
Mechanical Dimensions	45mm x 68mm	JTAG	1 x
Battery Management	AXP221S	KeyPad Port	1 x
GPU	Mali400MP2	KEYADC	≤ 2
Video Coder	Hardware video encoding	SMC	≤ 2
Display	2 x RGB24 bit, 2 x 8 bit LVDS, 1x HDMI, 1x MIPI, 4 x TVOUT	PS2	≤ 2
IIS/PCM	≤ 2	CIR	≤ 2
Ethernet	1 x 10/100Mbps self-adaptive; 1 x 10/100/1000Mbps self-adaptive	AC97	1 x

Application Areas

Advertising Machines, Digital Signage, Intelligent Self-service Terminals, O2O Intelligent Devices, In-vehicle Displays, etc.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

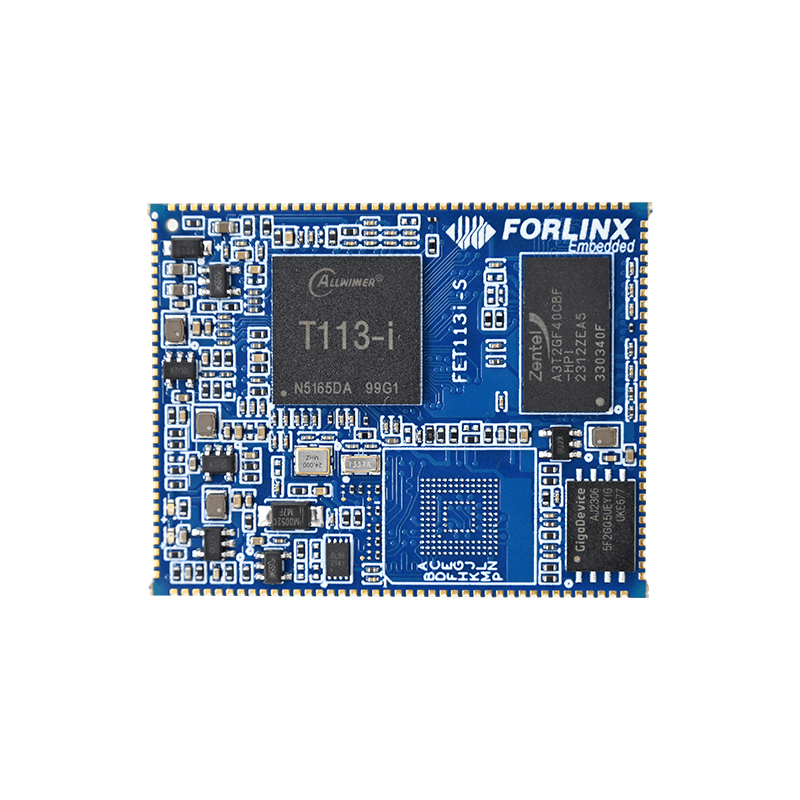

FET113i-S SoM

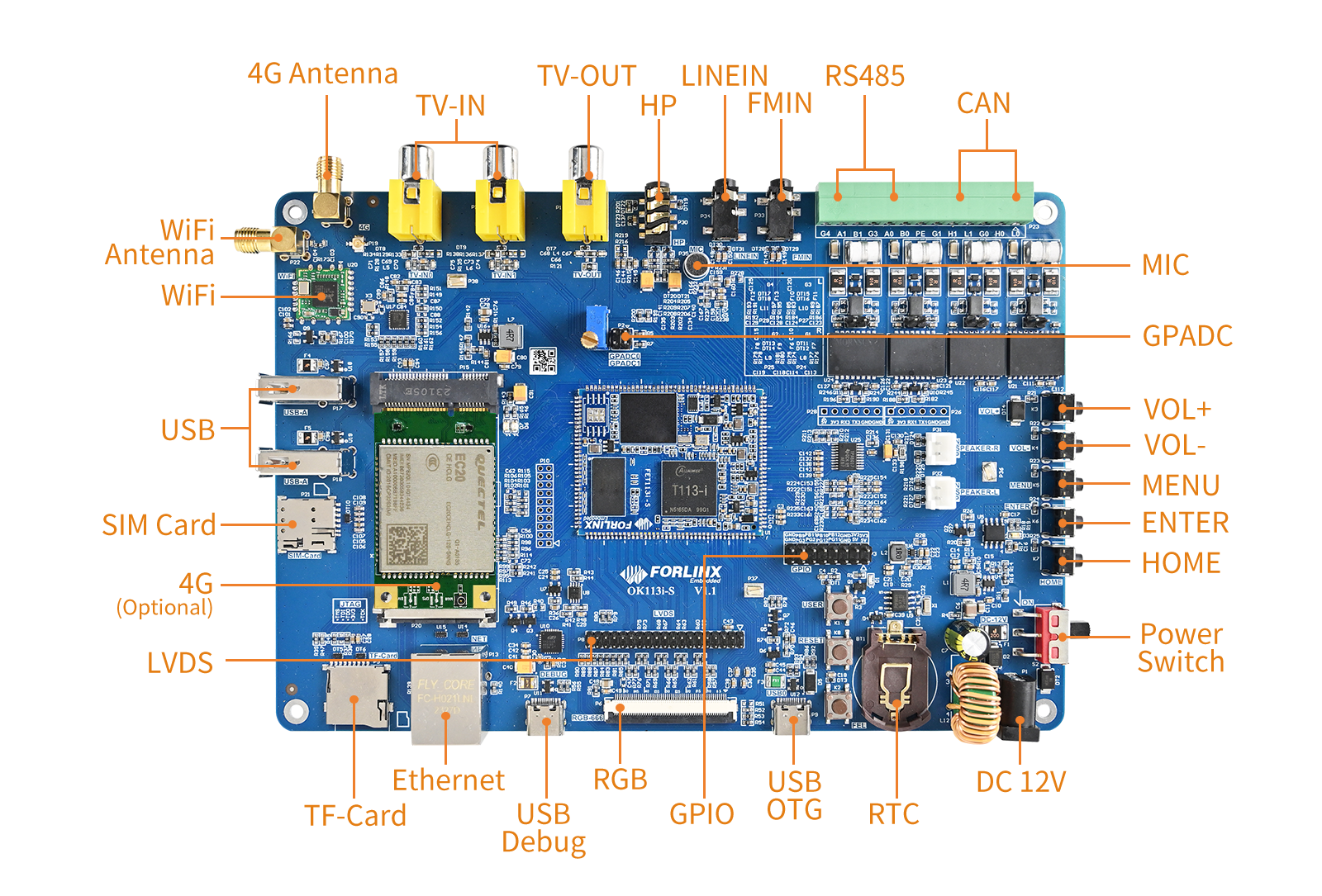

FET113i-S	OK113i-S

SoM Parameter

Item	Specification	Item	Specification
CPU	T113-i	RGB_LCD	1 x, multiplexing of three display interfaces, one out of three for output
VPU	Video decoding: H.265 up to 4K@30fps	LVDS	1 x
	H.264 up to 4K@24fps	MIPI_DSI	1 x
	H.263, MPEG-1/2/4, JPEG, Xvid, Sorenson Spark up to 1080p@60fps	CVBS_OUT	1 x
	Video encoding: JPEG/MJPEG up to 1080p@60fps	CSI	1 x, the pixel clock is up to 148.5MHz
RISC-V	XuanTie C906	CVBS_IN	2 x, supporting NTSC and PAL
DSP	HiFi 4 DSP	Audio out	≤ 2
RAM	512MB DDR3	Audio in	≤ 5
ROM	8GB eMMC / 256MB Nand Flash	I2S	≤3
Clock	1.2 GHz	DMIC	1 x
Operating Temperature	-40℃~+85℃	UART	≤5
Working Voltage	DC 5V	OWA	1 x
Connection	Stamp-hole connector	USB DRD	1 x
OS	Linux 5.4.61	USB HOST	1 x
		EMAC	1 x

Application Areas

Rail Transit, Power Energy, Industrial Control, Security Monitoring, Conference Systems, Portable Devices, etc.

🌐 Product Page 🎬 Video ✉️ Contact Us

Texas Instruments Series System on Module

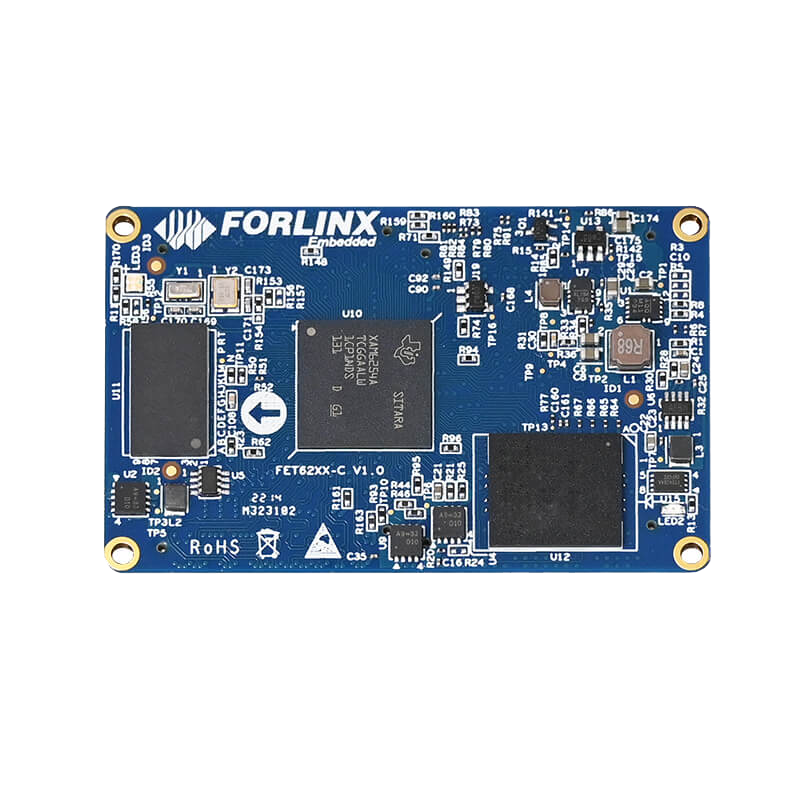

FET62xx-C SoM

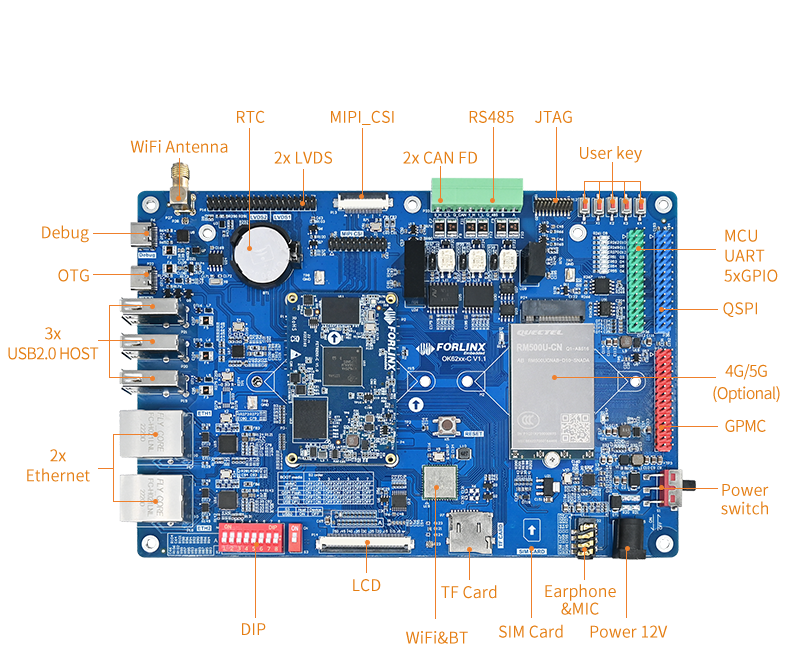

FET62xx-C	OK62xx-C

SoM Parameter

Item	Specification	Item	Specification
Processor	TI AM62x (AM6254/AM6231/AM6232)：1/2/4 × Cortex-A53@1.0/1.4GHz MCU: Cortex-M4F @400 MHz GPU: AXE1-16M@500MHz, OpenGL 3.x/2.0/1.1 + Vulkan1.2	SD	Supports 2 x 4-bit SD/SDIO up to UHS-I
RAM	1/2GB DDR4	Ethernet	≤ 2
ROM	8GB eMMC	USB	2 x USB2.0
Working Voltage	5V	UART	≤9
Operating Temperature	-40℃~+85℃	CAN-FD	≤3
Connection	Board to board connector （4× 80pin, pin pitch 0.5mm）	SPI	≤5
Structural dimensions	38×60 mm	I2C	≤6
LVDS	2 x 4-lane LVDS display serial port	PWM	≤3
RGB Parallel	1 x 24bit RGB parallel display interface	eQEP	≤3
MIPI CSI	1 x 4-lane MIPI camera serial interface	eCAP	≤3
Audio	≤3	GPMC	1 x
		OSPI/QSPI	1 x
JTAG	1 x	OS	Linux 6.1.33

Application Areas

Industrial Automation, Power, Medical Instruments, Transportation, Industrial HMI, Charging Pile TCU, Industrial Controller, Data Acquisition Gateway, PCR, Blood Analyzer, etc.

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

Nuvoton Series System on Module

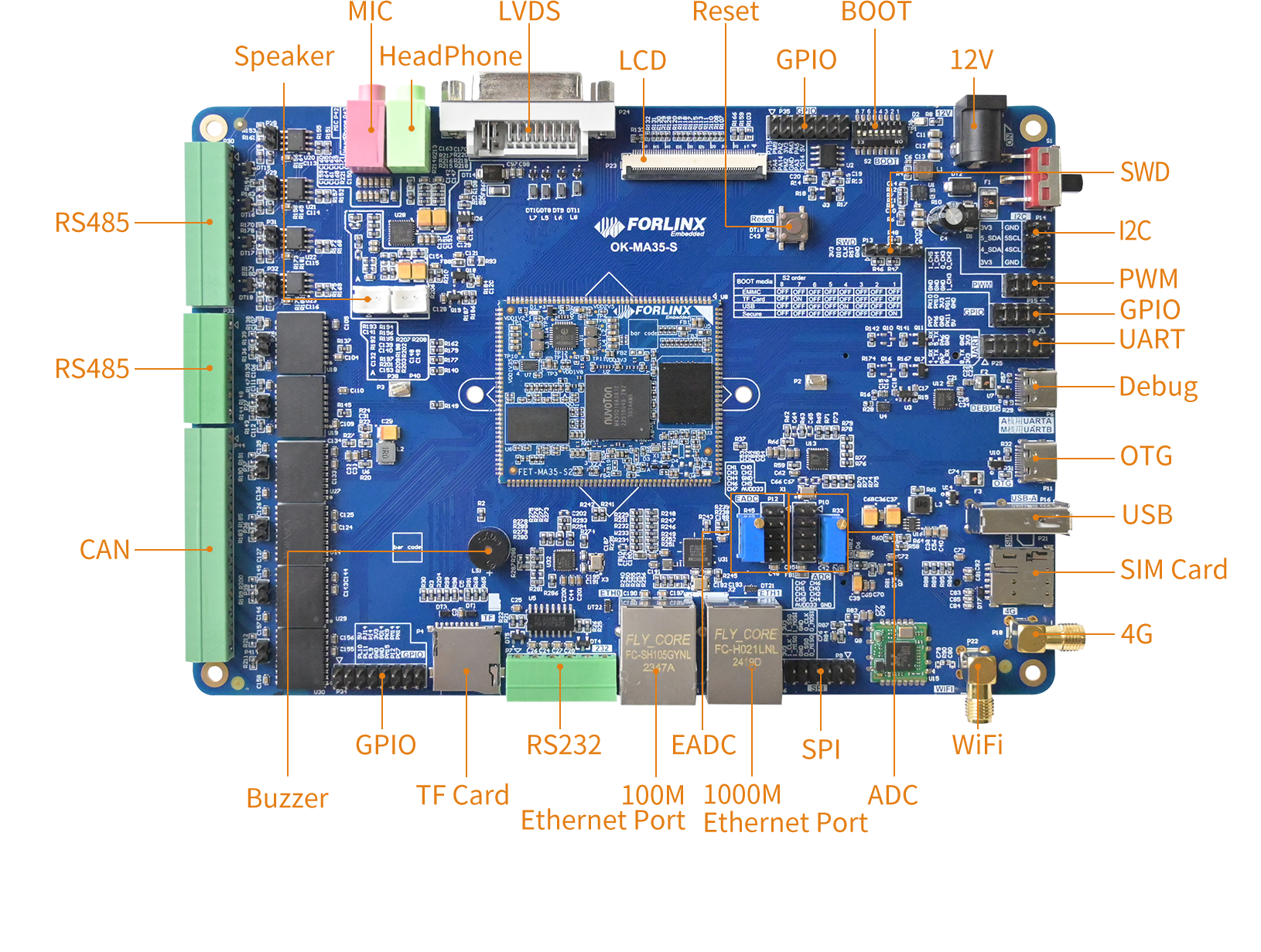

FET-MA35-S2 SoM

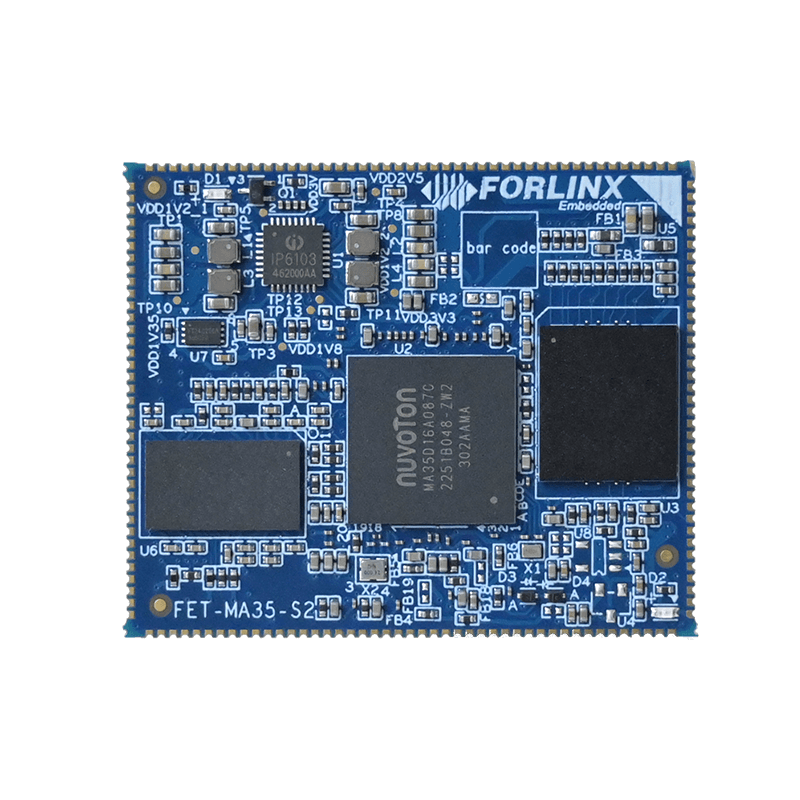

FET-MA35-S2	OK-MA35-S2

SoM Parameter

Item	Parameter Description	Item	Parameter Description
Processor	Nuvoton MA3501	CPU	2 × Cortex-A35@800MHz + Cortex-M4@180MHz
GPU	2D GPU	Decoding Capability	H.264 / MVC / SVC, up to 1080p@45fps
RAM	512MB / 1GB DDR3L	ROM	8GB eMMC
Working Voltage	DC 5V	Operating Temperature	−40℃ ~ +85℃
Connection	LCC+LGA（260pin）	Dimensions	40mm × 48mm
USB	1 × USB2.0 Host, 1×USB2.0 OTG	RGB	1 x RGB888, up to 1920×1080
CSI	≤2, up to 3MP	EPWM	≤18 EPWM
ADC	8 x, 10bit, 500K SPS, supporting resistive touch (4/5 wire)	EADC	≤8, 10bit，4.7M SPS
OS	Linux 5.10	Ethernet	≤2, 10/100/1000M（RGMII/BMII）
UART	≤17, up to 9.5Mbps	ISO7816	≤2, supporting ISO-7816-3
QSPI	≤2, master/slave mode, up to 100MHz	SPI	≤4, master/slave mode, up to 100MHz
I2S	≤2, supporting master and slave	I2C	≤ 5, 7/10 bit address mode, up to 1Mbit/s
CAN-FD	≤4, supporting CAN-FD 1.0 and CAN2.0A/B	SDIO	1 x（SD0）, 4bit, only 3.3V

Application Areas

Charging Piles, Industrial Control, Edge Gateways, New Energy, Power, and Fire Protection

🌐 Product Page 📄 Documentation 🎬 Video ✉️ Contact Us

Forlinx Embedded Computer

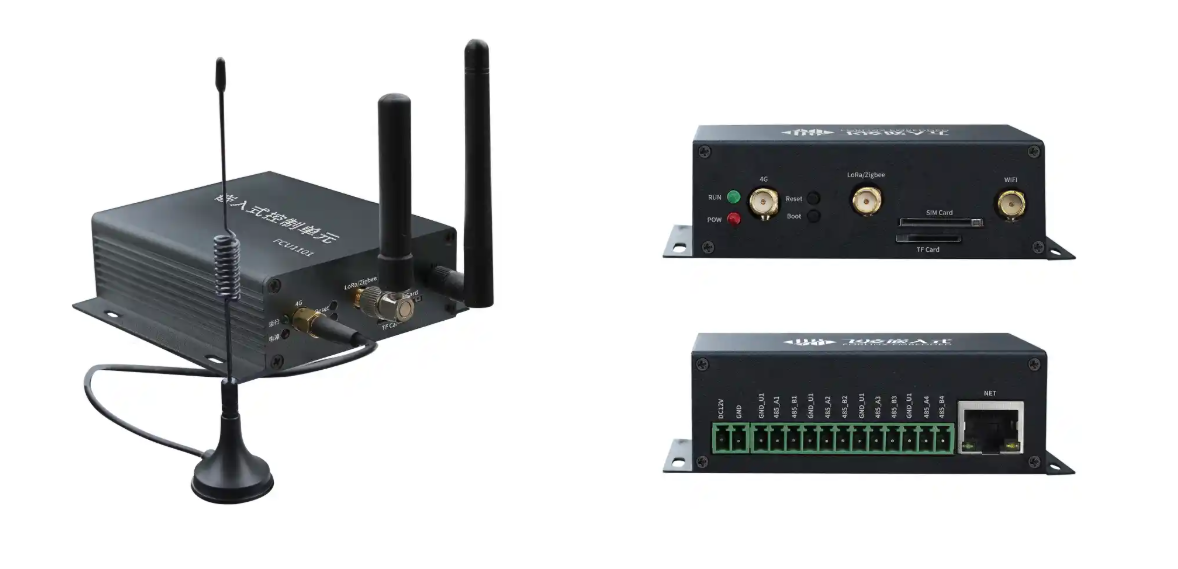

FCU1101 Basic Configuration 4G Gateway

ZigBee gateway, LoRa gateway, RS485 gateway

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6UltraLite, Cortex-A7, 528MHz	RTC	On-board CR2032 battery, power off for at least one year, NTP automatic timing
RAM	256MB LvDDR3	Encryption	IIC interface, with an on - board encryption chip, default to be un - soldered.
FLASH	256MB/1GB NandFlash	Watchdog	Supports reset time setting
External Storage	Standard TF card interface	Indicator lights	Power indicator, status indicator
Mobile Communication	EC20 4G full - network compatibility	Software system	Linux3.14, file system Yaffs2, compiler arm - fsl - linux - gnueabi - gcc - 4.6.2
Network	1 x 10/100M port, self - adapting, supports TCP/IP, UDP, etc.	RS485	4 x isolated ports, 1.5KV, supports Modbus RTU protocol
WiFi	RL-UM02WBS-8723BU, STA/AP mode	Power In	DC12V input, DC9V - 36V, with reverse - connection protection and over - current protection
Reset Button	1 x, used for system reset	Dimensions	105×100×33mm
BOOT Button	Supports two boot modes: NandFlash and SD card	Installation	Fixed by screws
Working/Storage Environment	Humidity 5 - 95%, no condensation; working temperature - 35~+70℃; storage temperature - 40~+85℃

Product overview

High - efficiency, reliable, and low - cost;
Supports floating - point operations (hard floating - point);
Integrates multiple resource interfaces to meet different application requirements;
Harsh temperature tests ensure stable operation in the environment of - 35~+70℃.

🌐 Product Page ✉️ Contact Us

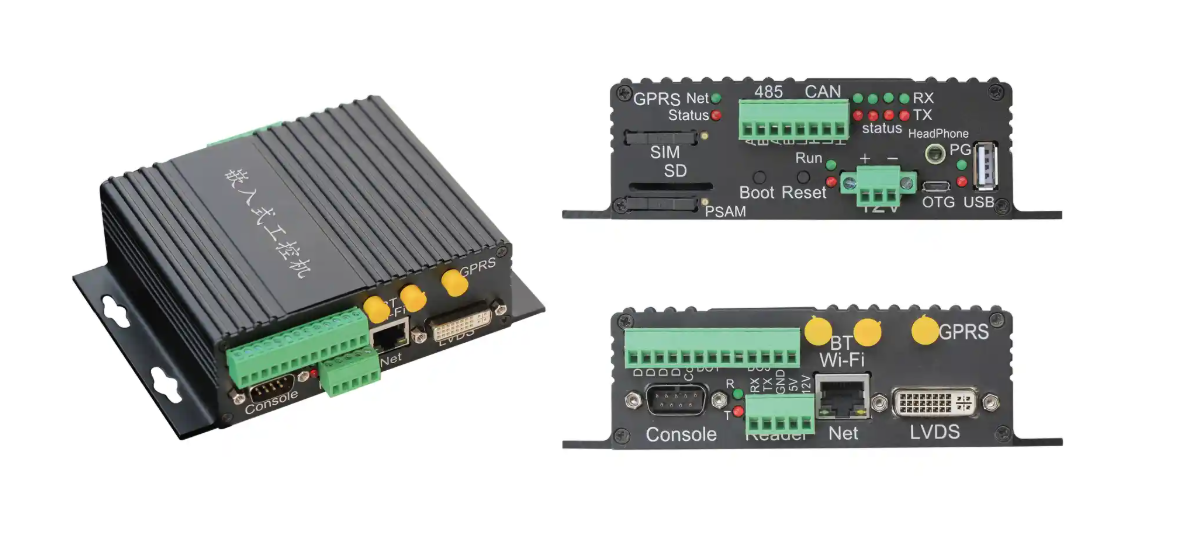

FCU1103 All - purpose 4G Gateway/Controller

Charging pile billing control unit (TCU), display, communication, data collection, and control

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6UltraLite, Cortex-A7, 528MHz	Audio	1 x headphone port, 1 x built - in microphone, and 2 x reserved speaker interfaces
RAM	256MB/512MB LvDDR3	CAN BUS	2 x electrically isolated ports
ROM	256MB/1GB NAND FLASH, 8GB eMMC	WiFi&BT	RL-UM02WBS-8723BU-V1.2 module
Ethernet	1 x, expandable to 2 x, 10/100M self - adapting	UART	5 x
External storage	Standard SD card interface, up to 64GB SDXC	RTC	On - board CR2032 battery, keeps working for at least one year after power - off
Mobile Communication	Supports GPRS/4G, 1 x mini SIM slot	USB	1 x USB OTG, 1 x USB Host
ESAM	Supports ESAM chip, ISO7816 protocol	PSAM	Supports PSAM chip, 1 x mini SIM slot
Switching Output	4 x , isolated by relays	Switching input	4 x, isolated by optocouplers
Display	LVDS display interface (DVI - I socket)	Others	Customizable LOGO
Power In	DC12V, supports DC9 - 15V, with reverse - connection protection	Power - off detection and maintenance	Super capacitor maintains system operation for at least 15 seconds
Dimensions	147×103×42mm	Installation	Locked by bolts
Software System	Linux3.14, Linux4.1.15	GCC	gcc-4.6.2-linaro-multilib

Product overview

Widely used in charging piles, communication gateways, data collection, and human - machine interaction;
Aluminum alloy case with mounting holes, compact size, and easy to install.

🌐 Product Page ✉️ Contact Us

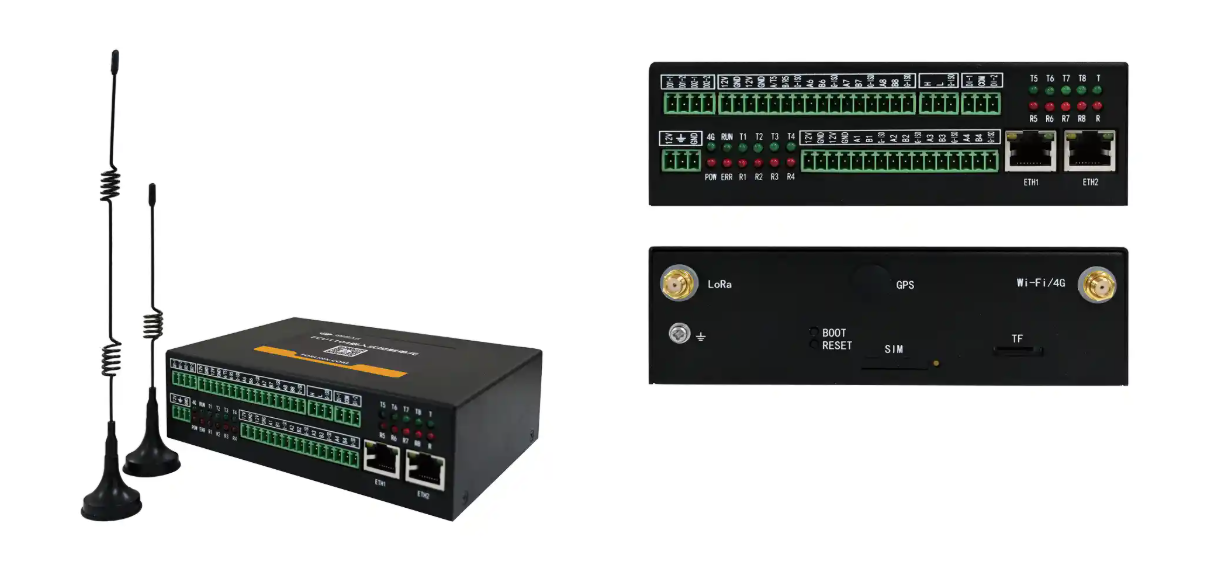

FCU1104 Extended 4G Gateway

LoRa gateway, 2 x Ethernet, 4 x RS485 (expandable to 8 ports)

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6ULL, ARM Cortex-A7 800MHz	4G	C200S (without GPS and voice functions), supports China Mobile’s 4G/3G/2G, China Unicom’s 4G/3G/2G, and China Telecom’s 4G.
RAM	256MB DDR3 (NAND) / 512MB DDR3 (eMMC)	WiFi	Supports STA/AP mode (optional module, choose either this or the 4G module).
ROM	256MB (NAND) / 8GB (eMMC)	Ethernet	2 x, 10/100Mbps, with isolation protection, ESD 3.
RS485	8 x, 1.5KV isolation protection, ESD 4.	Power IN	DC12V, supporting DC9 - 36V, with reverse connection protection and over - current protection.
DI	2 x dry contact inputs, with isolation protection.	RTC	Supports clock retention during power - off and NTP automatic time synchronization.
DO	2 x relay outputs, contact capacity 5A/250VAC.	OS	Linux4.1.15, Yaffs2, GCC 4.6.2
CAN	1 x, 1.5KV isolation protection, ESD level 4.	Dimensions	150×110×45mm
Buzzer	1 x	TF card	Supports TF cards up to 32GB.
Reset Button	1 x, used for system reset.	BOOT button	1 x, used for system firmware update.
Working Environment	Humidity 5 - 95%, no condensation. Working temperature: - 25~+85℃ (eMMC) / - 40~+85℃ (NAND).	Storage Temperature	-40~+85℃

Product Overview

Low - cost, high - performance, and highly reliable;
Supports multiple network protocols;
Suitable for harsh industrial environments, enabling efficient and reliable data transmission.

🌐 Product Page ✉️ Contact Us

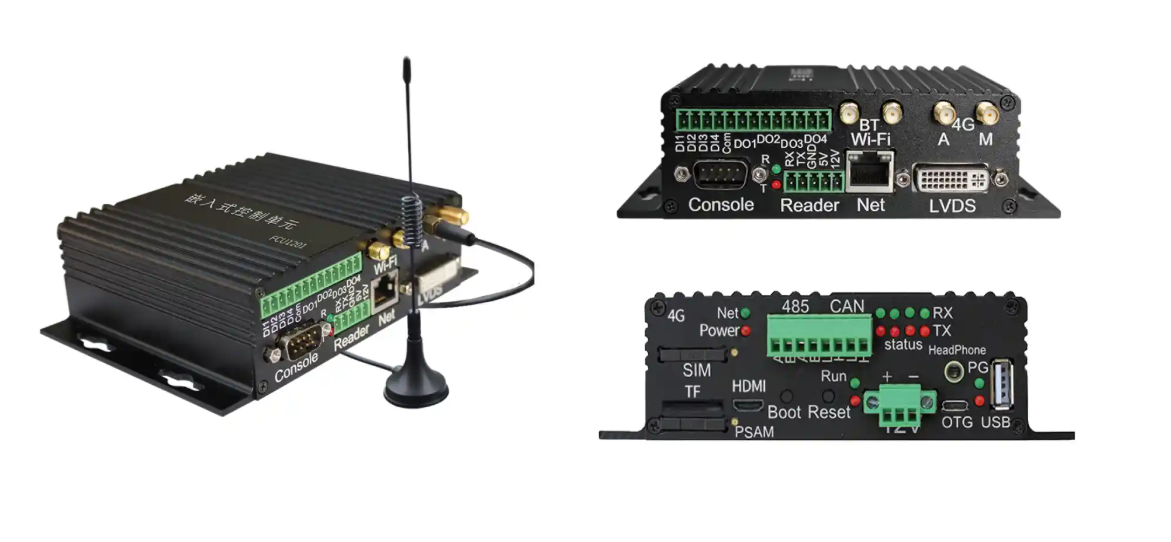

FCU1201 High - performance 4G Gateway/Controller

Charging pile billing control unit (TCU), dual - screen display, communication, data collection, and control

SoM Parameter

Item	Specification	Item	Specification
CPU	NXP i.MX6Q / i.MX6Dual Lite, ARM Cortex-A9 1GHz	RAM	1GB DDR3
ROM	8GB eMMC	External storage	TF card interface, up to 64GB
Mobile Communication	Drawer - type mini SIM card slot	WiFi & BT	Supports IEEE 802.11b/g/n 1T1R WLAN, Bluetooth 2.1/3.0/4.0.
ESAM	Supports ESAM chip, IO simulates ISO7816 protocol	PSAM	Supports PSAM, drawer - type mini SIM card slot.
Switching Output	4 x relay isolation	Switching input	4 x optocoupler isolation
HDMI	Mini HDMI interface, supports HDMI v1.4	LVDS	LVDS interface, standard DVI - I.
UART	2 x (1 x for debugging, 1 x for card reader)	RS485	2 x, electrical isolation
CAN BUS	2 x, electrical isolation	Ethernet	1 x 10/100/1000M self-adaptive
Power Supply	Rated at 12V, with reverse connection protection	RTC	On - board CR2032, the clock can keep running for at least 1 year during power - off.
Audio	1 x headphone port, 1 x built - in microphone, 2 x reserved speaker ports	Dimensions	147×103×42mm
Software System	Linux3.0.35 / Android6.0

Product Overview

A high - performance 4G gateway with rich interfaces, suitable for fields such as charging piles, advertising machines, new retail, security, vehicle - mounted systems, industrial control, and power communication;
It can handle power - off protection and supports a super capacitor to maintain the system operation for at least 15 seconds;
Supports multiple communication interfaces (WiFi, Bluetooth, Ethernet, CAN, RS485, etc.);
Features low power consumption, high reliability, and an industrial - grade stable design.

🌐 Product Page ✉️ Contact Us

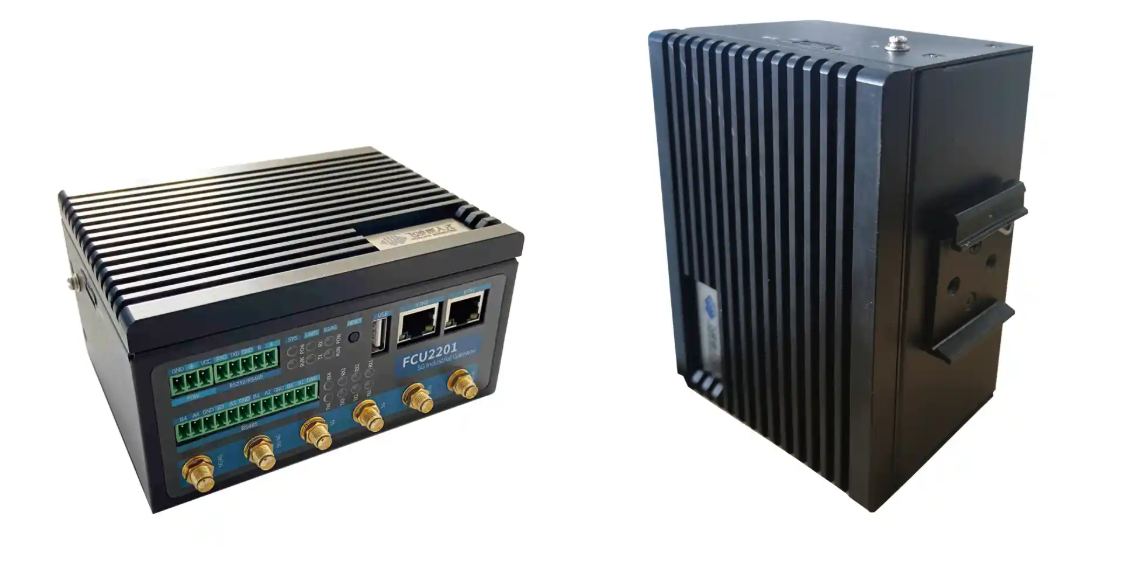

FCU2201 High - cost - performance 5G Industrial Gateway

Low cost, industrial grade, fanless, industrial routing

FCU2201 5G Industrial Gateway Parameters

Item	Parameter	Item	Parameter
CPU	Single core Cortex-A53, 1GHz	RAM	512MB
ROM	8GB eMMC	OS	OpenWRT 21.02
SSH	Network port	TF	1 x TF card slot
Ethernet	2 x 10M/100M/1000M self-adaptive, EFT 4, ESD 3	RS485	5 x, 1.5kV isolation, ESD 3, EFT 4
RS232	1 x, multiplexed with RS485.	USB	1 x USB HOST (in USB Type - A form)
4G/5G	Either 5G or 4G function	Wi-Fi	Dual - band 2.4G/5G, supports AP and STA modes.
Watchdog	Support	RTC	Support
Button	1 x reset button	LED	Communication status indicator
Mechanical Dimensions	135mm × 100mm × 70mm	Installation Method	Ear - hanging installation and rail installation.
Power Supply	DC 12V, supports a wide - voltage input of DC9V~36V; with reverse connection protection, over - current protection, ESD 3, EFT 4.	Working Environment	Humidity: 5% - 95%, no condensation; Working temperature: - 40℃ - 80℃; Storage temperature: - 40℃ - 125℃.
Heat Dissipation Method	Passive heat dissipation, fan - less.

Product Overview

A high - cost - performance 5G industrial gateway with an industrial - grade fan - less design;
Suitable for industries such as industrial Internet of Things, smart cities, smart power, smart agriculture, and security monitoring;
Provides powerful edge computing capabilities and supports long - term stable operation;
Open system API for easy secondary development.

🌐 Product Page ✉️ Contact Us

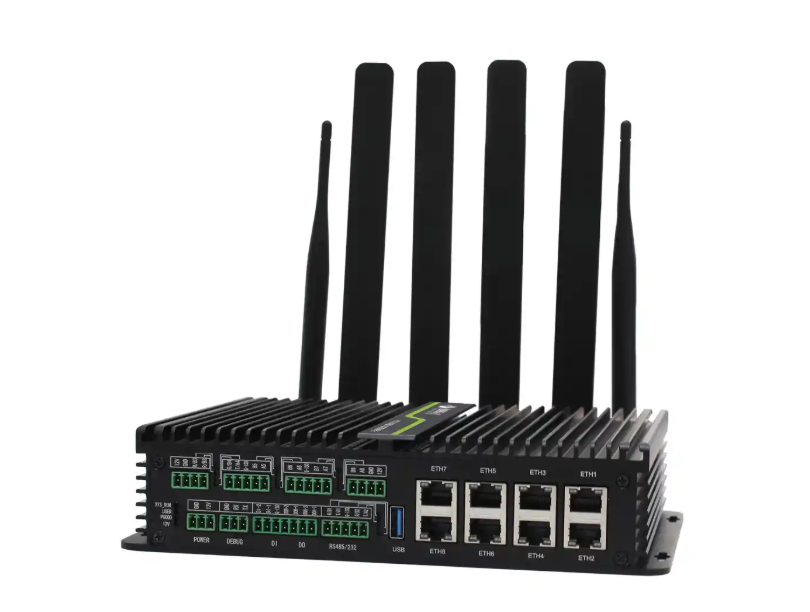

FCU2303 High - performance 5G Industrial Gateway

Multiple network ports, high performance, a fan - less design, and is of industrial - grade, supporting both 4G and 5G.

Industrial Gateway Parameters

Item	Parameter	Item	Parameter
CPU	4 x Cortex-A53 1.6GHz + 4 x Cortex-A72 1.8GHz	RAM	2GB/4GB
ROM	8GB eMMC	OS	OpenWRT 21.02
Debug	1 x RS232 port, 3.81 terminal	SSH	Network port
Hard Disk	1 x M.2 NVMe SSD slot	Ethernet	6/8 ports of 10M/100M/1000M self-adaption, EFT 4, ESD 3
RS485	8 x, 3kV isolation, ESD 3, EFT 3	RS232	4 x, multiplexed with RS485
DI	2 x, optocoupler isolation	DO	2 x, electromagnetic relay isolation; Contact capacity: 5A 30VDC / 5A 250VAC
USB	1 x USB HOST (USB Type - A), ESD 4	4G/5G	Either 5G or 4G function
Wi-Fi	Dual - band 2.4G/5G, supports AP and STA modes	Watchdog	Support
RTC	Support	Button	1 x reset button; 1 x user-defined key
LED	Communication status indicator	Mechanical Dimensions	232mm × 53mm × 155mm
Installation Method	Ear - hanging installation	Power Supply	DC 12V 5A
Working Environment	Humidity: 5% - 95%, no condensation; Working temperature: - 40℃ - 80℃; Storage temperature: - 40℃ - 125℃.	Heat Dissipation Method	Passive heat dissipation, fan - less.

Product Overview

High - performance 5G industrial gateway with industrial - grade fanless design;
Highly integrated, supporting powerful edge computing capabilities;
Stable system operation, with open APIs for easy secondary development;
Supports multiple communication interfaces and industrial protocols.

🌐 Product Page ✉️ Contact Us

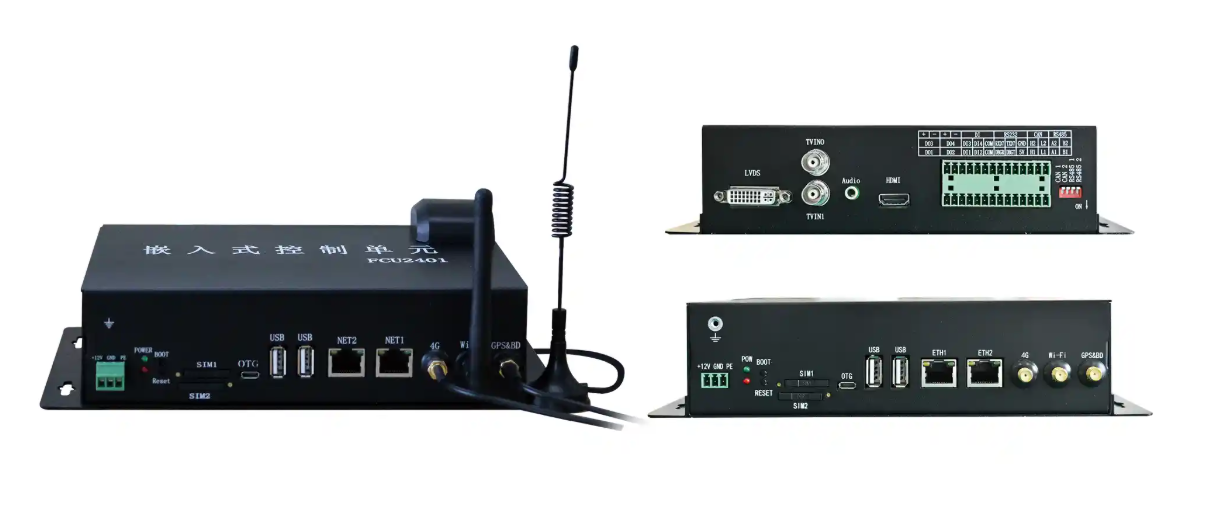

FCU2401 Economical ARM Industrial Computer

Charging pile billing control unit, multiproduct_catalog terminal, Forlinx Desktop system

Industrial Gateway Parameters

Item	Parameter	Item	Parameter
CPU	4 x Cortex-A7, 1.2GHz	RAM	1GB/2GB
ROM	8GB eMMC	OS	Linux 3.10
Debug	1 x RS232, 3.81 terminal	SSH	Network port
Hard disk	1 x SATA drive bay inside the chassis	Ethernet	1 x 10M/100M self-adaptive, EFT 3, ESD 4; 1 x 10M/100M/1000M self-adaptive, EFT 3, ESD 4
RS485	2 x, 3kV isolation, EFT3, ESD4	RS232	1 x, 3kV isolation, EFT3, ESD4
CAN	2 x CAN2.0B, 2.5kV signal isolation, 3kV power supply isolation, ESD 4, EFT3	DI	4 x, dry contact inputs
DO	4 x, relay output; contact capacity: 5A 250VAC, 5A 30VDC	USB	1 x USB OTG（Micro USB）, 2 x USB HOST（USB Type-A）
4G/5G	4G Cat4	Wi-Fi	2.4G, supports AP/STA modes
Watchdog	Support	Encryption Chip	Supports ESAM chip, ISO7816 protocol
RTC	Support	Positioning	Supports GPS and Beidou
Button	1 x RESET, 1 x BOOT	LED	Power indicator
LVDS	1 x LVDS port, using DVI - I socket	HDMI output	1 x standard HDMI 1.4, supports 1080@60fps
TV input	2 x analog camera inputs, support NTSC and PAL formats	Earphone/Speaker	1 x speaker port, can connect to a 4Ω 1W speaker
Mechanical Dimensions	236mm × 153mm × 53.3mm	Installation Method	Ear - hanging installation
Power Supply	DC 12V, with reverse connection protection and over - current protection.	Working Environment	Humidity: 5% - 95%, no condensation; Working temperature: - 40℃ - 80℃; Storage temperature: - 40℃ - 85℃.
Power off Protection	Available	Heat Dissipation Method	Passive heat dissipation, fan - less

Product Overview

Economical ARM industrial computer with low cost and high performance;
Rich in hardware peripherals, supports multi - screen display;
Suitable for self - service terminals in edge computing, charging piles, advertising machines, new retail, etc.

🌐 Product Page ✉️ Contact Us

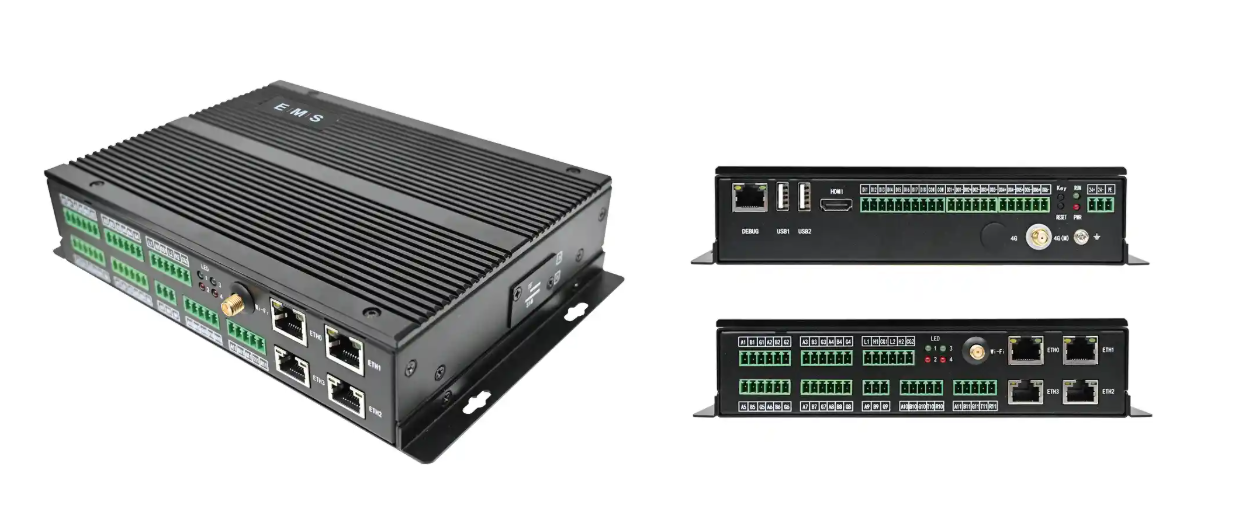

FCU2601 Energy Management System (EMS) Control Unit for Industrial and Commercial Energy Storage

High performance, multi-interface, low power consumption, industrial grade

Industrial Gateway Parameters

Item	Parameter	Item	Parameter
CPU	4 x Cortex-A55, 1.8GHz	RAM	2GB/4GB
ROM	16GB/32GB eMMC	OS	Linux 4.19
Debug	1 x RS232, RJ45	SSH	Network port
Hard Disk	1 x mSATA hard drive bay	Ethernet	2 x 10M/100M/1000M self-adaptive, EFT4, ESD4; 2 x10M/100M self-adaptive, EFT4, ESD4
RS485	11 x, 3kV isolation, EFT3, ESD4	RS232	2 x, multiplexed with RS485
CAN	2 x CAN2.0B, 3kV power supply isolation, ESD4, EFT4	DI	8 x, dry contact input
DO	6 x relay output; contact capacity: 5A 250VAC, 5A 30VDC	USB	2 x USB Host 2.0, ESD4
4G/5G	4G Cat4/Cat1	Wi-Fi	Dual - band 2.4G/5G, supports AP and STA modes
Watchdog	Support	RTC	Support
Button	1 x RESET; 1 x user-defined key	LED	2 x LED, 2 x CAN indicator LED, 2 x user - defined LED
HDMI Output	1 x standard HDMI 1.4, supports 1080@60fps, up to 4K	Mechanical Dimensions	214mm × 140mm × 45mm
Installation Method	Ear - hanging installation	Power Supply	DC24V, supports a wide - voltage input of DC9V~36V; with reverse connection protection, over - current protection, power-off protection.
	Available	Working Environment	Humidity: 5% - 95%, no condensation; Working temperature: - 40℃ - +75℃; Storage temperature: - 40℃ - +85℃.
Heat Dissipation method	Passive heat dissipation, fan - less.

*These parameters are for the extended version. Please consult the sales for the basic version parameters.

Product Overview

Designed for energy storage EMS, with highly reliable hardware and software;
Supports multiple interfaces and protocols, suitable for industrial and commercial energy storage and grid - side energy storage;
Passive cooling, fanless design, suitable for industrial environments.

🌐 Product Page ✉️ Contact Us

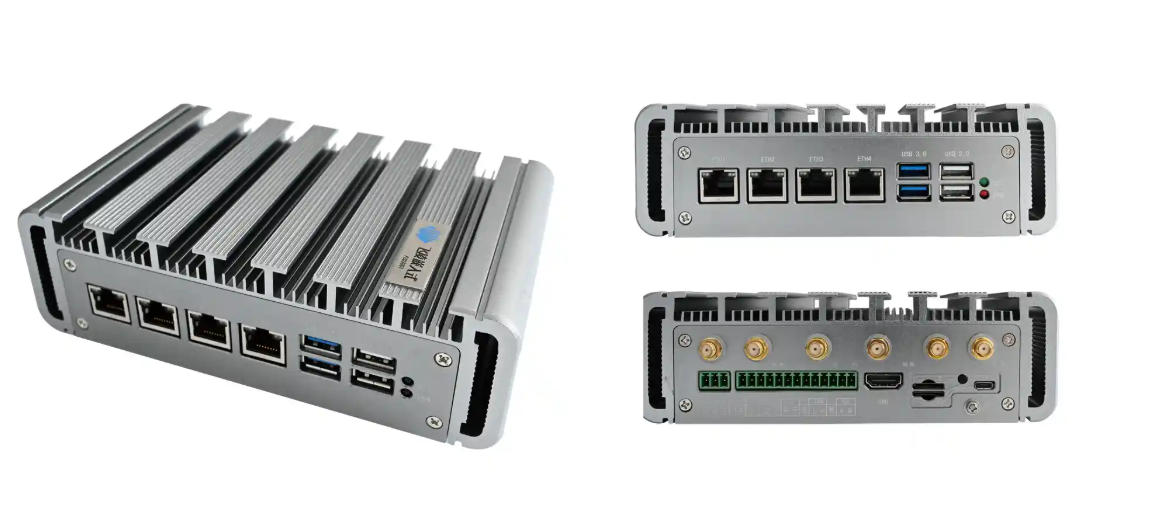

FCU3011 AI Edge Computing Terminal with 5G Support

4G/5G network communication and enable “5G + A1”

AI Edge Computing Terminal Parameters

Item	Parameter	Item	Parameter
CPU	nVIDIA Jetson Orin Nano	RAM	4GB / 8GB
ROM	128GB NVMe SSD	OS	Forlinx Desktop 22.04
AI Computing Power 4GB	20TOPS, 512 NVIDIA® Ampere cores, 16 Tensor cores	AI Computing Power 8GB	40TOPS，1024 NVIDIA® Ampere cores，32 Tensor cores
Debug	Graphical configuration	SSH	Network port
Hard Disk	1 x M.2 NVMe SSD hard drive bay inside the case, with a default 128GB SSD at the factory	Ethernet	4 x 10M/100M/1000M self-adaptive, ESD3
RS485	1 x, 1.5kV isolation protection	CAN	1 x CAN2.0B, 1.5kV isolation protection
DI	2 x, 1.5kV isolation protection	DO	2 x, electromagnetic relay isolation; Contact capacity: 5A 30VDC / 5A 250VAC
USB	2 x USB3.0, 2 x USB2.0 (standard USB Type - A sockets); 1 x OTG (for system flashing), all with ESD3 protection	4G/5G	Either 5G or 4G function
Wi-Fi	Dual - band 2.4G/5G, supports AP and STA modes	Watchdog	Support
RTC	Support	Button	1 x RECOVERY button
LED	1 x SYS indicator, 1 x POW indicator	HDMI Output	1 x HDMI 2.0, supports up to 4K display
Mechanical Dimensions	170mm × 110mm × 55mm	Installation Method	Ear - hanging installation
Power Supply	DC24V5A	Working Environment	Humidity: 5% - 95%, no condensation; Working temperature: 0℃ - 70℃; Storage temperature: - 20℃ - 125℃.
Power Consumption	13.8W~21.9W	Heat Dissipation Method	Passive heat dissipation, fan - less.

Product Overview

High - performance AI edge computing terminal, supporting 5G and multi - interface expansion;
Reserves multiple peripheral interfaces for AI computing in embedded and edge systems;
Industrial - grade fanless design, suitable for deployment in complex environments;
Supports high - definition video encoding/decoding and edge AI inference.

🌐 Product Page ✉️ Contact Us

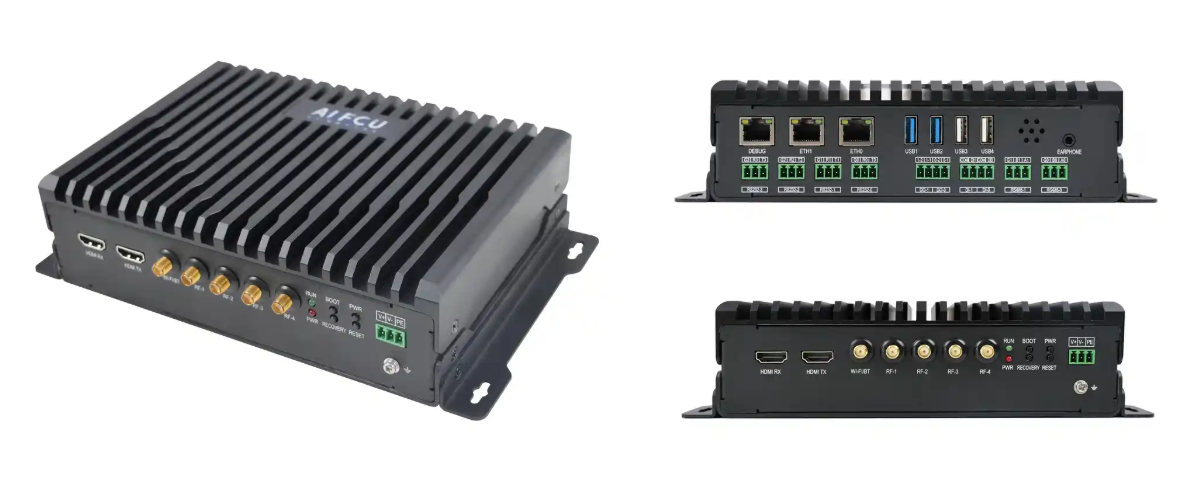

FCU3501 AI Edge Computing Terminal

8K video simultaneous editing and decoding: decode up to 8K @ 60fps

AI Edge Computing Terminal Parameters

Item	Parameter Description	Item	Parameter Description
Main ControL	4 × Cortex-A76 + 4×Cortex-A55, Rockchip RK3588J	RAM	8GB/16GB
ROM	64GB / 128GB eMMC	OS	Forlink Desktop 22.04
AI Computing Power	RK3588J: 6TOPS	Extended Computing Power	Optional Hallo - 8 Computing Card: 26TOPS
Debug	1 x RS232, RJ45 Interface	SSH	Network port
TF Card	1 x TF card slot	Hard Disk	1 x M.2 SSD hard disk bay at the bottom
Ethernet	2 x 10/100/1000M self-adaptive	RS485	2 x, EMC 3
RS232	4 x, EMC 3	DI	2 x, dry contact input
DO	2 x, isolated by electromagnetic relays	USB	2 × USB3.0 + 2×USB2.0（standard USB Type - A sockets）
4G/5G	Either 5G or 4G	Wi-Fi	2.4G, supports AP/STA modes
Watchdog	Support	RTC	Support
Button	RECOVERY / BOOT / RESET / PWR	LED	RUN indicator x1, POW indicator× 1
HDMI Output	1 x, up to 8K	HDMI Input	1 x, up to 4K
Audio	1 x earphone/speaker	Dimensions	232.5mm × 140.5mm × 56.5mm
Installation Method	Ear - hanging installation	Power Supply	DC24V, wide - voltage DC 9~36V
Working Environment	Humidity 5% - 95% Non - Condensing; Temperature - 40℃ - +85℃; Storage - 40℃~+85℃	Heat Dissipation Method	Passive heat dissipation, fan - less

Product Overview

The FCU3501 embedded control unit features a fanless design that utilizes passive heat dissipation. It has successfully passed rigorous environmental and electromagnetic compatibility (EMC) tests, ensuring stable long-term operation. This unit is ideal for edge-side AI computing applications in various industries, including intelligent transportation, smart factories, and smart buildings.

🌐 Product Page 🎬 Video ✉️ Contact Us

StarterKit

Phoenix Contact x Forlinx Embedded vPLCnext verification platform

StarterKit Parameter Table

Item	Parameter Description	Item	Parameter Description
Main ControL	4 × Cortex-A55@1.8GHz	RAM	2GB
ROM	16GB eMMC	OS	Linux 6.1, supporting Phoenix Contact vPLC next
Debug	1 x type - C	SSH	Network port
Ethernet	3 x 10M/100M/1000M adaptive ports	DI	8 x dry contact inputs
DO	8 x relay outputs	USB	1 x USB OTG (For System Flashing)
Wi-Fi	2.4G, supports AP/STA modes	Watchdog	Support
RTC	Support	Button	1 x reset switch
LED Indicator	1 x PWR, 1 x RUN, 1 x ERR, 3 x network port indicators, 16 x IO indicators	Mechanical Dimensions	100mm × 80mm × 57mm
Installation Method	Rail clip installation	Power Supply	DC 24V
Heat Dissipation Method	Passive heat dissipation, fan - less.

Product Overview

The Virtual PLCnext Control Starter Kit is designed for the industrial automation control sector. It natively supports Phoenix Contact’s VPLCnext and offers containerized deployment using Podman. The kit includes 3 x Gigabit network ports and 16 I/O ports, enabling users to quickly get started and efficiently test and verify hardware designs from Forlinx, as well as the Phoenix Contact VPLCnext system.

✉️ Contact Us
