User’s Hardware Manual_V1.0

Document classification: □ Top secret □ Secret □ Internal information ■ Open

Copyright

The copyright of this manual belongs to Baoding Folinx Embedded Technology Co., Ltd. Without the written permission of our company, no organizations or individuals have the right to copy, distribute, or reproduce any part of this manual in any form, and violators will be held legally responsible.

Forlinx adheres to copyrights of all graphics and texts used in all publications in original or license-free forms.
The drivers and utilities used for the components are subject to the copyrights of the respective manufacturers. The license conditions of the respective manufacturer are to be adhered to. Related license expenses for the operating system and applications should be calculated/declared separately by the related party or its representatives.

Overview

This manual aims to help you quickly get familiar with the product, understand interface functions and configurations. It covers the interface functions and introductions of the development board, product power consumption, and methods for troubleshooting issues during use. Some commands are annotated in the description for user convenience, with a focus on practicality. For information on pin function multiplexing and hardware design guidelines, please refer to Forlinx’s “FET3572-C Pin Multiplexing Comparison Table”.

There are four chapters:

Chapter 1. provides an overall overview of the CPU, briefly introducing its performance and application industries;

Chapter 2. offers a general introduction to the SoM, including descriptions and functions of connector pins;

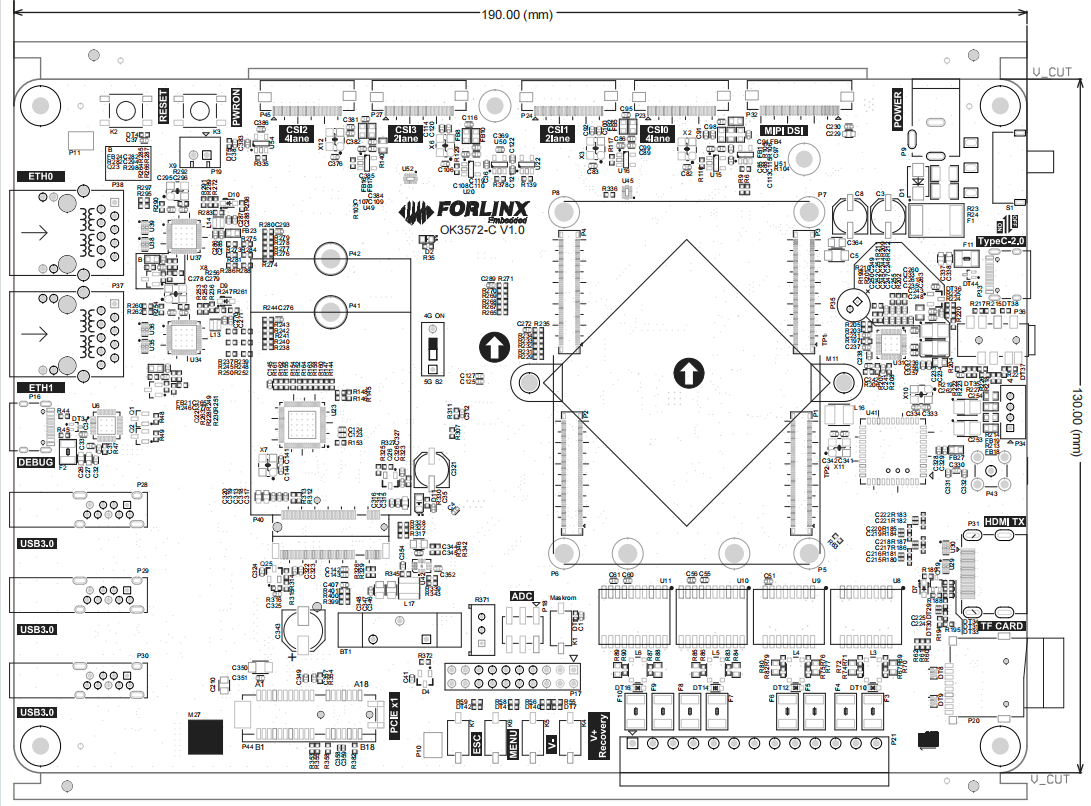

Chapter 3. introduces the development board in multiple chapters, covering hardware principles and simple design ideas;

Chapter 4. describes the product’s power consumption and other considerations.

Application Scope

This hardware manual applies to the OK3572-C Forlinx Development

Revision History

Date	Version	SoM Version	Carrier Board Version	Revision History
15/06/2026	V1.0	V1.0	V1.0	Initial Version

1. RK3572 Description

RK3572 is a low-power, high-performance processor designed for edge computing devices, personal mobile internet devices, and other AIoT applications. It integrates dual-core Cortex-A73 and hexa-core Cortex-A53 CPUs, along with an independent NEON co-processor.

The RK3572 video decoder supports formats such as H.265, VP9, AV1, and AVS2, with a maximum capability of 8K@30fps or 4K@120fps, while also supporting H.264 up to 4K@60fps. The video encoder supports H.264 and H.265, reaching up to 4K@40fps, and its high-quality JPEG codec supports up to 4K@60fps.

The integrated 3D GPU makes the RK3572 fully compatible with OpenGL ES 1.1, 2.0 and 3.2, OpenCL up to version 3.0, and Vulkan 1.4. A dedicated 2D hardware engine with MMU maximizes display performance, delivering a very smooth user experience.

RK3572 introduces a next-generation 12-megapixel ISP (Image Signal Processor). It implements numerous algorithm accelerators, such as HDR, 3A, CAC, 3DNR, 2DNR, sharpening, dehazing, enhancement, debayering, small-angle lens distortion correction, and more.

The built-in NPU supports mixed operations of INT4/INT8/INT16/FP4/FP8/FP16/BF16 and asymmetric MAC operations for W4A16. Additionally, thanks to its strong compatibility, network models based on frameworks like TensorFlow, MXNet, PyTorch, and Caffe can be easily converted.

RK3572 supports high-performance external memory interfaces (LPDDR4/LPDDR4X/LPDDR5/LPDDR5X), capable of meeting demanding memory bandwidth requirements, and offers a comprehensive set of peripheral interfaces to support highly flexible applications.

Target Applications:

Information Release Terminals
Smart Cockpit
Smart Screen
AR/VR
Edge Computing
High-end IPC
Smart NVR
Premium Pad
ARM PC

……

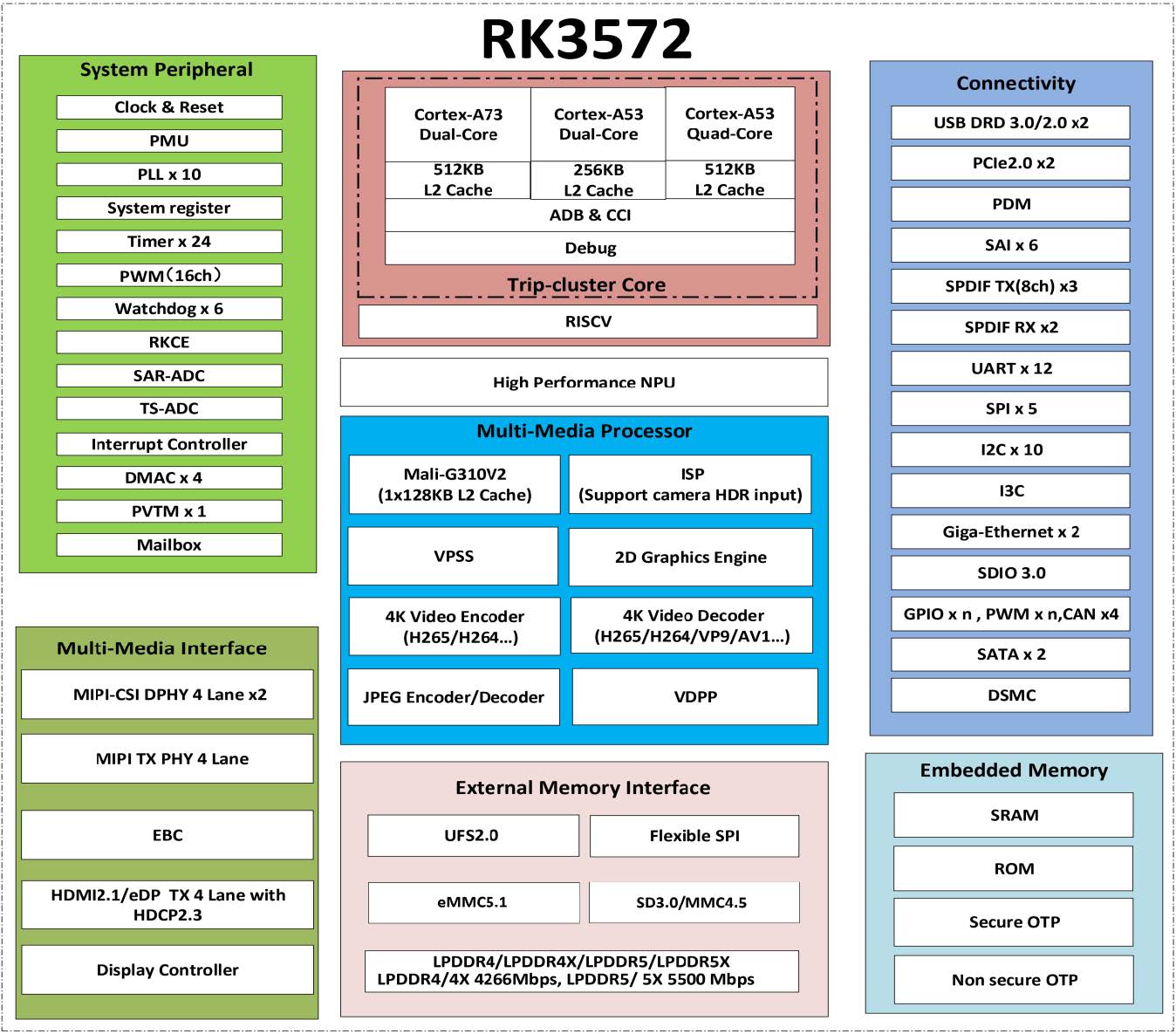

RK3572 Block Diagram

2. FET3572-C SoM Description

2.1 FET3572-C Appearance Diagram

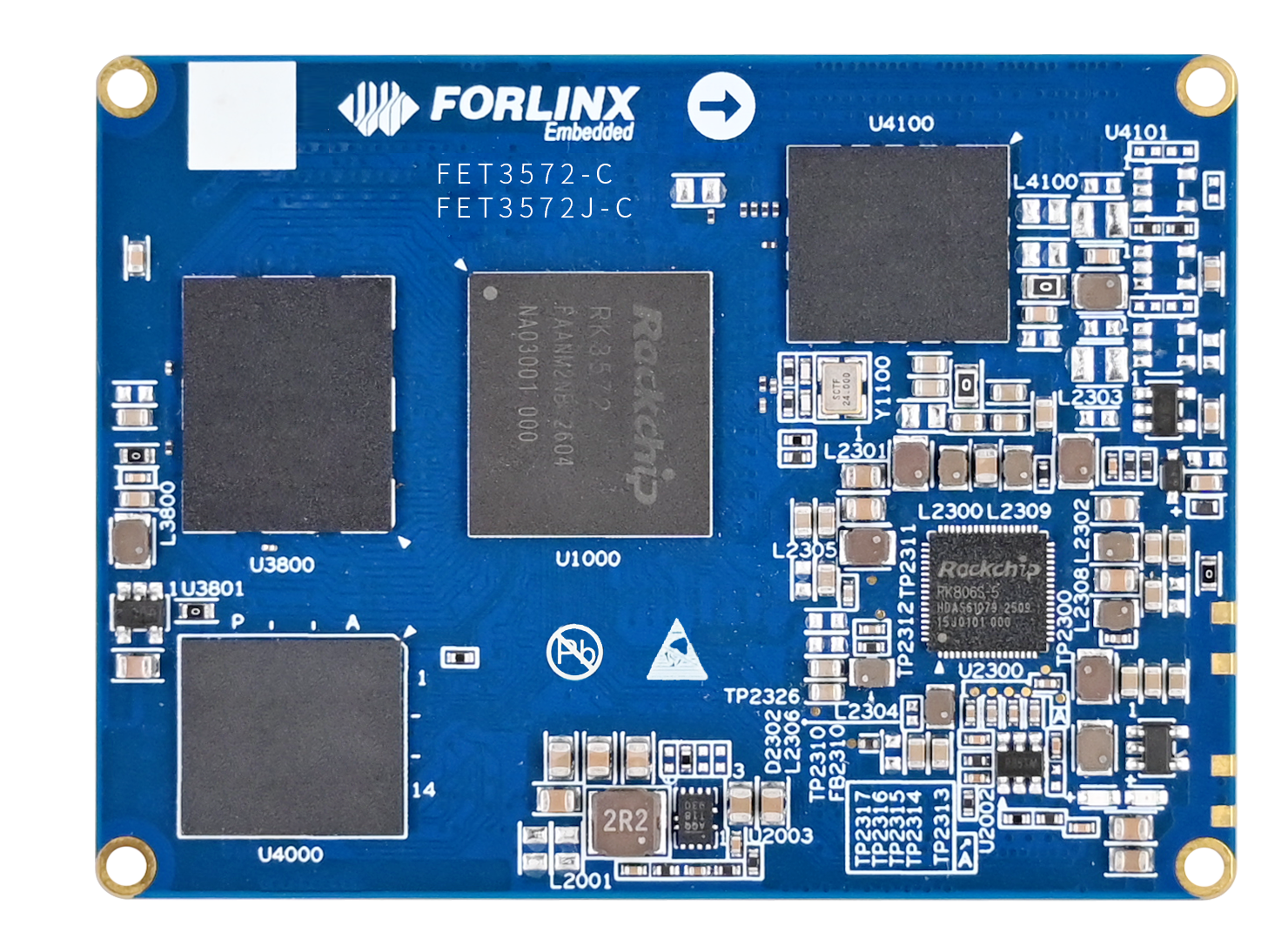

Front

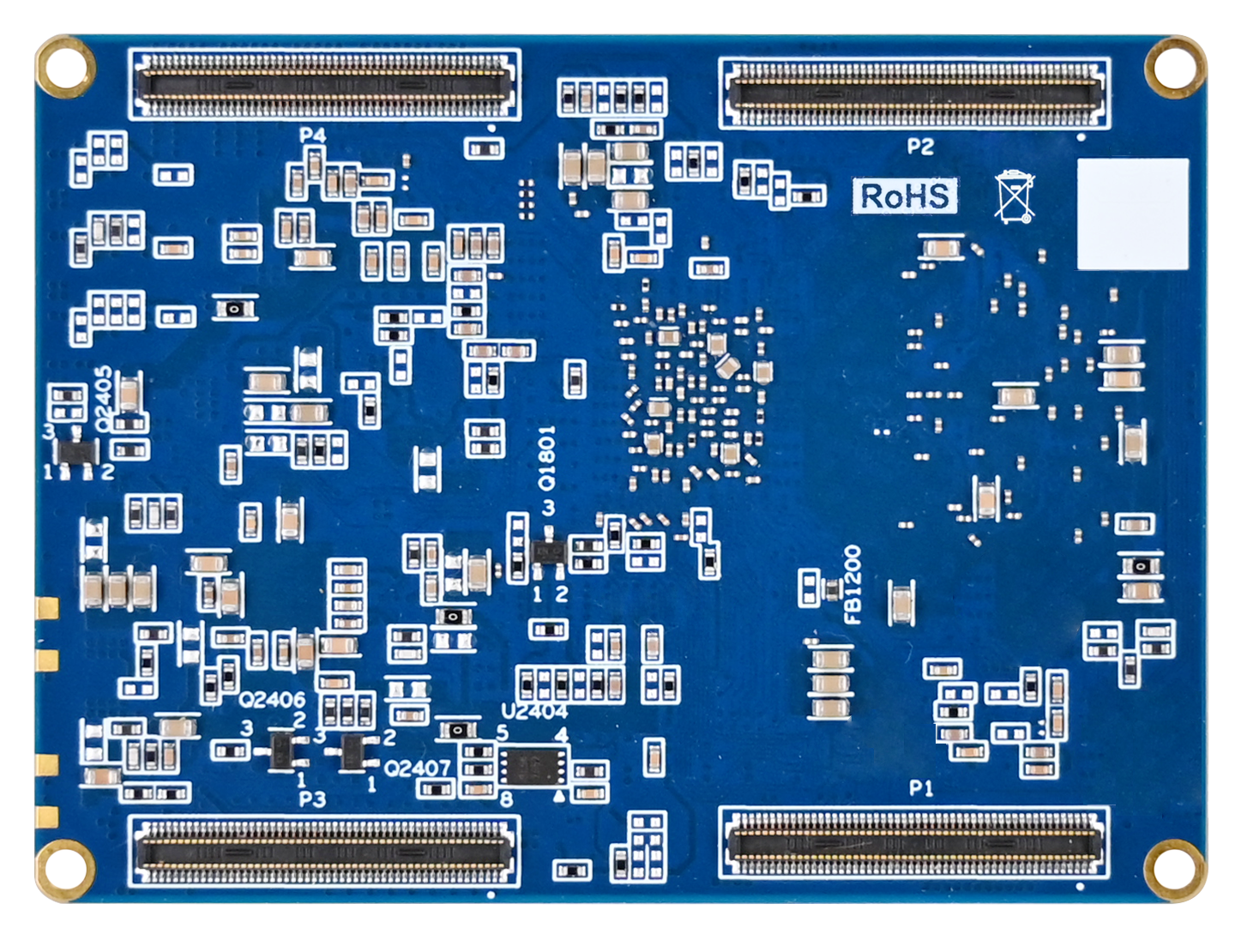

Back

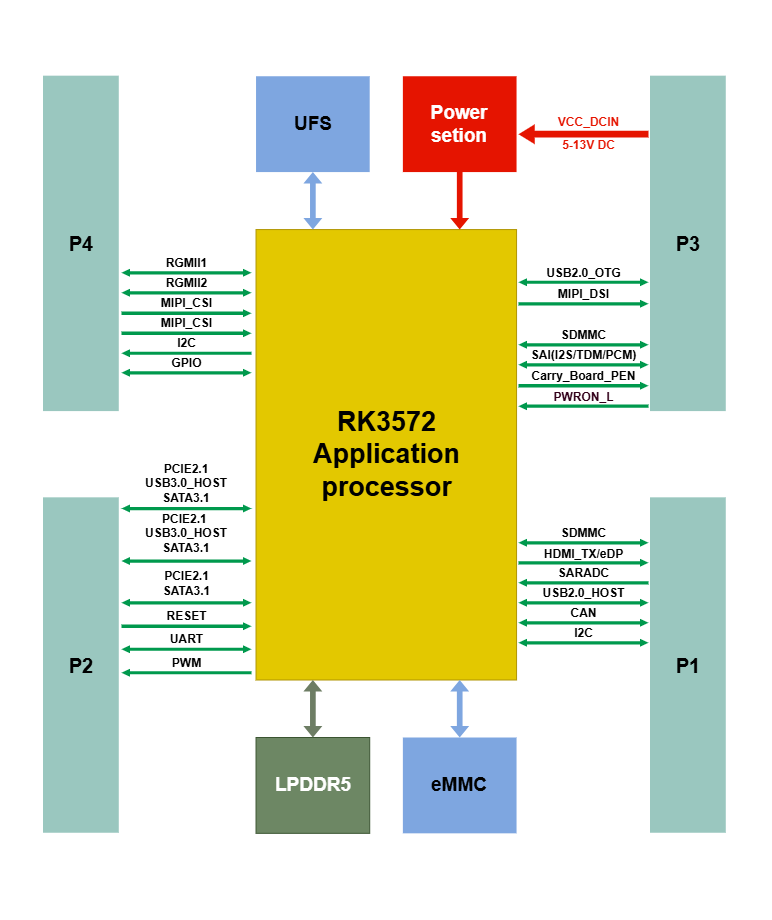

2.2 FET3572-C SoM Block Diagram

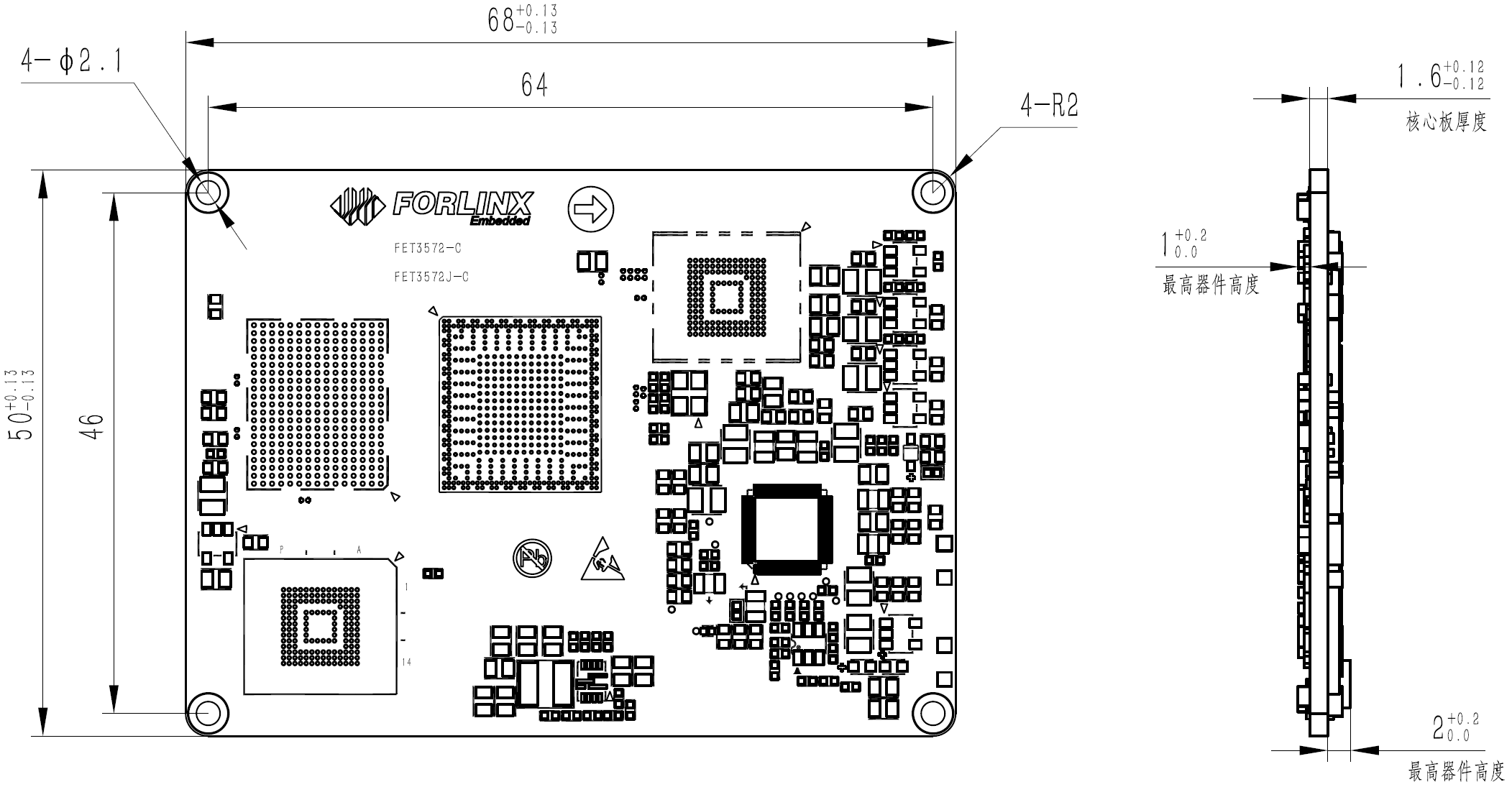

2.3 FET3572-C SoM Dimension Diagram

FET3572-C SoM Dimension Diagram：

Top Layer Dimension Diagram

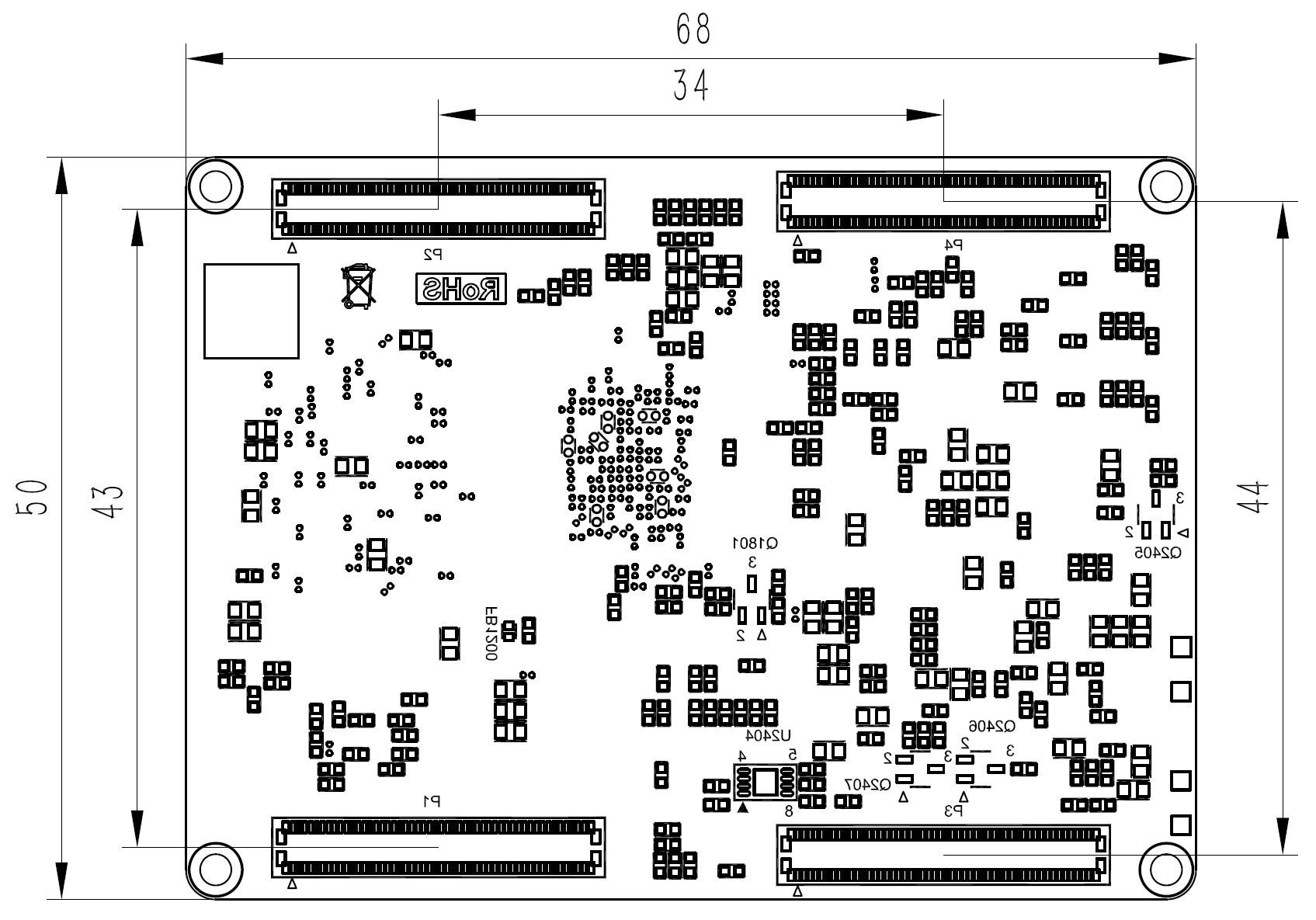

Bottom Layer Dimension Diagram

Unit: mm

Dimensions: 68mm × 50mm, dimensional tolerance ±0.15mm. For more dimensional details, please refer to the DXF file.

Plate making process: 1.6mm thickness, 10-layer immersion gold PCB.

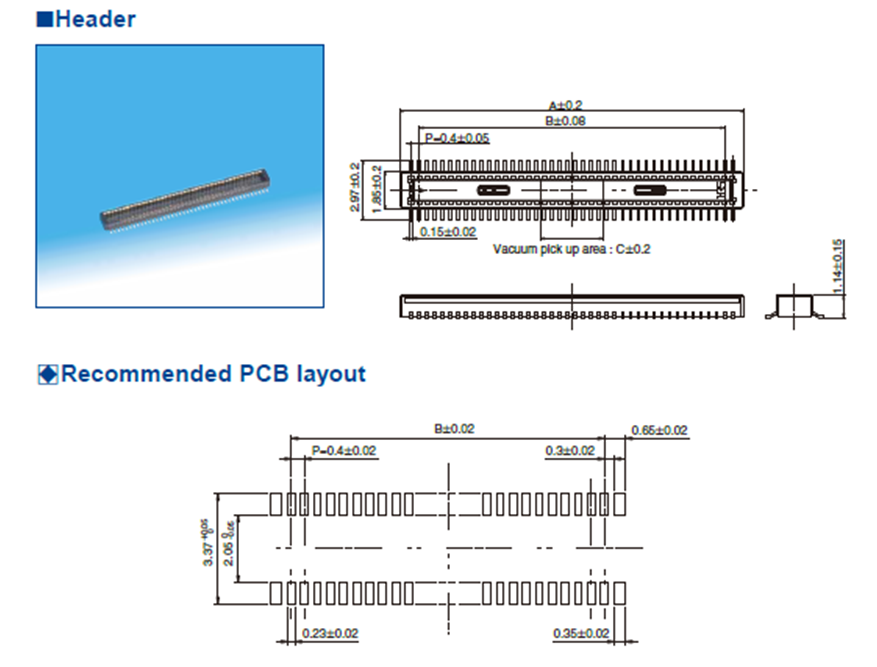

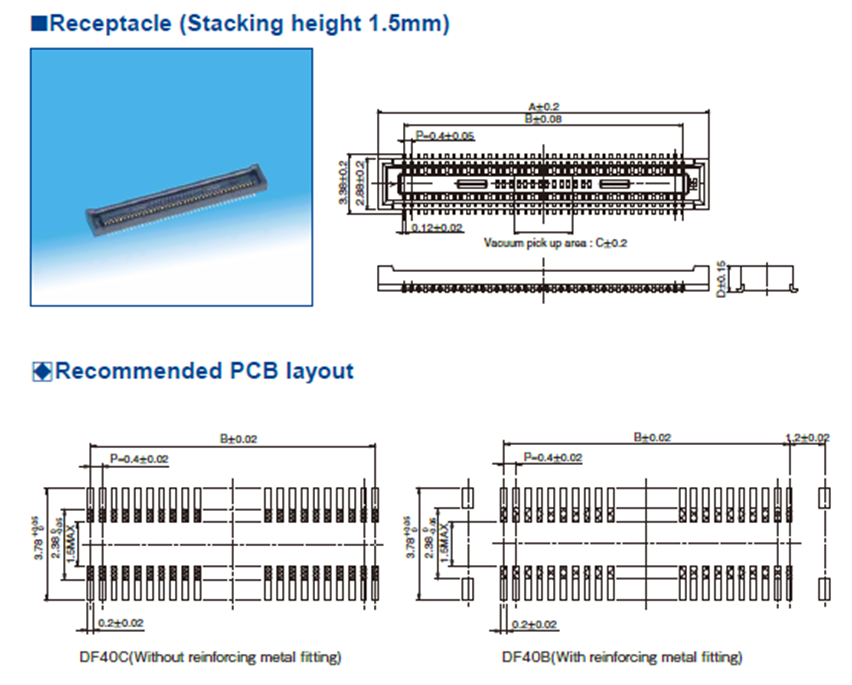

Connector: Four 0.4mm pitch, 100-pin board-to-board connectors. (Refer to the appendix for connector dimension diagrams.)

Four mounting holes (2.1mm) are reserved at the four corners of the SoM to facilitate the installation of fixing screws and to improve the reliability of the product connection so that the product can be used in vibration environments.

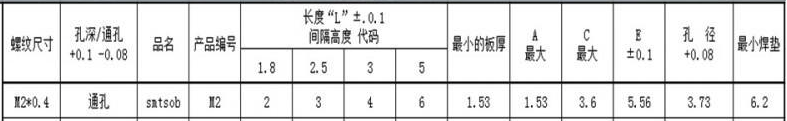

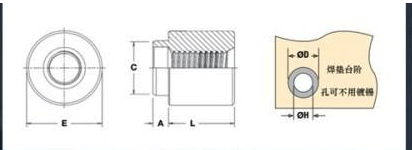

Please refer to the development board design and use M2, L=1.5mm patch nuts on the carrier board, please refer to the diagram below for the specifications of the surface-mount nuts.

2.4 Performance Parameter

2.4.1 System Frequency

Name	Specification				Description
	Minimum	Typical	Maximum	Unit
System Frequency Arm® Cortex®-A73	-	-	2200	MHz	Commercial level
System Frequency Arm® Cortex®-A53	-	-	2100	MHz	Commercial level

Name	Specification				Description
	Minimum	Typical	Maximum	Unit
System Frequency Arm® Cortex®-A73	-	-	TBD	MHz	Industrial Level
System Frequency Arm® Cortex®-A53	-	-	TBD	MHz	Industrial Level

2.4.2 Power Parameter

Parameter	Pin No.	Specification				Description
		Minimum	Typical	Maximum	Unit

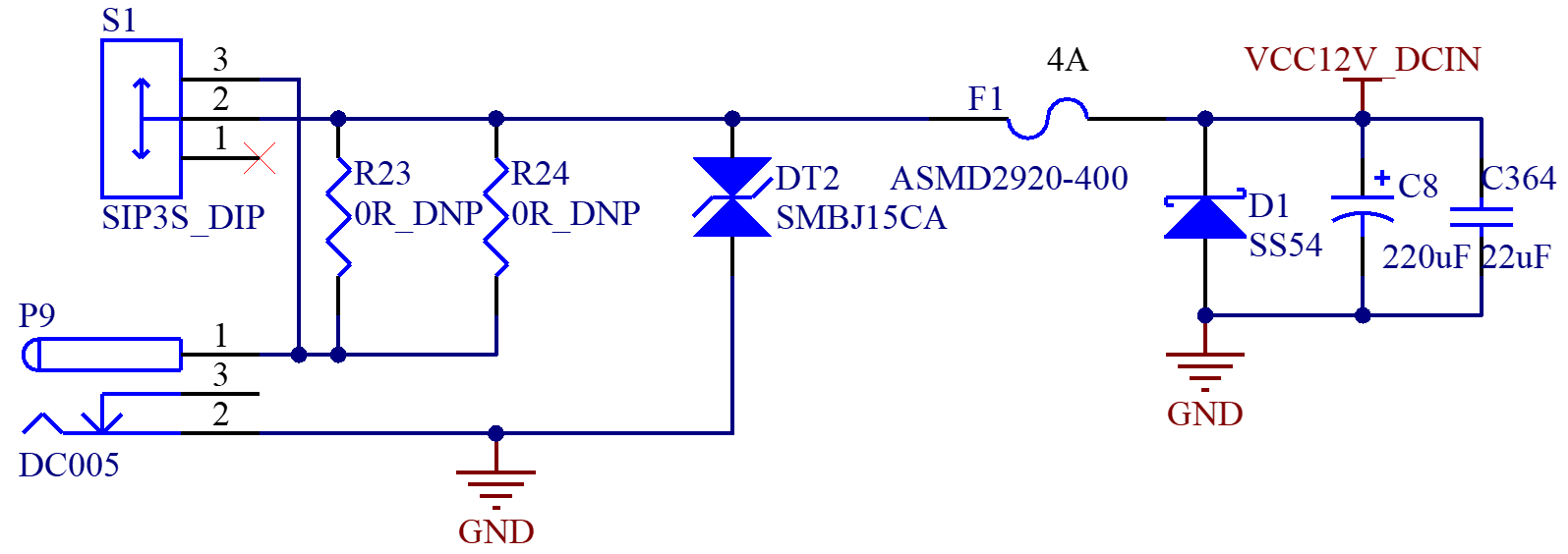

Main Power Supply Voltage	12V	11.5	12	12.5	V	-

2.4.3 Working Environment

Parameter		Specification				Description
		Minimum	Typical	Maximum	Unit
Operating Temperature	Working environment	0	25	+80	℃	Commercial level
	Storage Environment	-40	25	+125	℃
	Working environment	-40	25	+85	℃	Industrial Level
	Storage Environment	-40	25	+125	℃
Humidity	Working environment	10	-	90	％RH	No Condensation
	Storage Environment	5	-	95	％RH

2.4.4 SoM Interface Speed

Parameter	Specification				Description
	Minimum	Typical	Maximum	Unit
Serial Port Communication Speed	-	115200	4M	bps	-
SPI Clock	-	-	50	MHz	-
I2C Communication Speed	-	100	400	Kbps	-

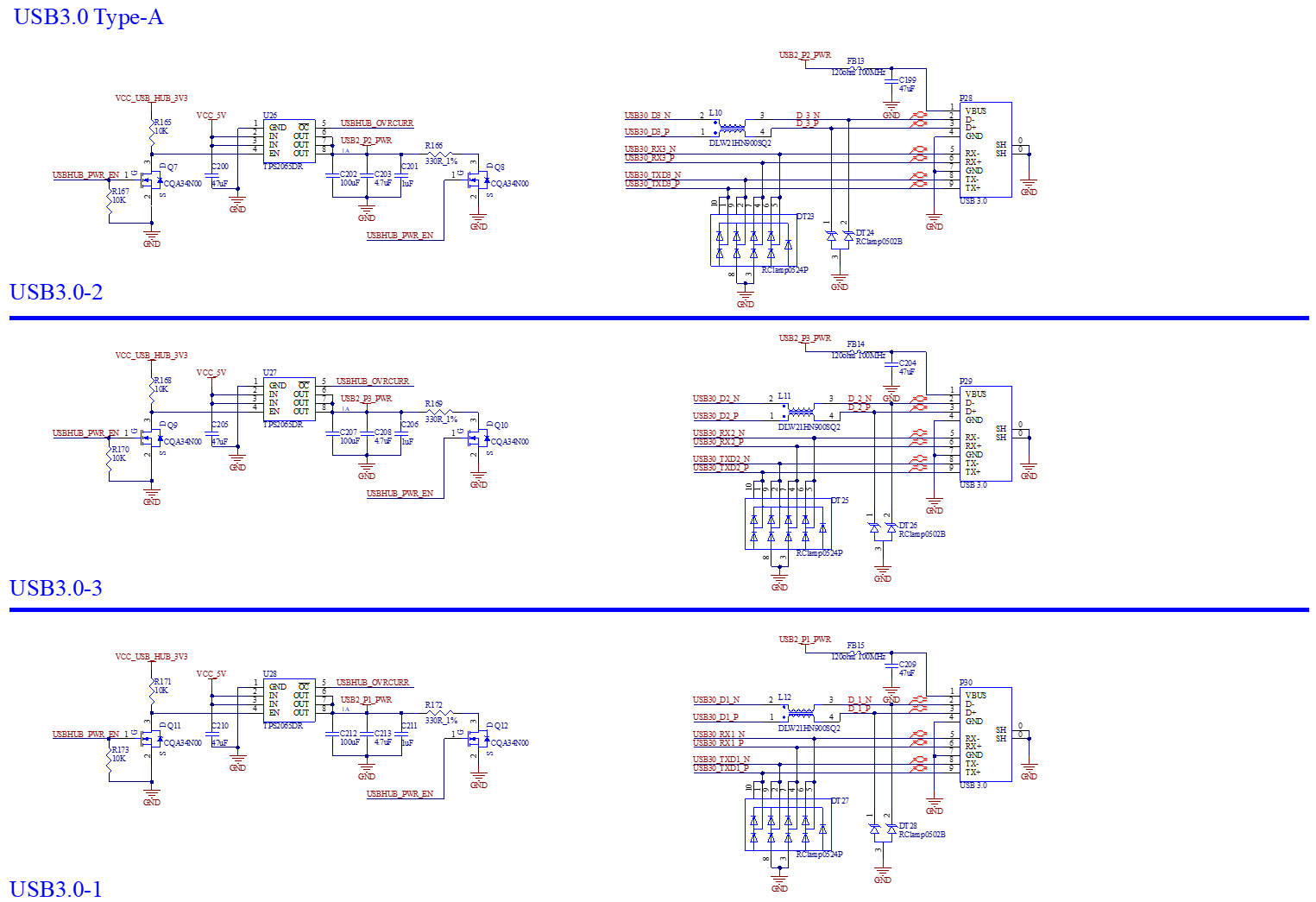

USB3.0 Interface Speed	-	-	5	Gbps	-
USB2.0 Interface Speed	-	-	480	Mbps	-
CAN FD Communication Speed	-	-	5	Mbps	-
PCIe2.1	-	-	5	Gbps	-

2.4.5 ESD Features

Parameter	Specification		Unit	Application Scope
	Minimum	Maximum
ESD HBM(ESDA/JEDEC JS-001-2017)	-2000	2000	V	Signals exported from SoM
ESD CDM(ESDA/JEDEC JS-002-2018)	-250	250	V	Signals exported from SoM

Note：

The above data is provided by Rockchip;
As all the signals exported from SoM are electrostatic sensitive signals, the interfaces should be well protected from static electricity in the carrier board design and the SoM transportation, assembling, and use.

2.5 SoM Interfaces

The interface resources of FET3572-C SoM are supported in the following table:

Function	Quantity	Parameter

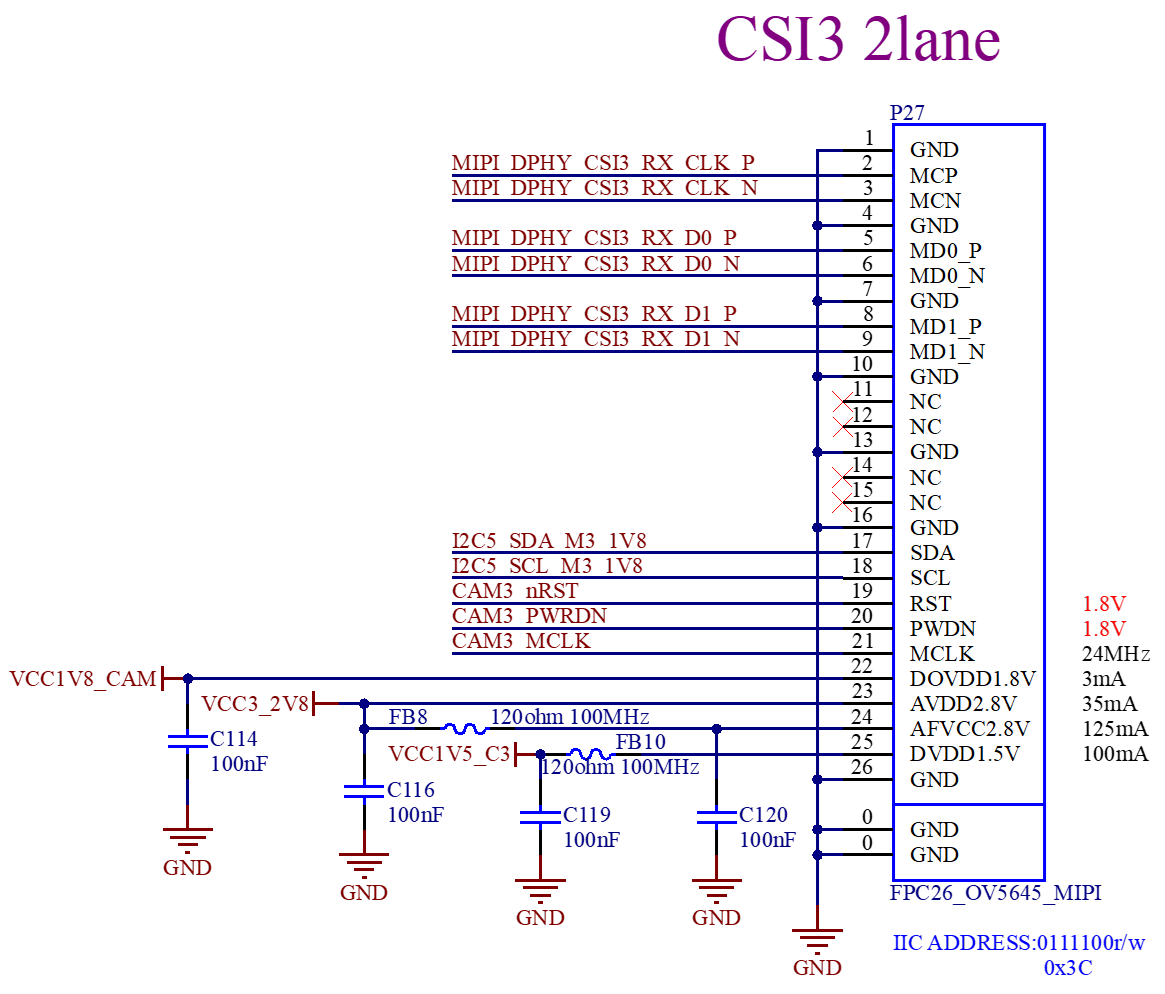

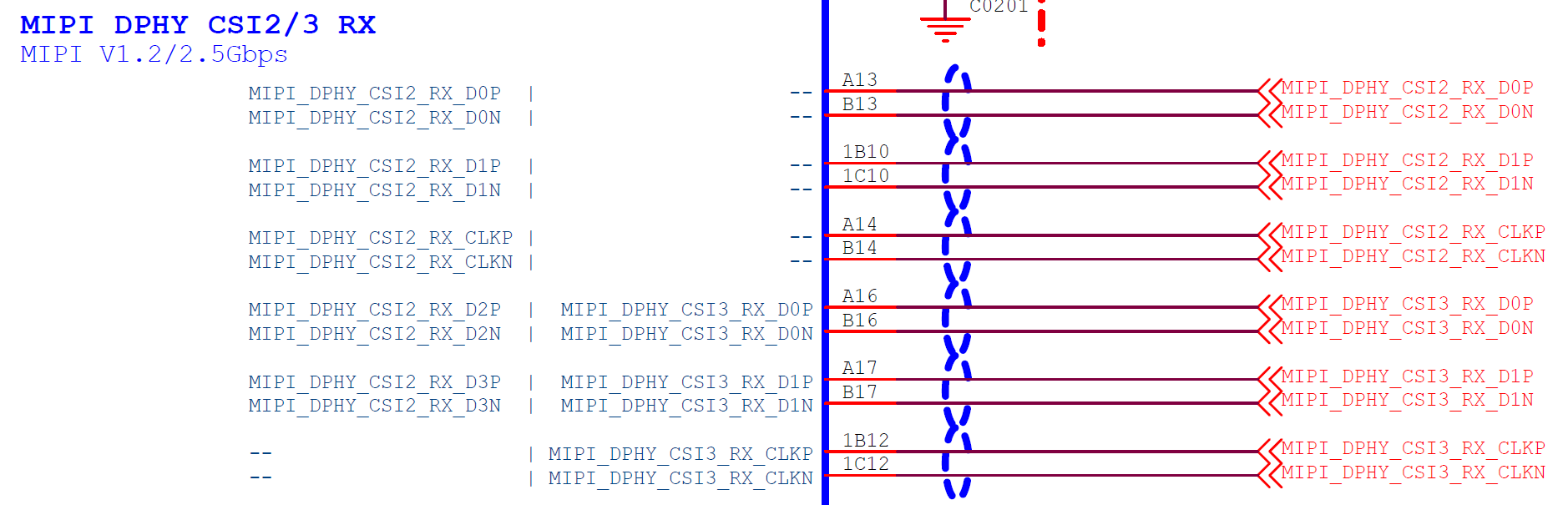

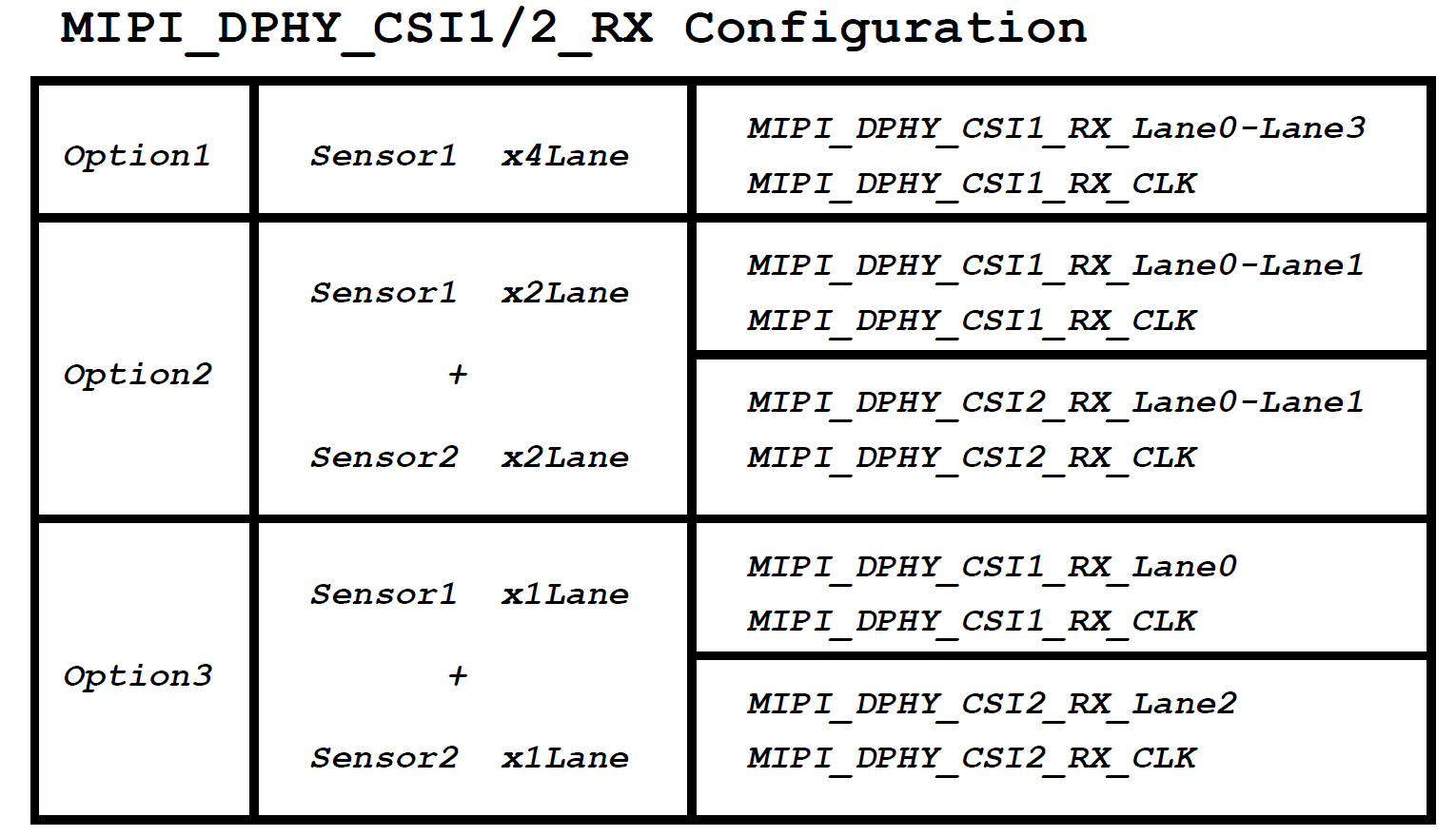

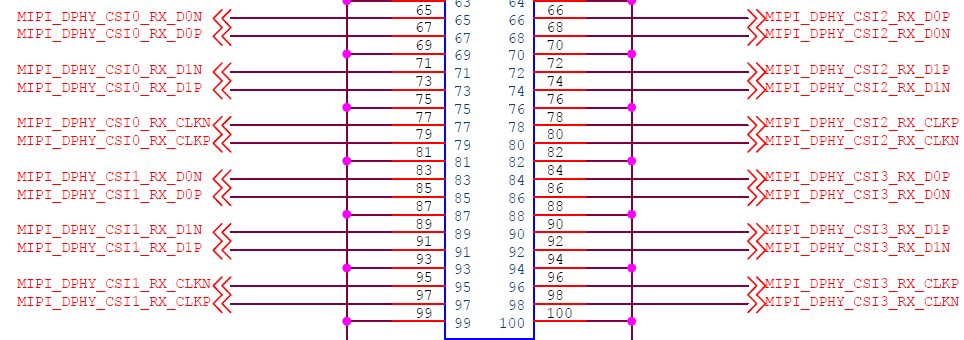

MIPI CSI	2	· 2 × MIPI CSI-2 interfaces, each supporting 4 data lanes D-PHY v1.2（2.5Gbps); · Each 4 data lanes can be split into 2 x 2 data lanes configurations; · Maximum of 4 x 2 data lanes cameras supported.
DVP	1	· Standard DVP interface (8/10/12/16-bit, up to 150 Mhz); · Supports BT.601, BT.656, and BT.1120 VI interfaces.
HDMI/eDP TX	1 *¹	· Supports multiplexing for 1 x HDMI and 1 x eDP interface; · The HDMI 2.1 interface supports up to 4 lane_6Gbps, supports up to 4K@60Hz, and includes HDCP 2.3 compatibility; · The EDP 1.3 interface supports up to 4 lane_5.4Gbps, supports up to 4K@60Hz, and includes HDCP 1.3 compatibility.

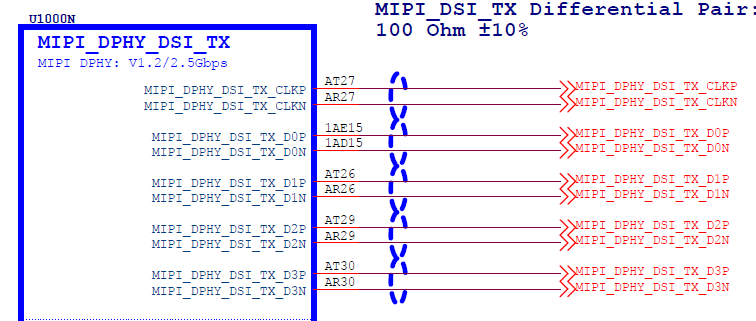

MIPI DSI	1 *¹	1 × MIPI DSI 1.2: Up to 4 lane*2.5Gbps;
PARA	1 *¹	Parallel display interface: · RGB (up to 8-bit)/BT656/BT1120; · Maximum resolution: 1920 × 1080@60Hz.
EBC	1 *¹	· Supports E-ink EPD (Electronic Paper Display) support; · Supports hardware decoding up to 1872 × 1404 resolution; · Supports 16-bit data bus bandwidth.
SAI	≤5	· SAI 0/1/4 supports 4 TX lanes and 4 RX lanes;
SPDIF TX	≤2	· Supports 2 x SPDIF TX ports;
SPDIF RX	1	· Supports 1 x SPDIF RX ports;
PDM	1	· Up to 8 channels, audio resolution: 16‑bit to 24‑bit, sample rate up to 192 kHz; · Supports PDM master receive mode

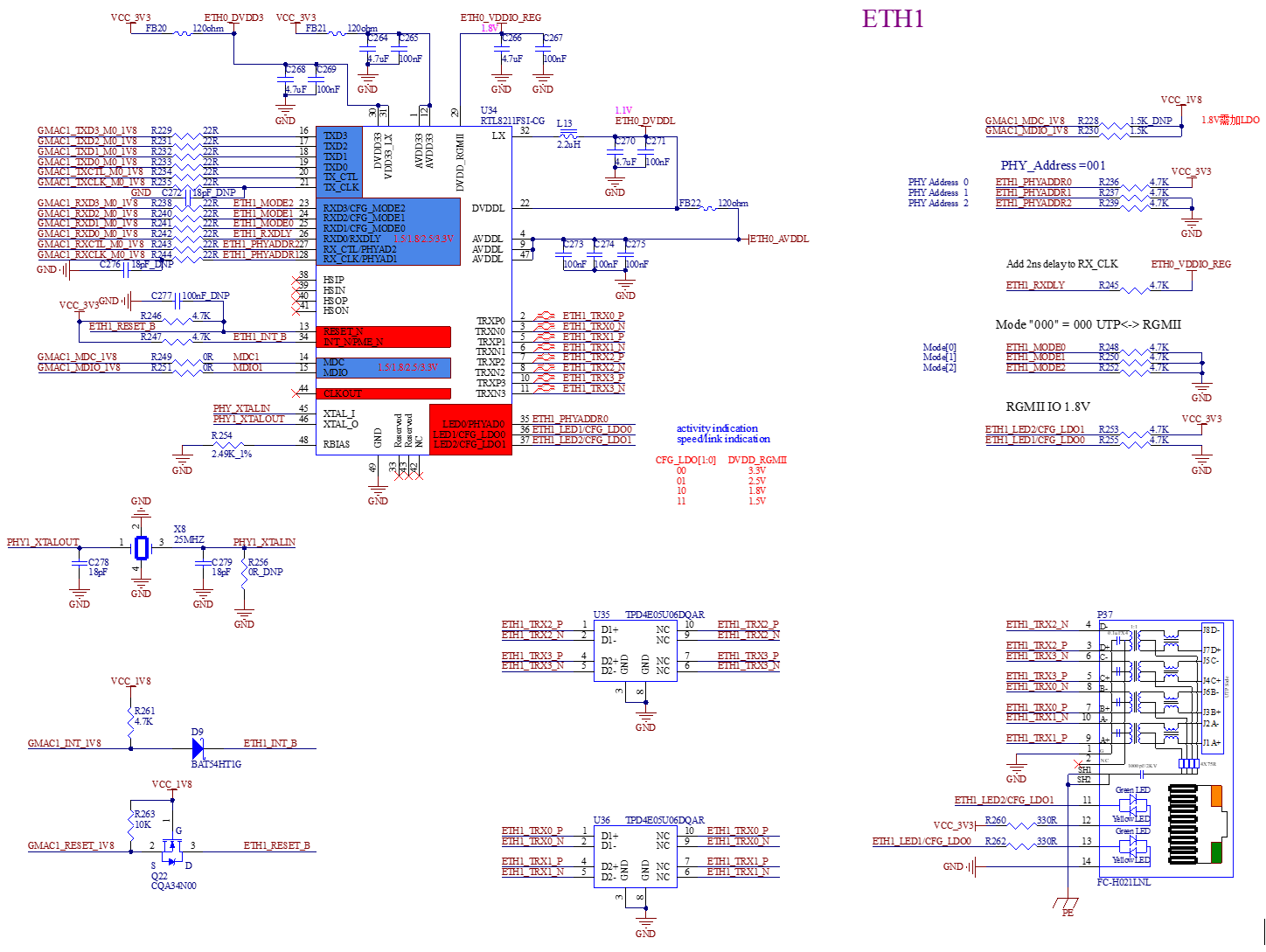

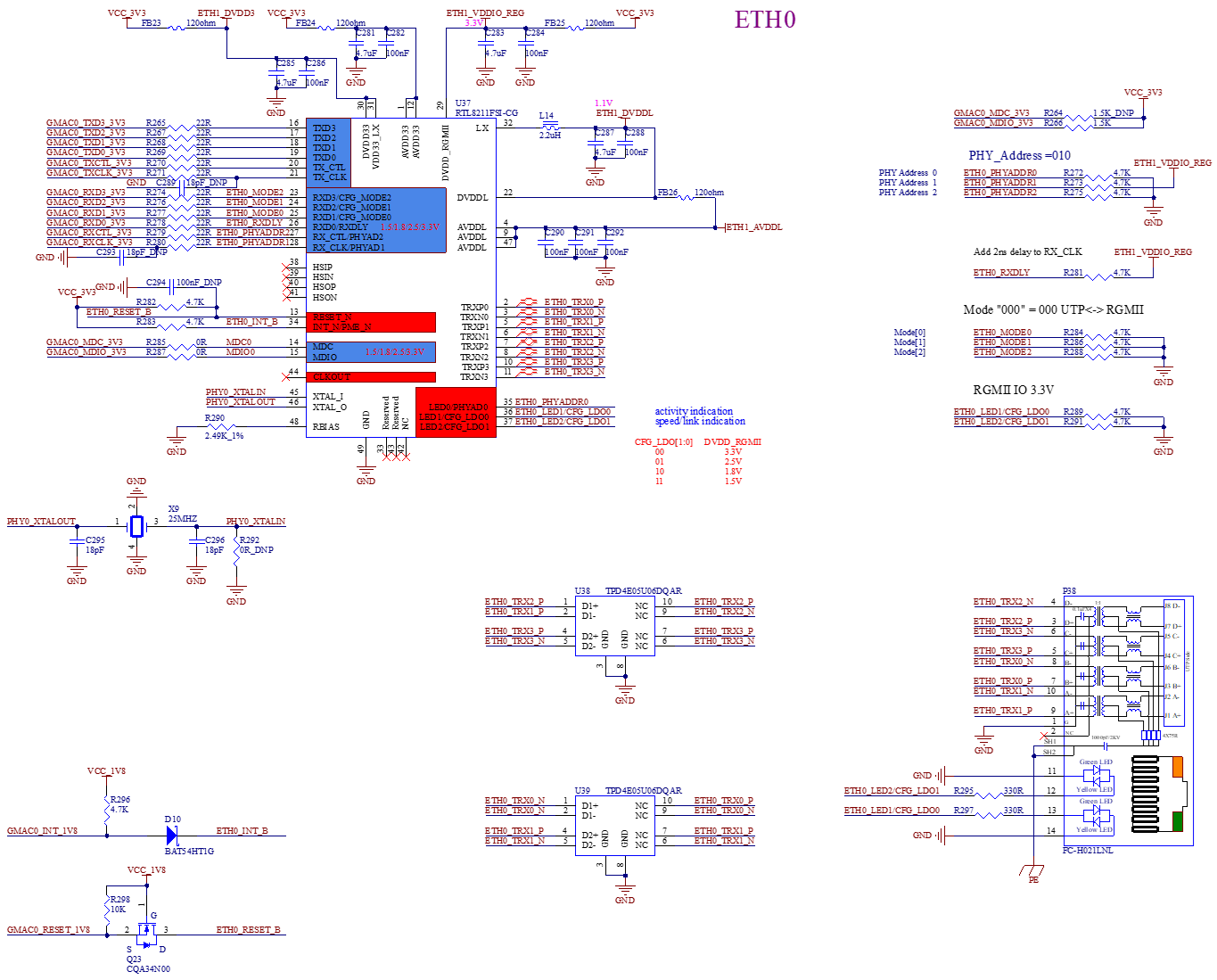

Ethernet	≤2	· 2 × GMAC with RGMII / RMII interfaces · Supports Data rates: 10/100/1000 Mbps

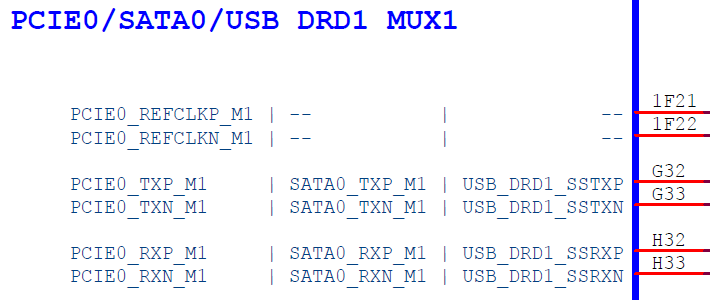

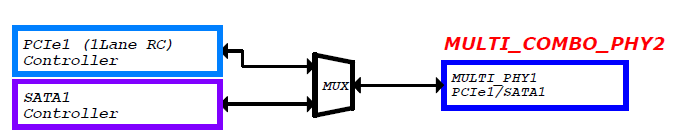

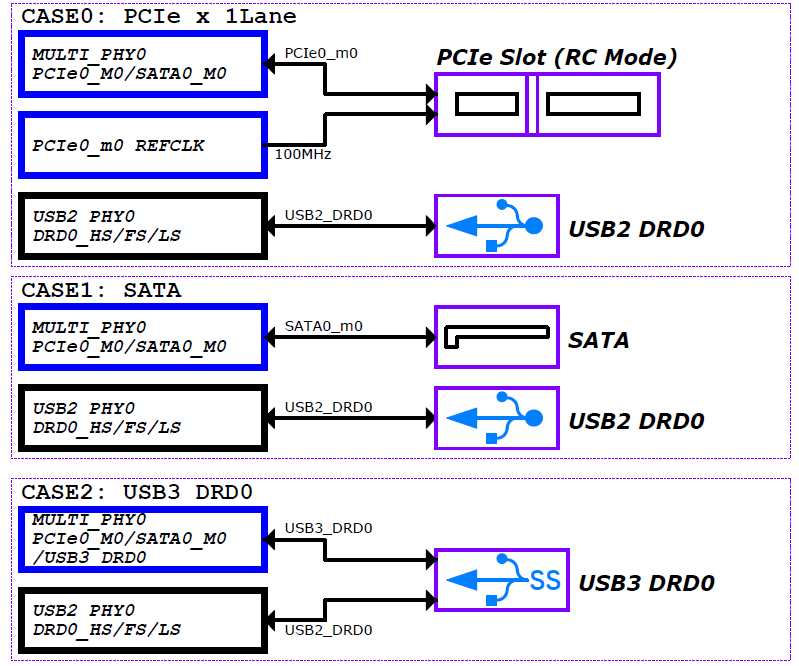

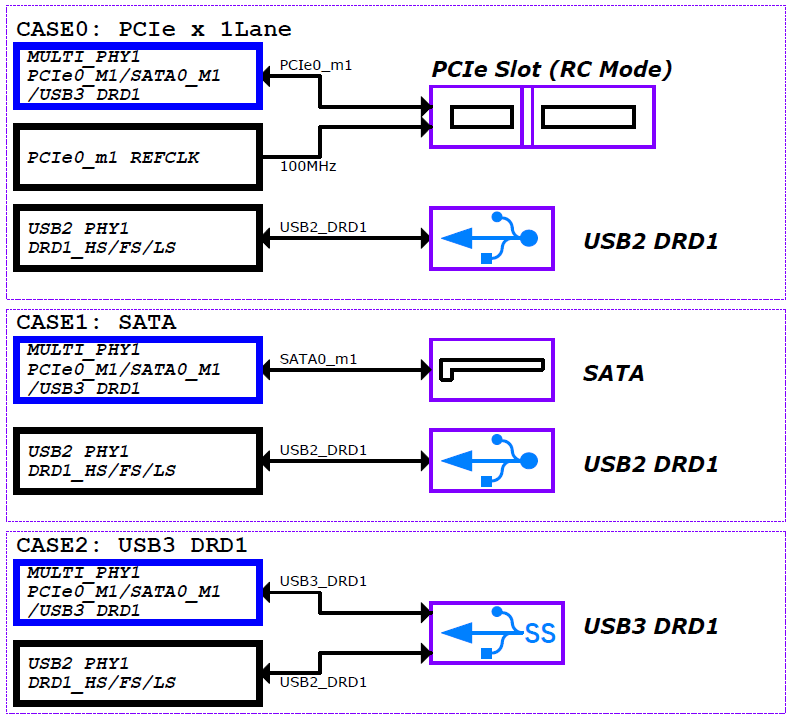

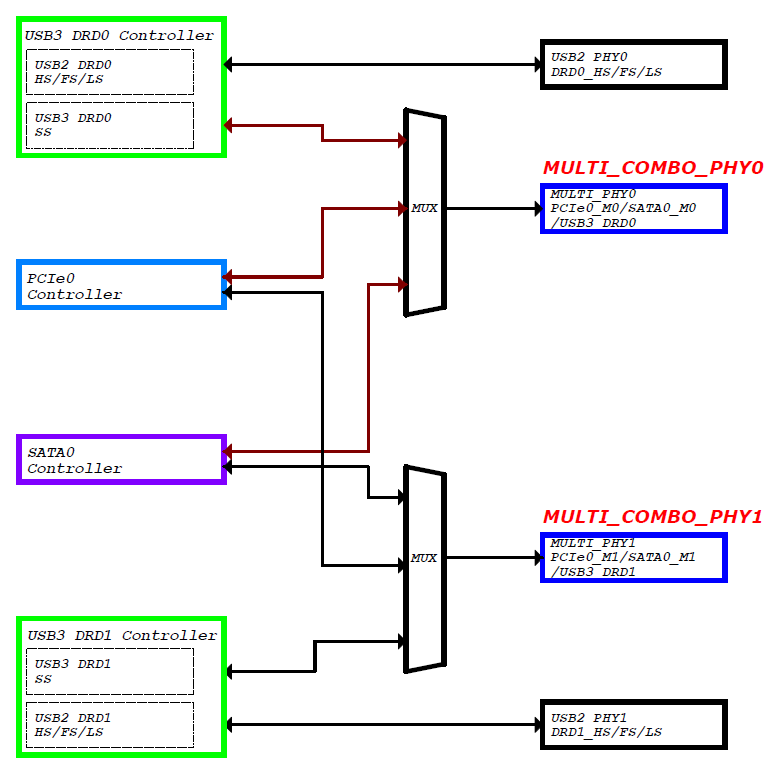

Combo high speed interface	3	· 2 × single‑lane combo ports (PCIe 2.1 / SATA 3.1 / USB 3.0); · 1 × single‑lane combo port (PCIe 2.1 / SATA 3.1)
USB 2.0 OTG	2	· 2 x USB2.0 OTG
SDIO	≤2	· SDIO v3.0，4-bit data bus widths
SPI	≤5	· 2 chip‑selects per channel; · Configurable as serial‑master or serial‑slave
I2C	≤9	· Supports 7-bit and 10-bit address modes; · Data transmission rate of 100K bits/s in standard mode and 400k bits/s in fast mode.
I3C	1	Supports 2 x I3C master ports
UART	≤12	· Built‑in 2 × 64‑bit FIFO (separate TX/RX); · Supports 5‑, 6‑, 7‑, 8‑bit serial data transmission; · 12 × UART all support auto‑flow‑control (AFC) mode; · 12 × UART all support RS‑485 mode

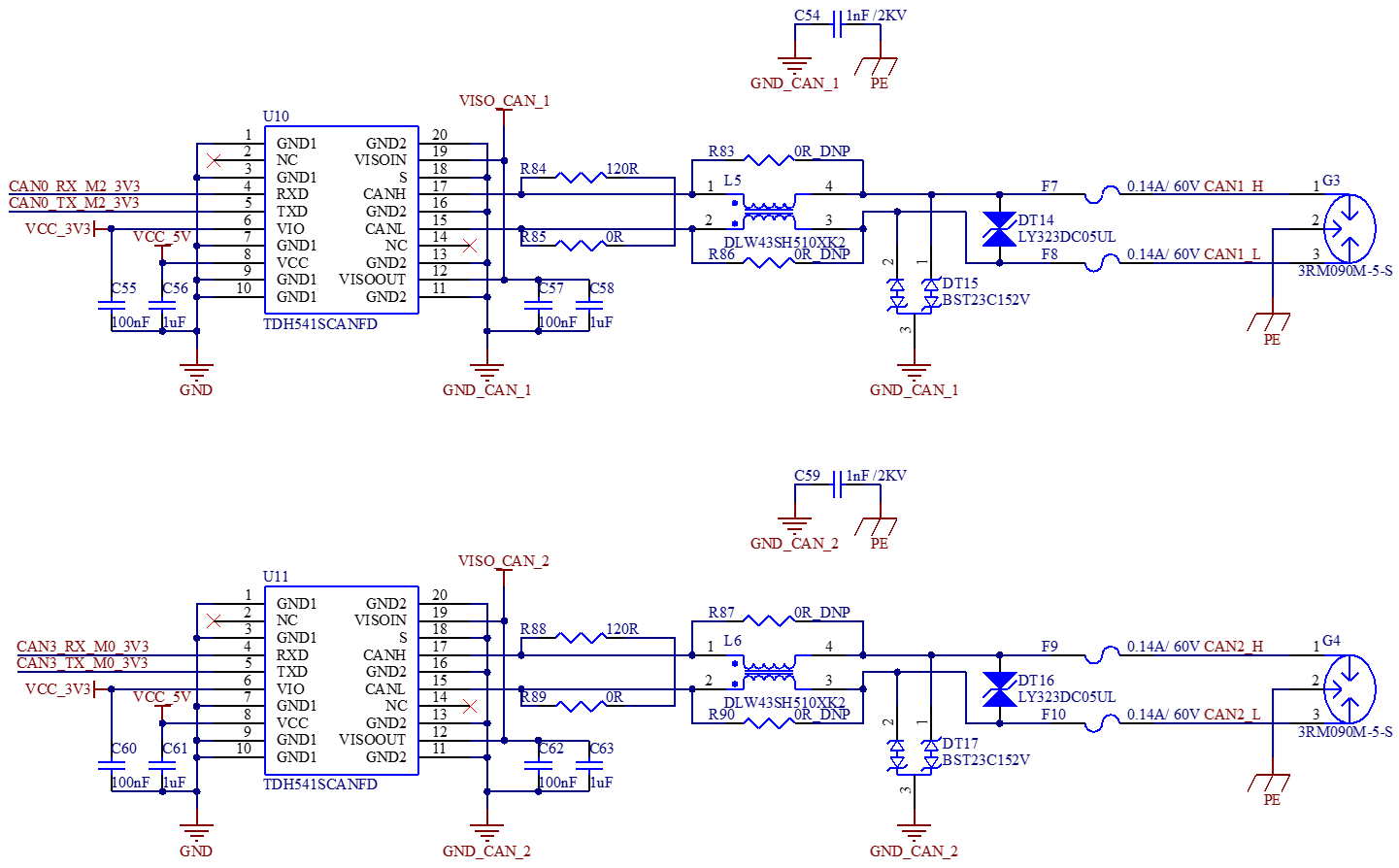

CAN FD	≤2	· Compliant with CAN & CAN FD specifications · Supports standard & extended frame transmission; · 8192‑bit receive FIFO.
DSMC	1	· Up to 4 chip‑selects; · Supports 8‑wire and 16‑wire serial transfer modes; · Configurable serial address width: 16bits or 32‑bits
PWM	≤16	Supports up to 16 on-chip PWM with interrupt-based operation and capture mode;
ADC	≤8	Supports 8 x 12bit single-ended input SAR-ADC with sampling rate up to 1MS/s;
GPIO	n	· All GPIOs can be used to generate interrupts; · Supports level-triggered and edge-triggered interrupts; · Supports configuration of level-triggered polarity; · Supports rising-edge, falling-edge and dual-edge interrupts; · Supports configuration of pull-up/pull-down (weak pull-up and weak pull-down); · Supports configuration of drive capability, configurable drive strength.

Note:

The parameters in the table are based on hardware design or theoretical CPU values;
The interface employs GPIO multiplexing, representing the theoretical maximum connections.

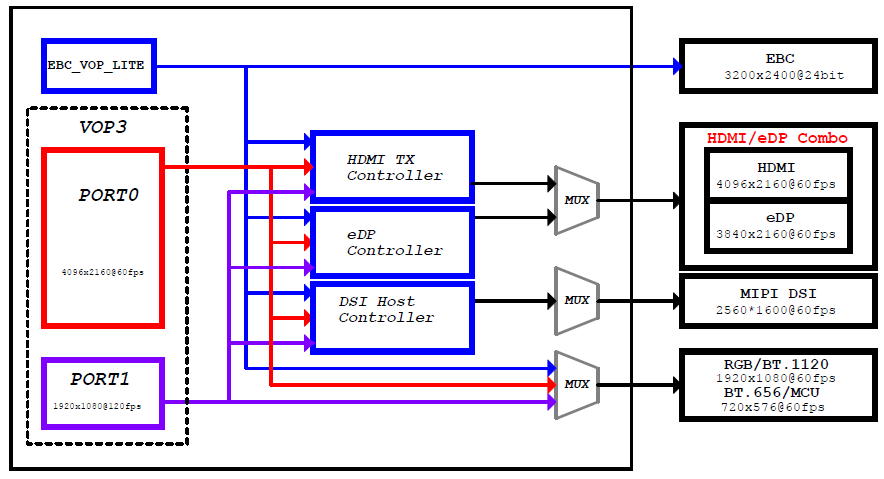

*1 Video Port

· Video Port0 supports up to 4096 × 2160 @ 60Hz, 10-bit data;

· Video Port1 supports up to 2048 × 1080 @ 60Hz, 8-bit data;

· Each video port can be connected to any of the HDMI, eDP, DSI, PARA (Parallel Display Interface) interfaces.

2.6 FET3572-C SoM Pin Definitions

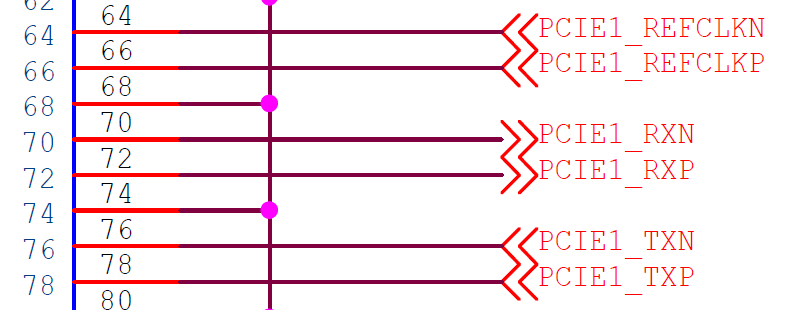

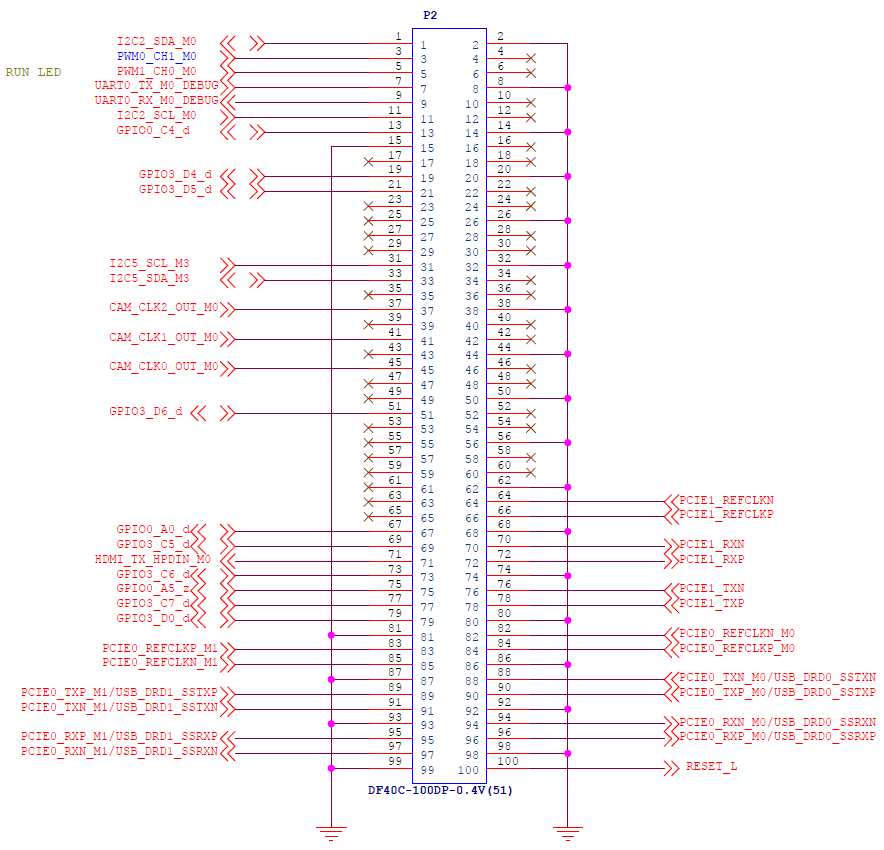

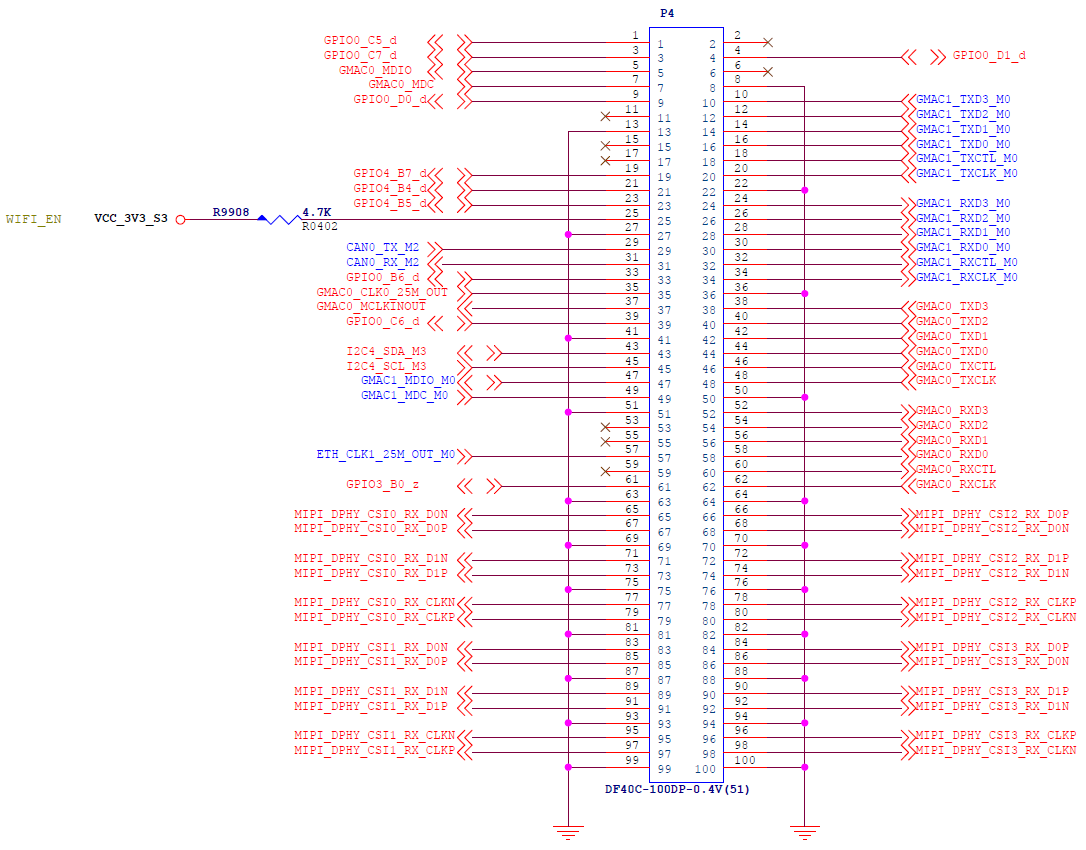

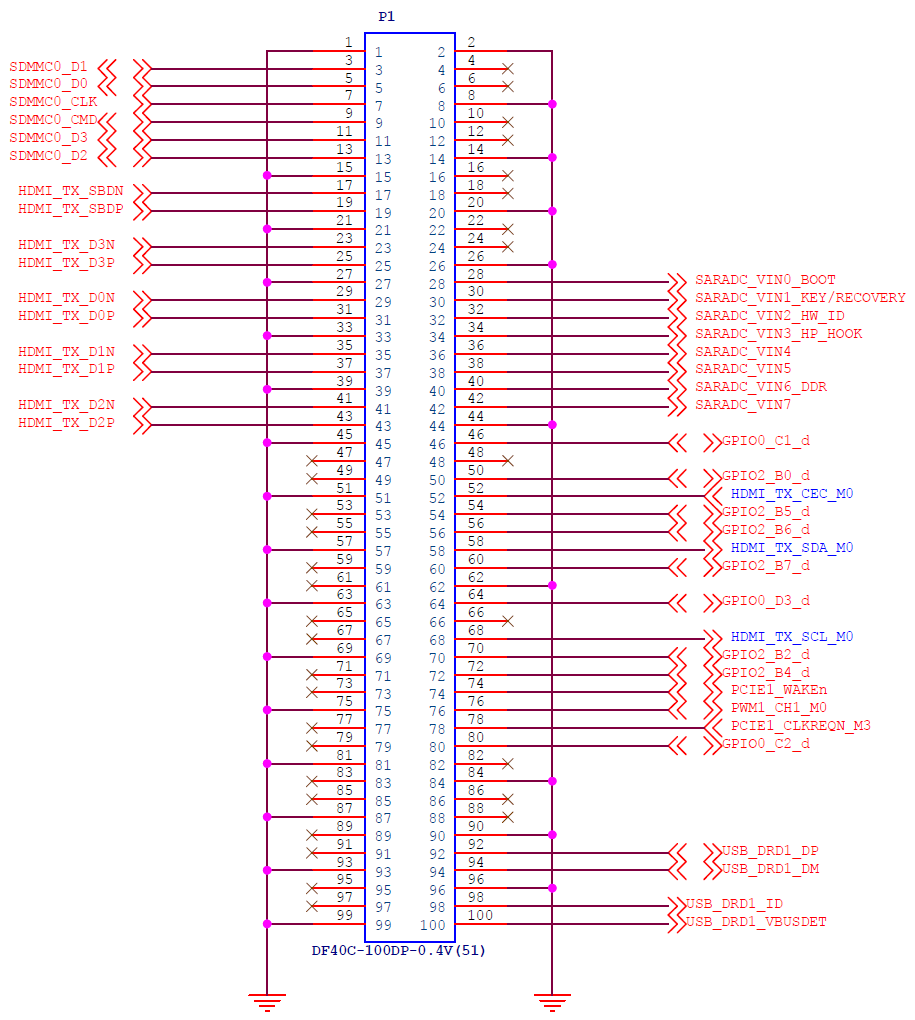

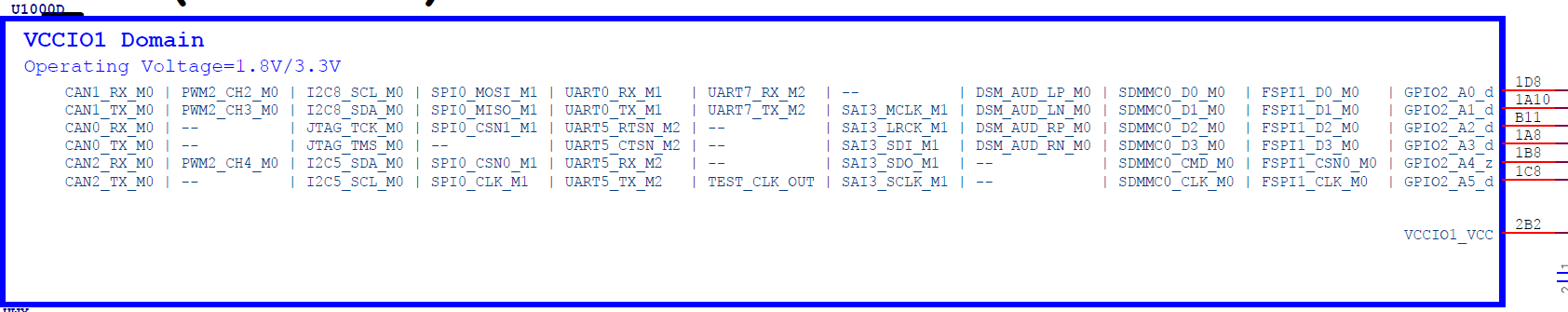

2.6.1 FET3572-C SoM Pin Schematic

2.6.2 FET3572-C SoM Pin Function Description

Note:

Num ——SoM connector pin no.:

Ball —— CPU pin ball no.

GPIO ——CPU pin general I/O port serial number

Vol —— Pin signal electrical level

Signal Name——SoM connector network name, the top right corner subscripts’ meaning are as follows:

No.	Description
[1]	Pins can be configured for interrupt use.
[2]	The default pin level is 1.8 V.
[3]	Pins are CPU boot-related pins, which are not recommended for IO.
[4]	Special-purpose pins and can not be used as IO.

Pin Description—— SoM Pin Signal Descriptions Default Function——Please don’t make any modifications for all SoM pin functions regulated in the “default functions” of the following table, otherwise, it may have conflicts with the factory driver. Please contact us with any questions in time.

Note: Pins marked with “Don’t use for the carrier board” in the “Default functions” are for SoM, which can not be used for carrier board design.

Table 1 P1 Connector Interface (Odd) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
1	——	GND	——	——	Ground	GND

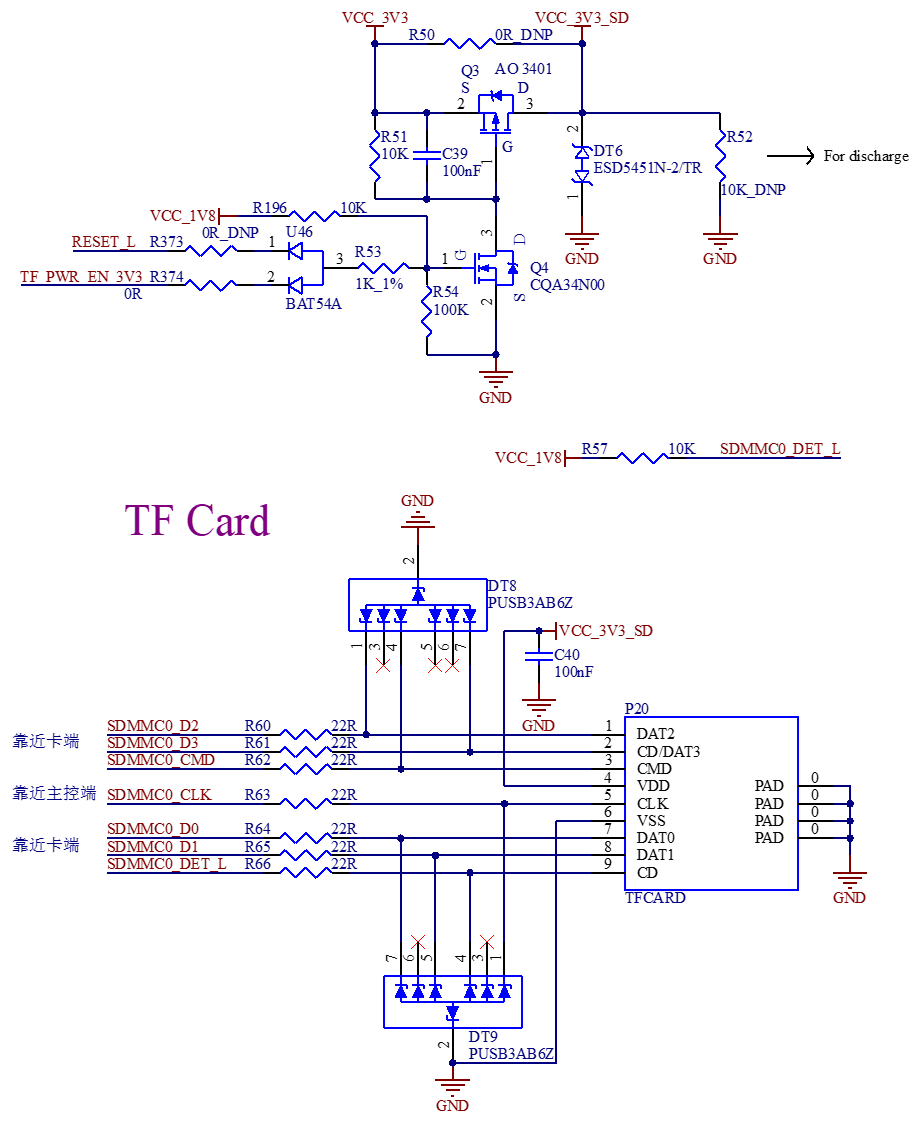

3	1A10	SDMMC0_D1	GPIO2_A1_d	1.8V/3.3V	SD/MMC Interface Data Signal 1	SDMMC0_D1
5	1D8	SDMMC0_D0	GPIO2_A0_d	1.8V/3.3V	SD/MMC Interface Data Signal 0	SDMMC0_D0
7	1C8	SDMMC0_CLK	GPIO2_A5_d	1.8V/3.3V	SD/MMC Interface Clock Signal	SDMMC0_CLK
9	1B8	SDMMC0_CMD	GPIO2_A4_z	1.8V/3.3V	SD/MMC Interface Command Signal	SDMMC0_CMD
11	1A8	SDMMC0_D3	GPIO2_A3_d	1.8V/3.3V	SD/MMC Interface Data Signal 3	SDMMC0_D3
13	B11	SDMMC0_D2	GPIO2_A2_d	1.8V/3.3V	SD/MMC Interface Data Signal 2	SDMMC0_D2
15	——	GND	——	——	Ground	GND

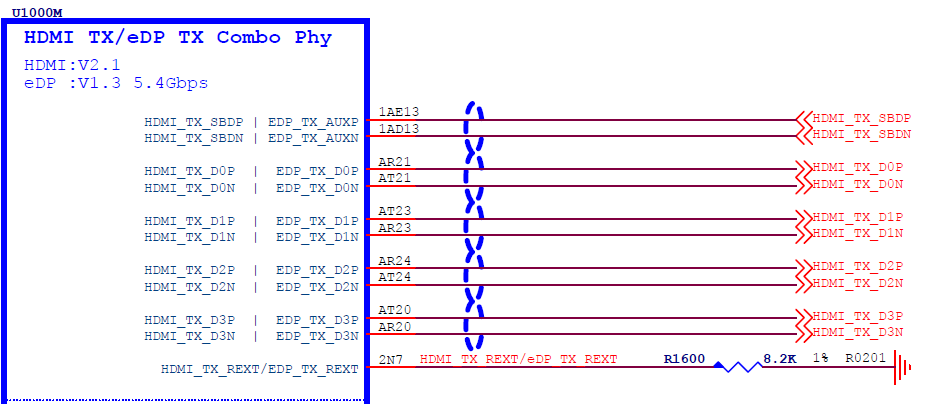

17	1AD13	HDMI_TX_SBDN	——	——	HDMISBD signal-	HDMI_TX_SBDN
19	1AE13	HDMI_TX_SBDP	——	——	HDMISBD signal+	HDMI_TX_SBDP
21	——	GND	——	——	Ground	GND
23	AR20	HDMI_TX_D3N	——	——	HDMI differential signal 3-	HDMI_TX_D3N
25	AT20	HDMI_TX_D3P	——	——	HDMI differential signal 3+	HDMI_TX_D3P
27	——	GND	——	——	Ground	GND
29	AT21	HDMI_TX_D0N	——	——	HDMI differential signal 0-	HDMI_TX_D0N
31	AR21	HDMI_TX_D0P	——	——	HDMI differential signal 0+	HDMI_TX_D0P
33	——	GND	——	——	Ground	GND
35	AR23	HDMI_TX_D1N	——	——	HDMI differential signal 1-	HDMI_TX_D1N
37	AT23	HDMI_TX_D1P	——	——	HDMI differential signal 1+	HDMI_TX_D1P
39	——	GND	——	——	Ground	GND
41	AT24	HDMI_TX_D2N	——	——	HDMI differential signal 2-	HDMI_TX_D2N
43	AR24	HDMI_TX_D2P	——	——	HDMI differential signal 2+	HDMI_TX_D2P
45	——	GND	——	——	Ground	GND
47	——	——	——	——	——	——
49	——	——	——	——	——	——
51	——	GND	——	——	Ground	GND
53	——	——	——	——	——	——
55	——	——	——	——	——	——
57	——	GND	——	——	Ground	GND
59	——	——	——	——	——	——
61	——	——	——	——	——	——
63	——	GND	——	——	Ground	GND
65	——	——	——	——	——	——
67	——	——	——	——	——	——
69	——	GND	——	——	Ground	GND
71	——	——	——	——	——	——
73	——	——	——	——	——	——
75	——	GND	——	——	Ground	GND
77	——	——	——	——	——	——
79	——	——	——	——	——	——
81	——	GND	——	——	Ground	GND
83	——	——	——	——	——	——
85	——	——	——	——	——	——
87	——	GND	——	——	Ground	GND
89	——	——	——	——	——	——
91	——	——	——	——	——	——
93	——	GND	——	——	Ground	GND
95	——	——	——	——	——	——
97	——	——	——	——	——	——
99	——	GND	——	——	Ground	GND

Table 2 P1 Connector Interface (Even) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
2	——	GND	——	——	Ground	GND
4	——	——	——	——	——	——
6	——	——	——	——	——	——
8	——	GND	——	——	Ground	GND
10	——	——	——	——	——	——
12	——	——	——	——	——	——
14	——	GND	——	——	Ground	GND
16	——	——	——	——	——	——
18	——	——	——	——	——	——
20	——	GND	——	——	Ground	GND
22	——	——	——	——	——	——
24	——	——	——	——	——	——
26	——	GND	——	——	Ground	GND

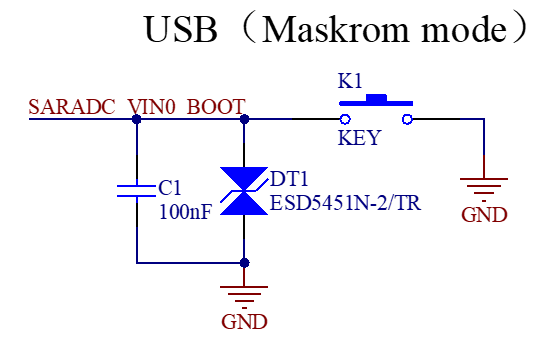

28	1AF21	SARADC_VIN0_BOOT	——	1.8V	BOOT start configuration input	SARADC_VIN0_BOOT

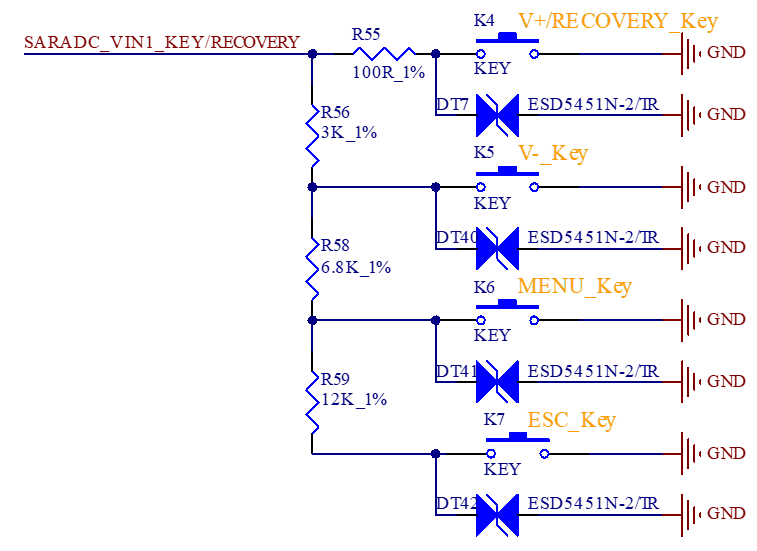

30	1AD19	SARADC_VIN1_KEY/RECOVERY	——	1.8V	.General ADC1	SARADC_VIN1_KEY/RECOVERY
32	1AE19	SARADC_VIN2_HW_ID	——	1.8V	General ADC2	SARADC_VIN2_HW_ID
34	1AC19	SARADC_VIN3_HP_HOOK	——	1.8V	.General ADC3	SARADC_VIN3_HP_HOOK

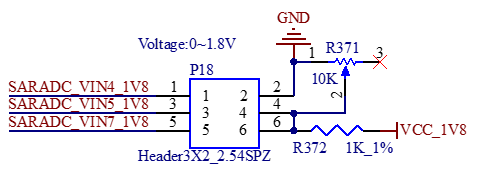

36	1AD17	SARADC_VIN4	——	1.8V	General ADC4	SARADC_VIN4
38	1AE17	SARADC_VIN5	——	1.8V	General ADC5	SARADC_VIN5
40	1AC15	SARADC_VIN6_DDR	——	1.8V	SoM DDR configuration input	Not available on the carrier board
42	2P11	SARADC_VIN7	——	1.8V	General ADC7	SARADC_VIN7
44	——	GND	——	——	Ground	GND
46	Y33	GPIO0_C1_d	GPIO0_C1_d	3.3V	GPIO0_C1_d	HDMI_TX_ON_H
48	——	——	——	——	——	——
50	1D1	GPIO2_B0_d	GPIO2_B0_d	3.3V	GPIO2_B0_d	USB_HUB_RST_3V3

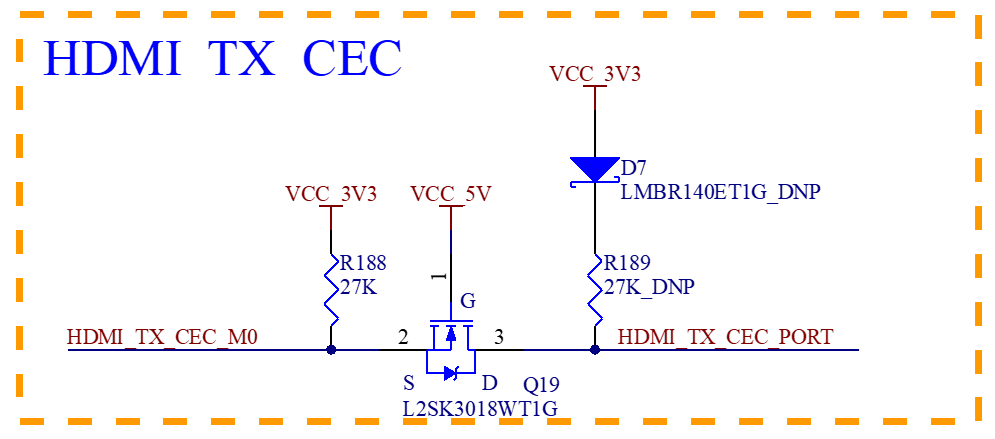

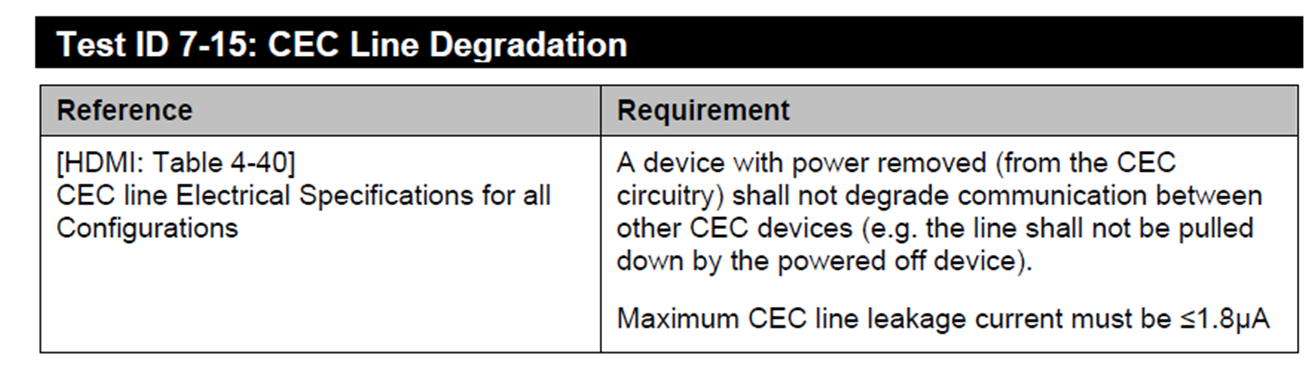

52	1AD21	HDMI_TX_CEC_M0	GPIO4_B0_d	3.3V	HDMICEC signal	HDMI_TX_CEC_M0
54	B4	GPIO2_B5_d	GPIO2_B5_d	3.3V	GPIO2_B5_d	PCIE_PWR_EN_3V3
56	1D3	GPIO2_B6_d	GPIO2_B6_d	3.3V	GPIO2_B6_d	UART11_TX_M1_3V3
58	AR32	HDMI_TX_SDA_M0	GPIO4_B3_d	3.3V	HDMI serial data	HDMI_TX_SDA
60	A4	GPIO2_B7_d	GPIO2_B7_d	3.3V	GPIO2_B7_d	UART11_RX_M1_3V3
62	——	GND	——	——	Ground	GND
64	1P23	GPIO0_D3_d	GPIO0_D3_d	3.3V	GPIO0_D3_d	PCIE0_PERSTn
66	——	——		——	——	——
68	AT32	HDMI_TX_SCL_M0	GPIO4_B2_d	3.3V	HDMI serial clock	HDMI_TX_SCL
70	B3	GPIO2_B2_d	GPIO2_B2_d	3.3V	GPIO2_B2_d	I2C4_SCL_M1
72	1B2	GPIO2_B4_d	GPIO2_B4_d	3.3V	GPIO2_B4_d	I2C4_SDA_M1
74	1P22	PCIE1_WAKEn	GPIO0_D2_d	3.3V	PCIE wake-up activation signal	PCIE0_WAKEn_M0

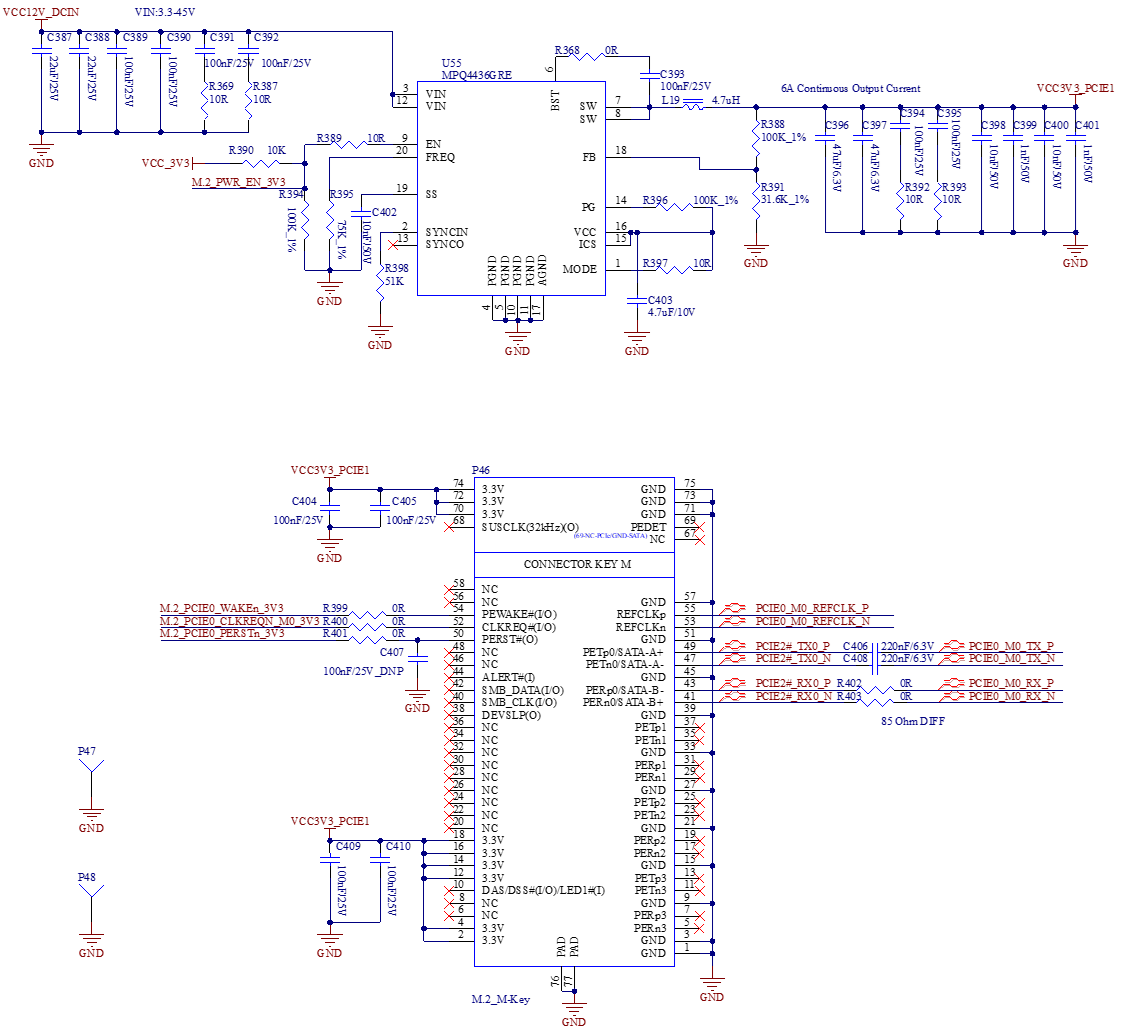

76	AB32	PWM1_CH1_M0	GPIO0_B5_d	3.3V	PWM1_CH1_M0	M.2_PCIE0_WAKEn_3V3
78	AP33	PCIE1_CLKREQN_M3	GPIO4_B6_d	3.3V	PCIE clock request signal	PCIE0_CLKREQn_M0
80	W32	GPIO0_C2_d	GPIO0_C2_d	3.3V	GPIO0_C2_d	M.2_PCIE0_PERSTn_3V3
82	——	——		——	——	——
84	——	GND	——	——	Ground	GND
86	——	——	——	——	——	——
88	——	——	——	——	——	——
90	——	GND	——	——	Ground	GND
92	B26	USB_DRD1_DP	——	——	USB20_HOST1 data+	USB20_HOST1_D_P
94	A26	USB_DRD1_DM	——	——	USB20_HOST1 data-	USB20_HOST1_D_N
96	——	GND	——	——	Ground	GND
98	A28	USB_DRD1_ID	——	——	USB2_OTG1_ID signal	x
100	B28	USB_DRD1_VBUSDET	——	——	USB2_OTG1_VBUSDET insert detection	USB2_OTG1_VBUSDET

Table 3 P2 Connector Interface (Odd) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
1	Y32	I2C2_SDA_M0	GPIO0_C0_d	3.3V	I2C2 Data	I2C2_SDA_M0
3	W33	PWM0_CH1_M0	GPIO0_C3_d	3.3V	PWM0_CH1_M0	M.2_PWR_EN_3V3
5	AC33	PWM1_CH0_M0	GPIO0_B4_d	3.3V	Occupied by the SoM and not available.	x

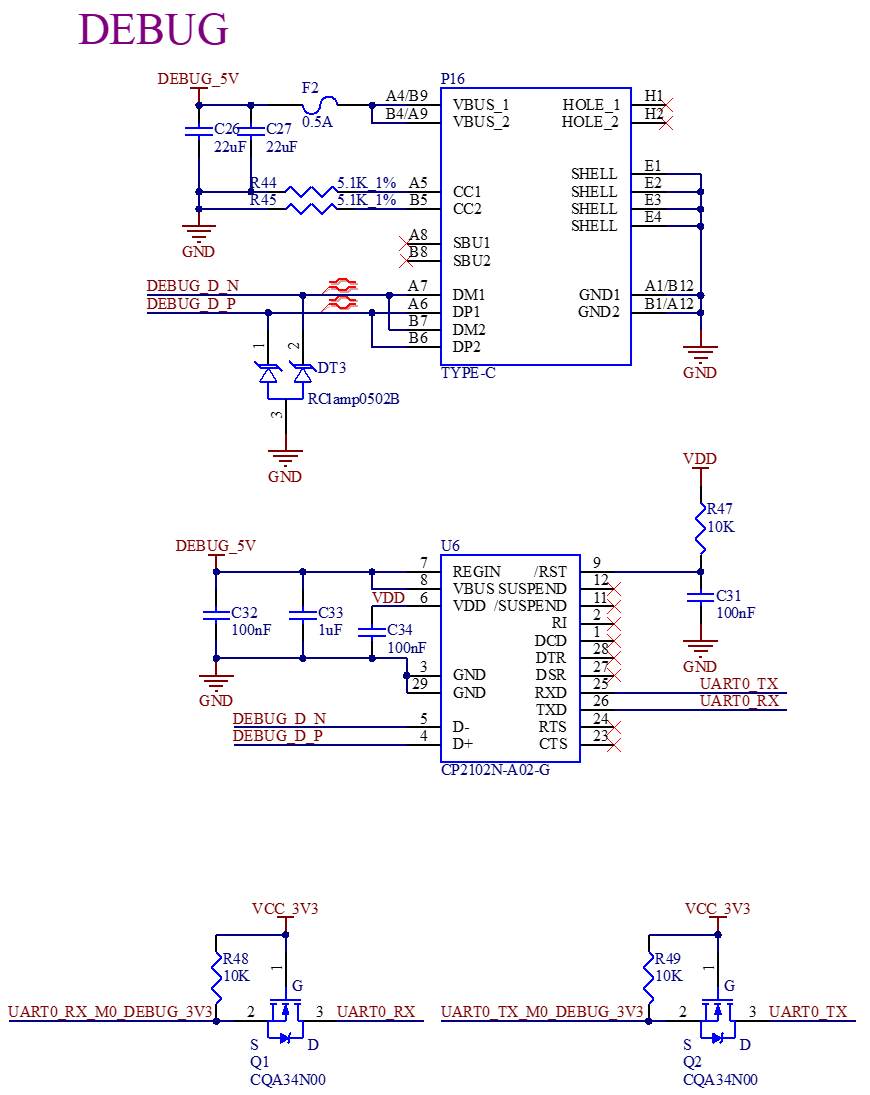

7	U33	UART0_TX_M0_DEBUG	GPIO0_D4_u	3.3V	UART0 send (Debug Serial Port)	UART0_TX_M0_DEBUG
9	V32	UART0_RX_M0_DEBUG	GPIO0_D5_u	3.3V	UART0 receive (Debug Serial Port)	UART0_RX_M0_DEBUG
11	AA32	I2C2_SCL_M0	GPIO0_B7_d	3.3V	I2C2 clock	I2C2_SCL_M0
13	1T20	GPIO0_C4_d	GPIO0_C4_d	3.3V	GPIO0_C4_d	PWM0_CH0_M0(MIPI screen backlight PWM)
15	——	GND	——	——	Ground	GND
17	——	——	——	——	——	——
19	AL32	GPIO3_D4_d	GPIO3_D4_d	1.8V	GPIO3_D4_d	GMAC1_INT
21	1D10	GPIO3_D5_d	GPIO3_D5_d	1.8V	GPIO3_D5_d	GMAC1_RESET
23	——	——	——	——	——	——
25	——	——	——	——	——	——
27	——	——	——	——	——	——
29	——	——	——	——	——	——
31	AH33	I2C5_SCL_M3	GPIO3_C4_d	1.8V	I2C5 clock	I2C5_SCL_M3
33	AL33	I2C5_SDA_M3	GPIO3_C1_d	1.8V	I2C5 Data	I2C5_SDA_M3
35	——	——	——	——	——	——
37	1AD22	CAM_CLK2_OUT_M0	GPIO4_A1_d	1.8V	CAM_CLK2_OUT_M0	SAI1_LRCK_M1_1V8
39	——	——	——	——	——	——
41	1AD23	CAM_CLK1_OUT_M0	GPIO4_A0_d	1.8V	CAM_CLK1_OUT_M0	SAI1_SDO0_M1_1V8
43	——	——	——	——	——	——
45	AM32	CAM_CLK0_OUT_M0	GPIO3_D7_d	1.8V	CAM_CLK0_OUT_M0	HP_DET_L_1V8
47	——	——	——	——	——	——
49	——	——	——	——	——	——
51	AM33	GPIO3_D6_d	AM33	1.8V	GPIO3_D6_d	4G/5G_RESET
53	——	——	——	——	——	——
55	——	——	——	——	——	——
57	——	——	——	——	——	——
59	——	——	——	——	——	——
61	——	——	——	——	——	——
63	——	——	——	——	——	——
65	——	——	——	——	——	——
67	1K20	GPIO0_A0_d	GPIO0_A0_d	1.8V	GPIO0_A0_d	IIC_GPIO_INT
69	AJ32	GPIO3_C5_d	GPIO3_C5_d	1.8V	GPIO3_C5_d	UART8_RX_M0_1V8

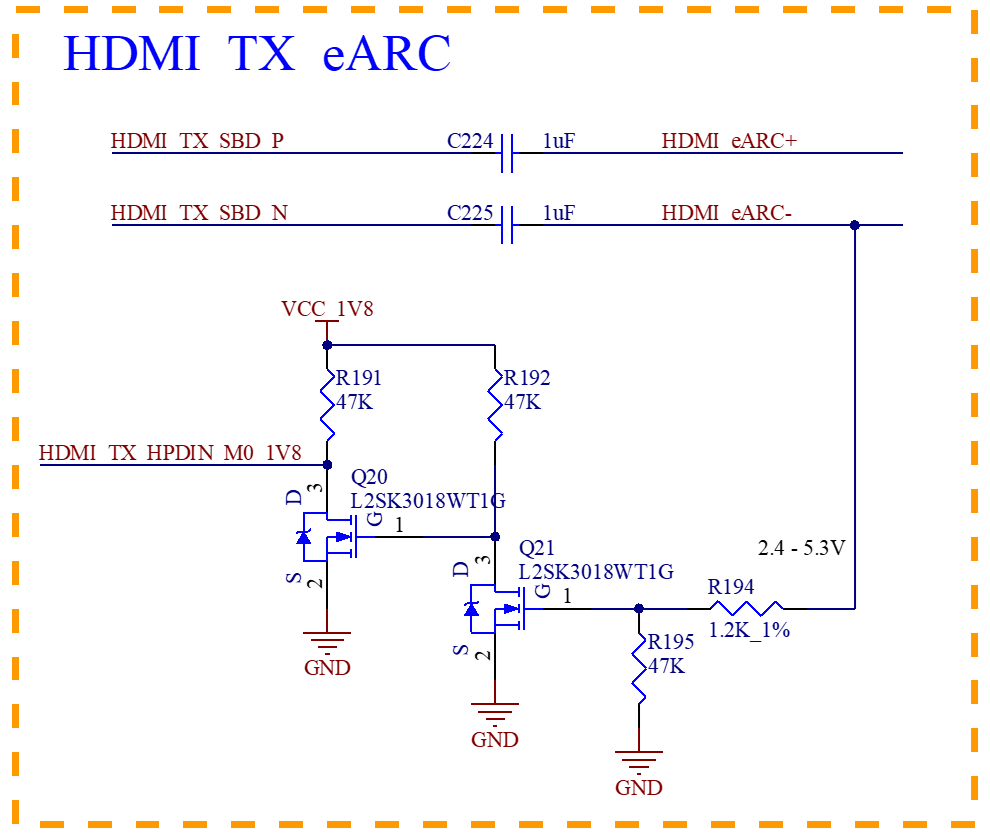

71	1AE21	HDMI_TX_HPDIN\|_M0	GPIO4_B1_d	1.8V	HDMI send link detection	HDMI_TX_HPDIN_M0_1V8
73	AJ33	GPIO3_C6_d	GPIO3_C6_d	1.8V	GPIO3_C6_d	UART8_TX_M0_1V8
75	1M20	GPIO0_A5_z	GPIO0_A5_z	1.8V	GPIO0_A5_z	TYPEC0_INT
77	AC32	GPIO3_C7_d	GPIO3_C7_d	1.8V	GPIO3_C7_d	PCIE1_PRSN2_1V8
79	1AB22	GPIO3_D0_d	GPIO3_D0_d	1.8V	GPIO3_D0_d	MIPI_DSI1_EN_1V8
81	——	GND	——	——	Ground	GND

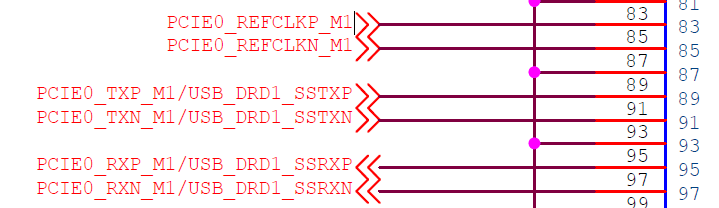

83	1F21	PCIE0_REFCLKP_M1	——	——	PCIE0 clock output+	x
85	1F22	PCIE0_REFCLKN_M1	——	——	PCIE0 clock output-	x
87	——	GND	——	——	Ground	GND
89	G32	PCIE0_TXP_M1/USB_DRD1_SSTXP	——	——	PCIE0 Data Transmit+ / USB3_HOST1 Transmit Differential+	USB3_HOST1_SSTXP
91	G33	PCIE0_TXN_M1/USB_DRD1_SSTXN	——	——	PCIE0 Data Transmit / USB3_HOST1 Differential Transmit -	USB3_HOST1_SSTXN
93	——	GND	——	——	Ground	GND
95	H32	PCIE0_RXP_M1/USB_DRD1_SSRXP	——	——	PCIe Data Receive+ / USB 3.0 HOST1 Receive Differential+	USB3_HOST1_SSRXP
97	H33	PCIE0_RXN_M1/USB_DRD1_SSRXN	——	——	PCIe Data Receive- / USB3_HOST1 Receive Differential -	USB3_HOST1_SSRXN
99	——	GND	——	——	Ground	GND

Table 4 P2 Connector Interface (Even) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
2	——	GND	——	——	Ground	GND
4	——	——	——	——	——	——
6	——	——	——	——	——	——
8	——	GND	——	——	Ground	GND
10	——	——	——	——	——	——
12	——	——	——	——	——	——
14	——	GND	——	——	Ground	GND
16	——	——	——	——	——	——
18	——	——	——	——	——	——
20	——	GND	——	——	Ground	GND
22	——	——	——	——	——	——
24	——	——	——	——	——	——
26	——	GND	——	——	Ground	GND
28	——	——	——	——	——	——
30	——	——	——	——	——	——
32	——	GND	——	——	Ground	GND
34	——	——	——	——	——	——
36	——	——	——	——	——	——
38	——	GND	——	——	Ground	GND
42	——	——	——	——	——	——
44	——	GND	——	——	Ground	GND
46	——	——	——	——	——	——
48	——	——	——	——	——	——
50	——	GND	——	——	Ground	GND
52	——	——	——	——	——	——
54	——	——	——	——	——	——
56	——	GND	——	——	Ground	GND
58	——	——	——	——	——	——
60	——	——	——	——	——	——
62	——	GND	——	——	Ground	GND

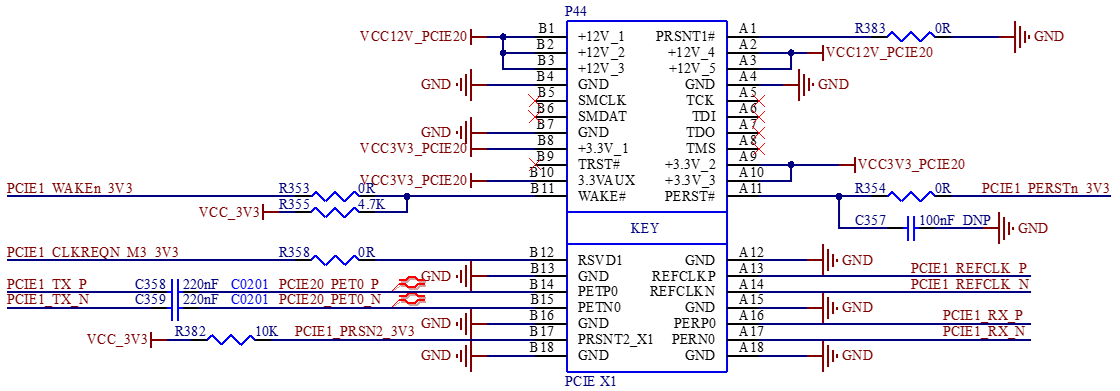

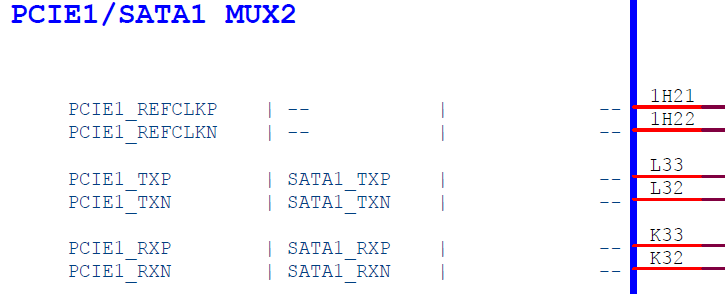

64	1H22	PCIE1_REFCLKN	——	——	PCIE1 clock output-	PCIE1_REFCLKN
66	1H21	PCIE1_REFCLKP	——	——	PCIE1 clock output+	PCIE1_REFCLKP
68	——	GND	——	——	Ground	GND
70	K32	PCIE1_RXN	——	——	PCIE1 data receive-	PCIE1_RXN
72	K33	PCIE1_RXP	——	——	PCIE1 data receive +	PCIE1_RXP
74	——	GND	——	——	Ground	GND
76	L32	PCIE1_TXN	——	——	PCIE1 data sending-	PCIE1_TXN
78	L33	PCIE1_TXP	——	——	PCIE1 data sending+	PCIE1_TXP
80	——	GND	——	——	Ground	GND

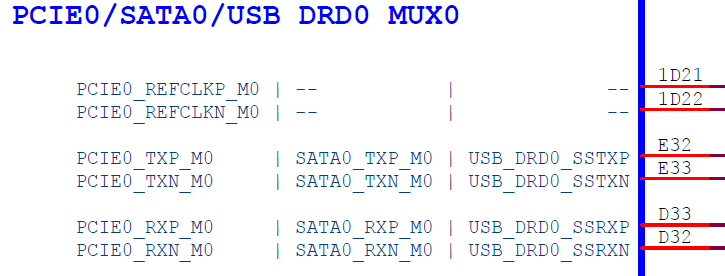

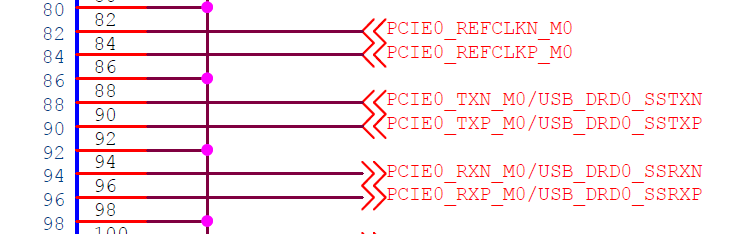

82	1D22	PCIE0_REFCLKN_M0	——	——	PCIE0 clock output-	PCIE0_REFCLKN_M0
84	1D21	PCIE0_REFCLKP_M0	——	——	PCIE0 clock output+	PCIE0_REFCLKP_M0
86	——	GND	——	——	Ground	GND
88	E33	PCIE0_TXN_M0/USB_DRD0_SSTXN	——	——	PCIE0 Data Transmit / USB3_HOST0 Differential Transmit -	PCIE0_TXN_M0/USB_DRD0_SSTXN
90	E32	PCIE0_TXP_M0/USB_DRD0_SSTXP	——	——	PCIE0 Data Transmit+ / USB3_HOST0 Transmit Differential+	PCIE0_TXP_M0/USB_DRD0_SSTXP
92	——	GND	——	——	Ground	GND
94	D32	PCIE0_RXN_M0/USB_DRD0_SSRXN	——	——	PCIE0 Data	Receive- / USB3_HOST0 Receive Differential -
96	D33	PCIE0_RXP_M0/USB_DRD0_SSRXP	——	——	PCIE0 Data Receive+ / USB3_HOST0 Receive Differential+	PCIE0_RXP_M0/USB_DRD0_SSRXP
98	——	GND	——	——	Ground	GND

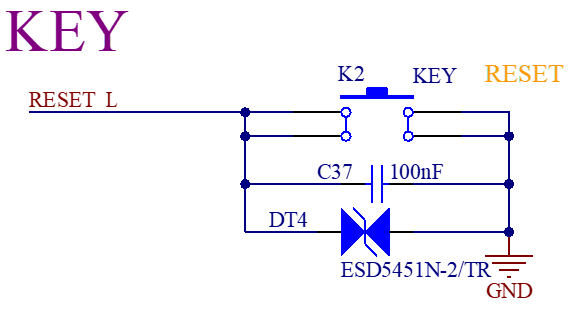

100	——	RESET_L	——	——	Reset	RESET_L

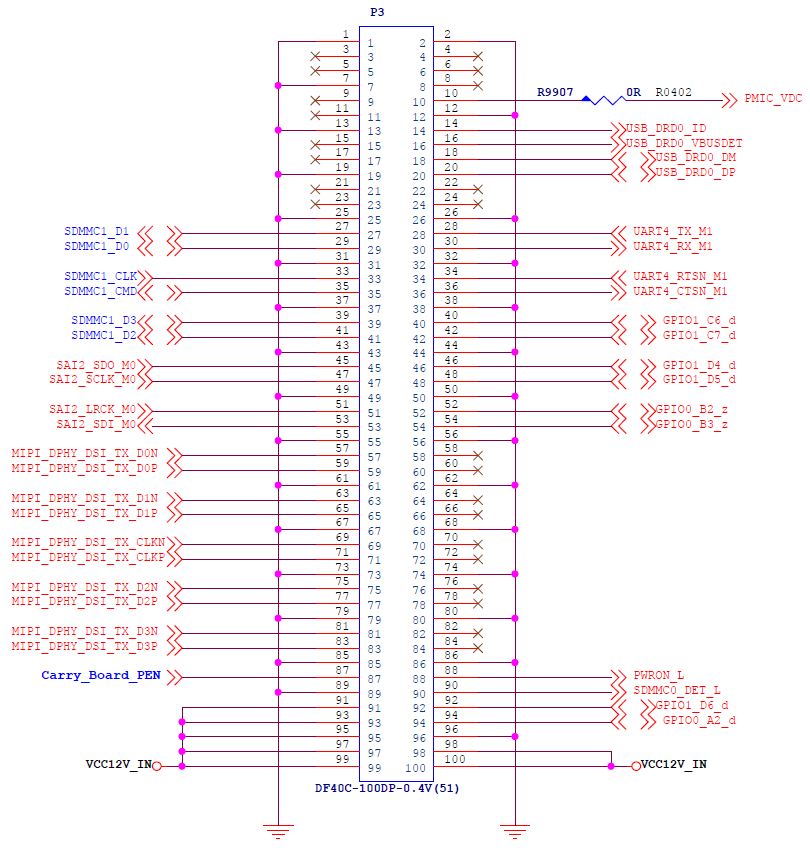

Table 5 P3 Connector Interface (Odd) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
1	——	GND	——	——	Ground	GND
3	——	——	——	——	——	——
5	——	——	——	——	——	——
7	——	GND	——	——	Ground	GND
9	——	——	——	——	——	——
11	——	——	——	——	——	——
13	——	GND	——	——	Ground	GND
15	——	——	——	——	——	——
17	——	——	——	——	——	——
19	——	GND	——	——	Ground	GND
21	——	——	——	——	——	——
23	——	——	——	——	——	——
25	——	GND	——	——	Ground	GND
27	AR13	SDMMC1_D1	GPIO1_B5_d	1.8V	SD/MMC Interface Data Signal 1	SDMMC1_D1
29	AR14	SDMMC1_D0	GPIO1_B4_d	1.8V	SD/MMC Interface Data Signal 0	SDMMC1_D0
31	——	GND	——	——	Ground	GND
33	AR15	SDMMC1_CLK	GPIO1_C1_d	1.8V	SD/MMC Interface Clock Signal	SDMMC1_CLK
35	AR16	SDMMC1_CMD	GPIO1_C0_d	1.8V	SD/MMC Interface Command Signal	SDMMC1_CMD
37	——	GND	——	——	Ground	GND
39	AT15	SDMMC1_D3	GPIO1_B7_d	1.8V	SD/MMC Interface Data Signal 3	SDMMC1_D3
41	AT14	SDMMC1_D2	GPIO1_B6_d	1.8V	SD/MMC Interface Data Signal 2	SDMMC1_D2
43	——	GND	——	——	Ground	GND

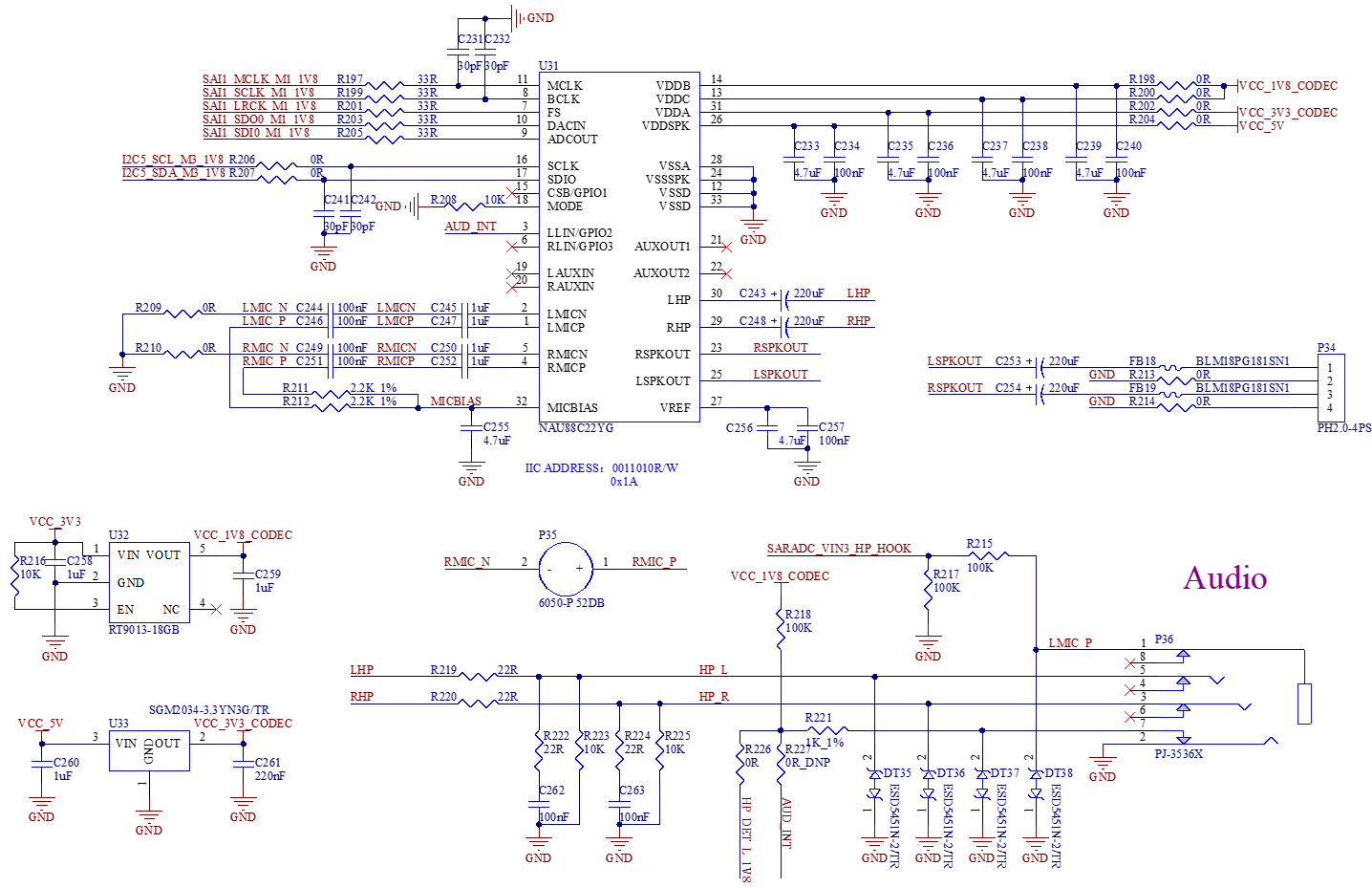

45	1AF9	SAI2_SDO_M0	GPIO1_D0_d	1.8V	I2S output data	SAI2_SDO_M0
47	1AD11	SAI2_SCLK_M0	GPIO1_D1_d	1.8V	I2S bit clock	SAI2_SCLK_M0
49	——	GND	——	——	Ground	GND
51	1AD9	SAI2_LRCK_M0	GPIO1_D2_d	1.8V	I2S send frame clock	SAI2_LRCK_M0
53	1AE9	SAI2_SDI_M0	GPIO1_D3_d	1.8V	I2S input data	SAI2_SDI_M0
55	——	GND	——	——	Ground	GND

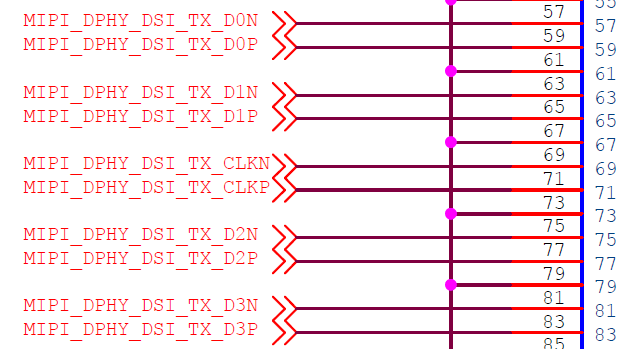

57	1AD15	MIPI_DPHY_DSI_TX_D0N	——	——	MIPI_DPHY_DSI send data 0-	MIPI_DPHY_DSI_TX_D0N
59	1AE15	MIPI_DPHY_DSI_TX_D0P	——	——	MIPI_DPHY_DSI send data 0+	MIPI_DPHY_DSI_TX_D0P
61	——	GND	——	——	Ground	GND
63	AR26	MIPI_DPHY_DSI_TX_D1N	——	——	MIPI_DPHY_DSI send data 1-	MIPI_DPHY_DSI_TX_D1N
65	AT26	MIPI_DPHY_DSI_TX_D1P	——	——	MIPI_DPHY_DSI send data 1+	MIPI_DPHY_DSI_TX_D1P
67	——	GND	——	——	Ground	GND
69	AR27	MIPI_DPHY_DSI_TX_CLKN	——	——	MIPI_DPHY_DSI send clock-	MIPI_DPHY_DSI_TX_CLKN
71	AT27	MIPI_DPHY_DSI_TX_CLKP	——	——	MIPI_DPHY_DSI send clock+	MIPI_DPHY_DSI_TX_CLKP
73	——	GND	——	——	Ground	GND
75	AR29	MIPI_DPHY_DSI_TX_D2N	——	——	MIPI_DPHY_DSI send data 2-	MIPI_DPHY_DSI_TX_D2N
77	AT29	MIPI_DPHY_DSI_TX_D2P	——	——	MIPI_DPHY_DSI send data 2+	MIPI_DPHY_DSI_TX_D2P
79	——	GND	——	——	Ground	GND
81	AR30	MIPI_DPHY_DSI_TX_D3N	——	——	MIPI_DPHY_DSI send data 3-	MIPI_DPHY_DSI_TX_D3N
83	AT30	MIPI_DPHY_DSI_TX_D3P	——	——	MIPI_DPHY_DSI send data 3+	MIPI_DPHY_DSI_TX_D3P
85	——	GND	——	——	Ground	GND

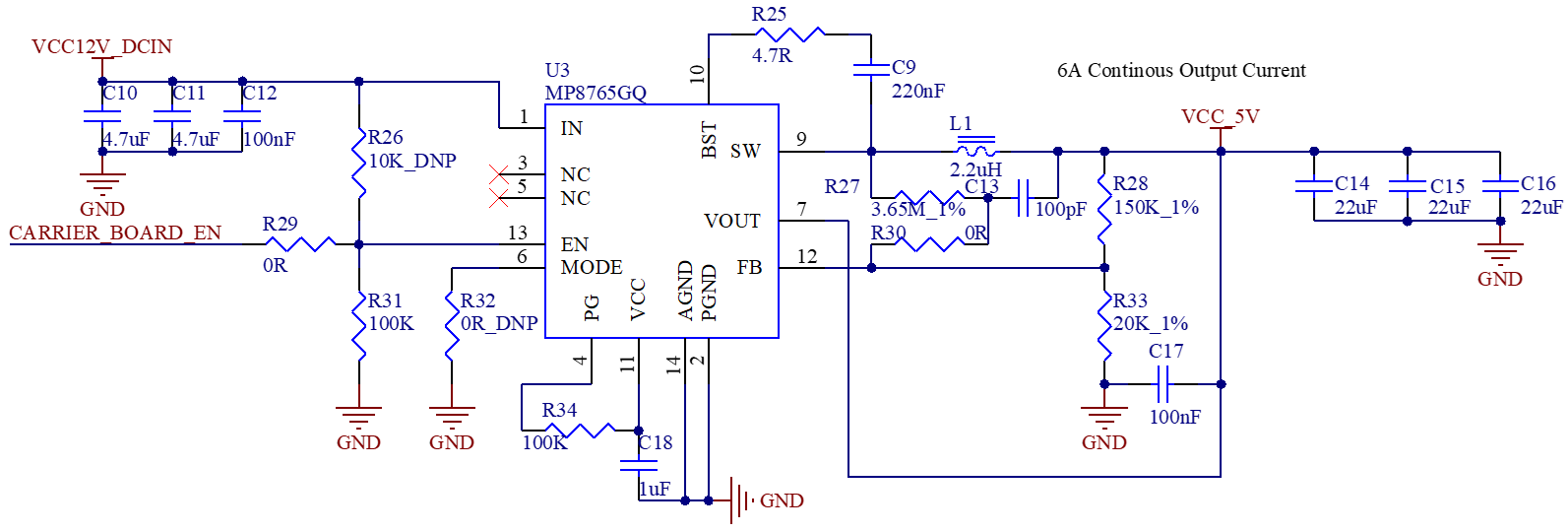

87	——	CARRIER_BOARD_EN	——	3.3V	Carrier board enable signal (3.3V, 1K pull-up, not connected to GPIO)	CARRIER_BOARD_EN
89	——	GND	——	——	Ground	GND
91		VCC_DCIN	——	——	12V power input	VCC_DCIN
93		VCC_DCIN	——	——	12V power input	VCC_DCIN
95		VCC_DCIN	——	——	12V power input	VCC_DCIN
97		VCC_DCIN	——	——	12V power input	VCC_DCIN
99		VCC_DCIN	——	——	12V power input	VCC_DCIN

Table 6 P3 Connector Interface (Even) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
2	——	GND	——	——	Ground	GND
4	——	——	——	——	——	——
6	——	——	——	——	——	——
8	——	——	——	——	——	——
10	——	PMIC_VDC	——	——	PMIC_VDC signal	SoM startup mode switching
12	——	GND	——	——	Ground	GND
14	1B18	USB_DRD0_ID	——	——	USB2_OTG0_ID signal	USB_DRD0_ID
16	1C18	USB_DRD0_VBUSDET	——	——	USB2_OTG0_VBUSDET insert detection	USB2_OTG0_VBUSDET
18	A25	USB_DRD0_DM	——	——	USB2_OTG0 data-	USB2_OTG0_DM
20	B25	USB_DRD0_DP	——	——	USB2_OTG0 data+	USB2_OTG0_DP
22	——	——	——	——	——	——
24	——	——	——	——	——	——
26	——	GND	——	——	Ground	GND
28	AT17	UART4_TX_M1	GPIO1_C4_d	1.8V	UART4 send data	UART4_TX_M1
30	AT18	UART4_RX_M1	GPIO1_C5_d	1.8V	UART4 receive data	UART4_RX_M1
32	——	GND	——	——	Ground	GND
34	1AE11	UART4_RTSN_M1	GPIO1_C2_d	1.8V	UART4 send request	UART4_RTSN_M1
36	AR17	UART4_CTSN_M1	GPIO1_C3_d	1.8V	UART4 clear sending	UART4_CTSN_M1
38	——	GND	——	——	Ground	GND
40	1AE7	GPIO1_C6_d	GPIO1_C6_d	1.8V	GPIO1_C6_d	WIFI_REG_ON_H
42	1AF11	GPIO1_C7_d	GPIO1_C7_d	1.8V	GPIO1_C7_d	BT_REG_ON_H
44	——	GND	——	——	Ground	GND
46	1AD7	GPIO1_D4_d	GPIO1_D4_d	1.8V	GPIO1_D4_d	HOST_WAKE_BT_H

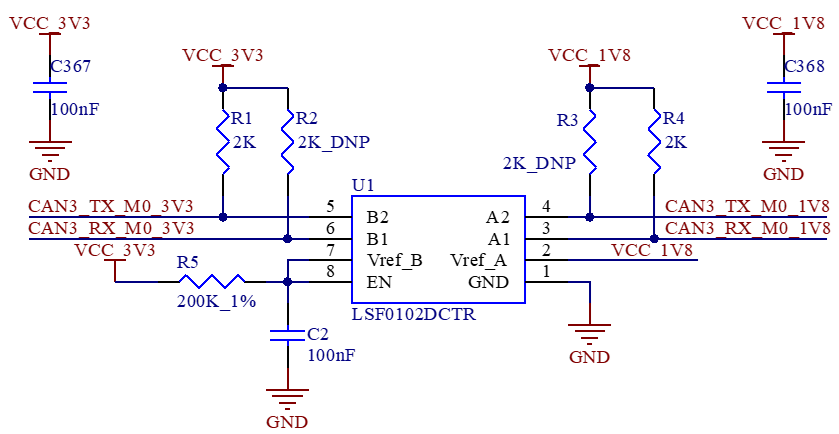

48	AR18	GPIO1_D5_d	GPIO1_D5_d	1.8V	GPIO1_D5_d	CAN3_TX_M0_1V8
50	——	GND	——	——	Ground	GND
52	T32	GPIO0_B2_z	GPIO0_B2_z	1.8V	GPIO0_B2_z	WIFI_WAKE_HOST_H
54	1M23	GPIO0_B3_z	GPIO0_B3_z	1.8V	GPIO0_B3_z	BT_WAKE_HOST_H
56	——	GND	——	——	Ground	GND
58	——	——	——	——	——	——
60	——	——	——	——	——	——
62	——	GND	——	——	Ground	GND
64	——	——	——	——	——	——
66	——	——	——	——	——	——
68	——	GND	——	——	Ground	GND
70	——	——	——	——	——	——
72	——	——	——	——	——	——
74	——	GND	——	——	Ground	GND
76	——	——	——	——	——	——
78	——	——	——	——	——	——
80	——	GND	——	——	Ground	GND
82	——	——	——	——	——	——
84	——	——	——	——	——	——
86	——	GND	——	——	Ground	GND

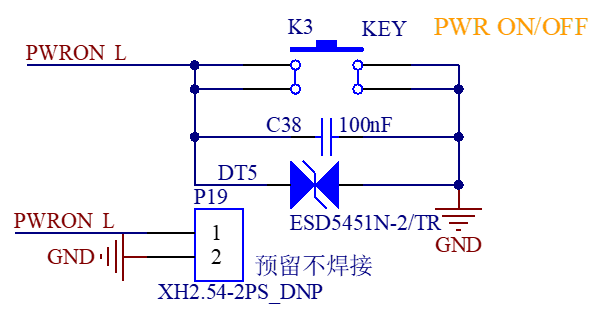

88	——	PWRON_L	——	——	On/Off signal	PWRON_L
90	T33	SDMMC0_DET_L	GPIO0_A7_u	1.8V	SDMMC card detection signal	SDMMC_DET_L
92	1AF7	GPIO1_D6_d	GPIO1_D6_d	1.8V	GPIO1_D6_d	CAN3_RX_M0_1V8
94	1K22	GPIO0_A2_d	GPIO0_A2_d	1.8V	GPIO0_A2_d	GMAC0_INT
96	——	GND	——	——	Ground	GND
98	——	VCC_DCIN	——	——	12V power input	VCC_DCIN
100	——	VCC_DCIN	——	——	12V power input	VCC_DCIN

Table 7 P4 Connector Interface (Odd) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
1	1T21	GPIO0_C5_d	GPIO0_C5_d	3.3V	GPIO0_C5_d	MIPI_DSI1_INT
3	1T23	GPIO0_C7_d	GPIO0_C7_d	3.3V	GPIO0_C7_d	I2C3_SDA_M1_3V3
5	B10	GMAC0_MDIO	GPIO2_C5_d	3.3V	GMAC0 serial management data	GMAC0_MDIO_3V3
7	B9	GMAC0_MDC	GPIO2_C6_d	3.3V	GMAC0 serial management clock	GMAC0_MDC_3V3
9	1P20	GPIO0_D0_d	GPIO0_D0_d	3.3V	GPIO0_D0_d	MIPI_DSI1_RESET
11	——	——	——	——	——	——
13	——	GND	——	——	Ground	GND
15	——	——	——	——	——	——
17	——	——	——	——	——	——

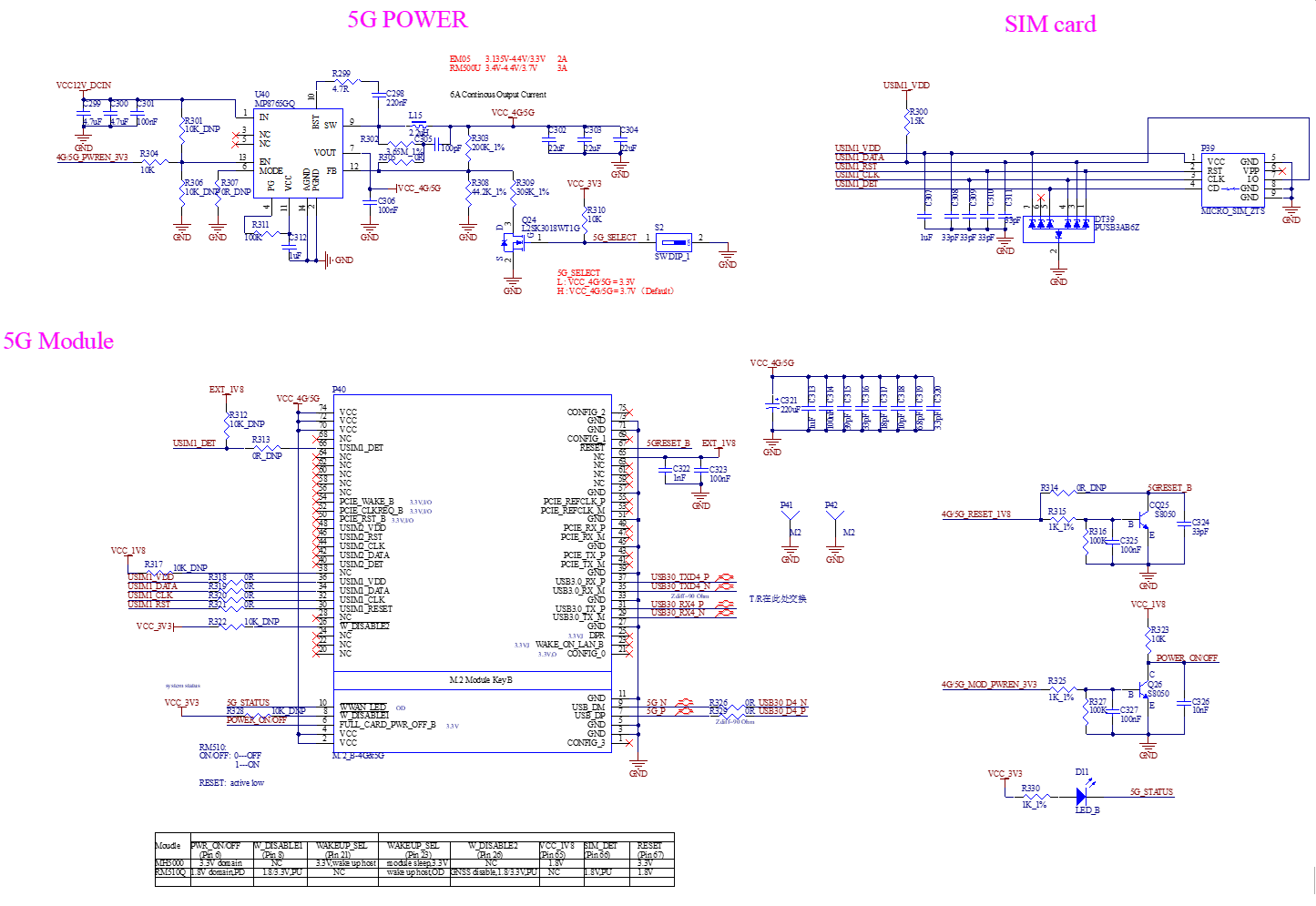

19	AN32	GPIO4_B7_d	GPIO4_B7_d	3.3V	GPIO4_B7_d	4G/5G_PWREN_3V3

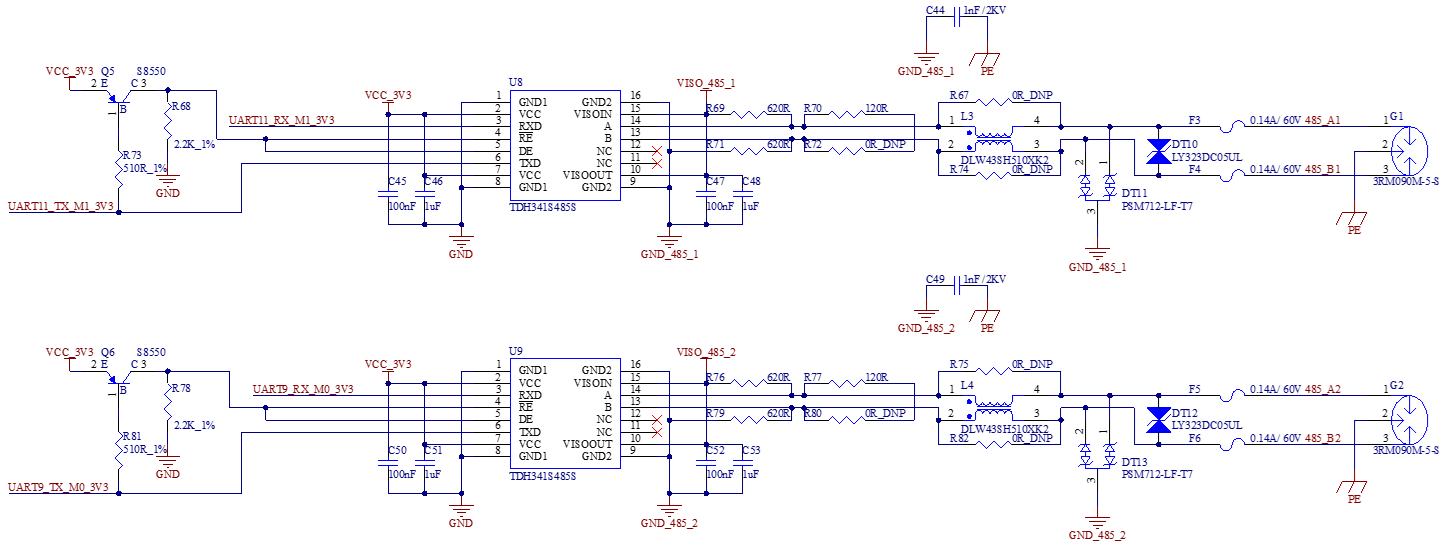

21	AR33	GPIO4_B4_d	GPIO4_B4_d	3.3V	GPIO4_B4_d	UART9_TX_M0_3V3
23	AP32	GPIO4_B5_d	GPIO4_B5_d	3.3V	GPIO4_B5_d	UART9_RX_M0_3V3
25		WIFI_PEN_3V3		3.3V	WIFI _ PEN _ 3 V3 enable signal (3.3 V pull-up, no GPIO connected)	WIFI_PEN_3V3
27	——	GND	——	——	Ground	GND
29	1A2	CAN0_TX_M2	GPIO2_B1_d	3.3V	CAN0 data sending	CAN0_TX_M2_3V3
31	1D2	CAN0_RX_M2	GPIO2_B3_d	3.3V	CAN0 data receiving	CAN0_RX_M2_3V3
33	AB33	GPIO0_B6_d	GPIO0_B6_d	3.3V	GPIO0_B6_d	TF_PWR_EN_3V3
35	A11	GMAC0_CLK0_25M_OUT	GPIO2_C4_d	3.3V	PHY 25MHz reference clock output	4G/5G_MOD_PWREN_3V3
37	A8	GMAC0_MCLKINOUT	GPIO2_D0_d	3.3V	PHY 125MHz sync clock input	M.2_PCIE0_CLKREQN_M0_3V3
39	1T22	GPIO0_C6_d	GPIO0_C6_d	3.3V	GPIO0_C6_d	I2C3_SCL_M1_3V3
41	——	GND	——	——	Ground	GND
43	AK32	I2C4_SDA_M3	GPIO3_B7_d	1.8V	I2C4 Data	SAI1_SDI0_M1_1V8
45	AH32	I2C4_SCL_M3	GPIO3_C0_d	1.8V	I2C4 clock	GMAC0_RESET_1V8
47	1V22	GMAC1_MDIO_M0	GPIO3_A5_d	1.8V	GMAC1 serial management data	GMAC1_MDIO_M0
49	1V23	GMAC1_MDC_M0	GPIO3_A6_d	1.8V	GMAC1 serial management clock	GMAC1_MDC_M0
51	——	GND	——	——	Ground	GND
53	——	——	——	——	——	——
55	——	——	——	——	.——	——
57	1AB23	ETH_CLK1_25M_OUT_M0	GPIO3_A4_d	1.8V	PHY 25MHz reference clock output	SAI1_SCLK_M1_1V8
59	——	——	——	——	.——	——
61	1AB21	GPIO3_B0_z	GPIO3_B0_z	1.8V	GPIO3_B0_z	SAI1_MCLK_M1_1V8
63	——	GND	——	——	Ground	GND

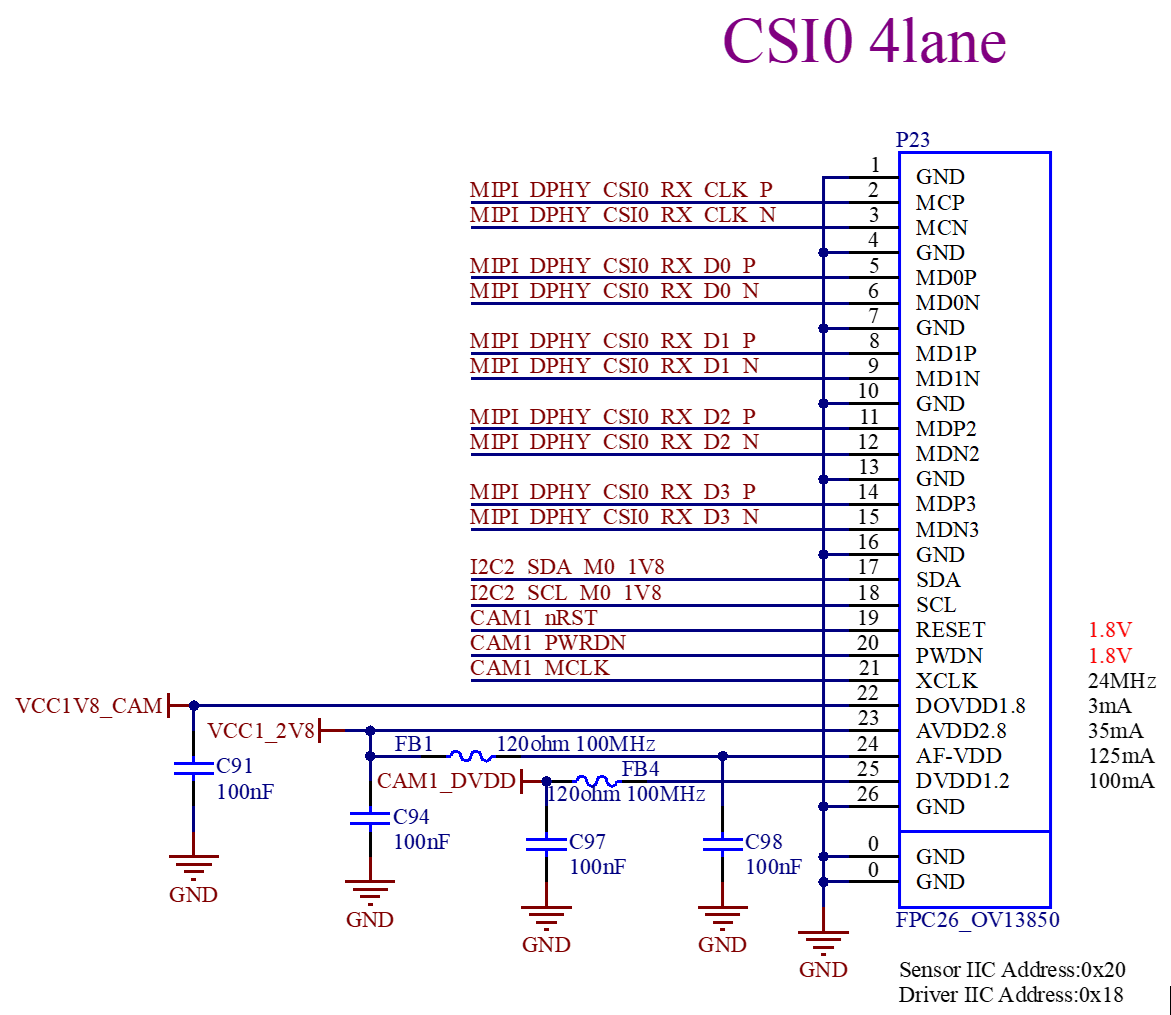

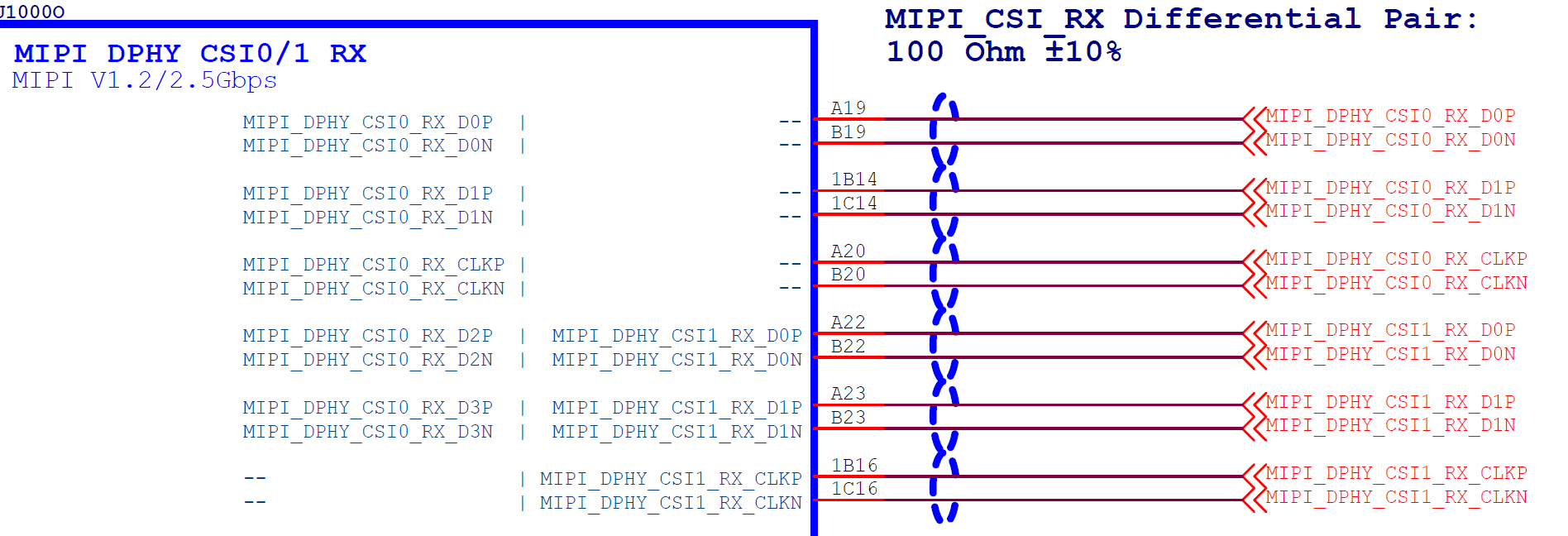

65	B19	MIPI_DPHY_CSI0_RX_D0N	——	——	MIPI_DPHY_CSI0_RX_D0N data receive 0-	MIPI_DPHY_CSI0_RX_D0N
67	A19	MIPI_DPHY_CSI0_RX_D0P	——	——	MIPI_DPHY_CSI0_RX_D0P data receive 0+	MIPI_DPHY_CSI0_RX_D0P
69	——	GND	——	——	Ground	GND
71	1C14	MIPI_DPHY_CSI0_RX_D1N	——	——	MIPI_DPHY_CSI0_RX_D1N data receive 1-	MIPI_DPHY_CSI0_RX_D1N
73	1B14	MIPI_DPHY_CSI0_RX_D1P	——	——	MIPI_DPHY_CSI0_RX_D1P data receive 1+	MIPI_DPHY_CSI0_RX_D1P
75	——	GND	——	——	Ground	GND
77	B20	MIPI_DPHY_CSI0_RX_CLKN	——	——	MIPI_DPHY_CSI0_RX_CLKN clock +	MIPI_DPHY_CSI0_RX_CLKN
79	A20	MIPI_DPHY_CSI0_RX_CLKP	——	——	MIPI_DPHY_CSI0_RX_CLKP clock +	MIPI_DPHY_CSI0_RX_CLKP
81	——	GND	——	——	Ground	GND

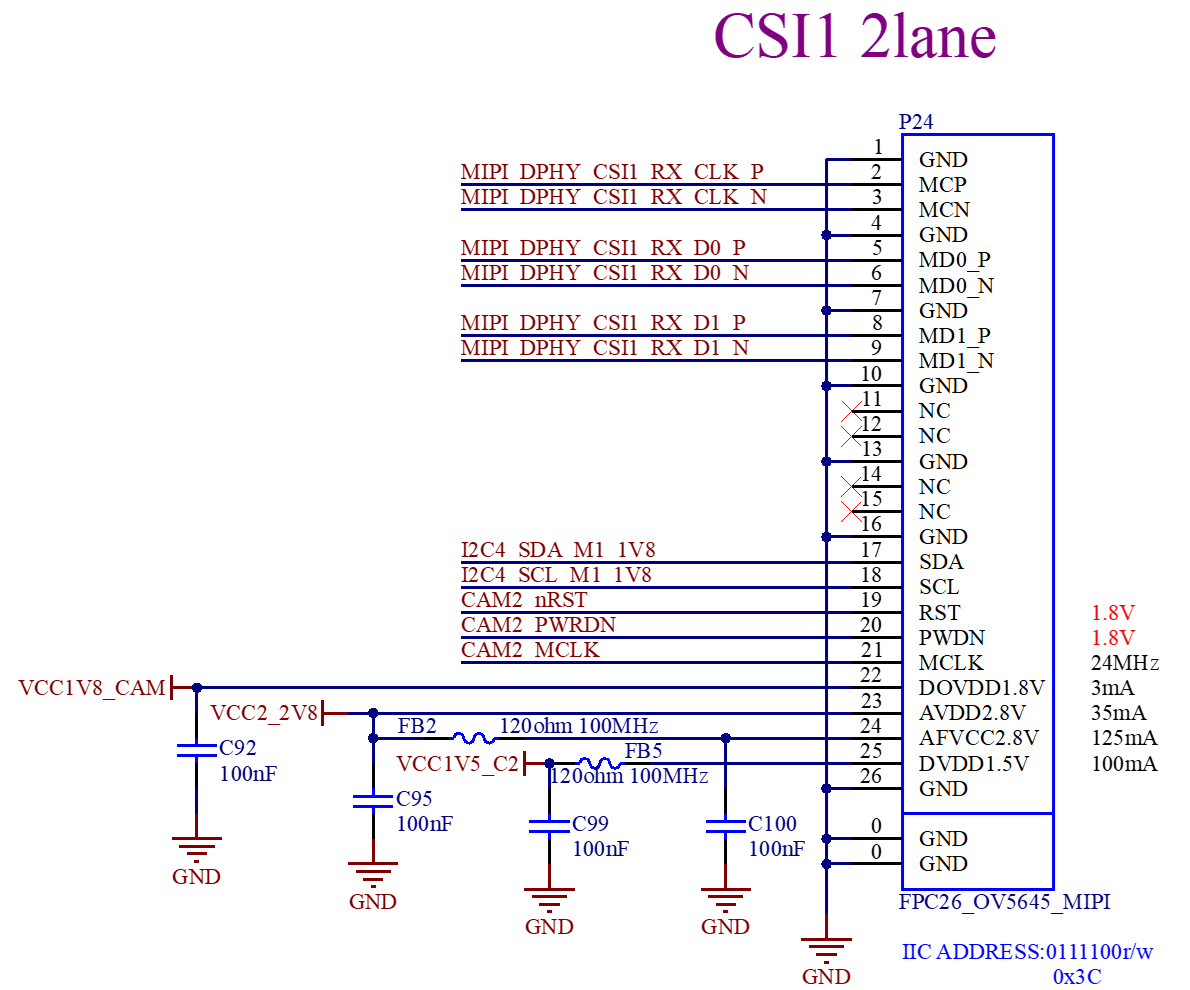

83	B22	MIPI_DPHY_CSI1_RX_D0N	——	——	MIPI_DPHY_CSI1_RX_D0N data receive 0-	MIPI_DPHY_CSI1_RX_D0N
85	A22	MIPI_DPHY_CSI1_RX_D0P	——	——	MIPI_DPHY_CSI1_RX_D0P data receive 0+	MIPI_DPHY_CSI1_RX_D0P
87	——	GND	——	——	Ground	GND
89	B23	MIPI_DPHY_CSI1_RX_D1N	——	——	MIPI_DPHY_CSI1_RX_D1N data receive 1-	MIPI_DPHY_CSI1_RX_D1N
91	A23	MIPI_DPHY_CSI1_RX_D1P	——	——	MIPI_DPHY_CSI1_RX_D1P data receive 1+	MIPI_DPHY_CSI1_RX_D1P
93	——	GND	——	——	Ground	GND
95	1C16	MIPI_DPHY_CSI1_RX_CLKN	——	——	MIPI_DPHY_CSI1_RX_CLKN clock +	MIPI_DPHY_CSI1_RX_CLKN
97	1B16	MIPI_DPHY_CSI1_RX_CLKP	——	——	MIPI_DPHY_CSI1_RX_CLKN clock +	MIPI_DPHY_CSI1_RX_CLKP
99	——	GND	——	——	Ground	GND

Table 8 P4 Connector Interface (Even) Pin Definition

NUM	BALL	Signal Name	GPIO	VOL	Pin Description	Default Function
2	——	——		——	——	——
4	1P21	GPIO0_D1_d	GPIO0_D1_d	3.3V	GPIO0_D1_d	TYPEC0_PWREN
6	——	——	——	——	——	——
8	——	GND	——	——	Ground	GND
10	AD32	GMAC1_TXD3_M0	GPIO3_C2_d	1.8V	GMAC1 data send 3	GMAC1_TXD3_M0
12	AE32	GMAC1_TXD2_M0	GPIO3_C3_d	1.8V	GMAC1 data send 2	GMAC1_TXD2_M0
14	AE33	GMAC1_TXD1_M0	GPIO3_B4_d	1.8V	GMAC1 data send 1	GMAC1_TXD1_M0
16	1V21	GMAC1_TXD0_M0	GPIO3_B5_d	1.8V	GMAC1 data send 0	GMAC1_TXD0_M0
18	1Y20	GMAC1_TXCTL_M0	GPIO3_B3_d	1.8V	GMAC1 send control	GMAC1_TXCTL_M0
20	1Y23	GMAC1_TXCLK_M0	GPIO3_B6_d	1.8V	GMAC1 send clock	GMAC1_TXCLK_M0
22	——	GND	——	——	Ground	GND
24	AF33	GMAC1_RXD3_M0	GPIO3_D2_	1.8V	GMAC1 receive data 3	GMAC1_RXD3_M0
26	AF32	GMAC1_RXD2_M0	GPIO3_D3_z	1.8V	GMAC1 receive data 2	GMAC1_RXD2_M0
28	AG32	GMAC1_RXD1_M0	GPIO3_B1_d	1.8V	GMAC1 receive data 1	GMAC1_RXD1_M0
30	1Y22	GMAC1_RXD0_M0	GPIO3_B2_d	1.8V	GMAC1 receive data 0	GMAC1_RXD0_M0
32	1Y21	GMAC1_RXCTL_M0	GPIO3_A7_d	1.8V	GMAC1 receive control	GMAC1_RXCTL_M0
34	1V20	GMAC1_RXCLK_M0	GPIO3_D1_z	1.8V	GMAC1 receive clock	GMAC1_RXCLK_M0
36	——	GND	——	——	Ground	GND
38	B5	GMAC0_TXD3	GPIO2_C3_d	3.3V	GMAC0 data send 3	GMAC0_TXD3
40	A5	GMAC0_TXD2	GPIO2_C2_d	3.3V	GMAC0 data send 2	GMAC0_TXD2
42	1B6	GMAC0_TXD1	GPIO2_D5_d	3.3V	GMAC0 data send 1	GMAC0_TXD1
44	1A6	GMAC0_TXD0	GPIO2_D4_d	3.3V	GMAC0 data send 0	GMAC0_TXD0
46	1C6	GMAC0_TXCTL	GPIO2_D3_d	3.3V	GMAC0 send control	GMAC0_TXCTL
48	B8	GMAC0_TXCLK	GPIO2_D6_z	3.3V	GMAC0 send clock	GMAC0_TXCLK
50	——	GND	——	——	Ground	GND
52	1C4	GMAC0_RXD3	GPIO2_C0_d	3.3V	GMAC0 receive data 3	GMAC0_RXD3
54	1B4	GMAC0_RXD2	GPIO2_C1_d	3.3V	GMAC0 receive data 2	GMAC0_RXD2
56	A7	GMAC0_RXD1	GPIO2_D1_d	3.3V	GMAC0 receive data 1	GMAC0_RXD1
58	1D6	GMAC0_RXD0	GPIO2_D2_d	3.3V	GMAC0 receive data 0	GMAC0_RXD0
60	A10	GMAC0_RXCTL	GPIO2_C7_d	3.3V	GMAC0 receive control	GMAC0_RXCTL
62	B7	GMAC0_RXCLK	GPIO2_D7_z	3.3V	GMAC0 receive clock	GMAC0_RXCLK
64	——	GND	——	——	Ground	GND
66	A13	MIPI_DPHY_CSI2_RX_D0P	——	——	MIPI_DPHY_CSI2_RX_D0P data receive 0+	MIPI_DPHY_CSI2_RX_D0P
68	B13	MIPI_DPHY_CSI2_RX_D0N	——	——	MIPI_DPHY_CSI2_RX_D0N data receive 0-	MIPI_DPHY_CSI2_RX_D0N
70	——	GND	——	——	Ground	GND
72	1B10	MIPI_DPHY_CSI2_RX_D1P	——	——	MIPI_DPHY_CSI2_RX_D1P data receive 1+	MIPI_DPHY_CSI2_RX_D1P
74	1C10	MIPI_DPHY_CSI2_RX_D1N	——	——	MIPI_DPHY_CSI2_RX_D1N data receive 1-	MIPI_DPHY_CSI2_RX_D1N
76	——	GND	——	——	Ground	GND
78	A14	MIPI_DPHY_CSI2_RX_CLKP	——	——	MIPI_DPHY_CSI2_RX_CLKP clock +	MIPI_DPHY_CSI2_RX_CLKP
80	B14	MIPI_DPHY_CSI2_RX_CLKN	——	——	MIPI_DPHY_CSI2_RX_CLKN clock +	MIPI_DPHY_CSI2_RX_CLKN
82	——	GND	——	——	Ground	GND
84	A16	MIPI_DPHY_CSI3_RX_D0P	——	——	MIPI_DPHY_CSI3_RX_D0P data receive 0+	MIPI_DPHY_CSI3_RX_D0P
86	B16	MIPI_DPHY_CSI3_RX_D0N	——	——	MIPI_DPHY_CSI3_RX_D0N data receive 0-	MIPI_DPHY_CSI3_RX_D0N
88	——	GND	——	——	Ground	GND
90	A17	MIPI_DPHY_CSI3_RX_D1P	——	——	MIPI_DPHY_CSI3_RX_D1P data receive 1+	MIPI_DPHY_CSI3_RX_D1P
92	B17	MIPI_DPHY_CSI3_RX_D1N	——	——	MIPI_DPHY_CSI3_RX_D1N data receive 1-	MIPI_DPHY_CSI3_RX_D1N
94	——	GND	——	——	Ground	GND
96	1B12	MIPI_DPHY_CSI3_RX_CLKP	——	——	MIPI_DPHY_CSI3_RX_CLKP clock +	MIPI_DPHY_CSI3_RX_CLKP
98	1C12	MIPI_DPHY_CSI3_RX_CLKN	——	——	MIPI_DPHY_CSI3_RX_CLKN clock +	MIPI_DPHY_CSI3_RX_CLKN
100	——	GND	——	——	Ground	GND

2.7 FET3572-C SoM Pin Description (by Function)

Note:

Default Please don’t make any modifications for all SoM pin functions regulated in the “default functions” of the following table, otherwise, it may have conflicts with the factory driver. Please contact us with any questions in time;
When you have multiple functional expansion requirements, please refer to the “FET3572-C SoM Pin Multiplexing Comparison Table” in the materials. However, for more detailed information, please refer to the relevant documentation, chip datasheets, and user manuals;
The “Signal Name” column lists the default pin names corresponding to the SoM connections to the carrier board.

2.7.1 Power Pin

Function	Signal Name	I/O	Default Function	Pin Number
Power supply	VCC_DCIN	Power Input	SoM power supply pin, 12V	P3_91
				P3_93
				P3_95
				P3_97
				P3_99
				P3_98
				P3_100
	Carry_Board_PEN	Power enable	Peripheral power enable for carrier board	P3_87
	GND	Ground	SoM power ground, all GND pins need to be connected	——

2.7.2 Control Pin Reset

Function	Signal Name	I/O	Default Function	Pin Number
SoM Reset	RESET_L	I	SoM power-off reset, low level active	P2_100

2.7.3 SoM Startup Control Pin

Function	Signal Name	I/O	Default Function	Pin Number
SoM startup mode switching	PMIC_VDC	I	When the pin is left floating (unconnected), the SoM will power on and boot up by default.	P3_10

When the pin is pulled low, the SoM will not power on and boot up automatically; pressing the PWRON_L button will initiate the startup process.

2.7.4 Flashing Control Pin Reset

Function	Signal Name	I/O	Default Function	Pin Number
Maskrom Mode	SARADC_VIN0_BOOT	I	Go to Maskrom mode by pulling low before powering on	P1_28
Recovery Mode	SARADC_VIN1_KEY/RECOVERY	I	Pull low before power-on to enter Recovery mode	P1_30

2.7.5 Function Key Pin

Function	Signal Name	I/O	Default Function	Pin Number
Maskrom button	SARADC_VIN0_BOOT	I	Go to Maskrom mode by pulling low before powering on	P1_28
On/Off	PWRON_L	I	SoM power supply switch, low level shutdown	P3_88
V+/RECOVERY KEY	SARADC_VIN1_KEY/RECOVERY	I	Volume + /Recovery button	P1_30
V- Key		I	V- Key	P1_30
MENU button		I	Button button	P1_30
ESC button		I	ESC key	P1_30

2.7.6 USB Data/Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
USB	USB_DRD1_DP	I/O	USB2.0_HOST data+	P1_92
	USB_DRD1_DM	I/O	USB2.0_HOST data-	P1_94
	USB_DRD1_ID	I	USB2_OTG1_ID pin	P1_98
	USB_DRD1_VBUSDET	I	USB2_OTG1_VBUSDET pin	P1_100
	USB_DRD1_SSTXP	O	USB3.0_HOST1 send+	P2_89
	USB_DRD1_SSTXN	O	USB3.0_HOST1 send-	P2_91
	USB_DRD1_SSRXP	I	USB3.0_HOST1 receive+	P2_95
	USB_DRD1_SSRXN	I	USB3.0_HOST1 receive-	P2_97
	USB_DRD0_ID	I	USB2_OTG0_ID pin	P3_14
	USB_DRD0_VBUSDET	I	USB2_OTG0_VBUSDET pin	P3_16
	USB_DRD0_DM	I/O	USB2.0_OTG data-	P3_18
	USB_DRD0_DP	I/O	USB2.0_OTG data+	P3_20

2.7.7 SD Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
SDIO	SDMMC0_D0	I/O	SDIO data bit 0	P1_5
	SDMMC0_D1	I/O	SDIO data bit 1	P1_3
	SDMMC0_D2	I/O	SDIO data bit 2	P1_13
	SDMMC0_D3	I/O	SDIO data bit 3	P1_11
	SDMMC0_CLK	O	SDIO clock	P1_7
	SDMMC0_CMD	I/O	SDIO Command Signal	P1_9
	SDMMC0_DET_L	I	SD Card Plug Detection	P3_90

2.7.8 WIFI Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
Control Pin	WIFI_REG_ON_H（GPIO1_C6_d）	O	WIFI Power Enable	P3_40
	WIFI_WAKE_HOST_H（GPIO0_B2_z）	I/O	The wireless network wakes up the host.	P3_52
	BT_WAKE_HOST_H（GPIO0_B3_z）	I/O	The bluetooth wakes up the host.	P3_54
	HOST_WAKE_BT_H（GPIO1_D4_d）	I/O	The host wakes up Bluetooth.	P3_46
	BT_REG_ON_H（GPIO1_C7_d）	O	Bluetooth Power Enable	P3_42
	WIFI_PEN_3V3	O	WIFI Module Power Enable	P4_25
SDIO	SDMMC1_D0_M0	I/O	SDIO data bit 0	P3_29
	SDMMC1_D1_M0	I/O	SDIO data bit 1	P3_27
	SDMMC1_D2_M0	I/O	SDIO data bit 2	P3_41
	SDMMC1_D3_M0	I/O	SDIO data bit 3	P3_39
	SDMMC1_CLK_M0	O	SDIO clock	P3_33
	SDMMC1_CMD_M0	I/O	SDIO Command Signal	P3_35
PCM	SAI2_SDI_M0	I	PCM data input	P3_53
	SAI2_SDO_M0	O	PCM Data output	P3_45
	SAI2_LRCK_M0	O	PCM Synchronization Control Signal	P3_51
	SAI2_SCLK_M0	O	PCM clock signal	P3_47
UART	UART4_TX_M1	O	UART4 data sending	P3_28
	UART4_RX_M1	I	UART4 data receiving	P3_30
	UART4_RTSN_M1	O	UART4 sending request	P3_34
	UART4_CTSN_M1	I	UART4 sending request	P3_36

2.7.9 UART Interface Control Pins

Default Function	Signal Name	I/O	Default Function	Pin Number
UART0	UART0_TX_M0_DEBUG	O	UART0 data sending	P2_7
	UART0_RX_M0_DEBUG	I	UART0 data receiving	P2_9
UART11	UART11_TX_M1	O	UART11 data sending	P1_56
	UART11_RX_M1	I	UART11 data receiving	P1_60
UART9	UART9_TX_M0	O	UART9 data sending	P4_21
	UART9_RX_M0	I	UART9 data receiving	P4_23
UART8	UART8_TX_M0	O	UART8 data sending	P2_73
	UART8_RX_M0	I	UART8 data receiving	P2_69

2.7.10 IIC Interface Control Pins

Default Function	Signal Name	I/O	Default Function	Pin Number
I2C2	I2C2_SCL_M0	O	I2C clock	P2_11
	I2C2_SDA_M0	I/O	I2C Data	P2_1
I2C3	I2C3_SCL_M1	O	I2C Data	P4_39
	I2C3_SDA_M1	I/O	I2C clock	P4_3
I2C4	I2C4_SCL_M1	O	I2C clock	P1_70
	I2C4_SDA_M1	I/O	I2C Data	P1_72
I2C5	I2C5_SCL_M3	O	I2C clock	P2_31
	I2C5_SDA_M3	I/O	I2C Data	P2_33

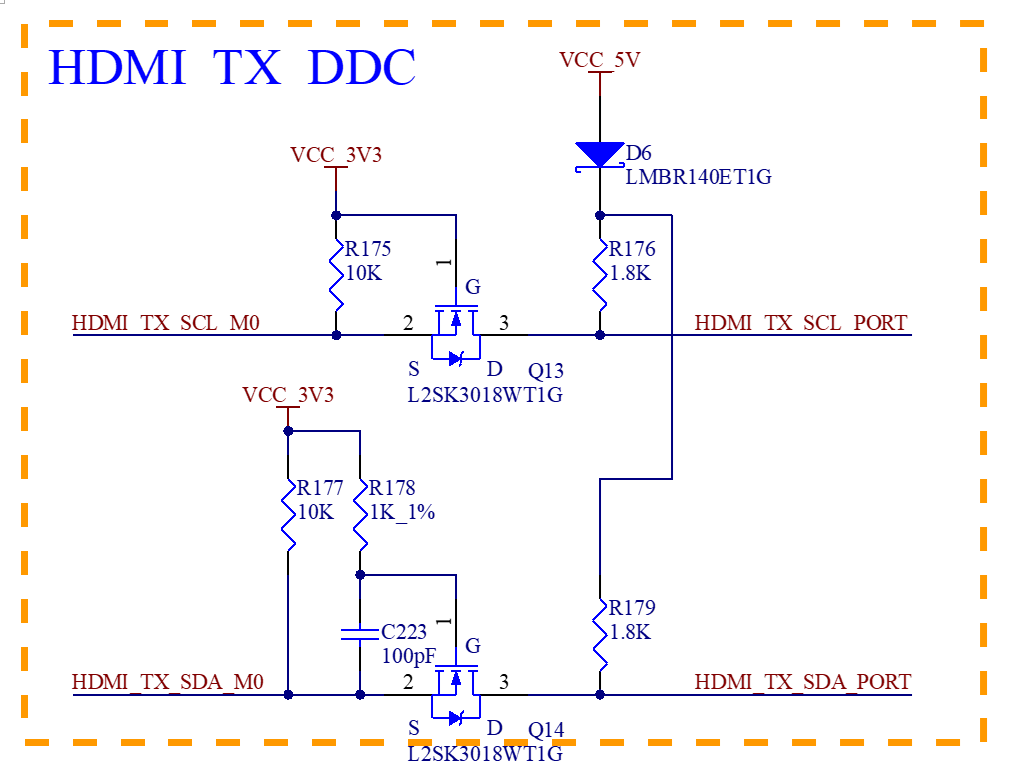

HDMI_I2C	HDMI_TX_SCL	O	I2C clock	P1_68
	HDMI_TX_SDA	I/O	I2C Data	P1_58

2.7.11 Ethernet Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
GMAC1	ETH_CLK0_25M_OUT_M0	O	PHY 25MHz reference clock output	P4_57
	ETH1_MCLK_M0	I	PHY 125MHz sync clock input	P4_61
	GMAC1_INT	I	RGMII Interrupt	P3_94
	GMAC1_RESET	O	RGMII Reset	P3_92
	GMAC1_MDC_M0	O	Serial Management Clock	P4_49
	GMAC1_MDIO_M0	I/O	Serial Management Data	P4_47
	GMAC1_TXD3_M0	O	RGMII Data Send 3	P4_10
	GMAC1_TXD2_M0	O	RGMII Data Send 2	P4_12
	GMAC1_TXD1_M0	O	RGMII Data Send 1	P4_14
	GMAC1_TXD0_M0	O	RGMII Data Send 0	P4_16
	GMAC1_TXCTL_M0	O	RGMII send control	P4_18
	GMAC1_TXCLK_M0	O	RGMII send clock	P4_20
	GMAC1_RXD3_M0	I	RGMII receive data 3	P4_24
	GMAC1_RXD2_M0	I	RGMII receive data 2	P4_26
	GMAC1_RXD1_M0	I	RGMII receive data 1	P4_28
	GMAC1_RXD0_M0	I	RGMII receive data 0	P4_30
	GMAC1_RXCTL_M0	I	RGMII receive control	P4_32
	GMAC1_RXCLK_M0	I	RGMII receive clock	P4_34
GMAC0	ETH0_CLK1_25M_OUT_M0	O	PHY 25MHz reference clock output	P4_35
	ETH0_MCLK_M0	I	PHY 125MHz sync clock input	P4_37
	GMAC0_INT	I	RGMII Interrupt	P2_19
	GMAC0_RESET	O	RGMII Reset	P4_45
	GMAC0_MDC_M0	O	Serial Management Clock	P4_7
	GMAC0_MDIO_M0	I/O	Serial Management Data	P4_5
	GMAC0_TXD3_M0	O	RGMII Data Send 3	P4_38
	GMAC0_TXD2_M0	O	RGMII Data Send 2	P4_40
	GMAC0_TXD1_M0	O	RGMII Data Send 1	P4_42
	GMAC0_TXD0_M0	O	RGMII Data Send 0	P4_44
	GMAC0_TXCTL_M0	O	RGMII send control	P4_46
	GMAC0_TXCLK_M0	O	RGMII send clock	P4_48
	GMAC0_RXD3_M0	I	RGMII receive data 3	P4_52
	GMAC0_RXD2_M0	I	RGMII receive data 2	P4_54
	GMAC0_RXD1_M0	I	RGMII receive data 1	P4_56
	GMAC0_RXD0_M0	I	RGMII receive data 0	P4_58
	GMAC0_RXCTL_M0	I	RGMII receive control	P4_60
	GMAC0_RXCLK_M0	I	RGMII receive clock	P4_62

2.7.12 MIPI_CSI Output Interface

Function	Signal Name	I/O	Default Function	Pin Number
MIPI_CSI0	MIPI_DPHY_CSI0_RX_D0_P	I	CSI Data 0+	P4_67
	MIPI_DPHY_CSI0_RX_D0_N	I	CSI Data 0-	P4_65
	MIPI_DPHY_CSI0_RX_D1_P	I	CSI Data 1+	P4_73
	MIPI_DPHY_CSI0_RX_D1_N	I	CSI Data 1-	P4_71
	MIPI_DPHY_CSI0_RX_CLK_P	I	CSI clock+	P4_79
	MIPI_DPHY_CSI0_RX_CLK_N	I	CSI clock-	P4_77
MIPI_CSI1	MIPI_DPHY_CSI1_RX_D0_P	I	CSI Data 0+	P4_85
	MIPI_DPHY_CSI1_RX_D0_N	I	CSI Data 0-	P4_83
	MIPI_DPHY_CSI1_RX_D1_P	I	CSI Data 1+	P4_91
	MIPI_DPHY_CSI1_RX_D1_N	I	CSI Data 1-	P4_89
	MIPI_DPHY_CSI1_RX_CLK_P	I	CSI clock+	P4_97
	MIPI_DPHY_CSI1_RX_CLK_N	I	CSI clock-	P4_95
MIPI_CSI2	MIPI_DPHY_CSI2_RX_D0_P	I	CSI Data 0+	P4_66
	MIPI_DPHY_CSI2_RX_D0_N	I	CSI Data 0-	P4_68
	MIPI_DPHY_CSI2_RX_D1_P	I	CSI Data 1+	P4_72
	MIPI_DPHY_CSI2_RX_D1_N	I	CSI Data 1-	P4_74
	MIPI_DPHY_CSI2_RX_CLK_P	I	CSI clock+	P4_78
	MIPI_DPHY_CSI2_RX_CLK_N	I	CSI clock-	P4_80
MIPI_CSI3	MIPI_DPHY_CSI3_RX_D0_P	I	CSI Data 0+	P4_84
	MIPI_DPHY_CSI3_RX_D0_N	I	CSI Data 0-	P4_86
	MIPI_DPHY_CSI3_RX_D1_P	I	CSI Data 1+	P4_90
	MIPI_DPHY_CSI3_RX_D1_N	I	CSI Data 1-	P4_92
	MIPI_DPHY_CSI3_RX_CLK_P	I	CSI clock+	P4_96
	MIPI_DPHY_CSI3_RX_CLK_N	I	CSI clock-	P4_98

2.7.13 MIPI_DSI Interface Control Pin

Function	Signal Name	I/O	Default Function	Pin Number
MIPI_DSI	MIPI_DPHY_DSI_TX_D0_P	O	DSI Data 0+	P3_59
	MIPI_DPHY_DSI_TX_D0_N	O	DSI Data 0-	P3_57
	MIPI_DPHY_DSI_TX_D1_P	O	DSI Data 1+	P3_65
	MIPI_DPHY_DSI_TX_D1_N	O	DSI Data 1-	P3_63
	MIPI_DPHY_DSI_TX_CLK_P	O	DSI clock+	P3_71
	MIPI_DPHY_DSI_TX_CLK_N	O	DSI clock-	P3_69
	MIPI_DPHY_DSI_TX_D2_P	O	DSI Data 2+	P3_77
	MIPI_DPHY_DSI_TX_D2_N	O	DSI Data 2-	P3_75
	MIPI_DPHY_DSI_TX_D3_P	O	DSI Data 3+	P3_83
	MIPI_DPHY_DSI_TX_D3_N	O	DSI Data 3-	P3_81
	PWM0_CH0_M0（GPIO0_C4_d）	O	Screen PWM dimming	P2_13
	MIPI_DSI1_EN（GPIO3_D0_d）	O	Screen Power Enable	P2_79
	MIPI_DSI1_RESET（GPIO0_D0_d）	O	Touchscreen Reset	P4_9
	MIPI_DSI1_INT（GPIO0_C5_d）	I	Touch screen interrupt	P4_1

2.7.14 PCIE Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
PCIE	PCIE1_TX_P	O	PCIE Data Send+	P2_78
	PCIE1_TX_N	O	PCIE Data Send-	P2_76
	PCIE1_RX_P	I	PCIE Data Receive+	P2_72
	PCIE1_RX_N	I	PCIE Data Receive-	P2_70
	PCIE1_REFCLK_P	O	PCIE Clock Output+	P2_66
	PCIE1_REFCLK_N	O	PCIE Clock Output-	P2_64
	PCIE1_WAKEn	I	PCIE wake-up activation signal	P1_74
	PCIE1_CLKREQn_M0	O	PCIE clock request signal	P1_78
	PCIE1_PERSTn	O	PCIE Reset Signal	P1_64
	PCIE1_PRSN2_3V3	I	PCIE Card Detection Signal	P2_77
	PCIE_PWR_EN_3V3	O	PCIE 3.3V power enable	P1_54
	PCIE0_REFCLKN_M0	O	PCIE Clock Output-	P2_82
	PCIE0_REFCLKP_M0	O	PCIE Clock Output+	P2_84
	PCIE0_TXN_M0	O	PCIE Data Send-	P2_88
	PCIE0_TXP_M0	O	PCIE Data Send+	P2_90
	PCIE0_RXN_M0	I	PCIE Data Receive-	P2_94
	PCIE0_RXP_M0	I	PCIE Data Receive+	P2_96
	PCIE0_WAKEn	I	PCIE wake-up activation signal	P1_76
	PCIE0_CLKREQn_M0	O	PCIE clock request signal	P4_37
	PCIE0_PERSTn	O	PCIE Reset Signal	P1_80

2.7.15 HDMI Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
HDMI	HDMI_TX_HPDIN_M0_1V8	I	HDMI Hot Plug Detection	P2_71
	HDMI_TX_CEC_M0	I/O	HDMI_CEC Recogonition	P1_52
	HDMI_TX_SBD_N	O	HDMI_SBD(ARC)-	P1_17
	HDMI_TX_SBD_P	O	HDMI_SBD(ARC)+	P1_19
	HDMI_TX_D3_N	O	HDMI Differential Data 3-	P1_23
	HDMI_TX_D3_P	O	HDMI Differential Data 3+	P1_25
	HDMI_TX_D0_N	O	HDMI Differential Data 0-	P1_29
	HDMI_TX_D0_P	O	HDMI Differential Data 0+	P1_31
	HDMI_TX_D1_N	O	HDMI Differential Data 1-	P1_35
	HDMI_TX_D1_P	O	HDMI Differential Data 1+	P1_37
	HDMI_TX_D2_N	O	HDMI Differential Data 2-	P1_41
	HDMI_TX_D2_P	O	HDMI Differential Data 2+	P1_43
	HDMI_TX_SCL	O	I2C clock	P1_68
	HDMI_TX_SDA	I/O	I2C Data	P1_58

2.7.16 I2S AUDIO Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
I2S	SAI1_MCLK_M1	O	I2S Main Clock	P4_61
	SAI1_SCLK_M1	I/O	I2S serial clock	P4_57
	SAI1_LRCK_M1	I/O	I2S Left/Right Channel Switching	P2_37
	SAI1_SDO0_M1	O	I2S serial data output	P2_41
	SAI1_SDI0_M1	I	I2S serial data input	P4_43
	HP_DET_L	I	Earphone insert detection	P2_45
	SARADC_VIN3_HP_HOOK	I	Headphone in-line control buttons	P1_34

2.7.17 CAN Interface Control Pins

Function	Signal Name	I/O	Default Function	Pin Number
CAN0	CAN0_TX_M2_3V3	O	CAN0 data sending	P4_29
	CAN0_RX_M2_3V3	I	CAN0 data receiving	P4_31
CAN3	CAN3_TX_M0_1V8	O	CAN1 data sending	P3_48
	CAN3_RX_M0_1V8	I	CAN1 data receiving	P3_92

2.7.18 ADC Control Interface

Function	Signal Name	I/O	Default Function	Pin Number
ADC	SARADC_VIN2_HW_ID	I	ADC input	P1_32
	SARADC_VIN4	I	ADC input	P1_36
	SARADC_VIN5	I	ADC input	P1_38
	SARADC_VIN7	I	ADC input	P1_42

2.8 SoM Hardware Design Description

2.8.1 SoM Circuit Design Guidelines

The FET3572-C SoM integrates power supply and storage circuits into a compact module, requiring minimal external circuitry. To form a minimal system, only a 5-13V power supply, a reset button, a programming SD card, and boot configuration are needed, as illustrated below:
Refer to “Appendix IV. Minimum System Diagram” However, in most cases, it is recommended to connect some external peripherals beyond the minimal system. For instance, connecting a debug serial port can be used to view printed information, while reserving an OTG interface allows for debugging information output. After completing these steps, you can then add the required functions based on the SoM’s default interface definition provided by Forlinx.

For the design of the SoM’s peripheral circuits, please refer to Section “3.5 OK3572-C Carrier Board Description”.

3. OK3572-C Embedded Development Description

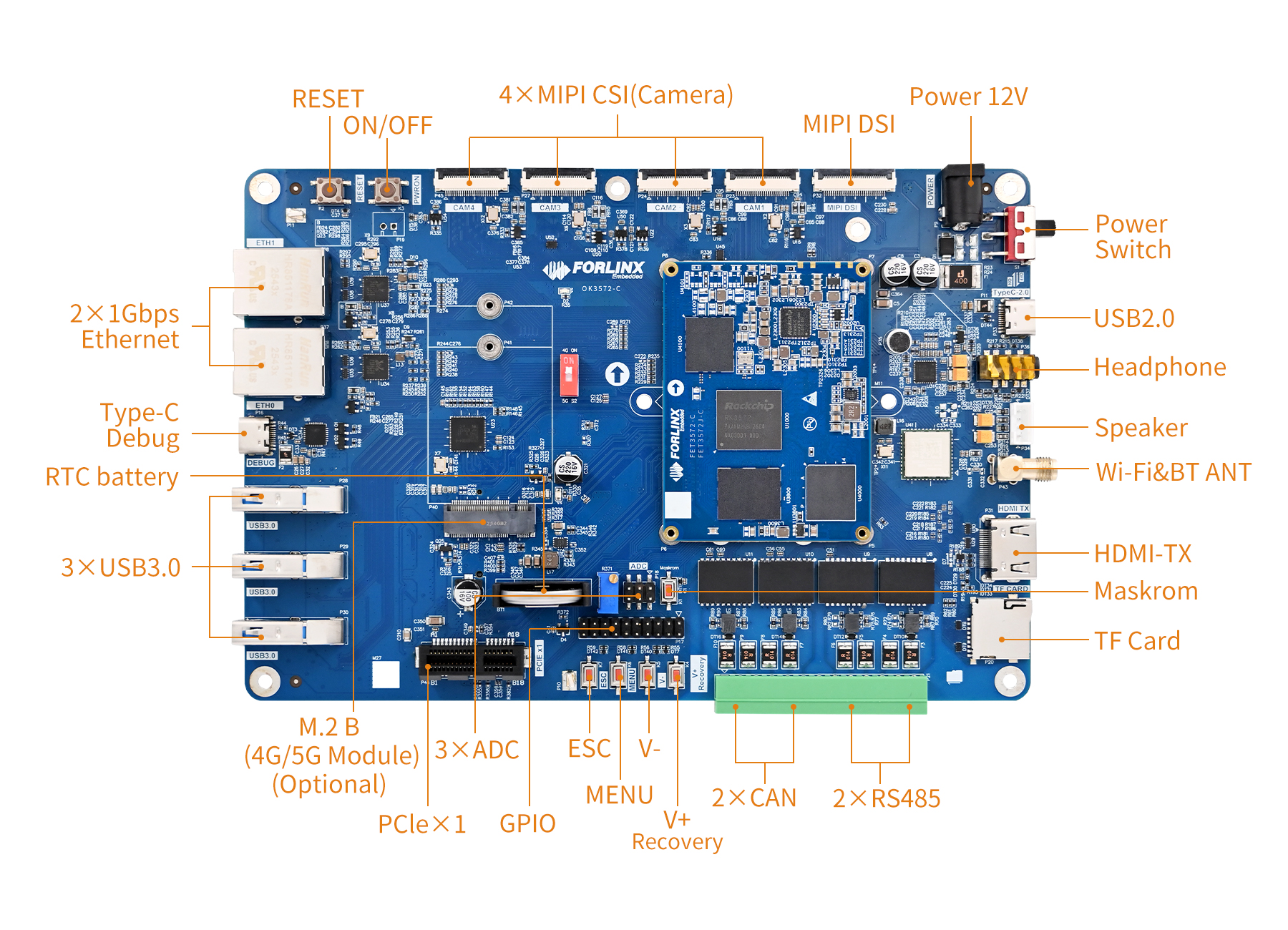

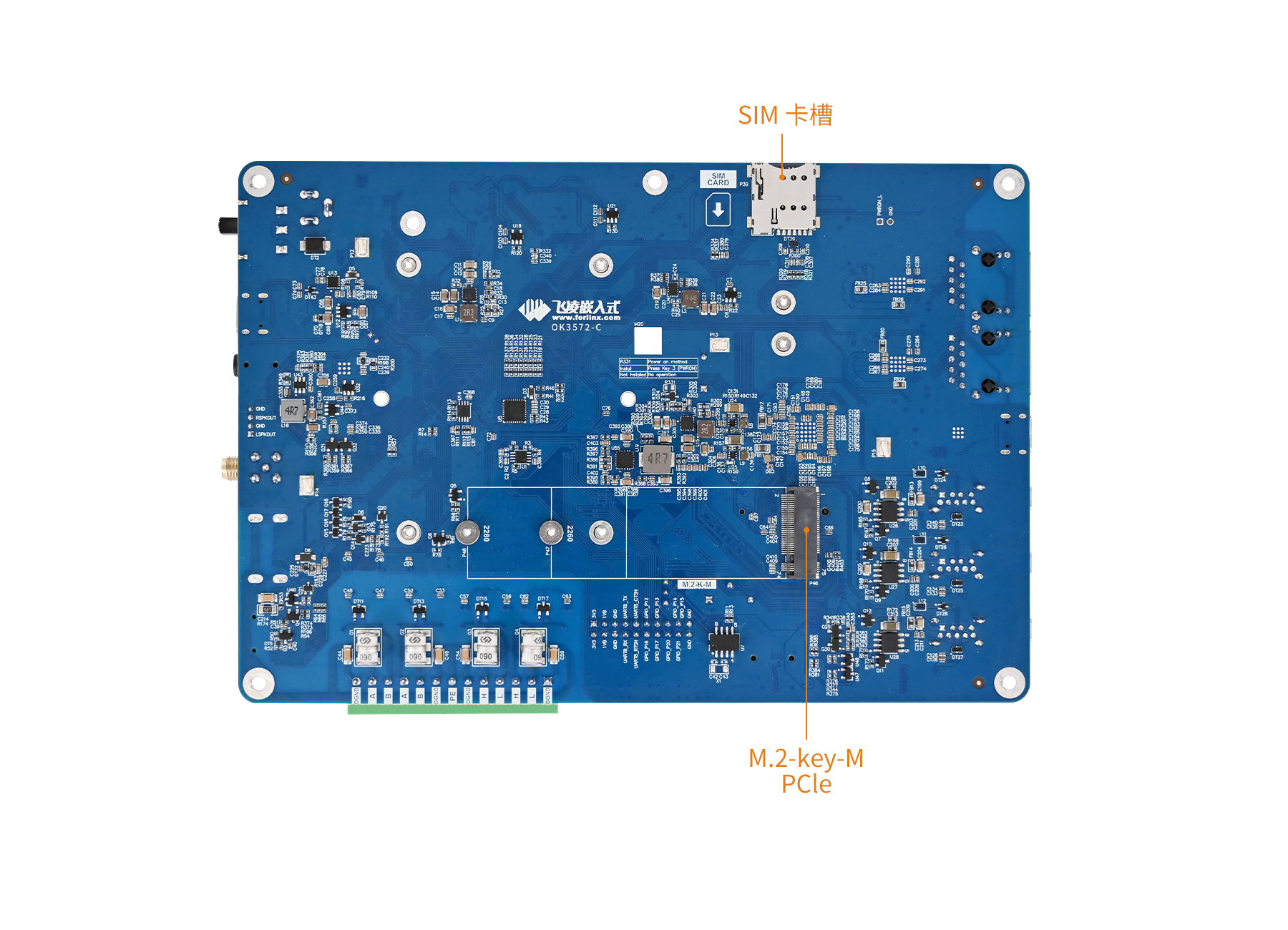

3.1 OK3572-C Development Board Interface Diagram

Connection method: Board-to-board.

3.2 OK3572-C Development Board Dimension Diagram

OK3572-C Development Board Dimension Diagram：

Carrier Board PCB size: 130mm × 190mm, for more detailed dimensions, please refer to the user information DXF document;

Mounting hole dimensions: Pitch: 120mm × 180mm, hole diameter: 3.2mm;

Plate making process: 1.6mm thickness, 4-layer PCB;

Power Voltage: DC 12V

The antenna bracket is used to mount and secure 4G and 5G antennas. Dimensions: 20mm × 140mm.

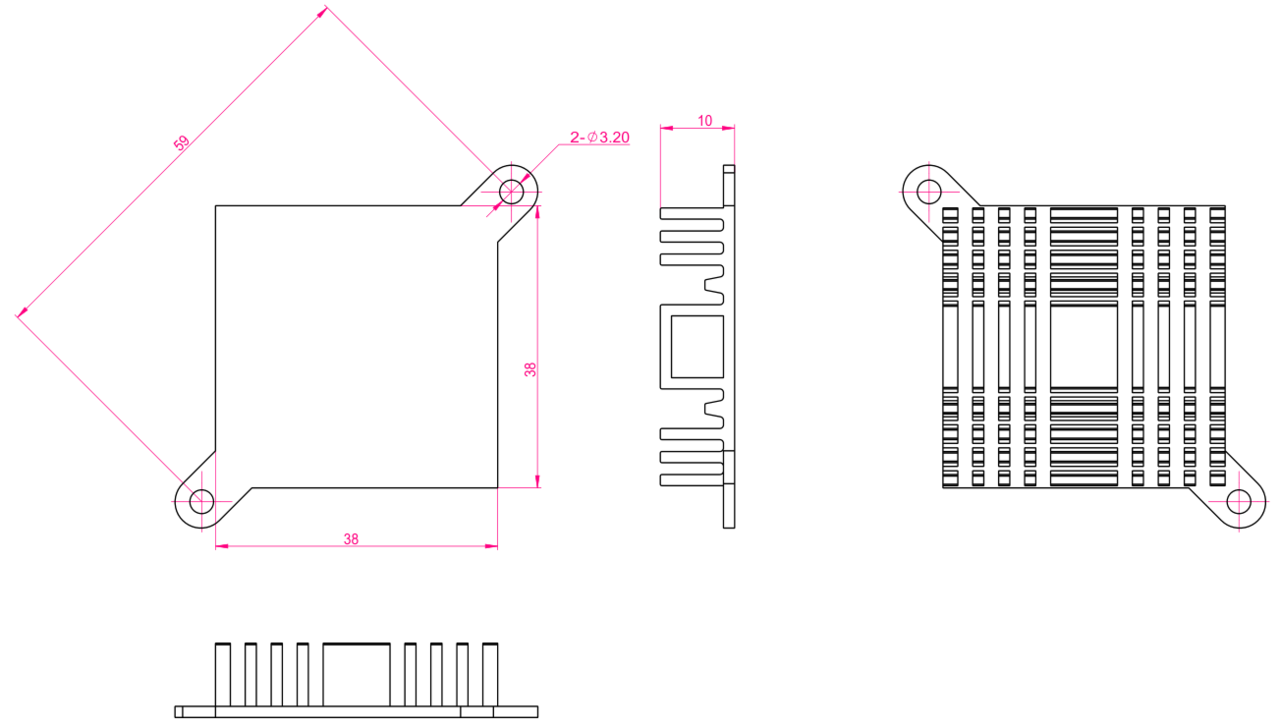

The OK3572-C carrier board is equipped with two mounting holes for heat sinks (3.2 mm in diameter). You may choose to install a heat sink according to the on-site environment. Please add a insulating thermal pad between the contact surface of the heat sink and the SoM. Recommended heat sink: 38mm × 38mm × 10mm. See below for details.

3.3 Naming Rules

ABC-D+IK:M

Field	Field Description	Value	Description
A	Grade	PC	Prototype Sample
		Blank	Mass Production
B	Product Line Identification	OK	Forlinx Embedded development board
C	CPU Name	RK3572	RK3572
-	Segment Identification	-
D	Connection	Cx	Board to board connector
+	Segment Identification	+	The configuration parameter section follows this identifier.
I	Operating Temperature	I	-40 to 85℃
K	PCB Version	10	V1.0
		xx	Vx.x
:M	Internal Identification of the Manufacturer	:X	This is the internal identification of the manufacturer and has no impact on the use.

3.4 Carrier Board Interfaces

Function	Quantity	Parameter
MIPI CSI	4	The carrier board features 4 x MIPI CSI interfaces: · Supports 2 x MIPI CSI 4-lane interfaces, with the OV13855 camera mounted by default; · Supports 2 x MIPI CSI 4-lane interfaces, with the OV13855 camera mounted by default; · Supports 4 x MIPI CSI 2-lane interfaces, mounting the OV5645 camera instead.
MIPI DSI	1	· The MIPI interface supports 4 lanes output with a maximum resolution of 2560*1600@60fps; · Suitable for Forlinx 7-inch MIPI screen with resolution of 1024 × 600 @ 30 FPS.
HDMI TX	1	· Led out through a standard HDMI socket; · HDMI V2.1, up to 4096x2160 @ 60Hz.
USB2.0	1	Led out through Type-C interface, supporting OTG and program flashing.
USB3.0 HOST	3	Led out through 3 x Type-A USB
PCIe2.0	2	Connected via a PCIe x1 slot and an M.2 socket; Supports a data transfer rate of 5 Gbps.
Ethernet	2	Led out via 2 x RJ45 interfaces; Supports 10/100/1000 Mbps data transmission rate.
TF card	1	TF card is available, rate up to 150MHz，support SDR104 mode;
Audio	1	Codec chip on board, support headphone output, MIC input level Speaker output and other functions;
CAN	2	Two CAN bus lines are routed via the CAN transceiver; complies with the CAN and CAN FD specifications;
RS485	2	2 x RS485 CAN bus routed out through RS485 transceiver;
UART	1	Routed via a 2.44mm pitch connector;
4G/5G	1	Supports M.2 packaged 4G/5G modules;
WIFI&BT	1	· On-board AzureWave AW-CM358SM WiFi & Bluetooth module; · Supports WiFi 2.4 GHz/5 GHz dual-band and Bluetooth 5.0.
ADC	3	· Connected via a 2.44 mm pitch pin header; · 12-bit single-ended input SAR-ADC, with a sampling rate of up to 1 MS/s;
RTC	1	Onboard RTC chip and battery socket;
GPIO	8	8 x GPIO, 3.3V power, and 1.8V power, all accessible via a 2.44mm pitch header.

Note：

The parameters in the table are the theoretical values of hardware design or CPU;
“TBD” means the function has not been developed in this phase.

3.5 OK3572-C Carrier Board Description

Note:

The component UID with “_DNP” mark in the diagram below represents it is not soldered by default;
The schematics in this section are provided for convenience and may be subject to changes. Please ensure your design strictly follows the original schematic files.

3.5.1 Carrier Board Power

It uses a 12V power adapter for the power supply, and the power connector is a DC005 socket. The DIP switch S1 serves as the power switch for the development board. Move the switch in the direction indicated on the carrier board to turn it on or off. A TVS diode is connected in parallel after switch S1 for ESD protection. Fuse F1 provides overcurrent protection. Diode D1 works alongside F1 to offer reverse-connection protection. VCC12V_DCIN supplies power to both the FET3572 SoM and other peripherals on the carrier board.

VCC12V_DCIN is stepped down to VCC_5V via U3 (DC-DC converter). VCC_5V powers other peripherals on the carrier board. (Note: When selecting the 12V-to-5V DC-DC chip, ensure its output power is sufficiently high. It is recommended to support an output current of 6A or above to guarantee adequate current supply for downstream stages.)

After the SoM starts up normally with 12V power supply, it outputs a high level via the CARRIER_BOARD_EN pin to enable U3, thereby outputting VCC_5V to power certain peripherals on the development board. (This signal level is 3.3V with a drive capability of 1kΩ pull-up. If the enabled device’s enable pin requires drive capability beyond this range, buffers or gate circuits should be added to enhance drive capability, ensuring proper power-up of both the SoM and the carrier board.)

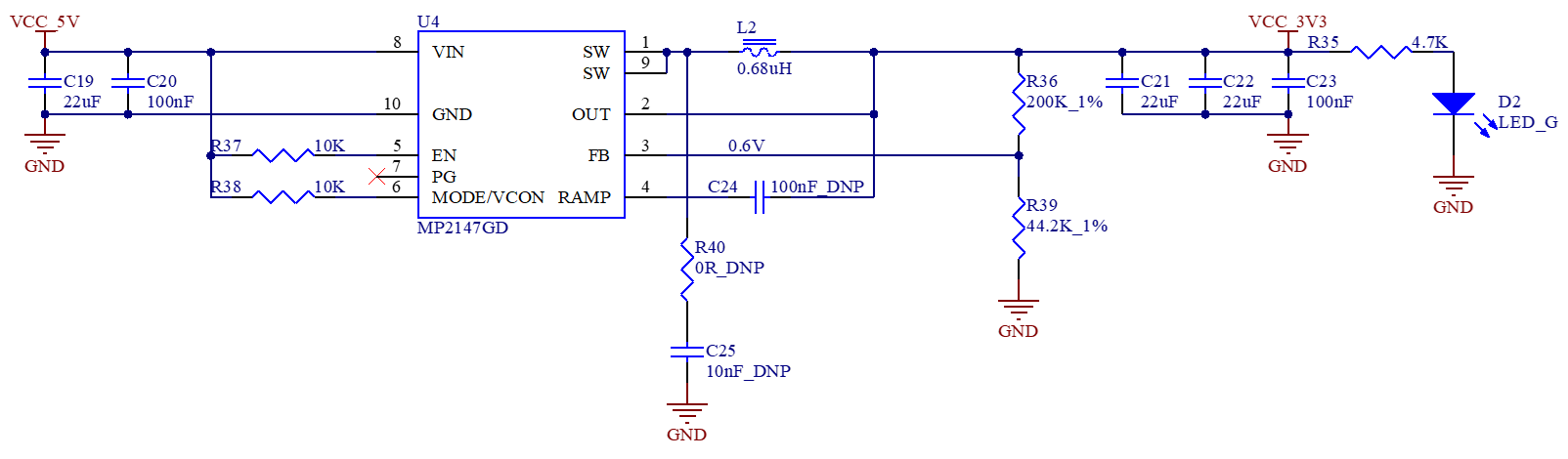

VCC_5V is further stepped down to VCC_3V3 via U4 (DC-DC converter). VCC_3V3 supplies power to certain devices on the development board.

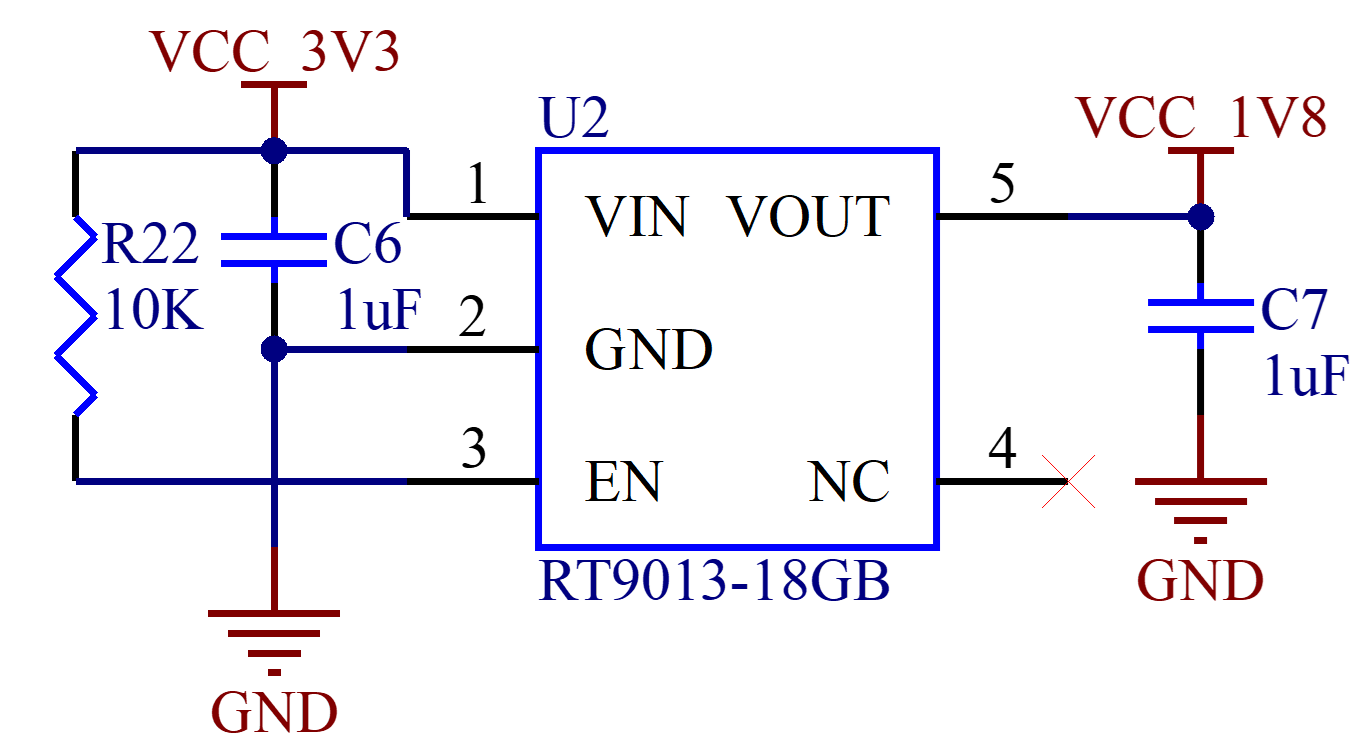

VCC_3V3 is then stepped down to VCC_1V8 via U2 (LDO). VCC_1V8 supplies power to certain devices on the development board.

Note:

When designing independently, please strictly adhere to the power-up sequencing;
The selection of step-up/step-down converter chips and their external layout must refer to the corresponding chip manuals to ensure proper power return paths.

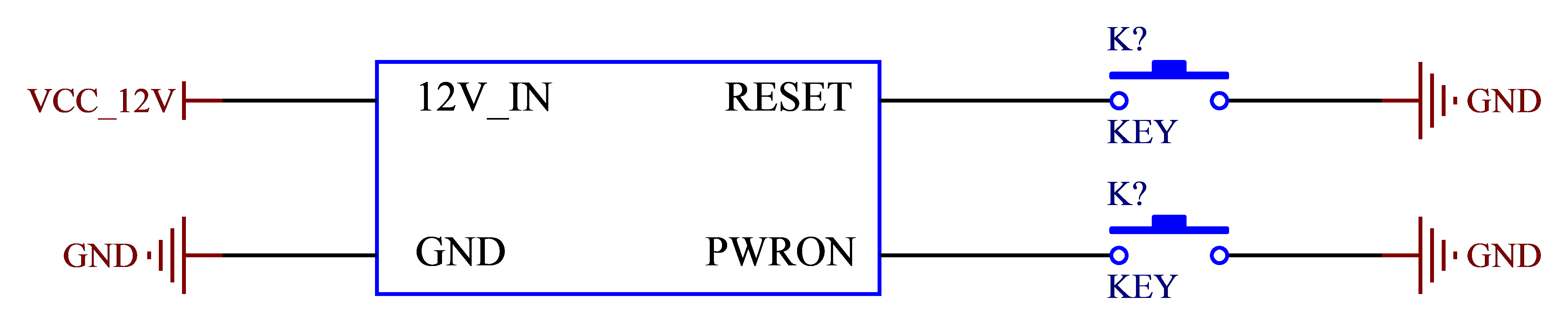

3.5.2 Reset and On/Off Signal

RESET_L is SoM resetting signal input connected to the key for convenient debugging

PWRON_L is an On/Off signal input connected to the key for convenient debugging

Additionally, one 2.54mm pitch terminal block is reserved for the PWRON_L signal, which is left unpopulated by default to facilitate expansion.

Please pay attention to the PMIC_VDC signal on pin P3_10 of the System on Module (SoM) connector. This signal can toggle between two power-on modes for the SoM: automatic power-on boot or button-triggered boot.

On the OK3572-C, this functionality is controlled by the presence of resistor R331:

- If R331 is not installed (floating pin), the SoM will automatically boot upon power-up (default configuration).

- If R331 is installed (pulling the pin low), the SoM will not boot immediately after power-on; instead, it will start only after the PWRON_L button is pressed.

3.5.3 Boot Configuration

RK3572 supports multiple boot modes. After resetting the chip reset, the boot code integrated inside the chip can be booted on the following interface devices, and the specific boot sequence can be selected according to actual application requirements:

·Serial Flash(FSPI0, FSPI1_M0, FSPI1_M1)

·eMMC

·UFS

·SDMMC0 Card

If the specified devices do not contain boot code, system code can be downloaded to them through the USB2_OTG0_DP/DM signals of the USB2.0 OTG0 interface.

Boot Sequence Selection:

The boot order of the RK3572 can be configured using the SARADC_VIN0_BOOT Pin (PIN: P1_28). By applying different pull-up or pull-down resistor values to this pin, various peripheral boot sequences can be set. The hardware design supports 11 boot modes (Config1–Config11), which are defined below. It is important to select the appropriate configuration based on the specific application requirements.

Table 3.5.3.1 Boot Sequence Configuration

Item	Rup	Rdown	ADC	BOOT MODE
Config1	DNP	10K	0	USB (Maskrom mode)
Config2	10K	1.13K	416	FSPI0→USB
Confi 3	10K	2.49K	816	FSPI1_M0→EMMC→USB
Config4	10K	4.3K	1231	FSPI1_M1→EMMC→USB
Config5	10K	6.8K	1658	FSPI0→UFS→USB
Config6	10K	10K	2048	FSPI1_M0→UFS→USB
Config7	10K	14.7K	2437	UFS→USB
Config8	10K	23.2K	2862	UFS→SDMMC0→USB
Config9	10K	40.2K	3279	EMMC→SDMMC0_M1→USB
Config10	10K	88.7K	3680	EMMC→SDMMC0_M0→USB
Config11	10K	DNP	4095	EMMC→USB

On the SoM, SARADC_VIN0_BOOT is configured with a 10 kΩ pull‑up and an 88.7 kΩ pull‑down resistor. Thus, the SoM boots from eMMC by default. Pull-down resistors can be connected in parallel on the carrier board to achieve other sequencing arrangements. OK3572-C connects SARADC_VIN0_BOOT to GND via a touch button to enable Maskrom mode.

SARADC_ VIN1 is used to enter the recovery state due to a short circuit to the ground, and the SoM pulls it up to a 1.8V power supply using a 10K resistor. On OK3572-C, the key array adopts a parallel type, which can adjust the input key value by increasing or decreasing the keys and adjusting the proportion of the voltage divider resistor to achieve multi-key input to meet customer product requirements.

It is recommended in the design that any two key values must be greater than ± 35, i.e. the center voltage difference must be greater than 123mV. As shown in the figure:

Note:

When doing key acquisition, ESD protection is required near the keys. And 0 key value must be connected in series with a 100ohm resistor to strengthen the anti-static surge capacity (If there is only one button, ESD must be close to the button, ESD → 100ohm resistor → 1nF → chip pin);
Where there are multiple buttons, place an ESD tube near each button.

3.5.4 System Initialization Configuration Signal

There is one important signal in the FET3572 that affects the system boot configuration and needs to be configured and kept in a stable state before power-up:

SDMMC0_DET_L (PIN: P3_90) (default function: SDMMC_DET): Determines whether the VCCIO1 power domain I/O is configured for SDMMC0 or JTAG functionality.

The JTAG and SDMMC functions of the FET3572 are multiplexed; the IOMUX function is switched via the SDMMC0_DET_L pin. Consequently, this pin must also be configured before power-up; otherwise, the absence of an output from the JTAG function will affect debugging during the boot phase, whilst the absence of an output from SDMMC0 will affect the SDMMC0 boot function.

If this pin is detected as high, the corresponding I/O pin switches to JTAG mode;
When this pin detects low level (Most SD cards inserted will pull down this pin, if not need special treatment), the corresponding IO switches to SDMMC0 function;
After the system is up, it can be switched to have registers to control IOMUX, then the pin can bereleased;
For easy reference, the configuration status of this pin corresponds to its function shown as follows:

Table 3.5.4.1 FET3572 System Initialization Configuration Signal Description

Signal Name	Internal Pull-up&down	Description
SDMMC0_DET_L	Pull-up	SDMMC/ARM JTAG pin multiplexing selection control signal: 0: An SD card is detected; the SDMMC/JTAG pin is multiplexed for the SDMMC0 function; 1: No SD card is detected; the SDMMC/JTAG pin is multiplexed for the JTAG function (Default).

3.5.5 JTAG and UART Debug Circuits

The JTAG interface on the RK3572 chip complies with the IEEE 1149.1 standard; a PC can connect to the DSTREAM emulator via SWD mode (two-wire mode) to debug the ARM core within the chip.

The JTAG interface is described in the table below:

Table 3.5.5.1 FET3572 JTAG Debug Interface Signals

Signal Name	Description
JTAG_TCK_M0/M1	SWD Mode clock input
JTAG_TMS_M0/M1	SWD mode data input and output

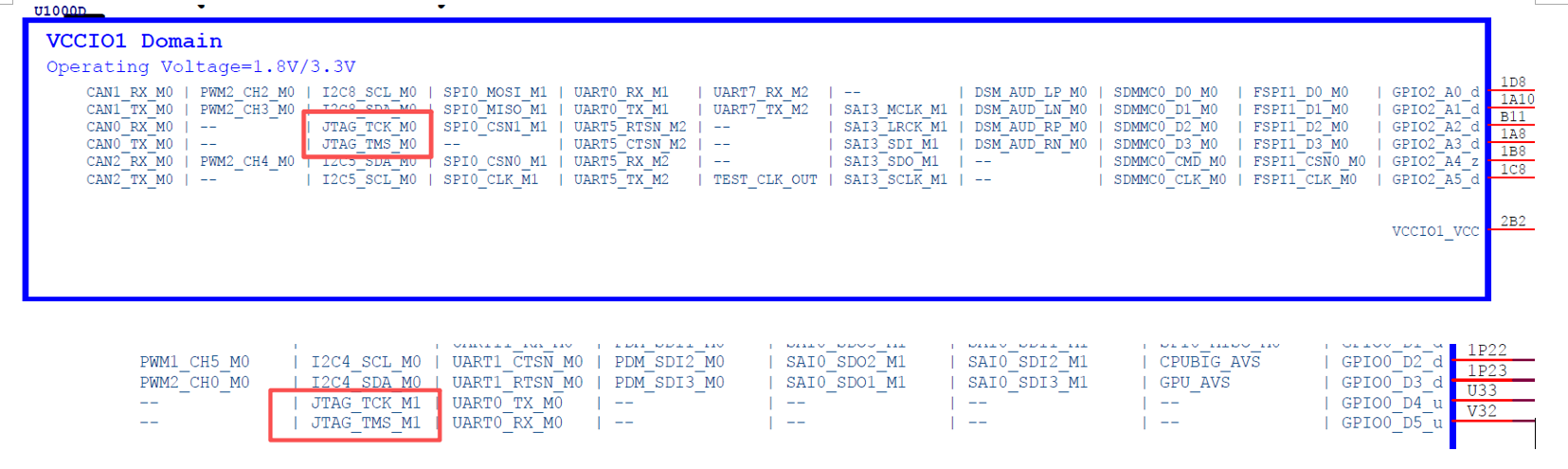

The RK3572 has two JTAG multiplexes: JTAG_TCK_M0/JTAG_TMS_M0 is located in the VCCIO1 domain and is multiplexed with SDMMC0 via the IOMUX; JTAG_TCK_M1/JTAG_TMS_M1 is located in the PMUIO1 domain and is multiplexed with UART_Debug—UART0_M0. The IOMUX multiplexing configuration is shown in the figure below.

The UART Debug is set by default to UART0_TX_M0_DEBUG (P2_7)/UART0_RX_M0_DEBUG (P2_9). UART Debug signal needs to be connected with 100ohm resistor in series, if plug-in is used, and TVS tube
needs to be added near the plug-in position.

To facilitate user debugging, OK3572-C uses a USB to UART chip to convert the UART signal into a USB signal and leads it out through a Type-C socket. Users can connect OK3572-C P16 to PC with USB Type-A to UAB Type-C cable and install a CP2102 driver. The schematic is as follows:

Note:

For future debugging convenience, route out these debug ports on custom carrier boards;
It is recommended to keep Q1 and Q2, which can effectively prevent the U6 current from flowing back to the CPU through UART0_TX/RX when the core board is not powered-up, affecting the startup and even causing damage.

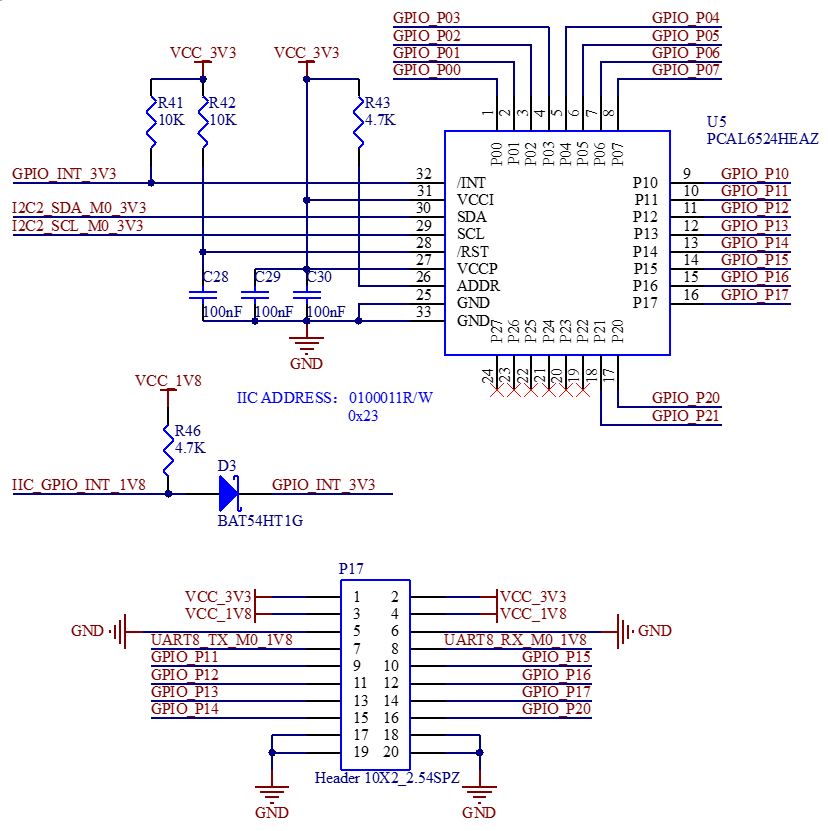

3.5.6 IIC Expanded for IO

To introduce more diverse interfaces, the enable and reset signals of the carrier board are completed by the IIC to IO chip U5. At the same time, the U5 spare part of IO is led by P17 to facilitate user expansion. The principle is as follows:

3.5.7 SARADC Interface

OK3572-C routes SARADC_VIN4/VIN5/VIN7 via P18; R371 is a variable resistor. By short-circuiting SARADC_VIN4/VIN5/VIN7 to pins 4 and 6 of P18, the voltage changes can be read via the ADC whilst adjusting the resistance value of the R371 variable resistor. As shown in the figure below:

Note:

When using the SARADC_VINx pins, it’s essential to add a 1nF capacitor for debouncing as close to the pins as possible. A 1nF capacitor has already been placed near the CPU pins on the SoM, so the carrier board should add one as needed.

3.5.8 TF Card

The carrier board P20 is a TF Card interface, which can support system boot and burn.

Note:

The power supply to the TF card must be controlled; refer to the carrier board circuit for implementation;
SDIO impedance requirements: Single‑ended impedance: 50 Ω;
Signal length matching tolerance: ±50 mil.

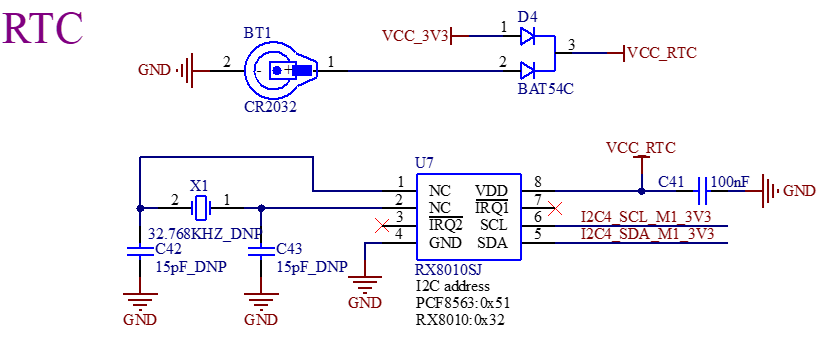

3.5.9 RTC Circuit

The OK3572-C provides an on-board external RTC function for more accurate timing and lower power consumption. As shown in the figure below:

3.5.10 Ethernet Circuit

The carrier board supports dual 1000/100/10M Ethernet interfaces, which are led out via RJ45.

The RK3572 RGMII/RMII interface design is as follows:

Table 3.5.10.1 RK3572 RGMII/RMII Interface Design

Signal	IO Type (chip-side)	RGMII Interface	Signal Description	RMII Interface	Signal Description
GMACx_TXD[3:0]	Output	RGMIIxTXD[3:0]	Data sending	RMIIx_TXD[1:0]	Data sending
GMACx_TXCLK	Output	RGMIIx_TXCLK	Data sending reference clock	–	–
GMACx_TXCTL	Output	RGMIIx_TXCTL	Data sending enable (rising edge) and data sending error (falling edge)	RMIIx_TXEN	Data sending enable signal
GMACx_RXD[3:0]	Input	RGMIIx_RXD[3:0]	Data receiving	RMIIx_RXD[1:0]	Data receiving
GMACx_RXCLK	Input	RGMIIx_RXCLK	Data receiving reference clock	–	–
GMACx_RXCTL	Input	RGMIIx_RXCTL	Data receiving valid (rising edge) and data receiving error (falling edge)	RMIIx_RXCTL	Data receiving valid and carrier sense
GMACx_MCLKINOUT	Inputs/Outputs	RGMIIx_MCLKI_ 125M	PHY sends 125MHz to MAC, (optional)	RMII_MCLKIN_50M or RMII_MCLKOUT_50M	RMII data sending and receiving reference clock
ETHx_REFCLKO_ 25M	Output	ETHx_REFCLK_ 25M	RK3572 provides 25MHz clock to replace PHY crystal	ETHx_REFCLKO_ 25M	RK3572 provides 25MHz clock to replace PHY crystal
GMACx_MDC	Output	RGMIIx_MDC	Managing the data clock	RMIIx_MDC	Managing the data clock
GMACx_MDIO	Inputs/Outputs	RGMIIx_MDIO	Managing data output/input	RMIIx_MDIO	Managing data output/input

In RGMII mode, the internal TX/RX clock path of RK3572 chip integrates delayline, which supports adjustment; default configuration of the reference chart: the timing between TXCLK and data is controlled by the MAC, the timing between RXCLK and data is controlled by PHY(If using RTL8211F/FI, i.e. RXCLK, 2nS delay is enabled by default, and other PHYs should note this configuration).

The GMAC0 interface operates at 3.3V by default, whilst the GMAC1 interface operates at 1.8V by default (please contact Forlinx if you wish to modify the pin levels). Please ensure that the supply voltage of the RGMII signal power domain on the PHY chip matches the GMACx interface voltage.

Ethernet PHY Reset signal needs to be controlled by GPIO, and the level of GPIO must match the PHY IO level; 100nF capacitor must be added near the PHY pin to strengthen the anti-static capability, note: the reset pin of RTL8211F/FI only supports 3.3V level.

TXD0- TXD3，TXCLK，TXEN need to reserve 0ohm resistors at the FET3572 to improve signal quality according to actual situation.

RXD0- RXD3, RXCLK, RXDV need to be connected with 22ohm resistors in series at the PHY end to improve the signal quality.

When 7.PHY uses an external crystal, please select the crystal capacitance according to the load capacitance value of the actual crystal used, and control the frequency deviation within ±20ppm.

The RSET pin of RTL8211F/FI has an external resistance of 2.49K ohm with an accuracy of 1%, which must not be modified at will.

MDIO must be externally added with a pull-up resistor (recommended 1.5-1.8Kohm), and the pull-up power supply must be consistent with the IO power supply.

PCB Layout needs to ensure the integrity of the RGMII signal reference plane and the PHY chip peripheral power reference plane.

Equivalent length requirement: the receiving and sending of RGMII can be grouped into equal lengths, with an equal length requirement ≤ 12.4 mil.

Impedance requirements: single-ended 50ohm.

3.5.11 RS485 Interface

OK3572-C supports dual RS485 interfaces.

The RS485 transceiver chips U8 and U9 are TDH341S485S, which feature:

Isolation withstand voltage up to 5000 VDC.

Bus ESD protection capability up to 15 kV (HBM).

Transient immunity > 25 kV/µs. Meanwhile, the OK3572-C carrier board is compatible with a higher level of surge pulse group multi-level protection circuit, as shown in the following figure:

3.5.12 CAN Interface

The FET3572-C SoM supports a maximum of two CAN channels, namely CAN0 and CAN3.

CAN0_RX_M2_3V3 and CAN0_TX_M2_3V3 are native CAN signals directly routed from the CPU to the carrier board.

CAN3_RX_M2_3V3 and CAN3_TX_M2_3V3 are routed through a level‑shifting chip (U1).

Compliant with CAN & CAN FD specifications.

Supports standard & extended frame transmission.

8192‑bit receive FIFO.

The OK3572-C development board supports two CAN interfaces utilizing isolated CAN transceivers. The isolation withstand voltage is as high as 5000VDC, with bus electrostatic discharge protection capability reaching 15kV (HBM) and a transient immunity of >25kV/μs. Meanwhile, the OK3572-C carrier board is compatible with a higher level of surge pulse group multi-level protection circuit, as shown in the following figure:

3.5.13 Audio

The OK3572-C has an I2S interface Codec chip U31 on board, which supports MIC input, headphone output, and 1W 8Ω speaker output. The principle shown as follows:

3.5.14 4G&5G Interface

The OK3572-C integrates an M.2 Key-B interface that is compatible with 4G and 5G modules. Since 4G and 5G modules have different power supply voltages, we need to dip S2 to select the corresponding power supply voltage.

3.5.15 USB2.0/USB3.0/PCIe2.0/SATA3.0 Circuit

The RK3572 chip features two USB 2.0 PHYs, namely USB2_PHY0 and USB2_PHY1.

The RK3572 chip features three COMBO PHYs: COMBO_PHY0, COMBO_PHY1, and COMBO_PHY2.

COMBO_PHY0 multiplexing options: PCIe0_M0 / SATA0_M0 / USB3_DRD0.

COMBO_PHY1 multiplexing options: PCIe0_M1 / SATA0_M1 / USB3_DRD1.

Both COMBO_PHY0 and COMBO_PHY1 share the controllers PCIe0, SATA0, USB3_DRD0, and USB3_DRD1 (as shown in the block diagram below).

From the above block diagram, it can be seen that COMBO_PHY0 and COMBO_PHY1 share the same PCIe0 and SATA0 controllers. Therefore, these two PHYs cannot be configured simultaneously for the PCIe0 function or the SATA0 function. Please pay special attention to this constraint:

COMBO_PHY0 can be configured into the following three modes:

COMBO_PHY1 can be configured into the following three modes:

The corresponding SoM pins are as follows:

COMBO_PHY0：P2_82, 84, 88, 90, 94, 96

COMBO_PHY1：P2_83, 85, 89, 91, 95, 97

COMBO_PHY2 multiplexing with PCIe1/SATA1

The controller corresponding to COMBO _ PHY2 is as follows:

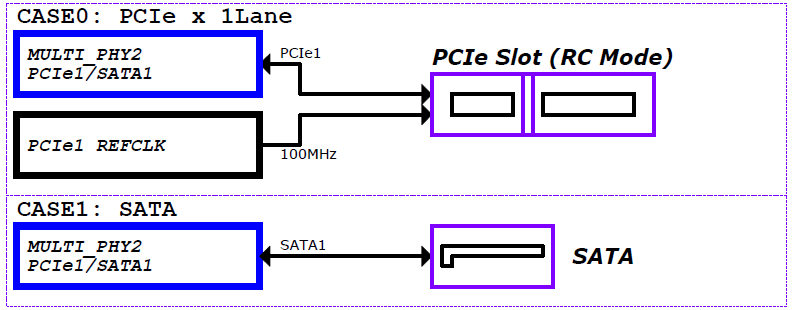

COMBO _ PHY2 can be configured in the following two cases:

The corresponding SoM pins are as follows: P2 _ 64, 66, 70, 72, 76, 78.

The default configuration of the OK3572-C:

COMBO_PHY0：PCIe0_M0;

COMBO_PHY1：USB3_DRD1;

COMBO_PHY2：PCIe1;

PCIe0 _ M0 is led out through M.2 interface, as shown in the figure below:

PCIe1 is led out via PCIe X 1 slot:

USB3_DRD1 and USB2_DRD1 are combined to form a complete USB3 interface. This interface is connected to an external USB HUB chip for USB port expansion.

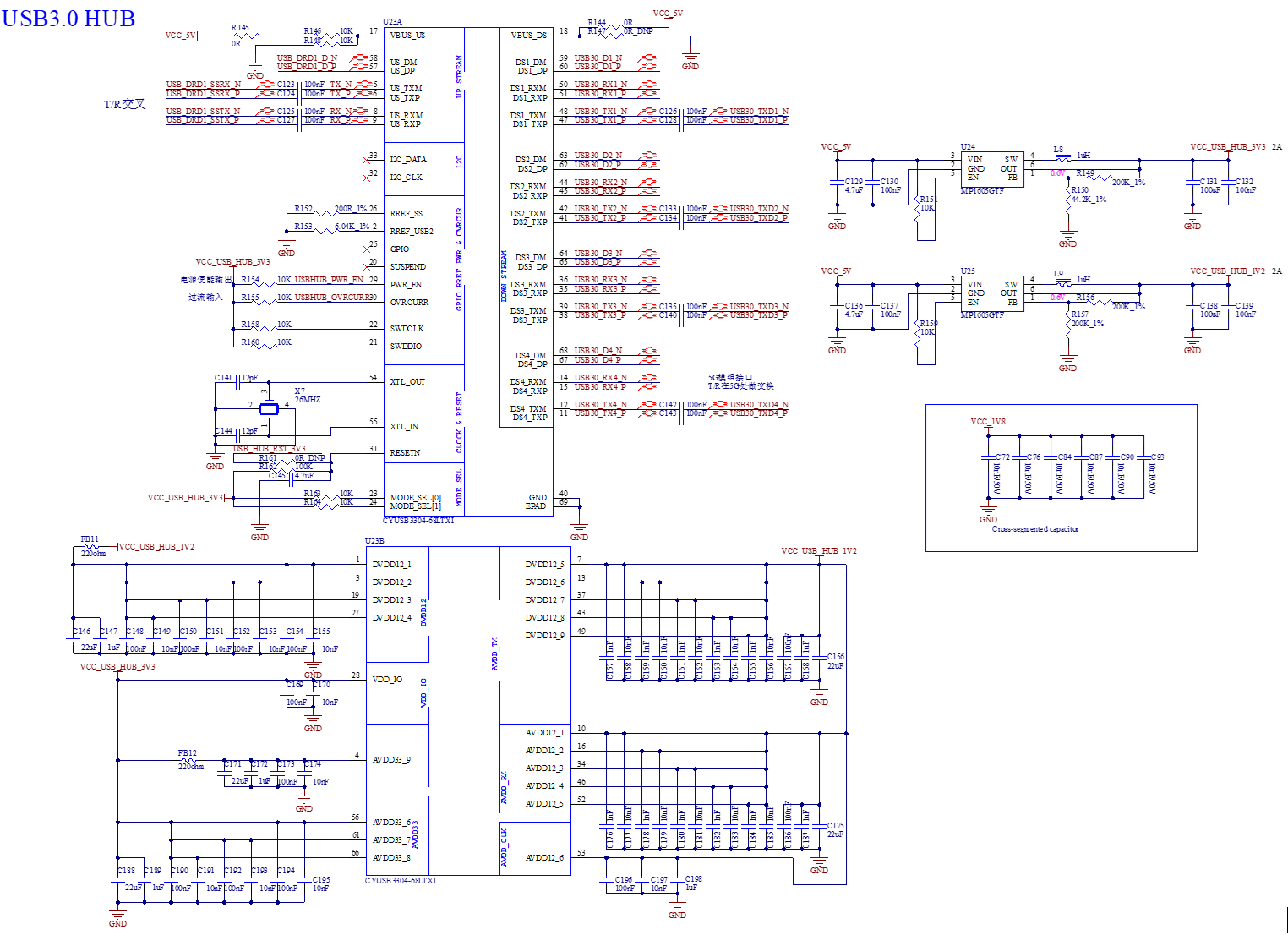

All three USB 3.0 ports on the USB hub chip are equipped with USB power-supply current-limiting switch chips, providing a stable power supply and current-limiting protection for the Type-A ports:

Note:

All USB data cables must be designed with a differential impedance of 90Ω;
Please select suitable ESD protection components.

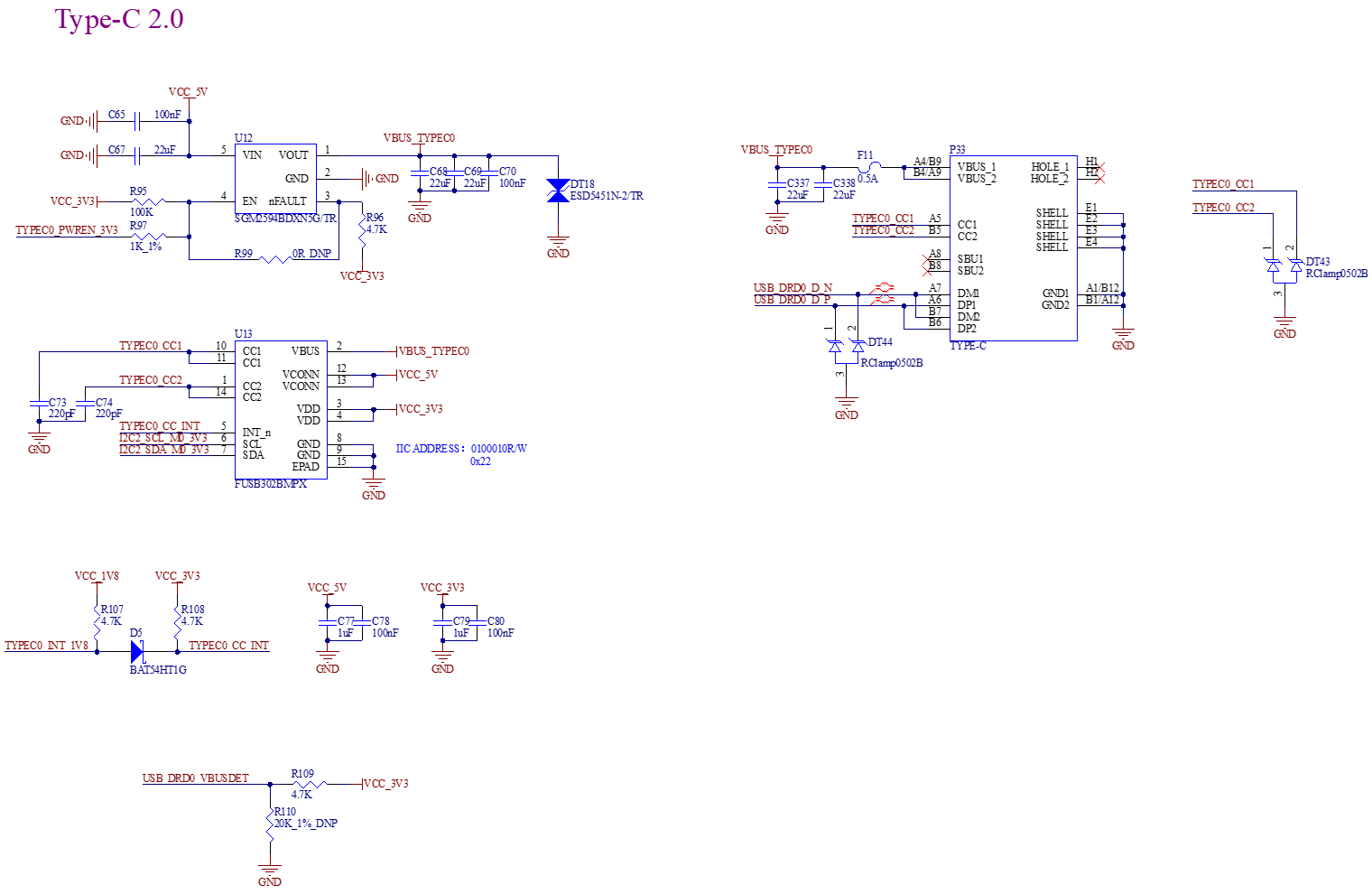

USB2_DRD0 is routed via a standard Type-C interface.

Note: USB_DRD0_DP/USB_DRD0_DM supports firmware download. If the product does not utilise this interface, it must be left accessible during debugging and production. Please note: USB2_OTG0_VBUSDET must also be connected!

USB Design Note：

USB_DRD0_DP/USB_DRD0_DM is the system firmware programming port. If the product does not use this interface, it must be reserved during debugging and production; otherwise, debugging and firmware burning will not be possible;
USB_DRD0_ID features an internal pull-up resistor of approximately 12 kΩ to 1.8 V;
USB_DRD0_VBUSDET is the OTG and Device mode detection pin; the chip contains an internal 40 kΩ pull-down resistor. A high level indicates DEVICE mode (2.7–3.3 V, typical: 3.0 V); it is recommended to place a 100 nF capacitor on this pin;
OTG mode can be configured as follows:

∘ OTG mode: Automatically switches between device and host based on the ID pin.

ID high → device mode.

ID low → host mode.

In device mode, VBUSDET must be high (> 2.3 V) to pull up DP and start enumeration.

∘ Device mode: ID pin is ignored; only VBUSDET needs to be high (> 2.3 V) to enable DP pull-up and enumeration;

∘ HOST mode: In this mode, you don’t need to worry about the ID or VBUSDET status. Note: Even if only host mode is required, USB_DRD0_DP/DM is still needed for firmware burning and debugging. Therefore, in burning and ADB debugging phases, device mode must be configured, and USB_DRD0_VBUSDET must be connected.

For a Type‑C interface, pull USB_DRD0_VBUSDET high to 3.3 V through a 4.7 K resistor.

ESD protection is mandatory on all signals. For USB 2.0 signals, ESD parasitic capacitance must not exceed 3 pF. Additionally, series 2.2 Ω resistors should be placed on DP/DM to enhance ESD and surge immunity;
To suppress EMI, a common‑mode choke can be reserved on signal lines. During debugging, choose either a resistor or a choke based on actual conditions;
If the USB_DRD0_ID signal is used, ESD protection components must be incorporated into the signal to enhance its resistance to static electricity and surges, and a 100 ohm resistor must be connected in series; these components must not be omitted;
In Host mode, it is recommended to add a current‑limiting switch on the 5 V power rail. The limit can be adjusted as needed. Control the switch with a 3.3 V GPIO. Also add filtering capacitors: ≥ 22 µF and ≥ 100 nF. If a portable HDD may be connected, increase the capacitance to ≥ 100 µF;
The TYPEC protocol requires the addition of a 100 nF AC-coupling capacitor on the SSTXP/N line. It is recommended that the AC-coupling capacitor be in a 0201 package, as this offers lower ESR and ESL, thereby reducing impedance variations on the circuit;
All signals of the Type‑C connector must have ESD protection placed as close as possible to the connector;
USB 2.0 differential impedance: 90 Ω ± 10 %, intra‑pair skew < 10 mil;
USB 3.0 differential impedance: 90 Ω ± 10 %, intra‑pair skew < 3 mil;

SATA Design Note：

Peripheral circuits and power supplies must meet the specification requirements in Slot design;
A single SATA interface connected to a SATA Port Multiplier supports at most 5 ports; it does not support multiple multipliers exceeding 6 ports in total;
On SATA TXP/N and RXP/N differential pairs, 10 nF AC‑coupling capacitors are required. Use 0201‑size capacitors for lower ESR/ESL and reduced impedance variation;
All signals of an eSATA connector must have ESD protection placed close to the connector. The ESD parasitic capacitance must not exceed 0.4 pF.

PCIe2.1 Design Note:

Peripheral circuits and power supplies must meet the specification requirements in Slot design;
A 100nF AC coupling capacitor must be connected in series on the TXP/N differential signal lines of the PCIe 2.1 interface. It is recommended to use 0201 package size capacitors for the AC coupling, as they have lower ESR and ESL, which also helps reduce impedance variations on the trace;
The PCIE0/1_CLKREQN pin must be used as a dedicated function pin and cannot be replaced by a GPIO;
For the signals PCIE0/1_PERSTN, WAKEN, and PRSNT on the RK3572, no specific dedicated I/O are assigned. Standard GPIO with compatible voltage levels can be used directly as control function pins;
In a standard PCIe slot, the signals PCIEx_CLKREQN, PCIEx_WAKEN, and PCIEx_PERSTN operate at 3.3V logic levels. Ensure proper voltage level matching is implemented on the RK3572 side accordingly;
When the PCIe function is enabled, the multiplexed SATA and USB functions cannot be used at the same time. For more information on the respective SATA and USB functions, please refer to the module specifications;
If the PCIe 2.1 function module is not used, please follow these guidelines:

∘ Leave the data lines (PCIE0/1_TXP/TXN and PCIE0/1_RXP/RXN) and the reference clock lines (PCIE0/1_REFCLKP/REFCLKN) unconnected (floating);

∘ Ground the two power rails, AVDD0V85 and AVDD1V8;

∘ Ensure that the corresponding device tree (DTS) configuration is disabled in the software.
The recommended interface matching design for PCIe 2.1 is as shown in the following table:

Signal	Connection	Description
PCIE0/1_TXP/TXN	Series-connected 100nF capacitor (0201 package recommended).	PCIe data output
PCIE0/1_RXP/RXN	Direct connection	PCIe data input
.PCIE0/1_REFCLKP/CLKN	Direct connection	PCIe reference clock
PCIE0/1_CLKREQN	Connect 0ohm resistor in series	PCIe reference clock(RC mode)
PCIE0/1_WAKEN	Connect 0ohm resistor in series	PCIe wake-up input (RC mode)
PCIE0/1_PERSTN	Connect 0ohm resistor in series	PCIe global reset output (RC mode)
PCIE0/1_PRSNT	Connect 0ohm resistor in series	Add In Card insertion detection input (RC mode)
PCIE_BUTTONRSTN (not in use right now )	It’s no use; there’s no need to connect.	External physical Reset of the PCIe Controller

Data routing impedance control differential 85ohm ±10%;
Clock routing impedance control differential 100ohm±10%;
Inter-Pair Skew maximum ＜3mil;
Differential pair space is better than or equal to 4 times the PCI-E line width.

3.5.16 Video Input Interface

FET3572 has two MIPI DPHY CSI RX, both support MIPI V1.2 version, the maximum data rate of each channel is 2.5Gbps.

MIPI DPHY CSI0 / 1 RX interface mode:

Support 4Lane mode, MIPI_DPHY_CSI0_RX_D[3:0] data reference MIPI_DPHY_CSI0_RX_CLK
Support 2Lane+2Lane mode:

MIPI DPHY CSI0_RX_D[1:0] data reference MIPI_DPHY_CSI0_RX_CLK

MIPI DPHY CSI1_RX_D[1:0] data reference MIPI_DPHY_CSI1_RX_CLK

MIPI DPHY CSI2 / 3 RX interface mode:

Support 4Lane mode, MIPI_DPHY_CSI2_RX_D[3:0] data reference MIPI_DPHY_CSI2_RX_CLK
Support 2Lane+2Lane mode:

MIPI DPHY CSI2_RX_D[1:0] data reference MIPI_DPHY_CSI2_RX_CLK

MIPI DPHY CSI3_RX_D[1:0] data reference MIPI_DPHY_CSI3_RX_CLK

The OK3572-C is configured with four Camera interfaces by default. For user convenience during debugging, two switch chips (U45 and U52) are used on the carrier board to group the signals, as shown in the circuit diagram below:

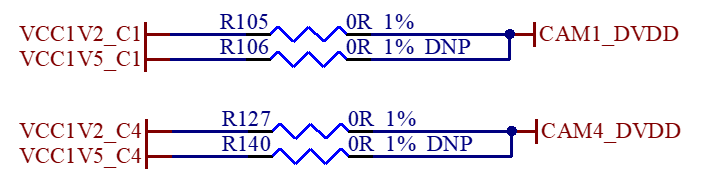

Additionally, resistors R105, R106, R127, and R140 are reserved to enable switching of the DVDD voltage for P23 and P45. The default setting is 1.2V, but you can select either 1.2V or 1.5V based on your actual requirements.

The schematic diagram of the four camera interfaces is as follows:

Please note in the MIPI RX design:

Routing impedance required differential 100ohm±10%;
Routing impedance required at single end 50ohn ± 10%
Inter-Pair Skew maximum ＜3mil;
Equivalent length between clock and data < 6 mil;
Differential pair space is better ＞4 times MIPI line space, and at least 3 times MIPI line width.
The space between MIPI and other signal is better > 4 times MIPI line width and at least 3 times MIPI line width;
When it is configured as CPHY, the maximum inter-group delay difference <3mil (TRIO_A\TRIO_B\TRIO_C);
Inter-group (TRIO0\TRIO1\TRIO2) equal length requirement <50mil.

3.5.17 Video Output Interface

The RK3572 chip features a VOP (Video Output Processor), which reads video data and UI data from the frame buffer in system memory, performs corresponding processing (such as cropping, color space conversion, scaling, and overlaying), and outputs the processed data to each high-speed display interface.

It features 2 Port outputs and can output through video interfaces including EBC, HDMI/eDP, MIPI DSI, and LCDC (Parallel Interface).

Maximum video output capabilities:

Supports dual-screen independent display configurations, for example, one screen at 4096x2160@60Hz and another at 1920x1080@60Hz.

VOP and video interface output path diagram:

The OK3572-C development board supports two display output interfaces: MIPI_DSI and HDMI.

3.5.17.1 MIPI_DSI Interface

FET3572 features one MIPI D- PHY TX：

D-PHY supports version 1.2 D-PHY modes include 0, 1, 2 and 3 lanes, with two wires per lane; the maximum data rate is 2.5 Gbps per lane.

MIPI_DPHY_TX supports a maximum resolution of 2560x1600@60Hz.

Corresponding SoM connectors: P3_57, 59, 63, 65, 69, 71, 75, 77, 81, 83

Please note in design:

Routing impedance control differential 100ohm ± 10%;
Inter-Pair Skew maximum ＜3mil;
Equivalent length between clock and data < 6 mil;
Differential inter-pair space is recommended to be more than or equal to 4 times the MIPI line width, and at least 3 times MIPI line width;
MIPI and other signal space is recommended to be more than or equal to 4 times the MIPI line width, and at least 3 times MIPI line width;
When it is configured as CPHY, single-ended routing impedance control 50ohm ±10%;
The inter-group delay difference is <3mil (TRIO0\TRIO1\TRIO2);
Inter-group (TRIO0\TRIO1\TRIO2) equal length requirement <50mil;
The number of permissible holes for each signal is recommended to be no more than 2;
The inter-pair space is recommended to be more than or equal to 4 times the MIPI line width;
MIPI and other signal space is recommended to be more than or equal to 4 times the MIPI line width.

3.5.17.2 HDMI_TX Interface

The RK3572 integrates an HDMI/eDP TX Combo PHY.

HDMI/eDP TX Combo PHY supports the following two modes:

HDMI TX Mode: Supports up to HDMI 2.1, including the HDMI FRL mode with backward compatibility for HDMI TMDS mode. It supports formats such as RGB/YUV444/YUV422/YUV420 (up to 10-bit);
eDP TX Mode: Supports up to eDP 1.3, with a maximum resolution of 4K@60Hz. It supports RGB/YUV444/YUV422 (up to 10-bit) formats.

RK3572 supports HDMI 2.1 and downward for HDMI 2.0, compatible with HDMI 1.4. Because HDMI 2.1 works in FRL mode and works in TMDS mode, when switching to HDMI 2.0 and below, it will work in TMDS mode, so the AC coupled voltage mode driver is used.

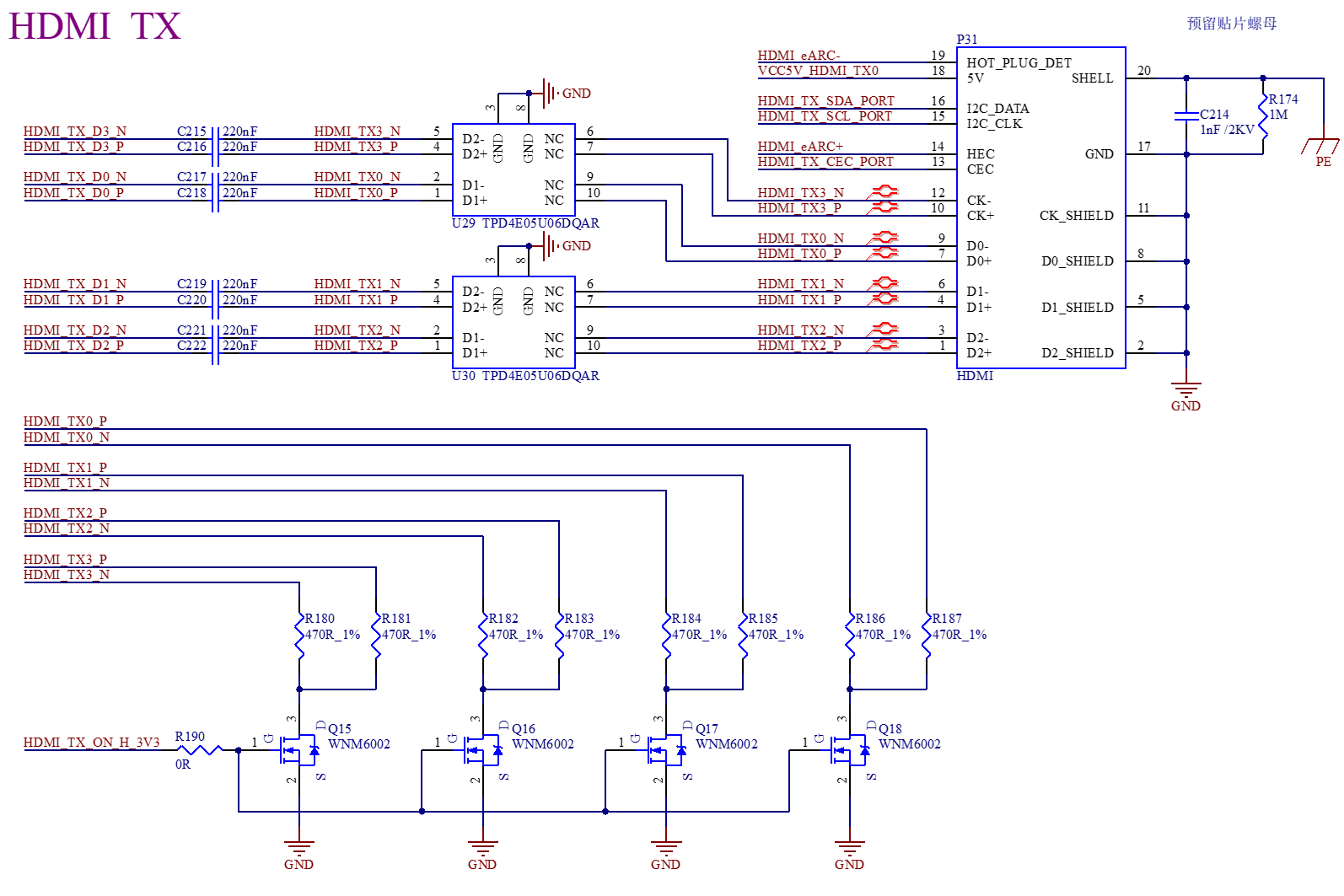

As shown in the figure below, the AC coupling capacitor capacitance is 220nF, which cannot be changed at will; because the lower ESR and ESL can also reduce the impedance change on the line, it is recommended to use the 0201 packaging for the AC coupling capacitor.

When operating in HDMI 2.1 mode, HDMI_TX_ON_H is configured to low level, and transistors Q15, Q16, Q17, Q18 are turned off.

When operating in HDMI 2.0 or lower mode, HDMI_TX_ON_H is configured to high level, and transistors Q15, Q16, Q17, Q18 are turned on. The 499ohm resistors to ground form a DC bias of approximately 3V with the 50ohm pull-up resistors on the sink side.

Please note in design:

If it only needs to support HDMI 2.0 and below mode, Q15, Q16, Q17, and Q18 also can not be omitted; it needs to ensure that the machine is not power-on, the tube can not be on, as HDMI CTS Test ID 7-3 TMDS Voff test item requires that the DUT is not power-on, Voff voltage must be within AVcc +- 10mV, or this test item can not pass.

FRL mode: In the traditional TMDS architecture, a separate channel is used to transmit the Clock. But in the FRL architecture, the Clock is embedded in the Data channel, and the Clock is resolved at the Sink side through the Clock Recovery.

FRL rate vs. channel relationship:

Channel Rate	Channel Quantity
3Gbps	3
6Gbps	3
6Gbps	4
8Gbps	4
10Gbps	4
12Gbps	4

ARC/eARC is supported by routing the HDMI_TX_SBD_P/ HDMI_TX_SBD_N signals to the internal RK3572 for audio data extraction.

HDMI_TX_HPD is the HDMI TX controller’s Hot Plug Detect signal, multiplexed onto a standard GPIO. Its logic level corresponds to the voltage of its assigned power domain. If the power supply voltage of this domain is changed, the pull-up resistor voltage on the external circuit must be adjusted accordingly.

HDMI_TX_CEC is the HDMI controller’s Consumer Electronics Control function, multiplexed onto a standard GPIO. Its logic level corresponds to the voltage of its assigned power domain. If the power supply voltage of this domain is changed, the pull-up resistor voltage on the external circuit must be adjusted accordingly.

The CEC protocol specifies a 3.3V level. However, the protocol requires that the leakage should not exceed 1.8uA when adding 3.3V to the CEC pin through a 27K resistor.

RK3572 IO Domain Leakage will occur if there is a voltage at IO in the power-down state. For example, the RK3572 is a power failure, and its HDMI cable is in connection to the Sink side (TV or monitor); meanwhile, the CEC at the Sink side has power and leaks through the HDMI cable to the RK3572 IO, which will cause the CEC to leak more than 1.8uA, so an external isolation circuit is necessary. We can not modify the R189 resistance at will, and we need to use 27Kohm, Q19 default, and selection 2SK3018. If needing to change other models, the junction capacitor must be the equivalent, if not, it will not only affect the work but will also affect the certification through.

HDMI_TX_SCL and HDMI_TX_SDA are the I2C/DDC buses of the HDMI transmitter (TX) controller. Their functions are multiplexed onto standard GPIO pins. The voltage levels for these signals depend on the power domain’s supply voltage. If the supply voltage of the power domain changes, the power supply for the pull-up resistors in the peripheral circuitry must also be adjusted accordingly.

Although the DDC_SCL/DDC_SDA protocol specifies a 5V level, the RK3572 IO does not support a 5V level, so the level conversion circuit need to be added and can not be deleted. The default is to use MOS tube level conversion, and the MOS type is 2SK3018; If the model needs to be changed, the junction capacitance must be equivalent, because the junction capacitance is too large, not only affecting the work and also affect the certification leading to failing certification.

It is recommended to refer to the default value for the pull-up resistance and not to modify it arbitrarily.

The D6 diode cannot be removed and is used to prevent leakage from the Sink side to VCC_5V0.

1K in series between MOS gate for SDA signal level conversion and power supply; A 100pF is connected in parallel between the MOS gate and source to improve the timing and can not be removed.

HDMI holder Pin18 voltage needs to be kept between 4.8-5.3V, 1uF decoupling capacitor needs to be placed on the pin, which must not be deleted, and the layout is placed close to the HDMI holder pin.

To strengthen the anti-static capability, ESD devices must be reserved on the signal. ESD parasitic capacitance of HDMI2.1 signal must not exceed 0.2pF.

ESD parasitic capacitance for other signals is recommended to use no more than 1pF.

Please note in design:

Control MOS tube Coss can not be too large, otherwise it will affect the signal quality, it is recommended to follow the reference chart model or the corresponding Coss value;
Routing impedance control differential 100ohm ± 10%;
Inter-Pair Skew maximum ＜3mil;
Differential inter-pair equivalence requirement <200mil;
Differential inter-pairccccccc space is recommended to be more than or equal to 7 times the HDMI line width;
HDMI and other signal space is recommended to be more than or equal to 7 times the HDMI line width;
It is recommended not to add an over-hole;
I/O capacitance to ground does not exceed 0.2pF.

3.5.18 WIFI/BT Module Circuit

The OK3572-C board comes with an on-board AzureWave AW-CM358SM WIFI & BT module, supporting Wi-Fi 2.4G/5G and Bluetooth 5.0. The Wi-Fi/BT antenna is connected via an SMA interface, and the module interfaces with the main controller through SDIO, PDM, and UART.

Note: In low-power application scenarios, if you need to maintain the Wi-Fi module’s network connection during the process of putting the RK3572 into sleep mode and then waking it up (without requiring the Wi-Fi module to reconnect), it is necessary to power the Wi-Fi module’s 3.3V and 1.8V supplies from a dedicated 12V input power source. You can refer to this specific design in the OK3572-C.

The schematic is as follows:

Note:

The power supply to the WIFI card must be controlled; refer to the carrier board circuit for implementation;
SDIO impedance requirements: Single‑ended impedance: 50 Ω;
Signal length matching tolerance: ±50 mil.

4. Hardware Design Guide

I2C Requirements

Multiple slave devices can be connected to a single I2C bus. Ensure there are no address conflicts;
The I2C bus must be equipped with pull-up resistors, but avoid using multiple resistors for pull-up;
Ensure level matching between the I2C on the core board and the I2C of the slave devices.

USB Design

To meet USB eye diagram requirements, the PCB trace length for USB 3.0 TX/RX should not exceed 6 inches;
Unused signal pins on the core board can be left floating, but all GND connections must be properly established.

Power-on Sequence

When designing the carrier board, it is strongly recommended to reference the development board design by using the CARRIER_BOARD_EN signal output from the core board as the enable for the carrier board’s power-on sequence. Strictly control the power-on timing; failure to do so may result in the following issues: · Excessive inrush current during power-on. · Device failure to boot. · In the worst-case scenario, irreversible damage to the processor.

5. Connector Dimension

The SoM connector specifications are as follows:

A = 21.52 mm, B = 19.6 mm, C = 3.2 mm, Contacts = 100.

The corresponding carrier board connector specifications are as follows:

A = 22.6 mm, B = 19.6 mm, C = 3.2 mm, D = 1.45 mm, Contacts = 100.

6. OK3572-C Development Board Power Consumption Table

Table 1 Power Consumption under Linux

No.	Item	SoM Power (W)	Development Board Power (including SoM) (W)
1	No-load startup peak power	3.84	5.76
2	No-load standby power	1.32	3
3	CPU+GPU+Memory+eMMC pressure test	4.8	6.36
4	7-inch LCD screen + 4G + U disk + video decoding	2.4	9.84
5	7-inch LCD screen + 4G + U disk + video encoding	2.28	9.6
6	Pwron Key （Long press)	0.0048	0.0048
7	Pwron Key （Short press)	0.6	2.16

Note：

Test conditions: The SoM configuration is 8GB memory+64GB eMMC, the 4G module is Quectel EM05-CN, and the screen is an Forlinx optional product. SoM power supply: 12V; and the carrier board is 12V;
Peak Power: The peak current during the startup process multiplied by the supply voltage;
Standby Power: The current value while the device remains on the startup interface after booting, multiplied by the supply voltage;
Power consumption is for reference only
