OK3568 4.19.206 Buildroot PCIe to SATA Function Modification Method

Document classification: □ Top secret □ Secret □ Internal information ■ Open

Copyright

The copyright of this manual belongs to Baoding Folinx Embedded Technology Co., Ltd. Without the written permission of our company, no organizations or individuals have the right to copy, distribute, or reproduce any part of this manual in any form, and violators will be held legally responsible.

Forlinx adheres to copyrights of all graphics and texts used in all publications in original or license-free forms.

The drivers and utilities used for the components are subject to the copyrights of the respective manufacturers. The license conditions of the respective manufacturer are to be adhered to. Related license expenses for the operating system and applications should be calculated/declared separately by the related party or its representatives.

Revision History

Date	Version	Revision History
04/08/2022	V1.0	Initial Version

Method to Modify PCIe to SATA Function

Hardware Requirements

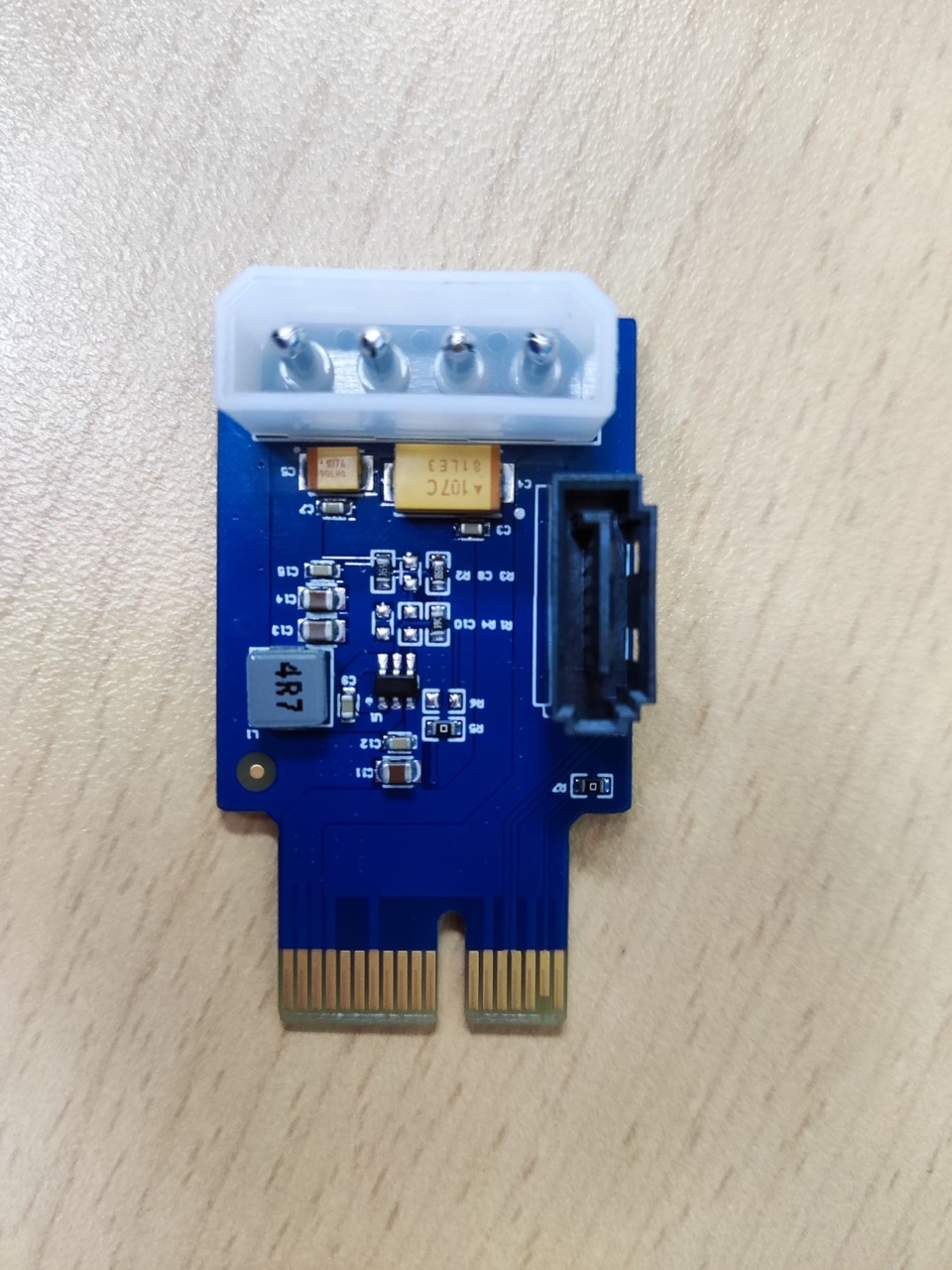

FIT-PCIE-SATA V1.0 adapter board (converts PCIe 2.0 interface to dual SATA 2.0 ports)

Software Configuration

Modify Device Tree

OK3568-linux-source/kernel/arch/arm64/boot/dts/rockchip/OK3568-C-common.dtsi

Note: Red text indicates fields to be modified or manually added

Turn off pcie 2.0 function and add SATA function description

&pcie2x1 {

reset-gpios = <&gpio0 RK_PB6 GPIO_ACTIVE_HIGH>;

vpcie3v3-supply = <&vcc3v3_sys>;

status = "<font style="color:#FF0000;">disabled</font>";

};

&sata2 {

status = “okay”;

assigned-clock-rates = <24000000>;

};

Modify the default configuration file**

/OK3568-linux-source/kernel/arch/arm64/configs/OK3568-C-linux_defconfig

Add the followings:

CONFIG_ATA=y

CONFIG_SATA_AHCI=y

CONFIG_SATA_AHCI_PLATFORM=y

CONFIG_PHY_ROCKCHIP_NANENG_COMBO_PHY=y

Execute the./build. sh kernel in the/OK3568-linux-source directory.

Separately flash /OK3568-linux-source/kernel/boot.img

Test

Write data:

Read data:
