Rapid Deployment of CODESYS Runtime

Preparation

PC-win10 system

RK3568-debian system, the kernel has been patched in real time to enable the SSH service.

Download and install on PC: CODESYS Development System V3.5.17.0

[https://store.codesys.com/en/codesys.html#product.attributes.wrapper](https://store.codesys.com/en/codesys.html#product.attributes.wrapper)

Download and install on PC: CODESYS Control for Linux ARM64 SL 4.1.0.0.package

[https://store.codesys.com/en/codesys-control-for-linux-arm-sl-1.html](https://store.codesys.com/en/codesys-control-for-linux-arm-sl-1.html)

CODESYS Development System -> tools -> Package manager to install

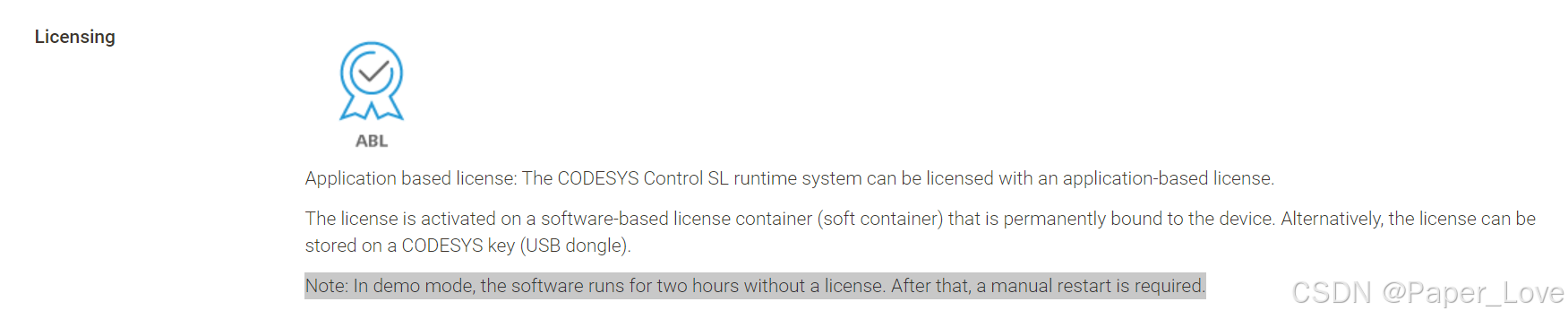

Note: codesys runtime can only run for 2 hours without a license.

If an error is reported during installation:

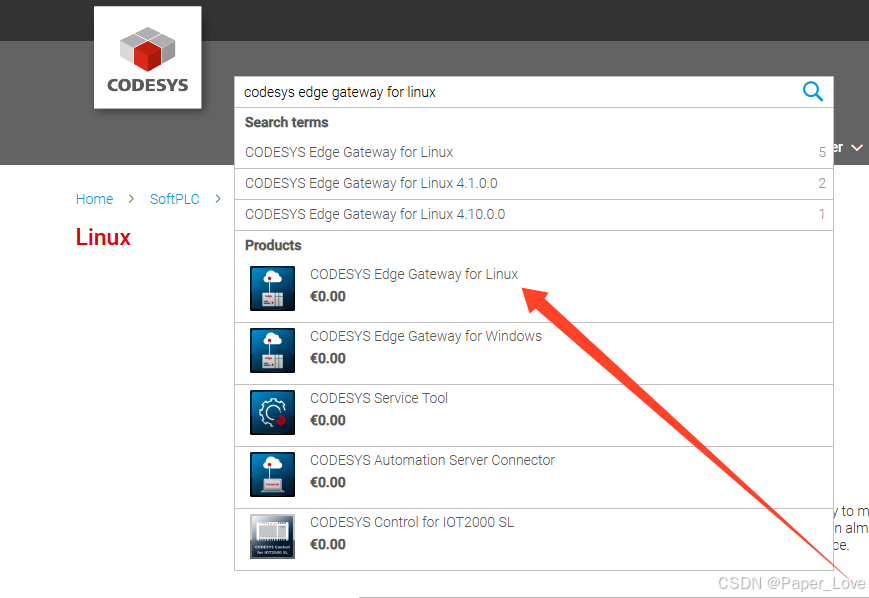

Search the relevant package in the search bar to install it.

After installing the CODE SYS Control for Linux ARM64 SL 4.1.0.0.package.

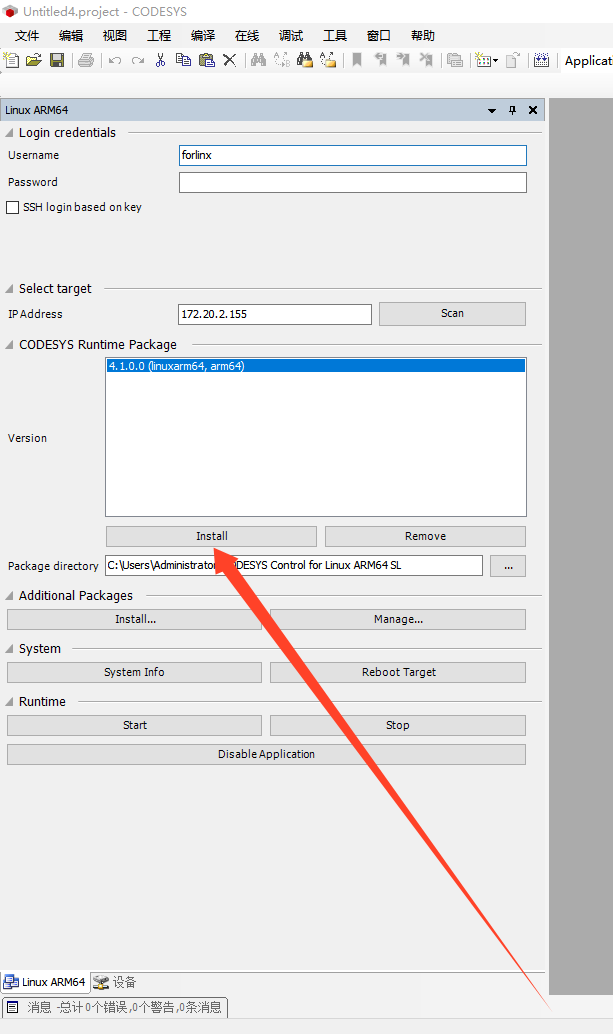

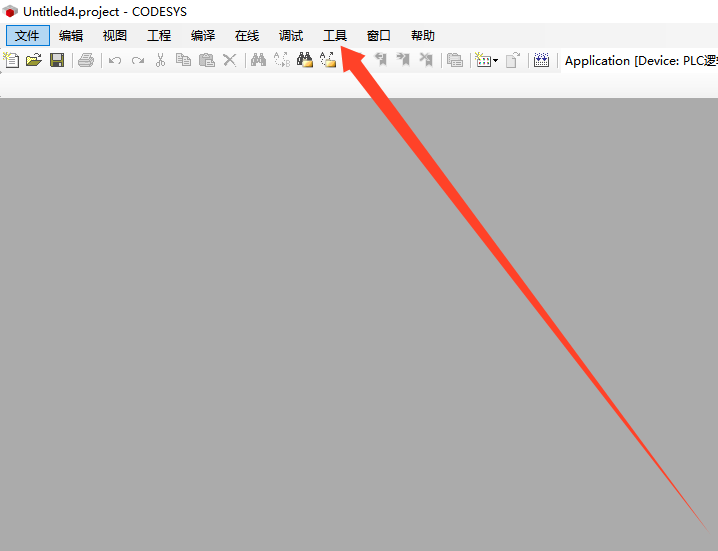

CODESYS Development System-> Tools-> Update Linux ARM64 for RK3568 configuration The network cable connects the PC and RK3568 to ensure that they are in the same network segment and can be pinged. Fill in the SSH account, password and IP address, and click Install
