OK3568J-UP4_User’s Hardware Manual_V1.0

Document classification: □ Top secret □ Secret □ Internal information ■ Open

Copyright

The copyright of this manual belongs to Baoding Folinx Embedded Technology Co., Ltd. Without the written permission of our company, no organizations or individuals have the right to copy, distribute, or reproduce any part of this manual in any form, and violators will be held legally responsible.

Forlinx adheres to copyrights of all graphics and texts used in all publications in original or license-free forms.
The drivers and utilities used for the components are subject to the copyrights of the respective manufacturers. The license conditions of the respective manufacturer are to be adhered to. Related license expenses for the operating system and applications should be calculated/declared separately by the related party or its representatives.

Revision History

Date	Version	SoM Version	Carrier Board Version	Revision History
19/09/2025	V1.0	V1.0	V1.3 and above	Initial Version

Overview

This manual aims to help you quickly get familiar with the product, understand interface functions and configurations. It covers the interface functions and introductions of the development board, product power consumption, and methods for troubleshooting issues during use. Some commands are annotated in the description for user convenience, with a focus on practicality. For information on pin function multiplexing and hardware design guidelines, please refer to Forlinx “OK3568x-UP4 Pin Multiplexing Comparison Table” and “OK3568x-UP4 Design Guide”.

There are four chapters:

Chapter 1. provides an overall overview of the CPU, briefly introducing its performance and application industries;
Chapter 2. offers a general introduction to the SoM, including descriptions and functions of connector pins;
Chapter 3. introduces the development board in multiple chapters, covering hardware principles and simple design ideas;
Chapter 4. describes the product’s power consumption and other considerations. Additionally, the manual includes explanations of some symbols and formats.

Format	Meaning
Note	Note or particularly important information must be read carefully.
📚	Relevant explanations regarding the testing section.
🛤️	Related paths.

1. Rockchip RK3568 Description

The RK3568 is a high-performance, low-power quad-core application processor chip, specifically designed for personal mobile internet devices and AIoT equipment.

The RK3568 integrates several powerful embedded hardware engines, delivering excellent performance for high-end applications. It supports near-universal format decoding of H.264 4k@60fps, H.265 4k@60fps decoding, H.264/H.265 1080p@60fps encoding, and high-quality JPEG encoding/decoding.

The integrated 3D GPU is fully compliant with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.0. A dedicated 2D hardware engine significantly enhances display performance, ensuring a smooth visual experience.

Its built-in NPU (Neural Processing Unit) supports INT8/INT16 mixed-precision operations. With its broad compatibility, neural network models based on mainstream frameworks such as TensorFlow, MXNet, PyTorch, and Caffe can be easily converted for deployment.

Furthermore, the RK3568 features a high-performance memory interface supporting DDR3/DDR3L/DDR4/LPDDR3/LPDDR4/LPDDR4X, providing ample memory bandwidth to meet the demands of high-performance computing scenarios.

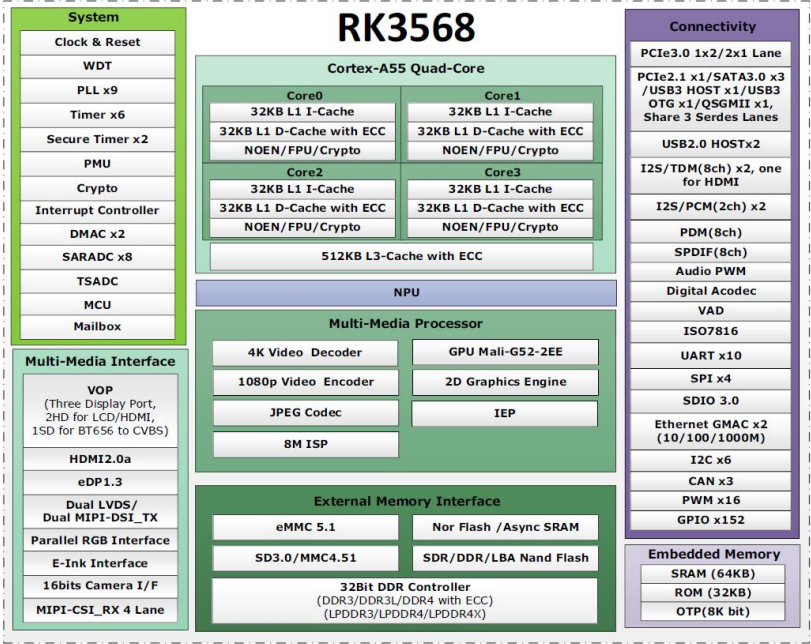

RK3568 Block Diagram

2. FET3568J-UP4 SoM Description

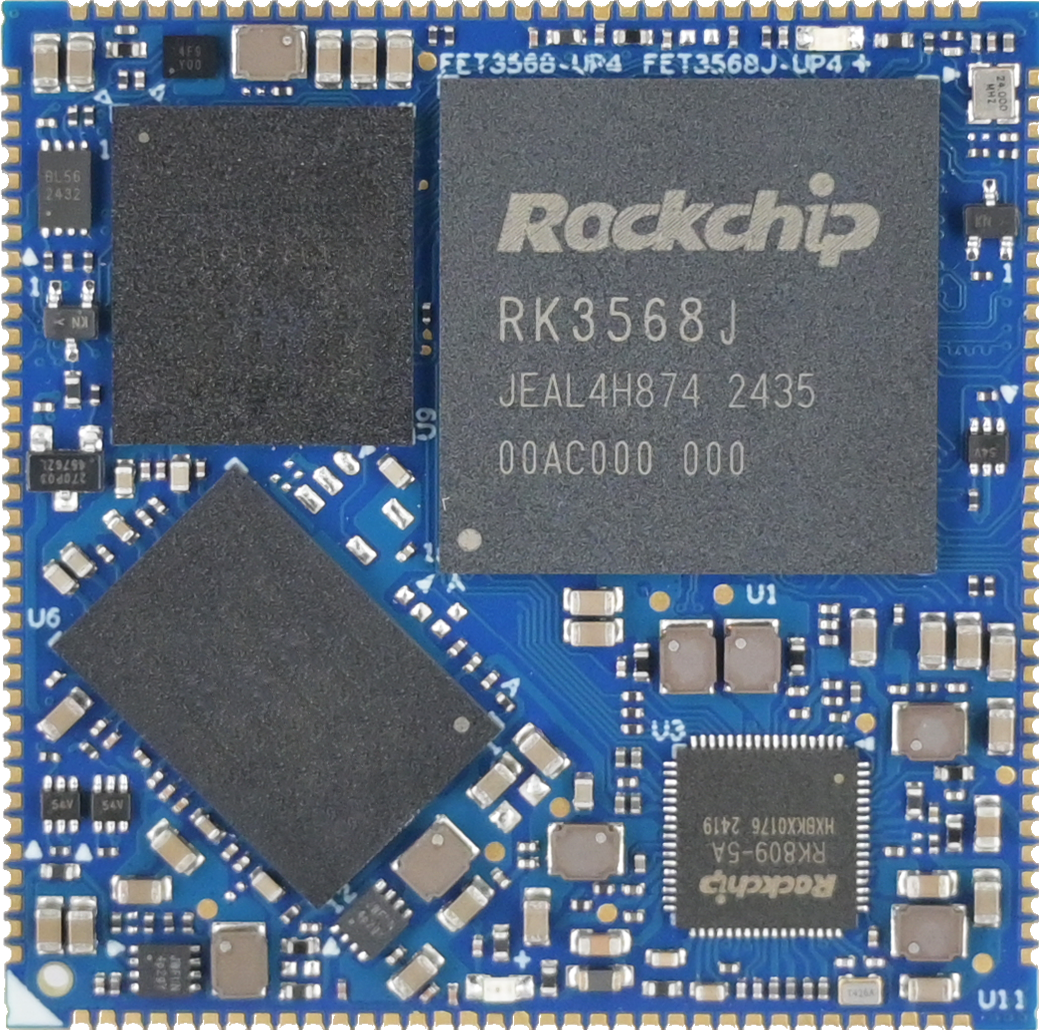

2.1 FET3568x-UP4 SoM Appearance

Front

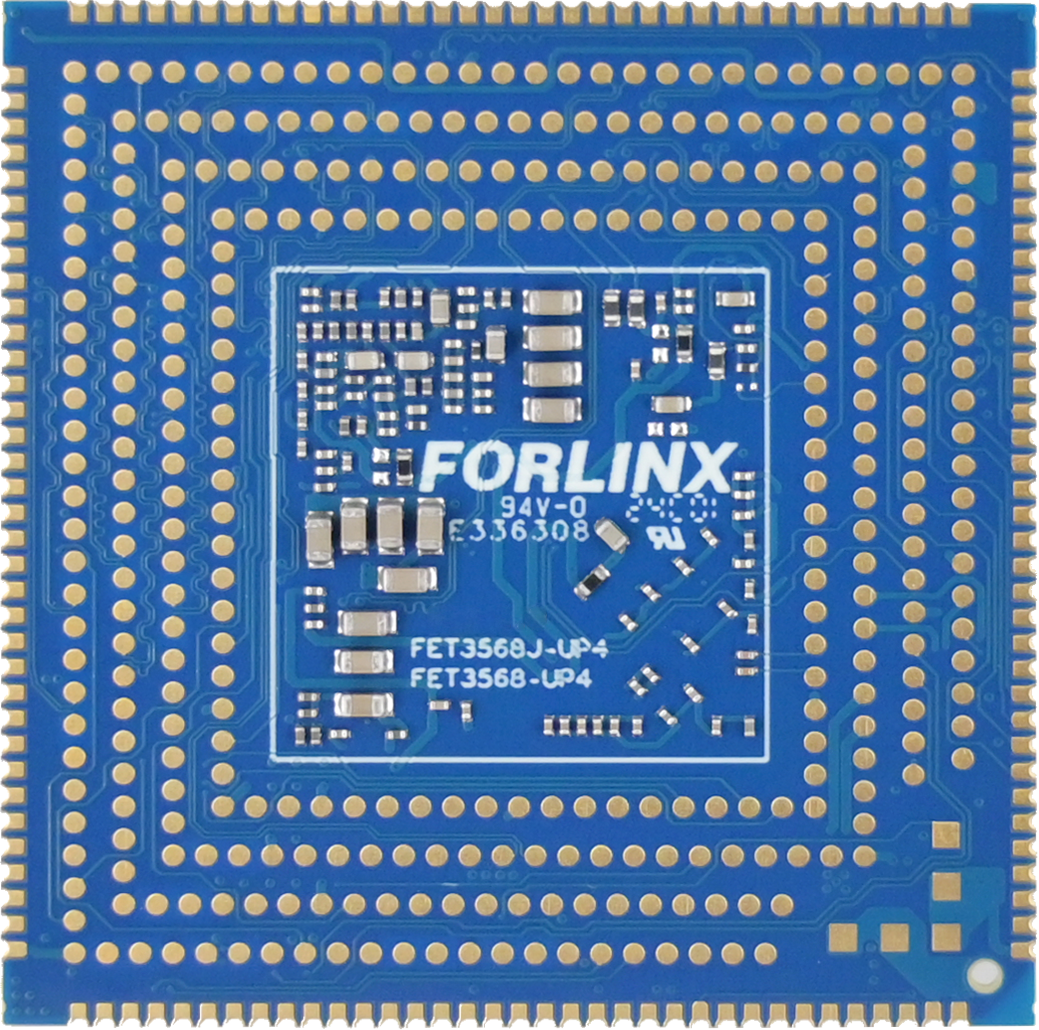

Back

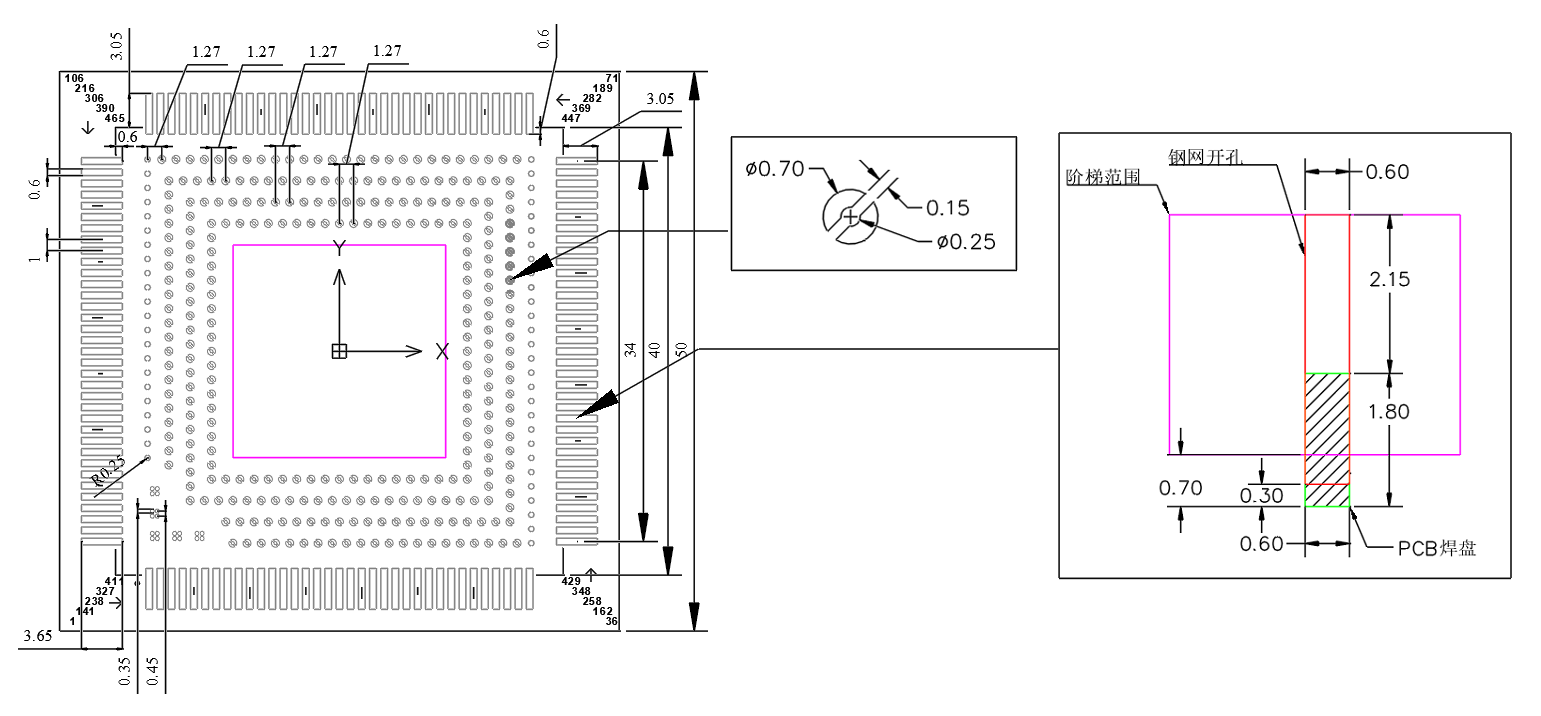

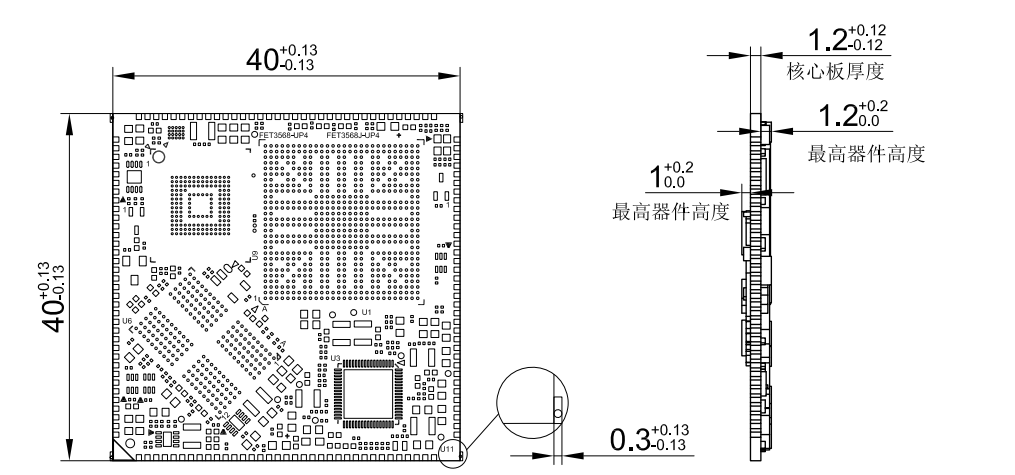

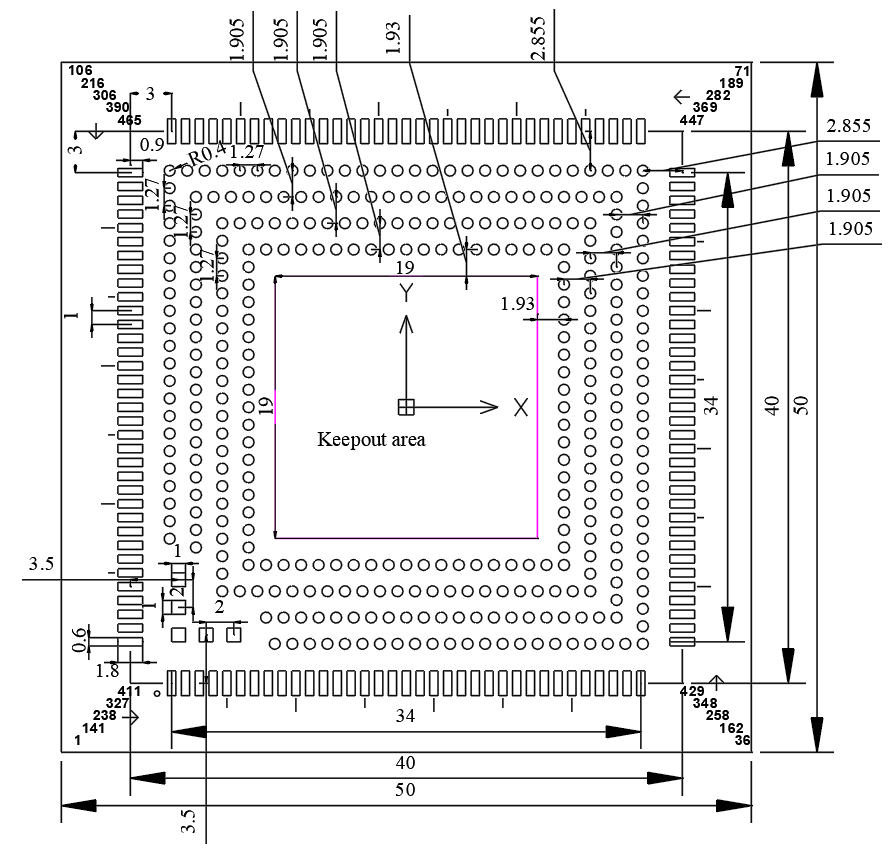

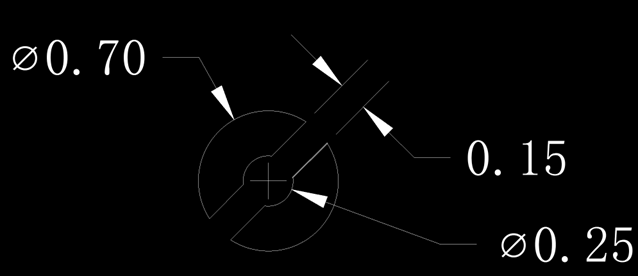

2.2 FET3568x SoM Dimension Diagram

Dimensions: 40mm × 40mm, dimensional tolerance ±0.13mm. For more dimensional details, please refer to the DXF file.

Plate making process: 1.6mm thickness, 12-layer immersion gold PCB.

2.3 Performance Parameter

2.3.1 System Frequency

Name	Specification				Description
	Minimum	Typical	Maximum	Unit
System Frequency	—	—	2.0	GHz	—
System RTC	—	32.768	—	KHz	—

2.3.2 Power Parameter

Parameter	Pin No.	Specification				Description
		Minimum	Typical	Maximum	Unit
Main Power Supply Voltage	VSYS	4.75	5	5.25	V	—
No-load current	—		371		mA	Please refer to the power consumption table in the appendix
Overload current	—		1004		mA	Please refer to the power consumption table in the appendix

2.3.3 Working Environment

Parameter		Specification				Description
		Minimum	Typical	Maximum	Unit
Operating Temperature	Working Environment	0	25	+80	℃	Commercial level
	Storage Environment	-40	25	+125	℃
	Working environment	-40	25	+85	℃	Industrial Level
	Storage Environment	-40	25	+125	℃
Humidity	Working Environment	10	—	90	％RH	No Condensation
	Storage Environment	5	—	95	％RH

2.3.4 ESD Features

Parameter	Specification		Unit	Application Scope
	Minimum	Maximum
ESD HBM(ESDA/JEDEC JS-001-2017)	-500	500	V	Signals exported from SoM
ESD CDM(ESDA/JEDEC JS-002-2018)	-250	250	V	Signals exported from SoM

Note:

The above data is provided by Rockchip;
As all the signals exported from SoM are electrostatic sensitive signals, the interfaces should be well protected from static electricity in the carrier board design and the SoM transportation, assembling, and use.

2.4 Interface Resources

2.4.1 FET3568x-UP4 SoM Interfaces

Function	Quantity	Parameter
MIPI-DSI	1	1 x 4 - lane MIPI display serial interfaces, supporting MIPI V1.2 version. The maximum resolution of a single channel is 1920×1080@60Hz, and the maximum resolution of dual channels is 2560×1600@60Hz.
HDMI	1	Supports HDMI 2.0 with resolutions up to 1080p @ 120Hz or 4096 × 2304 @ 60Hz
LVDS	1	Single lane（4 lanes）supports 1280×800@60Hz
eDP	1	1 x 4-lane eDP display interface, supports eDP V1.3, and the maximum resolution is 2560 * 1600 @ 60Hz
RGB	1	Supports RGB 888, maximum resolution 1280 * 800
Camera	2	Supports 2 x 2Lanes MIPI-CSI
Audio		Built - in codec, which directly outputs audio analog signals with a sampling rate ranging from 48KHz to 192KHz: Mono speaker, class - D, 1.3W;Stereo headphone output with a 32Ohm load;One differential MIC input.
SDIO	2	SDIO 3.0 with up to 104MB/S data throughput
Ethernet	2	2 x GMAC, providing RGMII/RMII interface lead-out
USB 2.0	2	USB 2.0 Host, independent port, not multiplexed with USB 3.0
USB 3.0	2	1 x USB 3.0 Host port, which can be used independently as a USB 2.0 Host; 1 x USB 3.0 OTG port, which can be used independently as a USB 2.0 OTG.
PCIe2.1	1	PCIe 2.1×1,up to 5.0Gbps, RC mode
PCIe3.0	2	PCIe 3.0, 1x2Lanes, up to 8.0 Gbps per Lane; 1Lane supports Root Complex (RC) mode only; 2Lanes supports Root Complex (RC) and End Point (EP) model.
UART	3	Up to 4Mbps
CAN	2	Supports CAN2.0 B up to 1Mbps
I2C	3	Supports 7bits and 10bits address modes up to 1 Mbit/s
PWM	4	32bits timer/counter

2.4.2 CPU Interfaces

Function	Quantity	Parameter
MIPI-DSI	2	2 x 4 - lane MIPI display serial interfaces, supporting MIPI V1.2 version. The maximum resolution of a single channel is 1920×1080@60Hz, and the maximum resolution of dual channels is 2560×1600@60Hz.
HDMI	1	Supports HDMI 2.0 with resolutions up to 1080p @ 120Hz or 4096 × 2304 @ 60Hz
LVDS	1	Single lane（4 lanes）supports 1280×800@60Hz
eDP	1	1 x 4-lane eDP display interface, supports eDP V1.3, and the maximum resolution is 2560×1600@60Hz.
RGB	1	Supports RGB 888, maximum resolution 1280 * 800
Camera	3	Supports 1 x 4 Lanes MIPI-CSI, 2 x 2Lanes MIPI-CSI
Audio	≤4	1×8ch I2S/TDM, 2×2ch I2S, 1×8ch PDM
SDIO	≤2	SDIO 3.0 with up to 104MB/S data throughput
Ethernet	≤2	2 x GMAC, providing RGMII/RMII interface lead-out
USB 2.0	2	USB 2.0 Host, independent port, not multiplexed with USB 3.0
USB 3.0	2	1 x USB 3.0 Host port, which can be used independently as a USB 2.0 Host; 1 x USB 3.0 OTG port, which can be used independently as a USB 2.0 OTG.
SATA	≤3	SATA 3.0 up to 6.0 Gb/s with eSATA support
PCIe2.1	≤1	PCIe 2.1×1, up to 5.0Gbps,RC mode
PCIe3.0	≤2	PCIe 3.0, 1×2Lanes or 2×1Lane, up to 8.0 Gbps per Lane; 1Lane supports Root Complex (RC) mode only; 2 Lanes supports Root Complex (RC) and End Point (EP) model.
UART	≤10	Up to 4Mbps
CAN	≤3	Supports CAN2.0 B up to 1Mbps
SPI	≤4	Support master & slave mode, with configurable software
I2C	≤5	Supports 7bits and 10bits address modes up to 1 Mbit/s
PWM	≤16	32bits timer/counter
FSPI	≤1	Supports serial NOR Flash/NAND Flash and Boot

Note: The parameters in the table are the theoretical values of hardware design or CPU.

2.5 FET3568x-UP4 SoM Pin Definitions

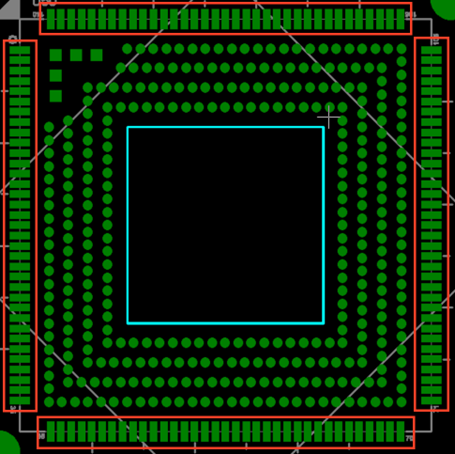

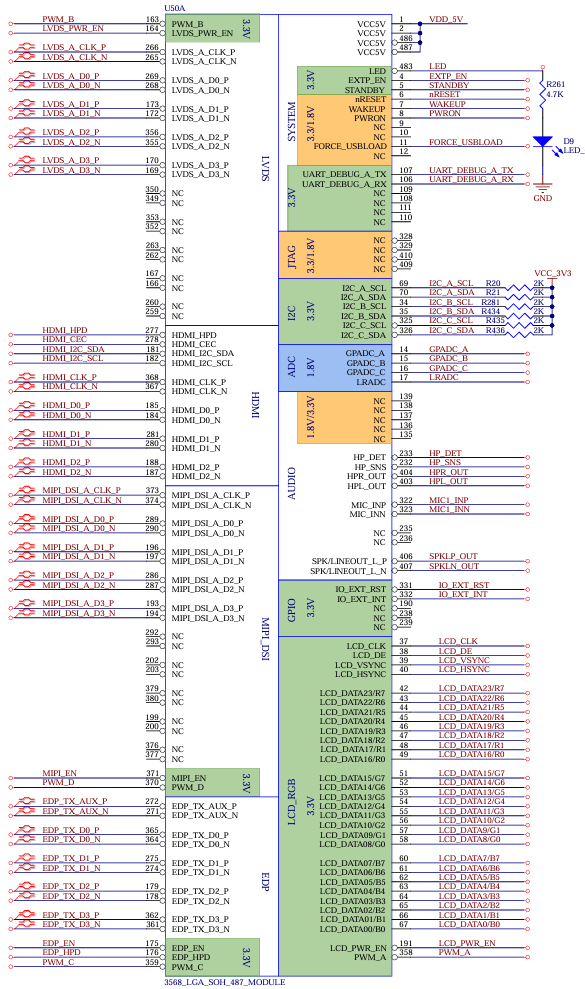

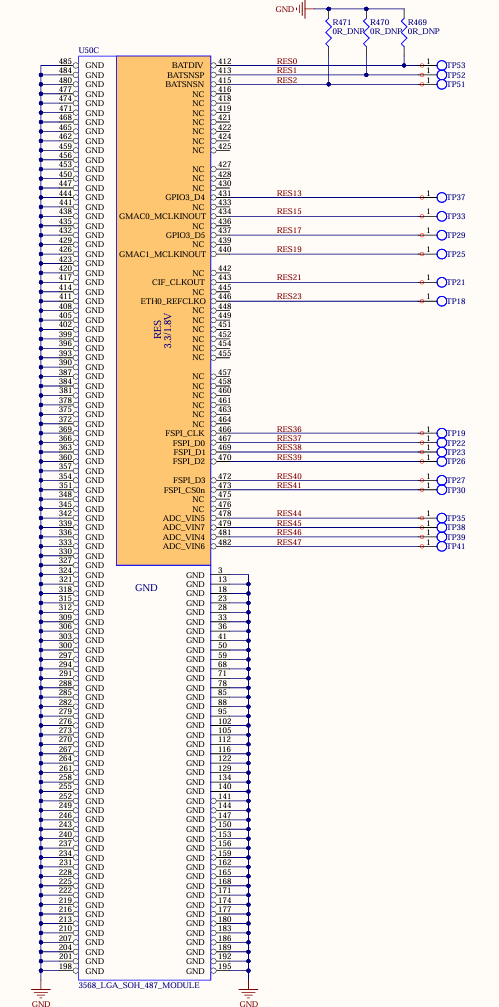

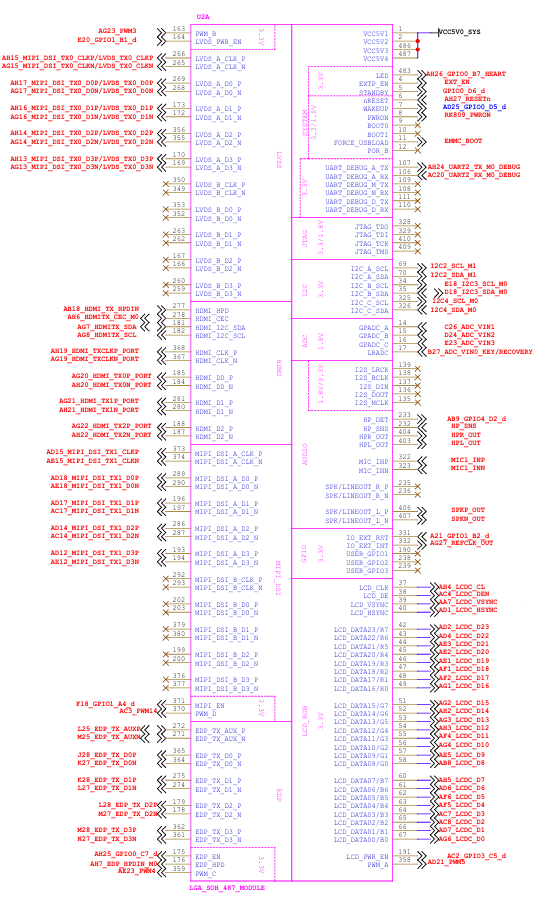

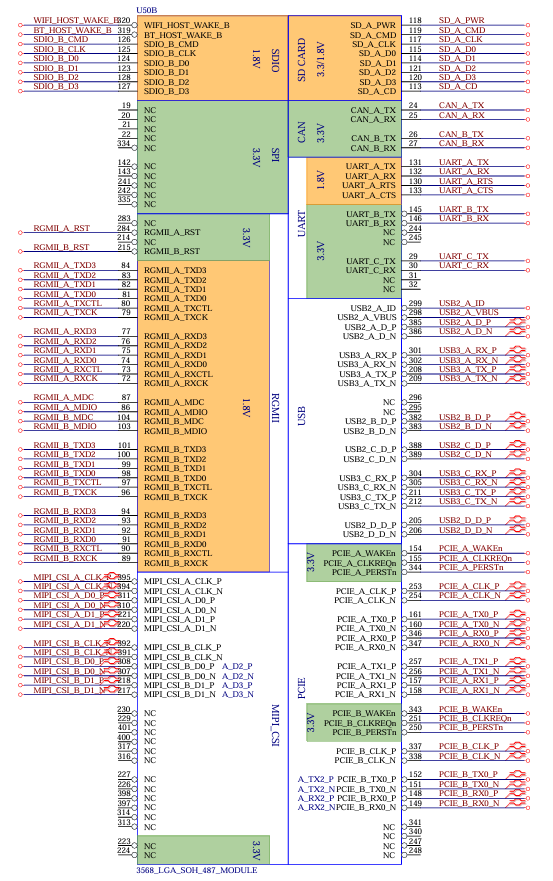

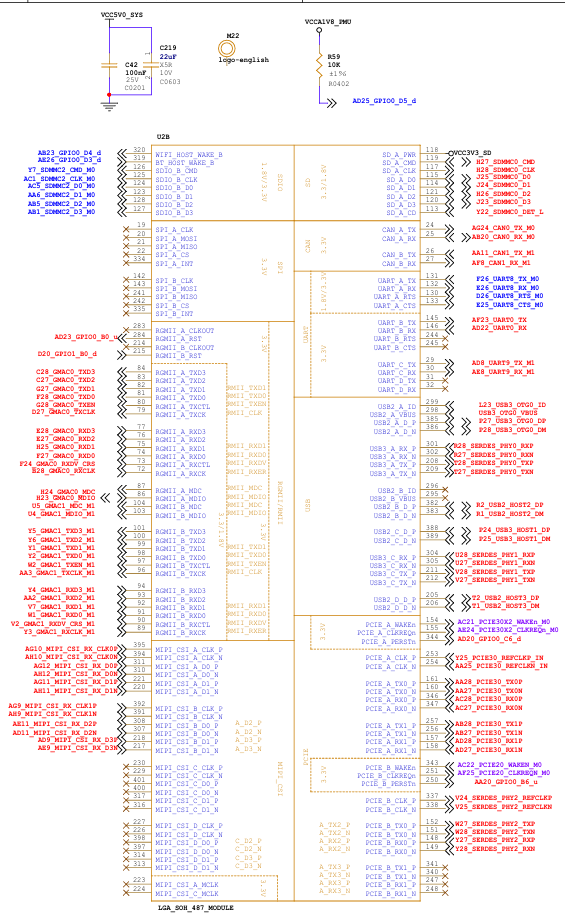

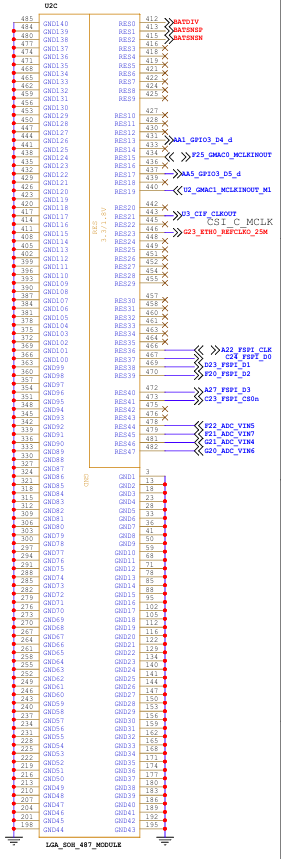

2.5.1 FET3568x-UP4 SoM Pin Schematic

2.5.2 FET3568x-UP4 SoM Pin Function Description

For various functional expansion requirements, please refer to the user document “FET3568-UP4 Pin Multiplexing Table”. However, for more detailed information, it is recommended that you consult the relevant documentation, the chip datasheet, and the reference manual.

2.6 FET3568x-UP4 SoM Pin Definitions

UP4 Standard Interface Functions	FET3568x-UP4 Pinout Functions
EXTP_EN	EXTP_EN
STANDBY	GPIO0_D6_d
nRESET	AH27_RESETn
WAKEUP	AD25_GPIO0_D5_d
PWRON	RK809_PWRON
BOOT0/BOOT1	NC
FORCE_USBLOAD	EMMC_BOOT
POR_B	NC
GPADC_A/B/C	ADC_VIN1/2/3
LRADC	B27_ADC_VIN0_KEY/RECOVERY
SPI_A	NC
SPI_B	NC
CAN_A	CAN0
CAN_B	CAN1
UART_A	UART8
UART_B	UART0
UART_C	UART9
UART_D	NC
I2C_A	I2C2
I2C_B	I2C3
I2C_C	I2C4
RGMII_A	GMAC0
RGMII_B	GMAC1
RMII_A	NC
RMII_B	NC
DEBUG_A	UART2
DEBUG_M	NC
DEBUG_D	NC
SD_A	SDMMC0
SDIO_B	SDMMC2
I2S	NC
Native HP	NC
Native SPKOUT_L	HPL_OUT
Native SPKOUT_R	HPR_OUT
Native MIC	MIC1
PCIE_A	PCIE30
PCIE_B	SERDES_PHY2
LCD	LCDC
MIPI DSI_A	MIPI_DSI1
MIPI DSI_B	NC
LVDS_A	MIPI_DSI_0/LVDS_0
LVDS_B	NC
EDP	EDP
HDMI	HDMI
USB2_A	USB3_OTG0
USB3_A	SERDES_PHY0
USB2_B	USB2_HOST2
USB2_C	USB3_HOST1
USB3_C	SERDES_PHY1
USB2_D	USB2_HOST3
MIPI CSI_A	MIPI_CSI_A
MIPI CSI_B	MIPI_CSI_B
MIPI CSI_C	NC
MIPI CSI_D	NC
JTAG	NC
USER_GPIO1	NC
USER_GPIO2	NC
USER_GPIO3	NC
RES0	BATDIV
RES1	BATSNSP
RES2	BATSNSN
RES3	NC
RES4	NC
RES5	NC
RES6	NC
RES7	NC
RES8	NC
RES9	NC
RES10	NC
RES11	NC
RES12	NC
RES13	AA1_GPIO3_D4_d
RES14	NC
RES15	F25_GMAC0_MCLKINOUT
RES16	NC
RES17	AA5_GPIO3_D5_d
RES18	NC
RES19	U2_GMAC1_MCLKINOUT_M1
RES20	NC
RES21	U3_CIF_CLKOUT
RES22	NC
RES23	G23_ETH0_REFCLKO_25M
RES24	NC
RES25	NC
RES26	NC
RES27	NC
RES28	NC
RES29	NC
RES30	NC
RES31	NC
RES32	NC
RES33	NC
RES34	NC
RES35	NC
RES36	A22_FSPI_CLK
RES37	C24_FSPI_D0
RES38	D23_FSPI_D1
RES39	F20_FSPI_D2
RES40	A27_FSPI_D3
RES41	C23_FSPI_CS0n
RES42	NC
RES43	NC
RES44	F22_ADC_VIN5
RES45	F21_ADC_VIN7
RES46	G21_ADC_VIN4
RES47	G20_ADC_VIN6

It is the UP4 standard definition. If compatible design is required, it is recommended to design according to it.

2.7 SoM Hardware Design Description

Power Pin

Function	Signal Name	I/O	Default Function
Power supply	VCC5V0_SYS	Power Input	Power Supply for SoM: Voltage: 5V Current: The carrier board must provide a minimum continuous current of 2.5A.
	VCC3V3_SD	Power Output	Only used for power supply of carrier board SD card, with maximum output current capacity of 500mA
	GND	Ground	Power ground and signal ground on the SoM. All GND pins must be connected.

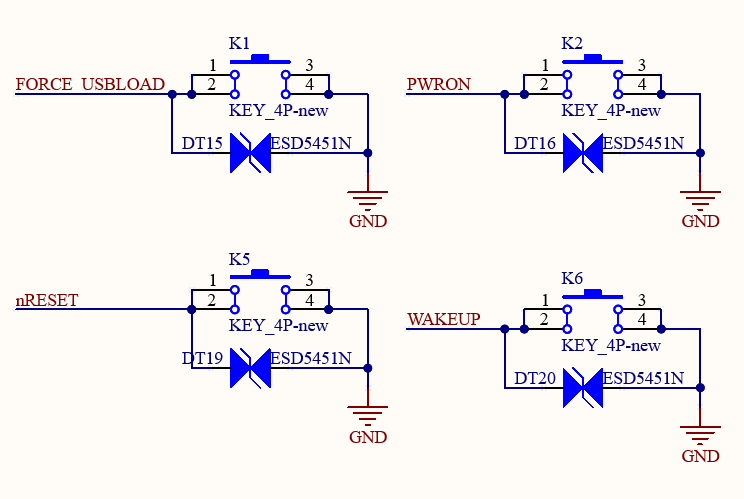

System Control Pin

Function	Signal Name	I/O	Default Function	Pin Number
CPU reset	RESETn	I	SoM power reset, low level effective. Do not add additional capacitive load to this pin, so as not to affect the SoM normal startup.	6
Power enable	PMIC_EXT_EN	O	Enable signal to control the external power supply of the carrier board, output by the SoM, 3.3 V level.	4
On/Off	PMIC_PWRON	I	Low level is valid, long press to turn off, short press to turn on	8
BOOT selection	EMMC_BOOT	I	When the signal is grounded, the startup card enters the Maskrom download mode.	1
Wake up	WAKEUP	I	SoM wake-up button	7

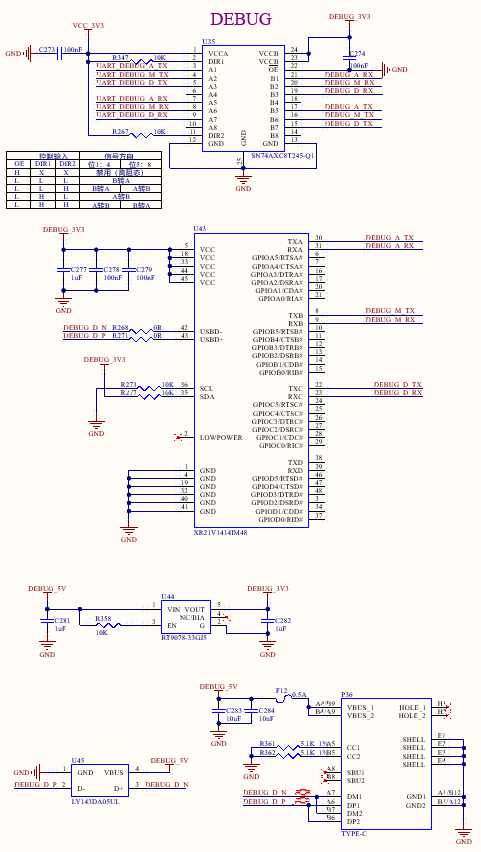

Debug Port	UART2_TX_M0_DEBUG UART2_RX_M0_DEBUG	I/O	Debug Port, please keep the port functions.	106 107

(Including minimum system block diagram)

The FET3568x-UP4 SoM integrates power, reset monitoring, and storage circuits, requiring only minimal external circuitry. A complete minimum system can be powered and run with a single 5V supply.

Refer to “Appendix IV. Minimum System Diagram”. However, in most cases, it is recommended to connect some external devices—such as a debugging serial port and a port for flashing images—in addition to the minimal system. Otherwise, you can not check whether the system has booted. After completing these steps, you can then add the required functions based on the SoM’s default interface definition provided by Forlinx.

For the design of the SoM’s peripheral circuits, please refer to Section 3.5, “OK3568x-UP4 Carrier Board Description”.

3. OK3568x-UP4 Embedded Development Description

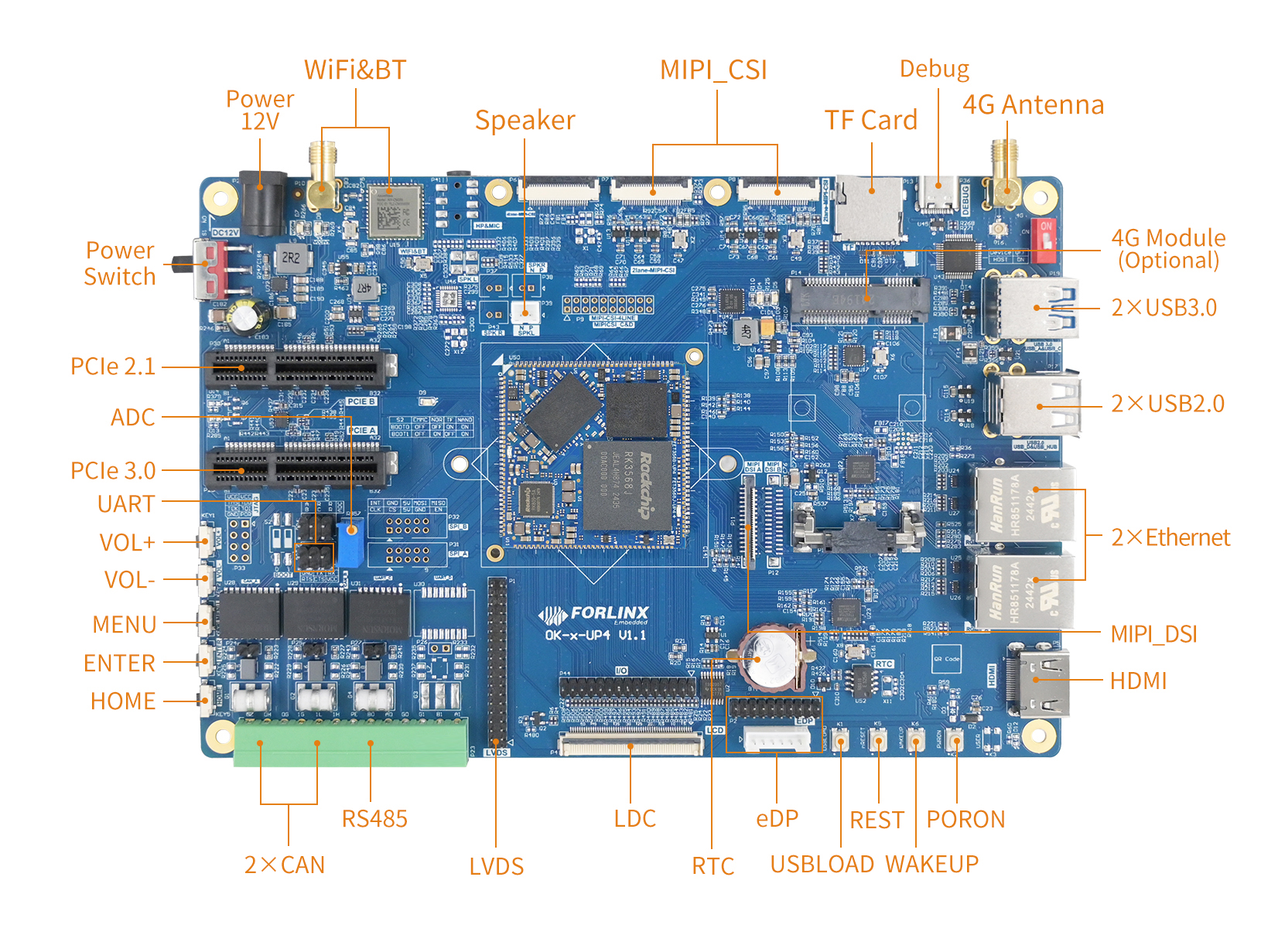

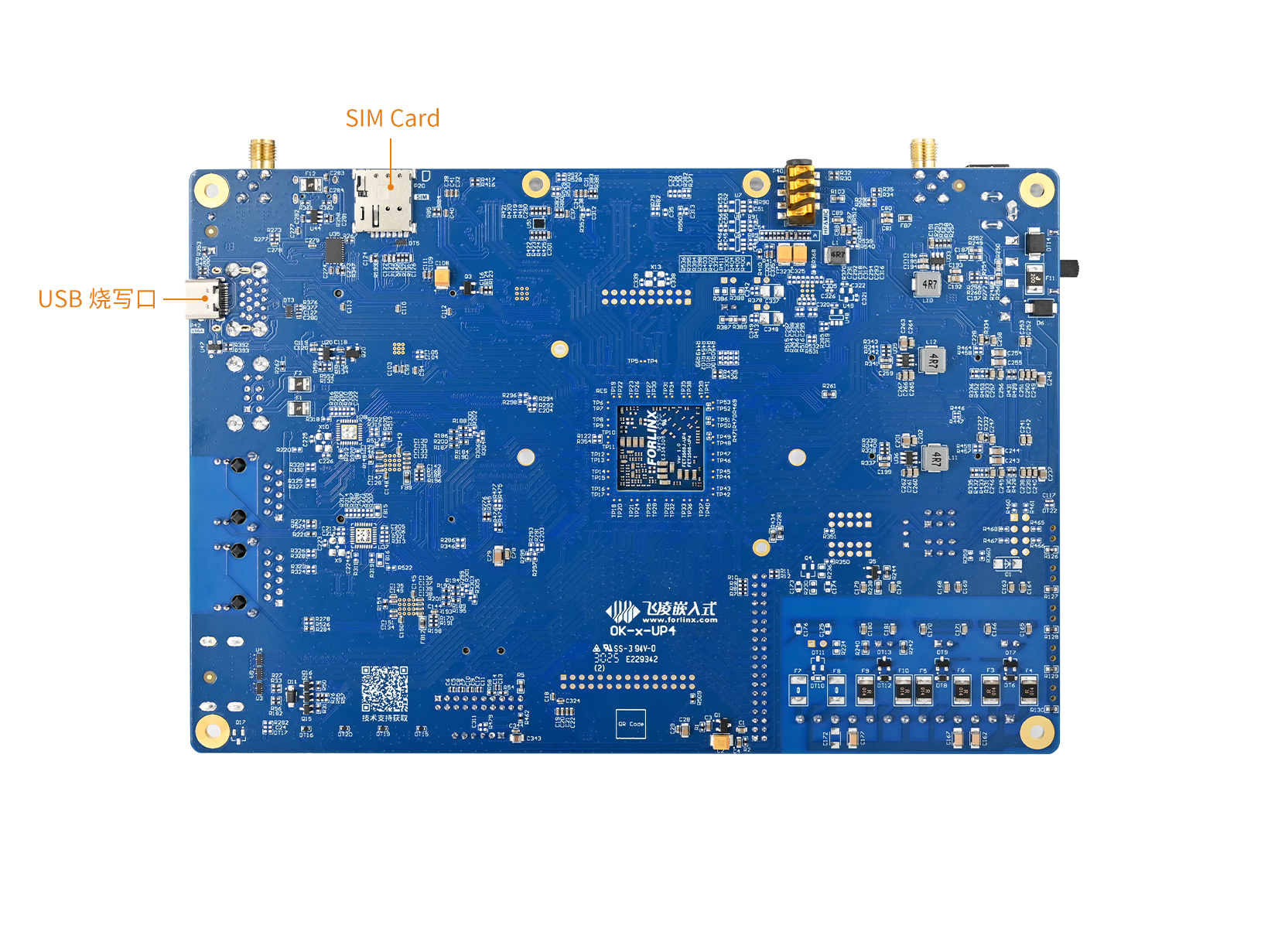

3.1 OK-3568x-UP4 Development Board Interface

Connection method: Stamp hole + LGA. The main interfaces are shown in the figure below:

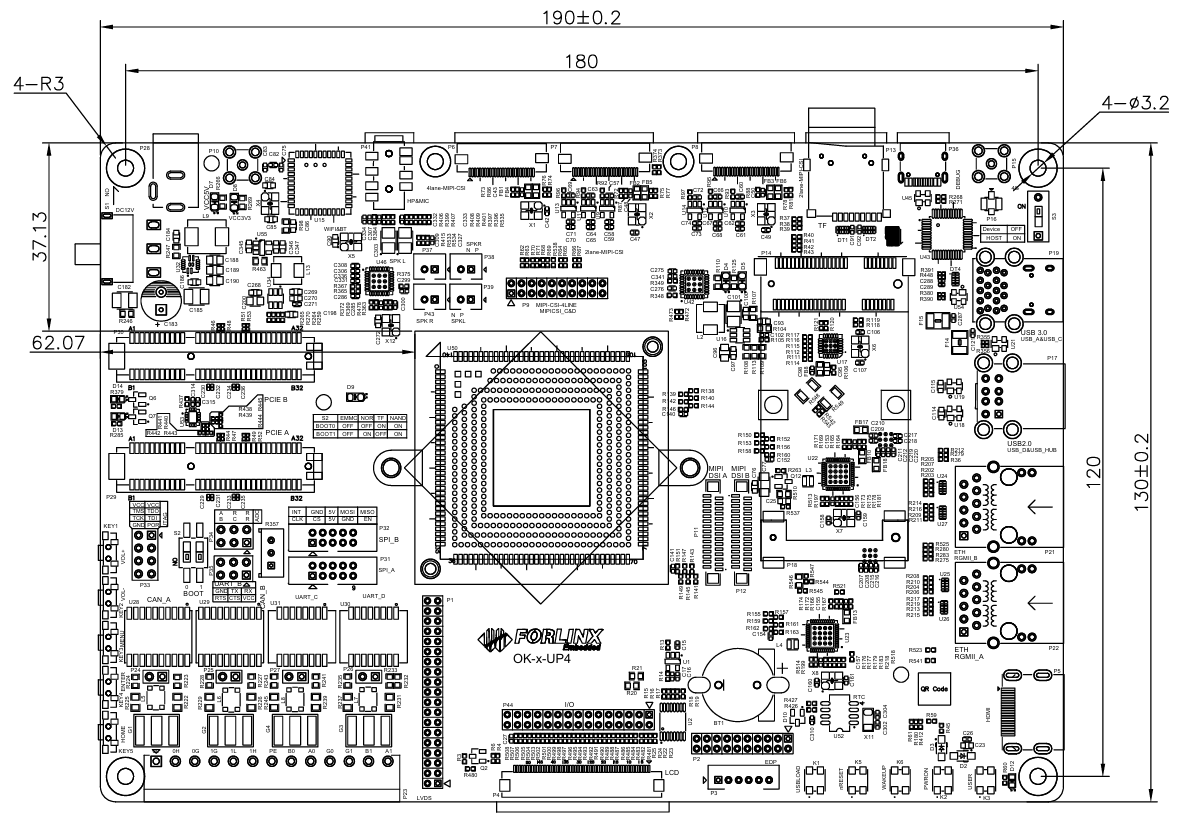

3.2 OK-3568x-UP4 Development Board Dimension Diagram

PCB: 130mm×190mm

Mounting hole dimensions: Pitch: 120mm × 180mm, hole diameter: 3.2mm.

Plate making process: 1.6mm thickness, 4-layer PCB.

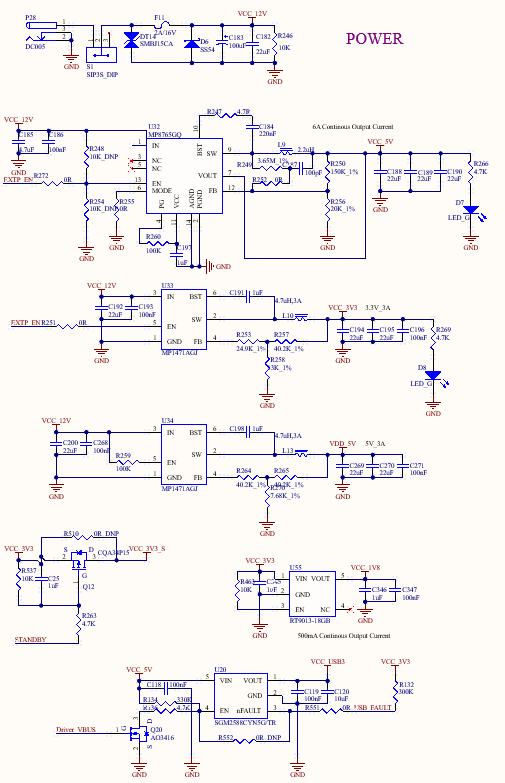

Power Voltage: DC 12V

The OK3568x-UP4 carrier board is equipped with two mounting holes for heat sinks (3.2 mm in diameter). You may choose to install a heat sink according to the on-site environment. Please add a insulating thermal pad between the contact surface of the heat sink and the SoM. Recommended heat sink: 38mm × 38mm × 10mm. See below for details.

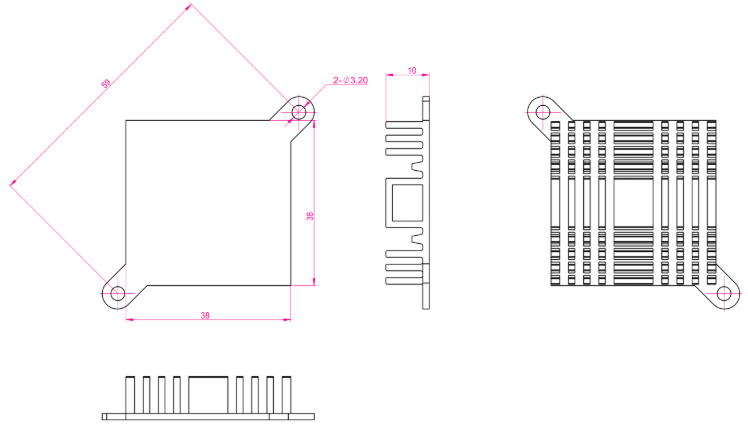

3.3 Naming Rules

A-B-C+DEFGHIJKL:MN-O

Field	Field Description	Value	Description
A	Product Line Identification	OK	Forlinx Embedded development board
-	Separator	-	Confirm whether to add the separator by CPU brand series
B	CPU Name	3568	RK3568
-	Segment Identification	-
C	Connection	UP4	Universal Package general package 4 means 40*40
+	Segment Identification	+	The configuration parameter section follows this identifier.
D	CPU Clock	20	2.0GHZ
E	RAM Capacity (Unit: Byte)	2G	2GB
		4G	4GB
F	Single ROM Type	SE	eMMC
G	Single ROM Capacity： (Unit: Byte)	16G	16GB
		32G	32GB
H	SoM Operating Temperature	C	0 to 70℃ Commercial-grade
		I	-40 to 85℃ Industrial-grade
I	Configuration No.	A~Z	This is the internal identification of the manufacturer and has no impact on the use.
J	SoM PCB Version	10	V1.0
		xx	Vx.x
K	Carrier Board Operating Temperature	C	0 to 70℃ Commercial-grade
		I	- 40 to 85 ℃ Commercial grade
L	Carrier Board PCB Version	13	V1.3
		xx	Vx.x
:	Connector		Connecting M ~ N Field Parameters
M	Chip Type	A~Z	This is the internal identification of the manufacturer and has no impact on the use.
N	Connector Origin	N	No Partition\No Connector
-	Connector	-	Grade Mark Connector
O	Grade Identification	PC	Prototype Sample
		Blank	Mass Production

3.4 Carrier Board Interfaces

Function	Quantity	Parameter

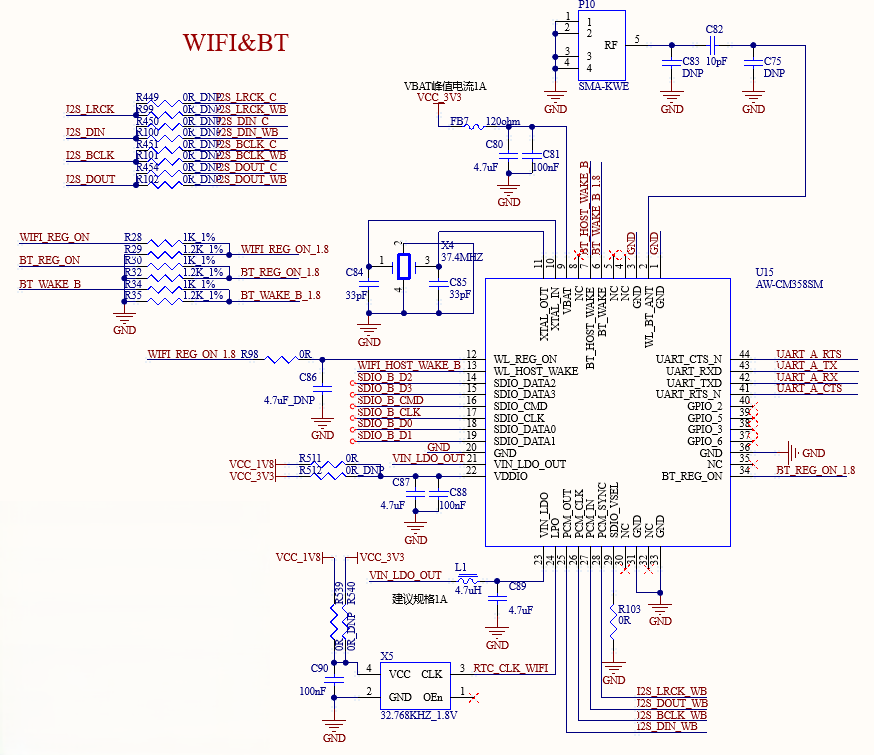

WiFi	1	Single antenna 2.4G&5GHz Wi-Fi Dual-band 1X1 802.11ac +Bluetooth 4.2
Bluetooth	1

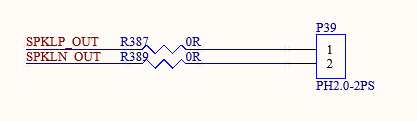

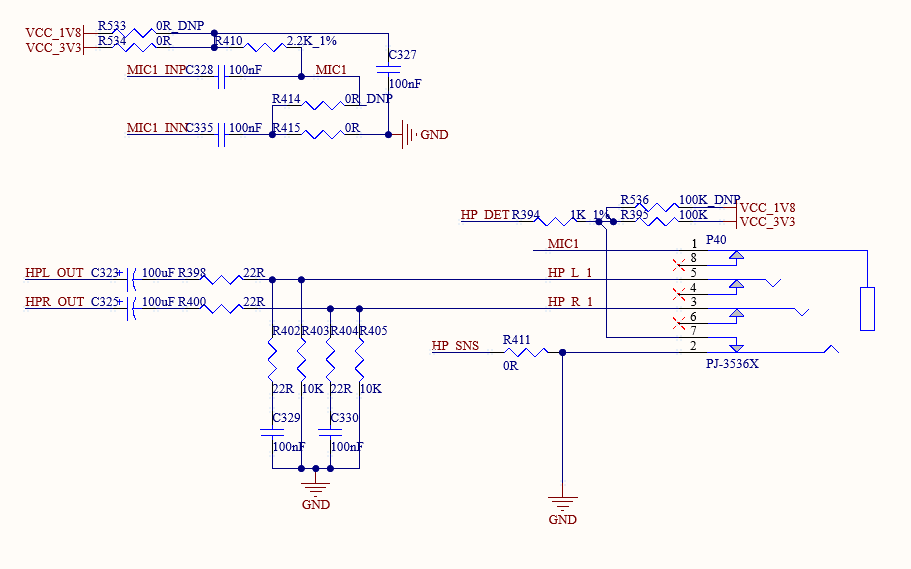

Audio		Dual-channel speaker connector, class-D, 1.3 W; stereo headphone output, 32Ohm load; headphone recording

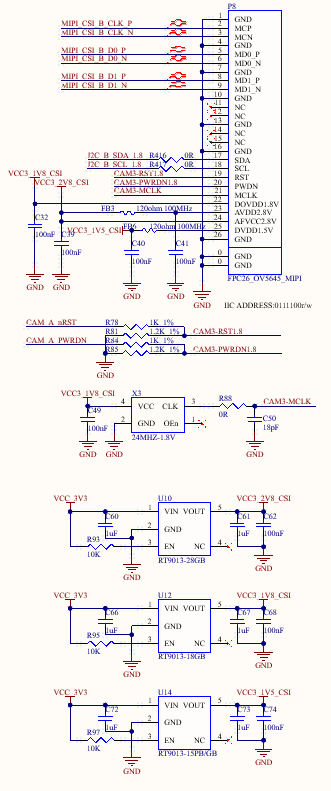

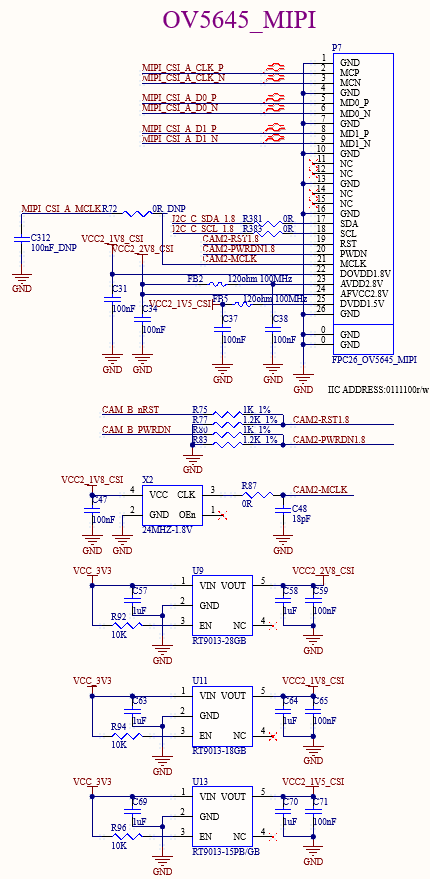

MIPI-CSI	3	Led out from the FPC socket, 4lane+ 2lane+ 2lane

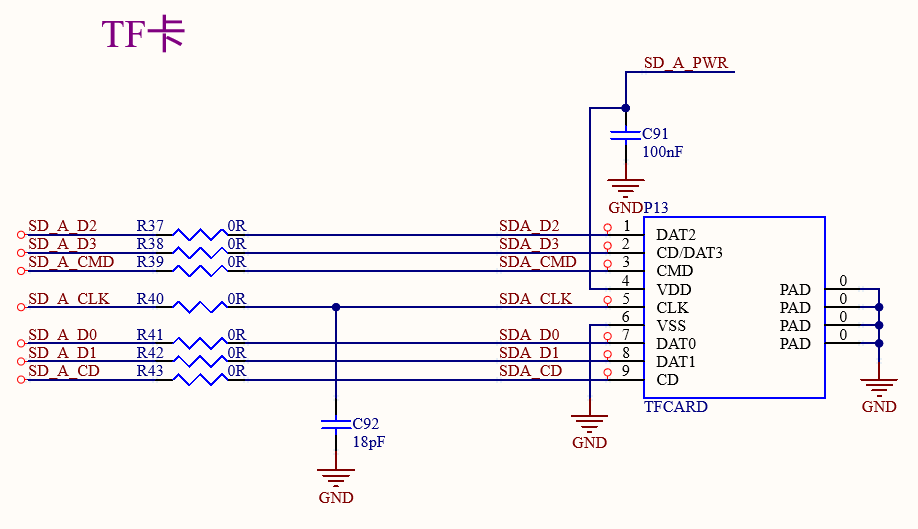

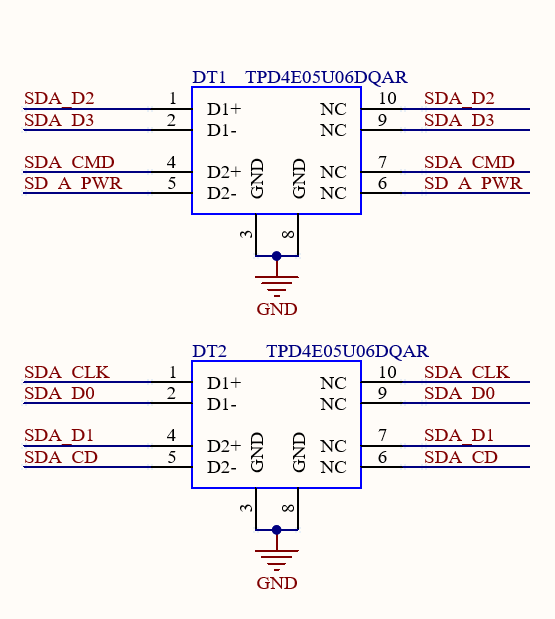

TF card	1	Data rate up to SDR104;

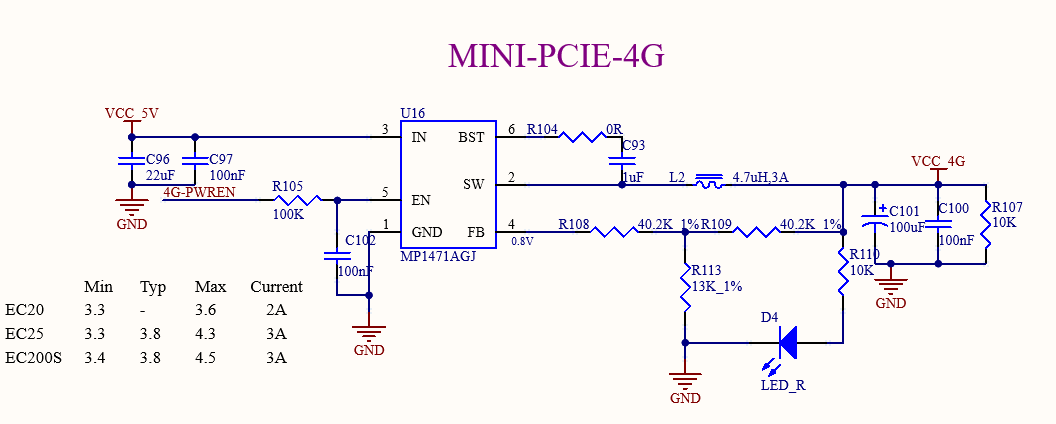

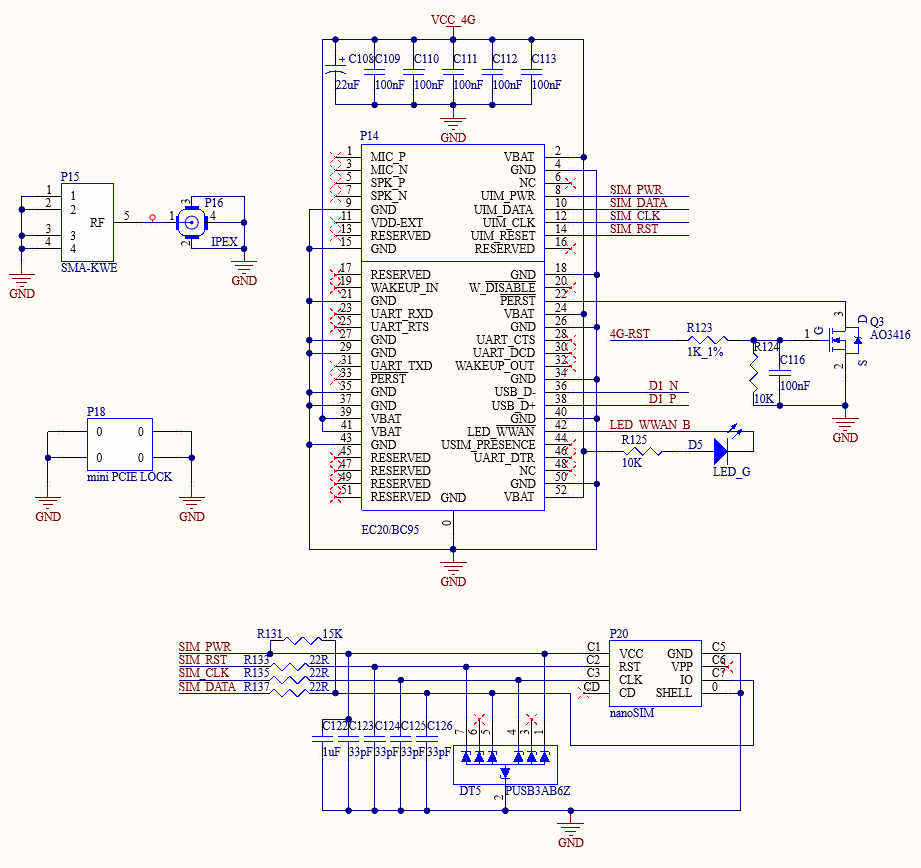

4G	1	Supports 4G modules with a miniPCIE interface, integrating USB2.0 communication signals.

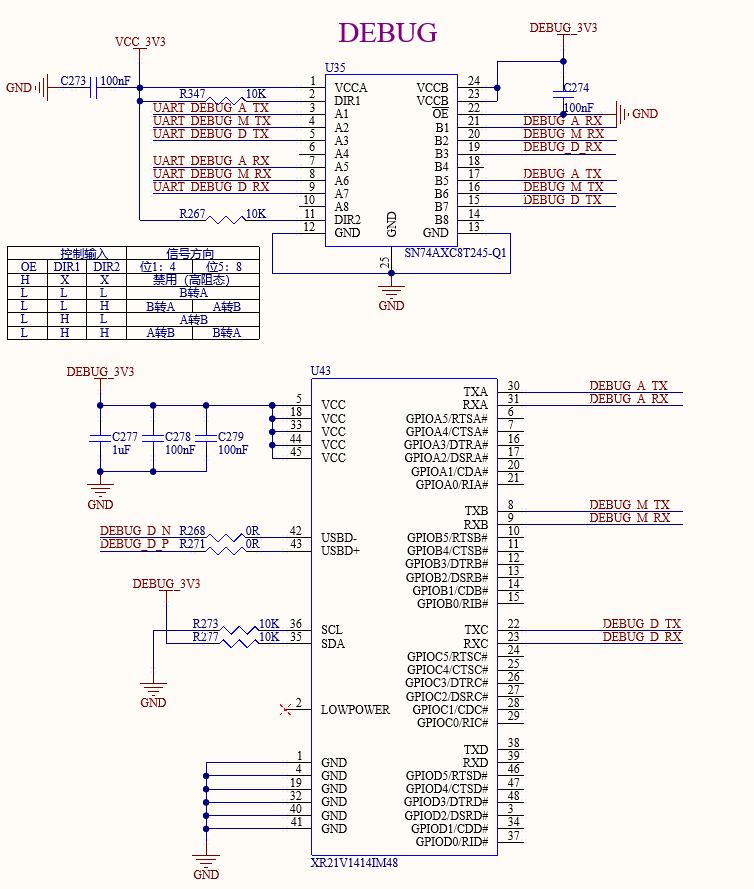

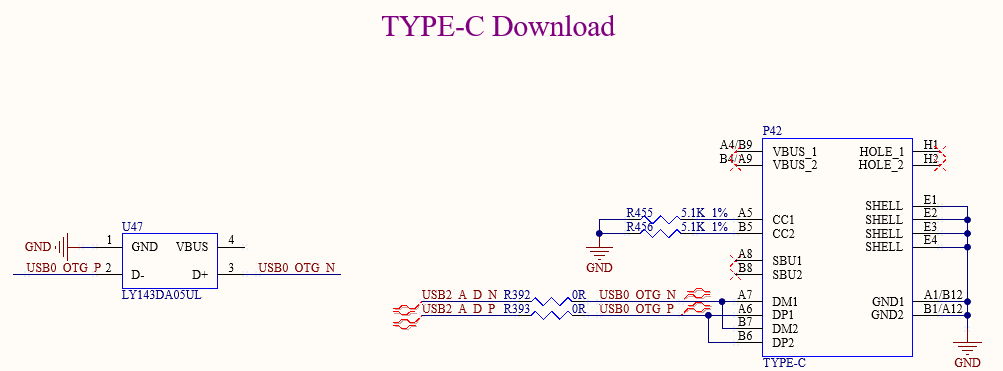

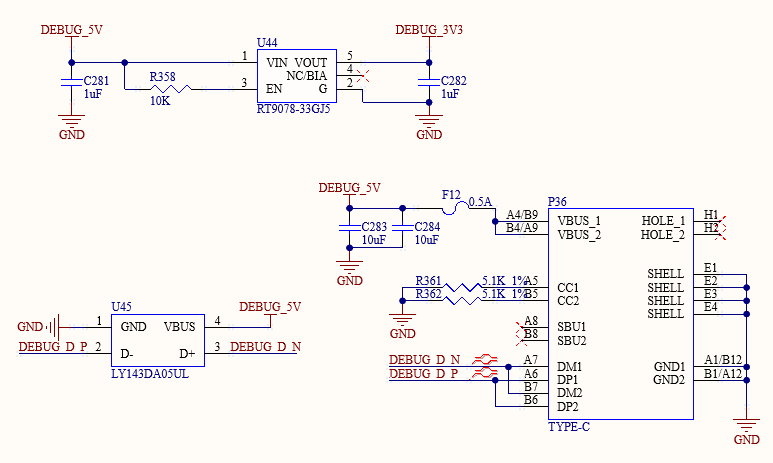

UART Debug	2	Integrated into a single Type-C port, enabling connection to a PC for debugging.

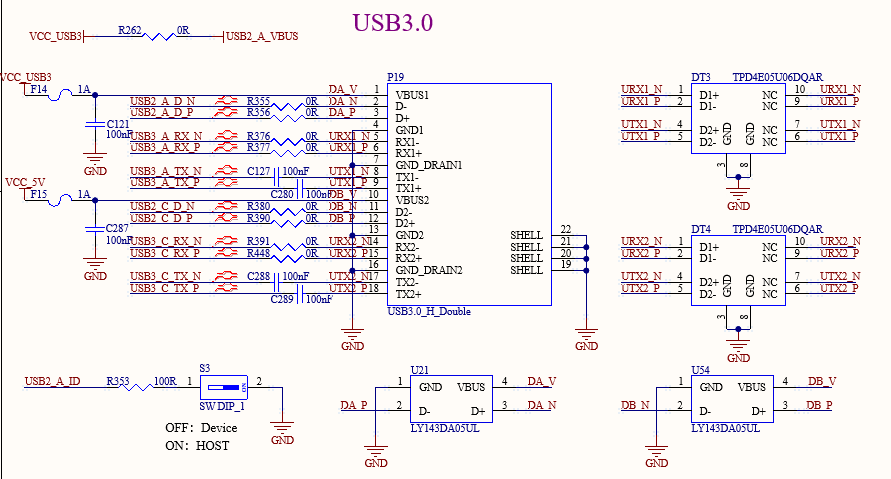

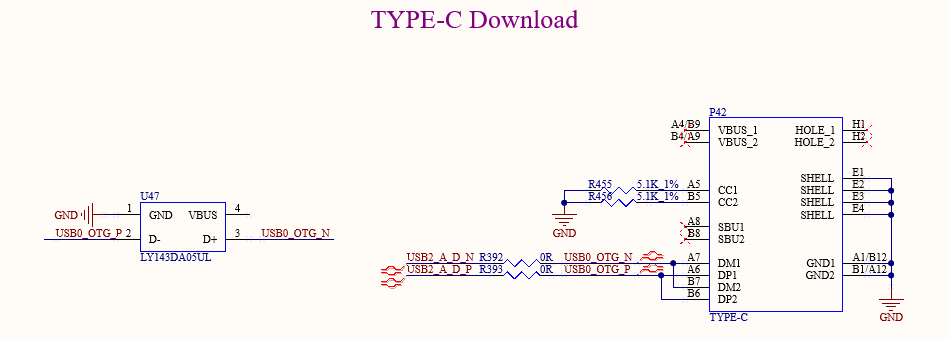

USB3.0	2	USB _ A can switch the master-slave mode and perform USB programming, while USB _ C only supports the master mode.

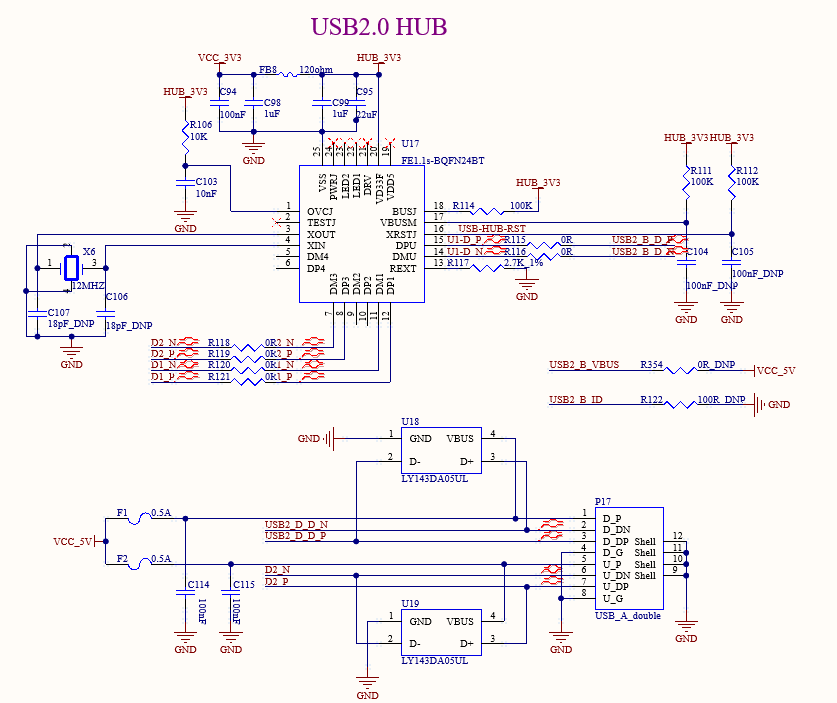

USB2.0	2	1 x USB-D native USB2.0 and 1 x USB-HUB are led out

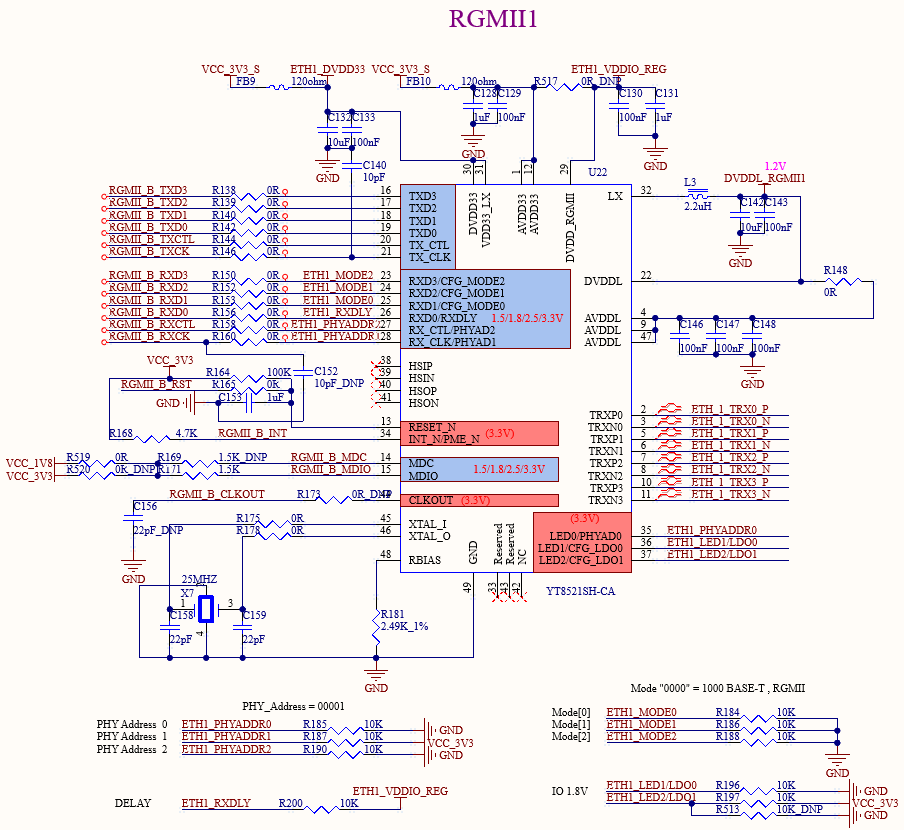

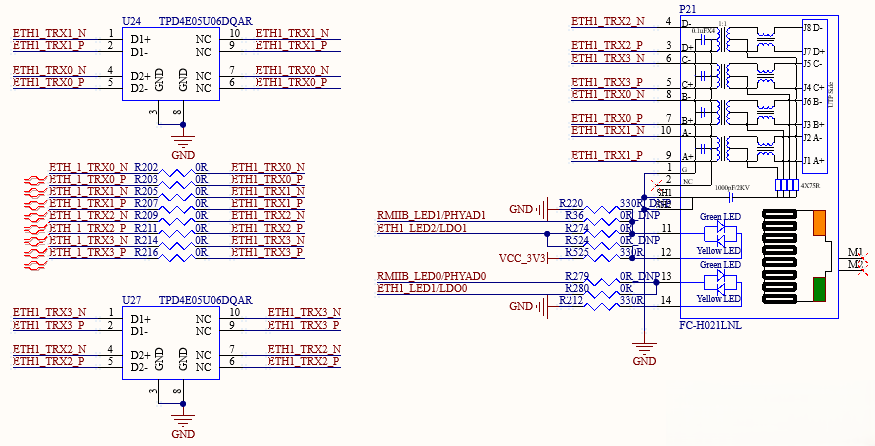

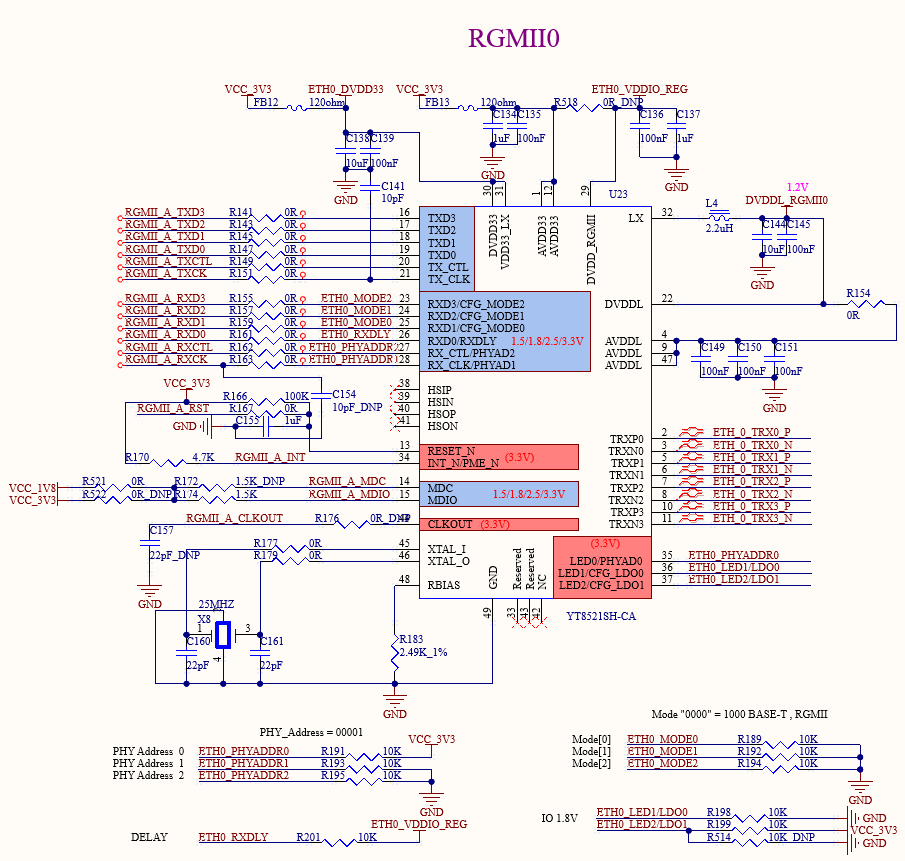

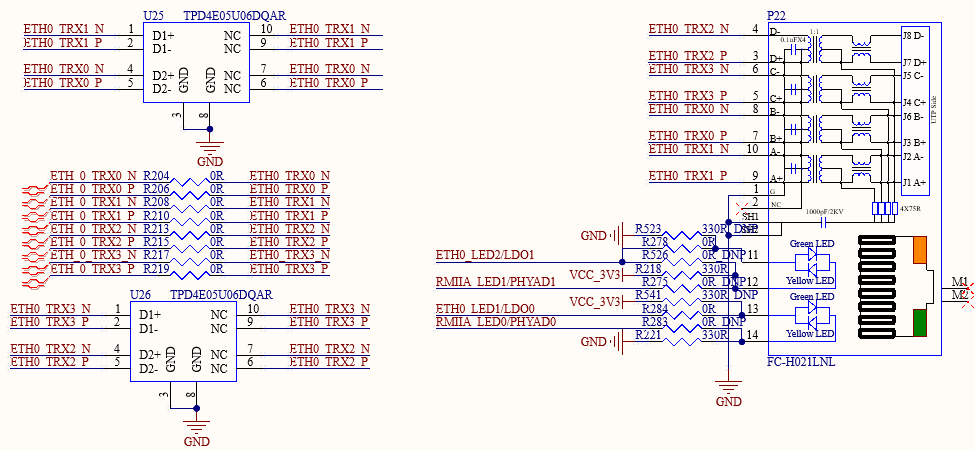

Ethernet	2	2 x Gigabit ports led out via a standard RJ45 socket

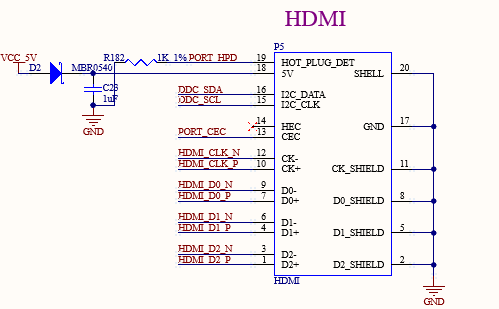

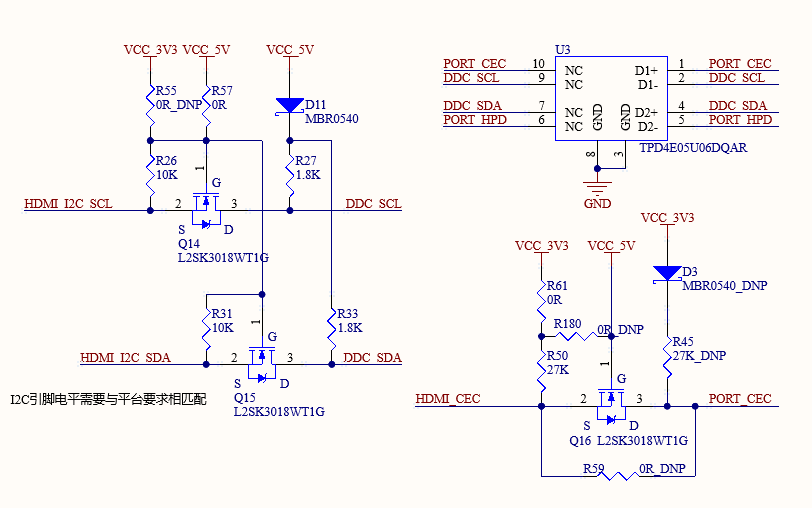

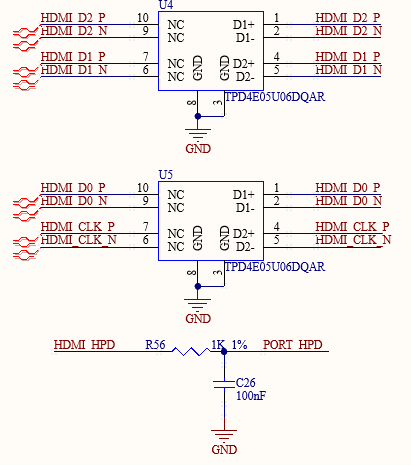

HDMI	1	Supports HDMI 2.1 resolution up to 4096× 2304 @ 60Hz

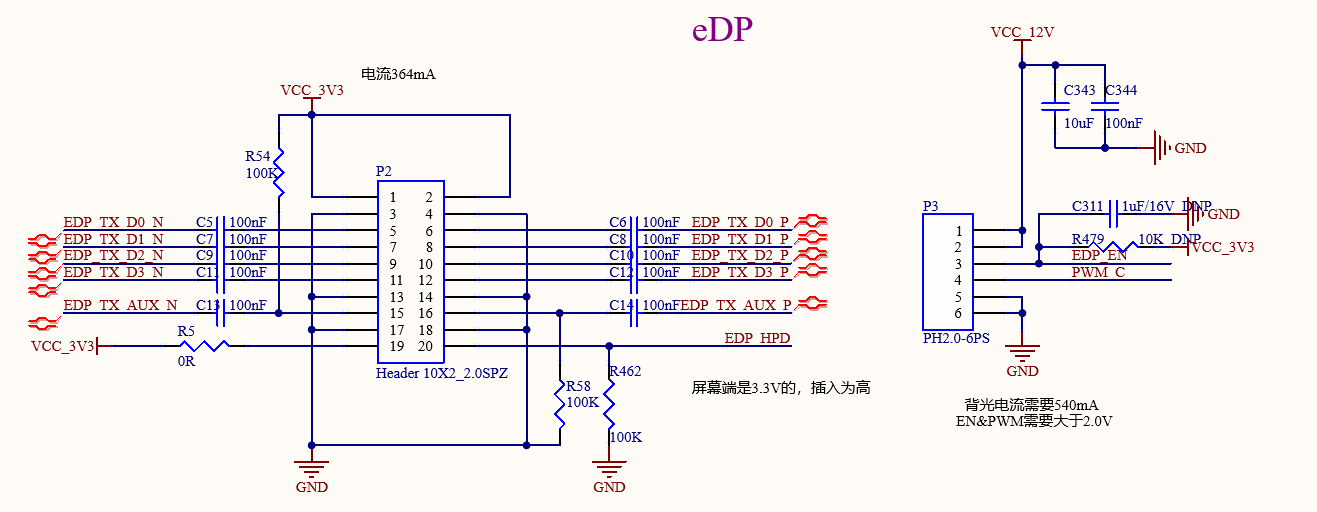

EDP	1	Supports eDP 1.3 resolution up to 2560× 1600 @ 60Hz

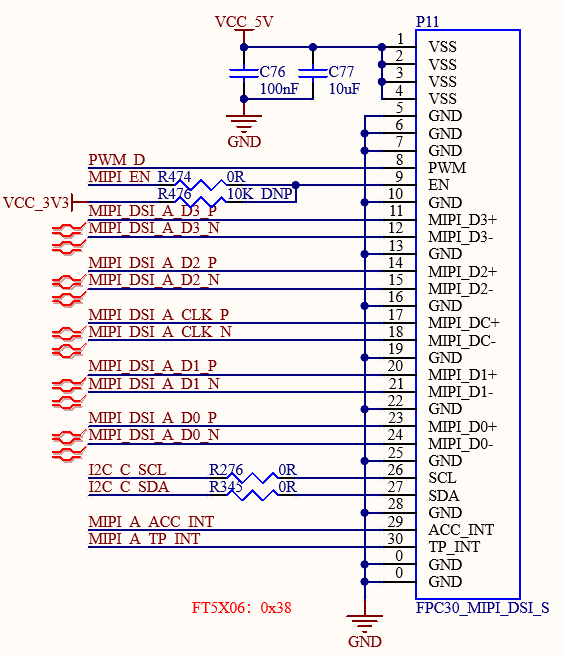

MIPI-DSI	1	4-lane MIPI-DSI, supporting capacitive touch screen and backlight brightness adjustment. The maximum resolution of a single channel is 1920 × 1080@60Hz, and the maximum resolution of dual channels is 2560×1600@60Hz.

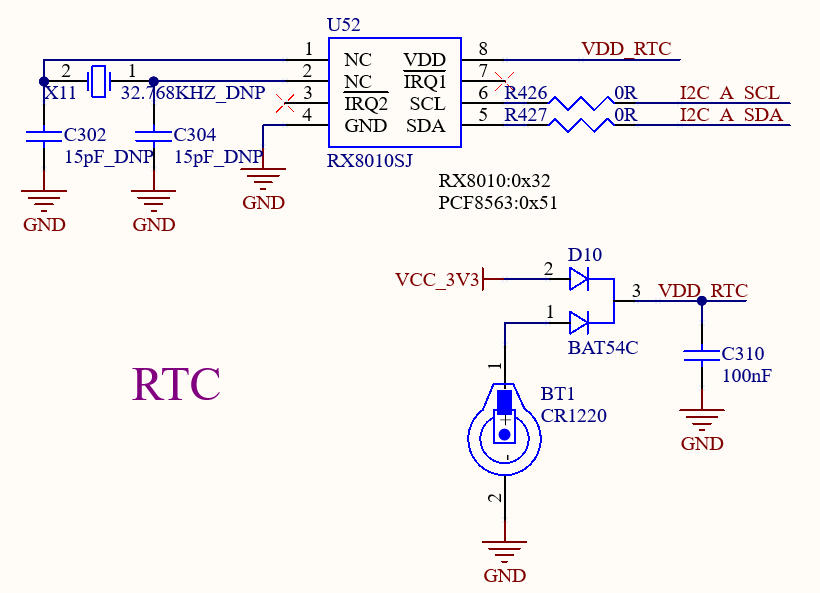

RTC	1	On-board CR1220 battery, keep going when power is off

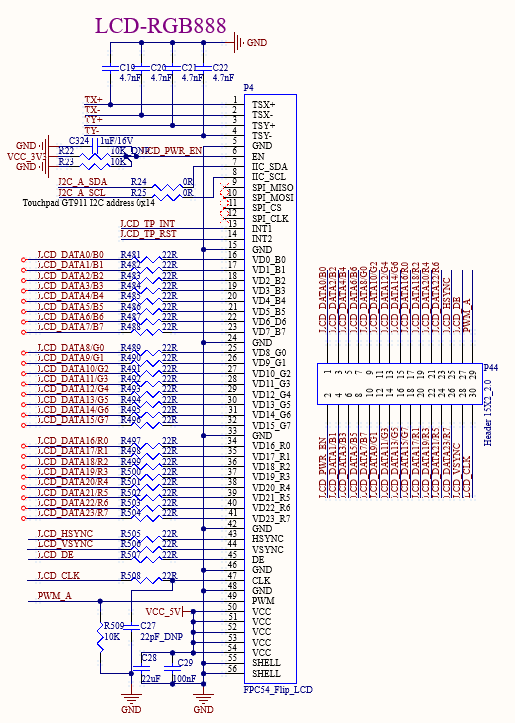

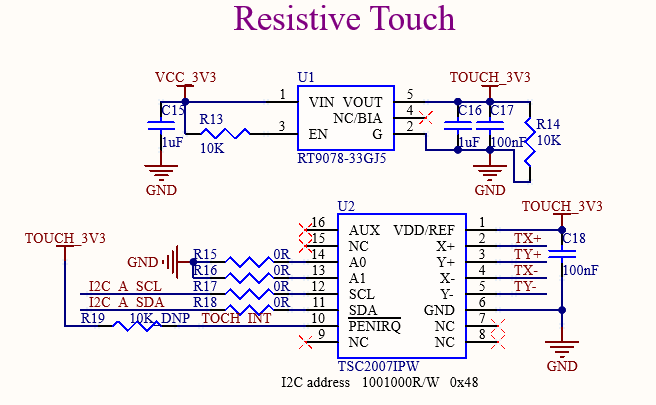

LCD	1	RGB888 interface, supporting capacitive touch and resistive touch, and allowing backlight brightness adjustment. The maximum resolution is 1280×800.

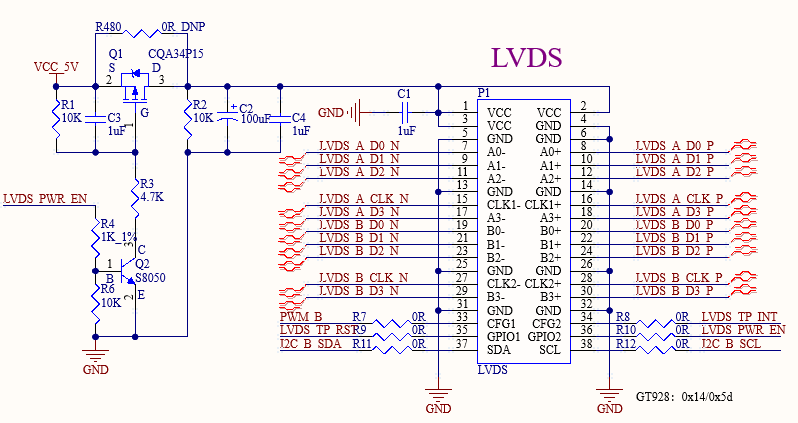

LVDS	1	4-lane LVDS, supporting capacitive touch screen and backlight brightness adjustment, up to 1280×800@60Hz

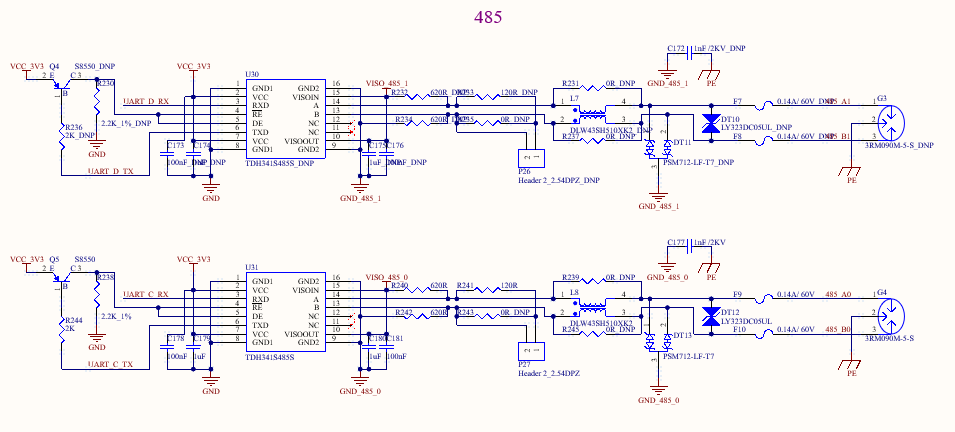

RS485	1	Electrical quarantine

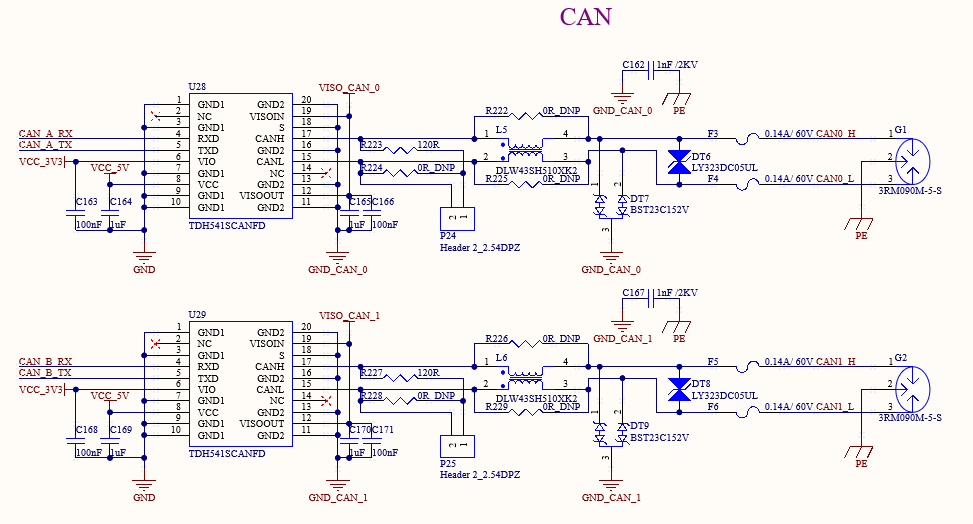

CAN	2	Supports CAN2.0B, electrical quarantine

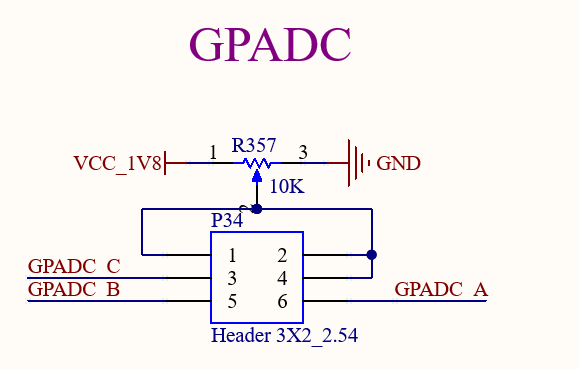

ADC	3	Led out from the pin header and can be connected to the on-board sliding rheostat

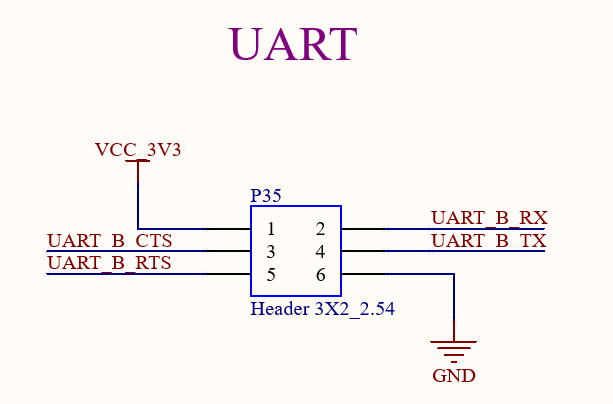

UART	1	5 x UART, led out through pin headers.

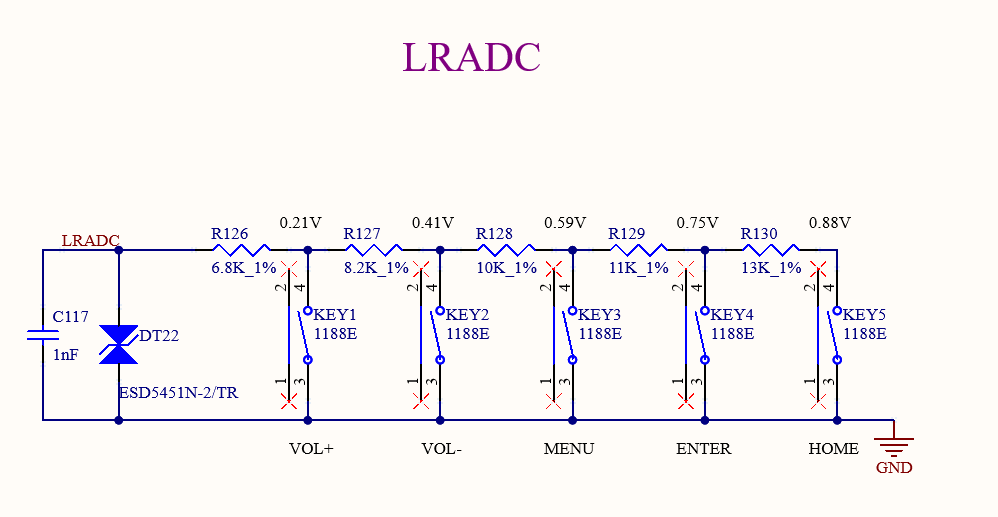

KEY ADC	5	5 keys are led out via 1 x LRADC

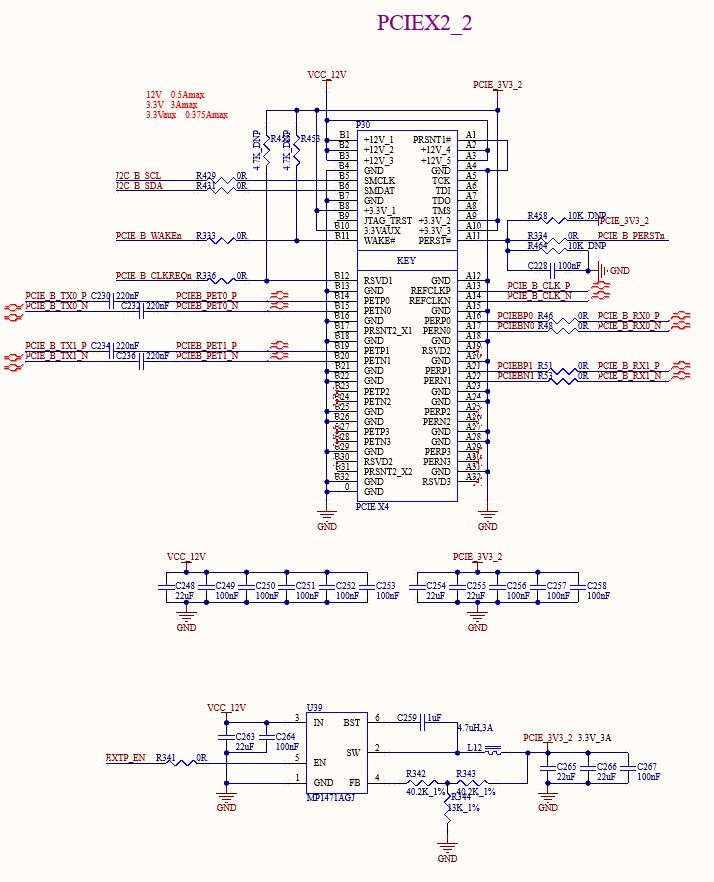

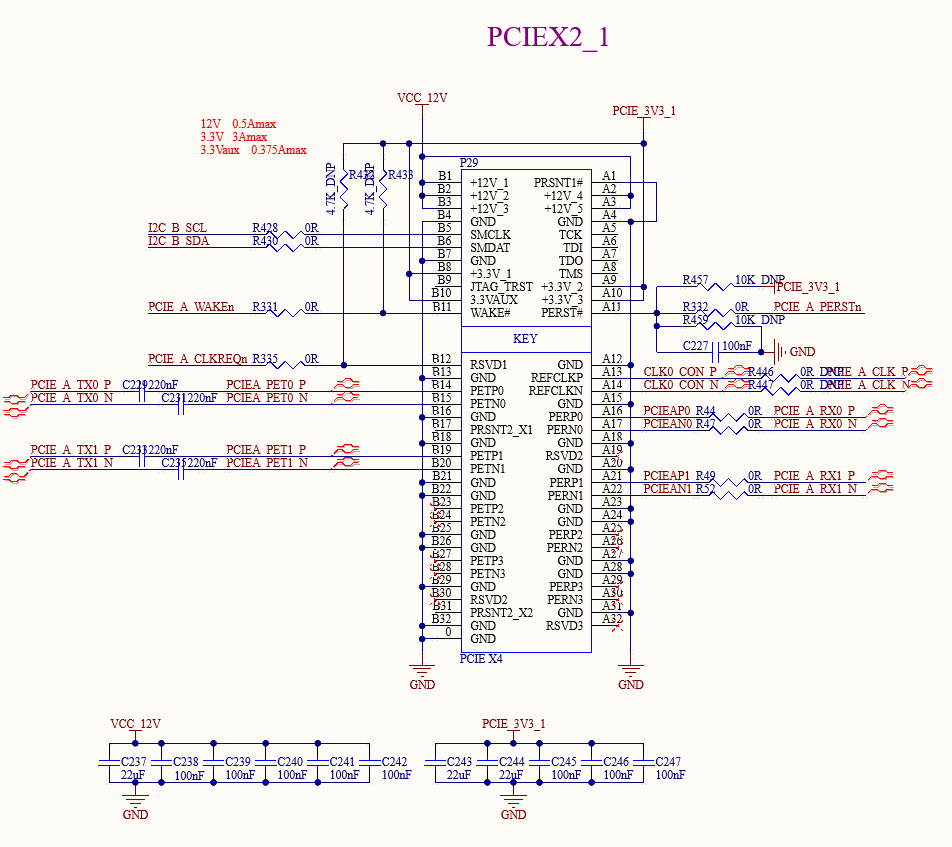

PCIe	2	PCIe _ B 2.1, can only do RC mode, PCIe _ A 3.0, can do EP and RC mode

Note: The parameters in the table are the theoretical values of hardware design or CPU.

3.5 OK3568x-UP4 Carrier Board Description

Note:

The component UID with “_DNP” mark in the diagram below represents it is not soldered by default;
The schematic diagrams in this manual are only for interface descriptions. Please refer to the source file materials for hardware design.

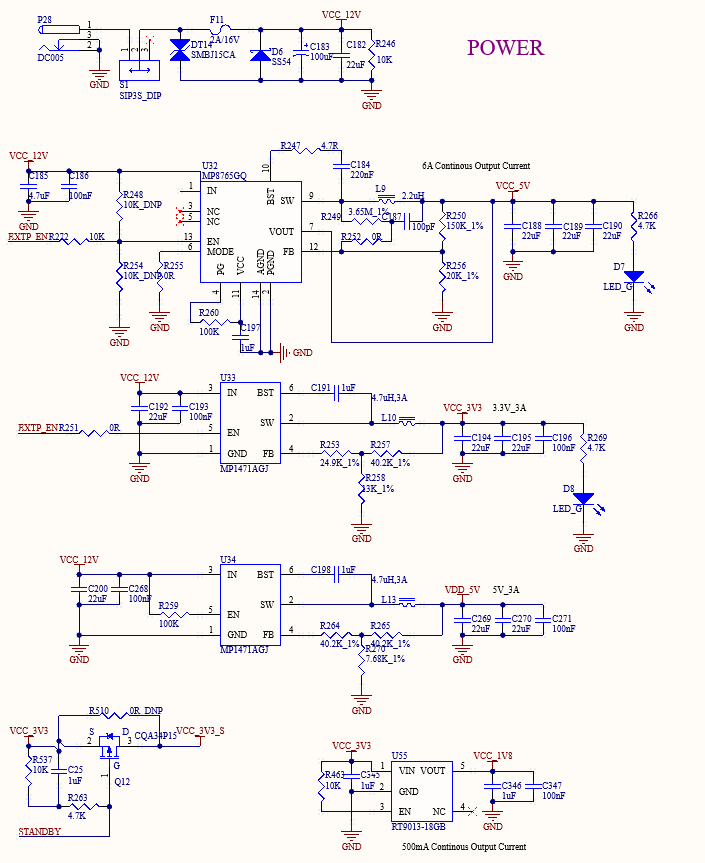

3.5.1 Carrier Board Power

As shown, the power supply for the development board is 12V DC （from P28). VDD_5V supplies power to the SoM. Once the SoM is powered up, it outputs PMIC_EXT_EN to enable U32 and U33 on the carrier board, and VCC_3V3, and VCC_3V3 supply power to the devices on the carrier board. The STANDBY pin controls VCC_3V3_S to enable or disable the power supply for the development board, achieving reduced power consumption.

PMIC_EXT_EN ensures to power on the SoM first, followed by the carrier board, to prevent latch-up effects that could damage the CPU.

3.5.2 Power/Reset Keys

K1 on the carrier board is the development board USB programming button; press and hold K1 before powering on to perform USB programming.

K2 on the development board is for powering ON/Off. By default, the board runs automatically when powering on. While running, press and hold the key to shut down; press it shortly to restart.

K5 on the development board is for the resetting. Press it reset the power on the SoM to achieving a full board power reset.

3.5.3 LRADC Button

The carrier board is configured with 1 x LRADC signal, utilizing a button and a resistor voltage divider to enable key value sampling. The LRADC is pulled up to 1.8V via a 10K resistor on the SoM.

3.5.4 Debugging Serial Port

The carrier board features a single USB Type-C port with 3 x integrated debug serial ports. Install the XR21V1414IM48 driver on your computer, connect the P36 port to the computer, and select the DEBUG_A debug serial port to start debugging.

Only the DEBUG_A debug serial port is led out from the FET3568-UP4 SoM.

Note: To facilitate debugging later, please ensure that the debugging serial port is led out when designing your own carrier board.

3.5.5 RTC

An RTC device is connected to the carrier board via the I2C_A bus. It enables a compatible power supply from either VCC_3V3 or a button cell battery via D10, which ensures the RTC chip remains powered by the battery after the carrier board is powered off. The RX8010SJ chip is used in the default design. Button battery: CR1220.

3.5.6 TF Card

The TF card interface on the development board is connected to the CPU’s SDMMC0 channel. Power for the TF card is supplied by the VCC3V3_SD output from the SoM

Note:

The bus pull-up resistor has already been configured on the SoM. Don’t apply pull-up to the bus;
The TF card is a hot-pluggable device. Please add ESD protection for it;
Please make equal length for the SD signal.

3.5.7 USB Download

There is a USB Type-C port located at P42 on the back of the development board. It utilises the P/N differential signals from the USB 3.0_A (pin P19) signal, facilitating connection to a computer for flashing and debugging.

3.5.8 LVDS Display

The pin header P1 on the development board can be connected to the LVDS display via the connector 38P with a pitch of 2.0mm.

It supports 4 lane LVDS connection, and I2C port touch screen.

3.5.9 EDP Display

Pins P2 and P3 on the development board can be connected to an eDP display; P2 is with a 2.0mm pitch.

3.5.10 LCD-RGB888

Pin P4 on the development board is the LCD interface; it is an FPC socket that can be connected to an LCD screen and supports capacitive touchscreens.

3.5.11 Resistive Touchscreen

If a resistive touchscreen is required, a resistive touch circuit can be added and connected to pins 1, 2, 3 and 4 of the P4 (LCD interface).

3.5.12 HDMI Display

The P5 port on the development board is a standard HDMI port and supports HDMI 2.0.

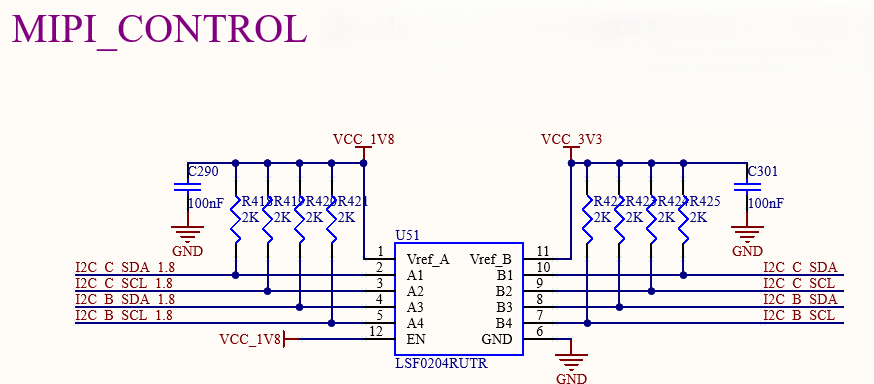

3.5.13 MIPI_DSI

The P11 on the development board is MIPI_DSI port, supporting 4 Lane MIPI_DSI.

3.5.14 MIPI_CSI

There are two FPC sockets on the development board that can be connected to the MIPI-CSI camera. The connector is 26P, with a 0.5mm pitch, and a flip-down cover.

P7 and P8 supports 2lane MIPI-CSI connections.

3.5.15 WiFi & BT

The development board comes with an integrated Wi-Fi & Bluetooth module, model number AW-CM358SM. WiFi is connected via an SDIO interface, supporting dual-band 2.4GHz and 5GHz, and complies with the IEEE 802.11a/b/g/n/ac standard. Bluetooth is connected via a UART and PCM interface and complies with the BT 5.2 specification.

P10 is an SMA interface for antenna connection. Please use a 2.4GHz&5GHz dual-band antenna.

3.5.16 USB2.0

There is an onboard USB 2.0 HUB on the development board, which is expanded to two downstream USB HOST ports, connecting a standard USB 2.0-A interface and a mini-PCIE interface. The mini-PCIE interface can connect the 4G module.

In addition, the SoM features a set of on-board USB 2.0 host interfaces, which connect to the lower layer of the dual-layer USB 2.0 Type-A standard connectors.

3.5.17 4G

The 4G module can be configured on the development board, and the supported specifications are miniPCIE interface, 3.3V power supply, and USB2.0 communication.

P20 is a nanoSIM card slot, which is self-ejecting. Pay attention to the insertion direction according to the card identification. It does not support card hot plug.

Before using the 4G function, please power off the board, install the 4G module, the SIM card, and the 4G ipex jumper from the module to the board P15, so that the antenna can be externally connected through the SMA interface of P16.

3.5.18 USB3.0

The development board features two onboard USB 3.0 ports, both of which are native interfaces on the SoM. One of the ports is a dual-layer USB 3.0-A standard interface. Port A supports OTG (On-The-Go) functionality, while Port C operates as a HOST port.

Port A is controlled by an S3 DIP switch. When the switch is set to OFF, the port is configured as a Device. Conversely, when the switch is set to ON, the port functions as a HOST.

3.5.19 Ethernet

The development board supports two native 1000m network ports, which are realized by using the RGMII of the SoM and the YT8521SH chip, and can be connected to the external network equipment through the standard RJ45 socket with a network transformer.

3.5.20 CAN

1 x standard CAN is led out from the development board via native CAN0 and CAN1. Because of the quarantine, the interface supports the maximum rate of 5Mbps, and the electrical quarantine is designed to meet the protection requirements in most scenarios.

The CAN signal is routed via green terminals with a 3.81 mm pitch; a 120-ohm terminating resistor is installed using a jumper cap.

3.5.21 485

1 x standard 485 is led out from the development board via native UART_C. Due to the UART rate limitation of the CPU, the interface supports a maximum rate of 4Mbps, and the electrical quarantine is designed to meet the protection requirements in most scenarios.

The 485 signal is routed via green terminals with a 3.81 mm pitch; a 120-ohm terminating resistor is installed using a jumper cap.

3.5.22 GPADC

The GPADC is connected via 2.54 mm pitch pins. It can be connected directly using DuPont wires via a potentiometer. The SoM features a total of 3 x GPADC, with a maximum sampling voltage of 1.8 V.

3.5.23 UART

1 x five-wire UART is routed from the development board and powered by a 3.3V signal.

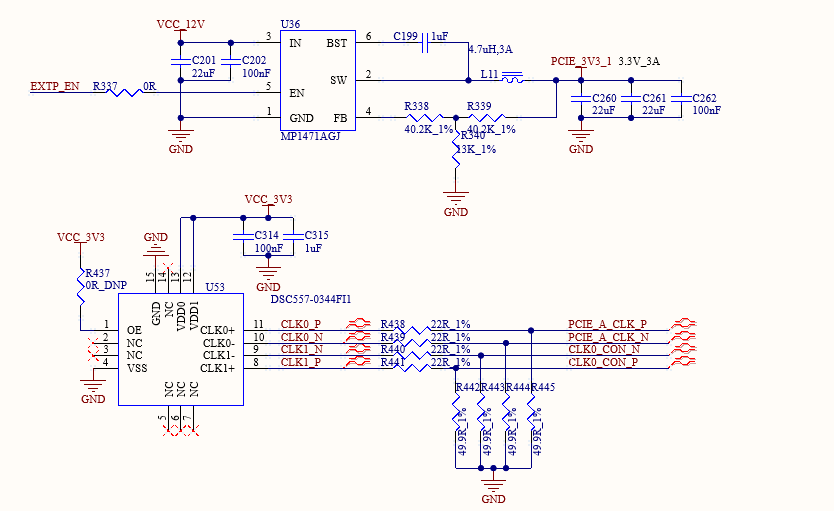

3.5.24 PCIE

The SoM features 1 x PCIe 3.0 x 2 and 1 x PCIe 2.1 x 1 interface, which connect to two PCIe x 4 slots; P29 is a PCIe 3.0 interface and P30 is a PCIe 2.1 interface, with the PCIe 3.0 interface supporting both EP and RC modes.

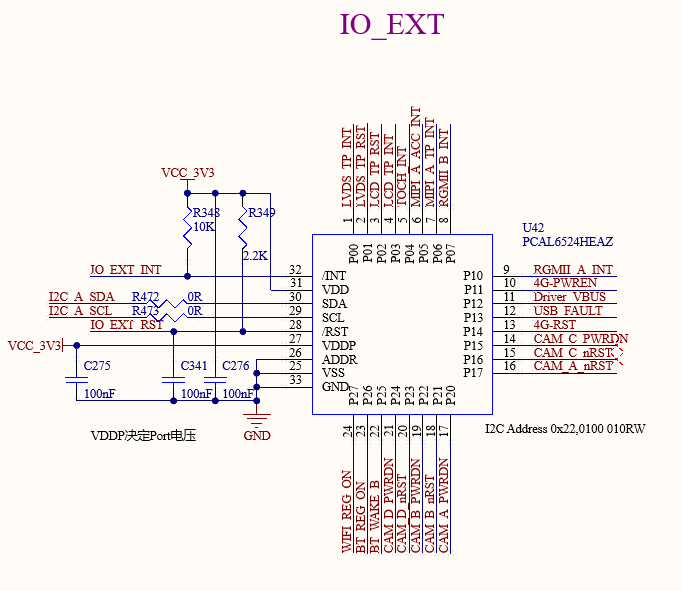

3.5.25 IO Expansion

An I/O expansion chip connects to the carrier board via I2C, offering 24 additional I/O pins for situations where the number of I/O pins is insufficient. In the design of the development board, the I/O must be expandable because some reset and interrupt pins are located on the I/O expansion board.

3.5.26 Audio

The development board features a standard 3.5mm headphone jack (CTIA international standard), located at pin P40, which supports stereo headphone playback and mono microphone recording;

The P39 is a speaker port that supports stereo speakers, Class D, 1.3W power.

4. Package Dimensions Diagram

Package: LCC+LGA

To ensure a high weld yield, please refer to the diagram below for the design of the packaging stencil:

I. Hole Opening Scheme

The steel mesh type is ladder steel mesh, with thickness of 0.1mm and 0.15 mm, and the ladder is on the printing surface;

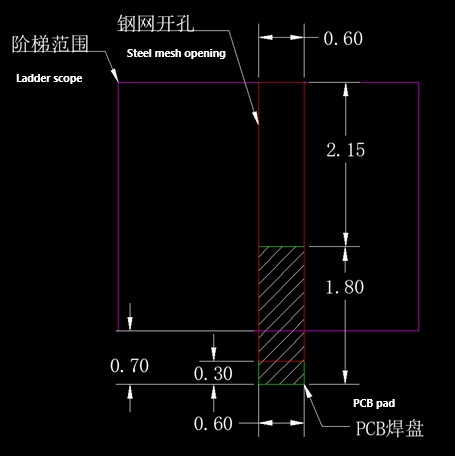

As shown in the figure below, the thickness of the steel mesh of the LCC pad around the carrier board is 0.15 mm, and the opening method is as shown in the figure, with width of 0.6 mm, length of 2.15 mm outward expansion and 0.3 mm inward contraction. The step range is shifted out 0.7 mm from the root to minimize the impact on the LGA pad.

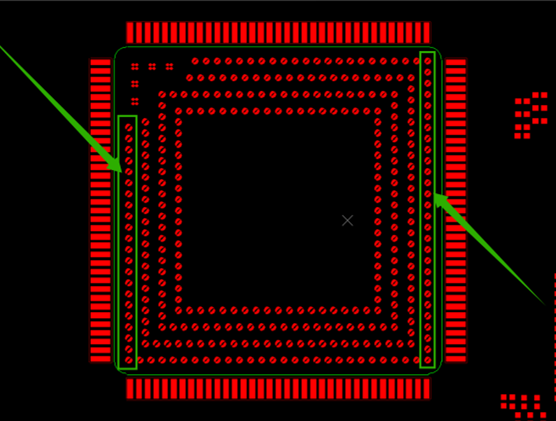

The opening thickness of the LGA pad in the middle is 0.1mm. The opening mode of the two rows of LGA pads on the left and right sides in the direction of the scraper is a round hole with a diameter of 0.5mm. The opening of the other LGA pads is as shown in the following figure. The opening diameter is 0.7 mm. The bridge with a width of 0.15 mm is set at the center of 45 °. The bridge center is a round indent with a diameter of 0.25 mm.

Note:

1. Since the LGA pads on the UP4 series SoMs use a pre-tinned process, there is a height difference of approximately 0.1 mm between the LCC pads and the LGA pads. This may result in uneven solder wick height between the LCC pads. Please do inspection for the LCC soldering;

2. Since stepped stencils can affect the solder volume on surrounding components, please reduce the aperture size of the stencil openings for these components; for the LGA pad openings in the advancing direction of the scraper, please conduct hole-size reduction in accordance with the No.3.

5. OK3568-UP4 Development Board Linux Consumption Table

No.	Item	SoM Power (W)	Development Board Power (including SoM)

1	No-load starting peak power consumption	3.45 W	5.304W
2	Sleep power consumption	1.295W	0.636W
3	No-load standby power consumption	1.295W	2.7W
4	USB read and write power	1.47W	3.312W
5	TF read and write power	1.845W	3.36W
6	4G module PING network power consumption	1.44W	3.504W
7	WiFi module PING network power consumption	1.31W	2.688W
8	7-inch LCD screen video playback power consumption	1.55W	5.244W
9	10-inch LVDS screen video playback power consumption	1.65W	6.648W
10	7-inch MIPI screen video playback power consumption	1.94W	5.568W
11	CPU pressure + memory pressure + eMMC read/write pressure test power	4.18W	5.376W

**Note: **

Test conditions: The SoM configuration is 2GB memory + 16GB eMMC, the 4G module is Quectel EC20, and the screen is an Forlinx optional product. SoM power supply: 5V; and the carrier board is 12V;

Power consumption is for reference only.

6. Minimum System Diagram

It has SoM, BOOT, power, debug serial port, system image flashing port.
