Modification of BusyBox Configuration

This document takes adding the -z parameter to the tar command as an example..

[root@ok3568:/]# tar --help
BusyBox v1.27.2 (2023-03-19 08:54:20 PDT) multi-call binary.

Usage: tar -[cxthvO] [-X FILE] [-T FILE] [-f TARFILE] [-C DIR] [FILE]...

Create, extract, or list files from a tar file

Operation:
        c       Create
        x       Extract
        t       List
        f       Name of TARFILE ('-' for stdin/out)
        C       Change to DIR before operation
        v       Verbose
        O       Extract to stdout
        h       Follow symlinks
        exclude File to exclude
        X       File with names to exclude
        T       File with names to include
[root@ok3568:/]#

Execute the following command in the Ubuntu source directory /OK3568-linux-source/buildroot/output/OK3568 to enter the busybox configuration interface.

source/buildroot/output/OK3568$ make busybox-menuconfig		//If an error is reported, execute sudo
make busybox-menuconfig

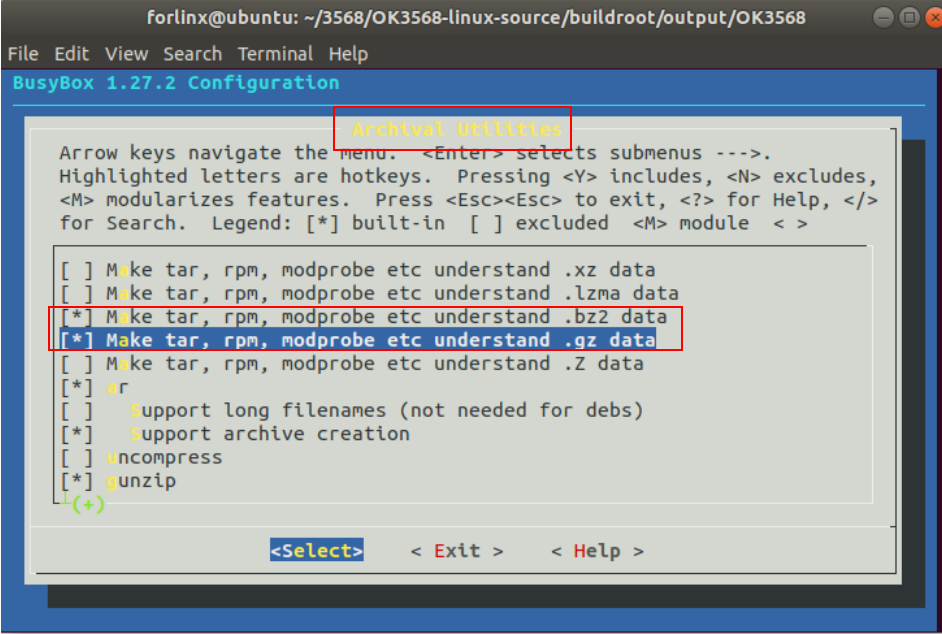

In the graphical interface, locate the two marked options and enable them.

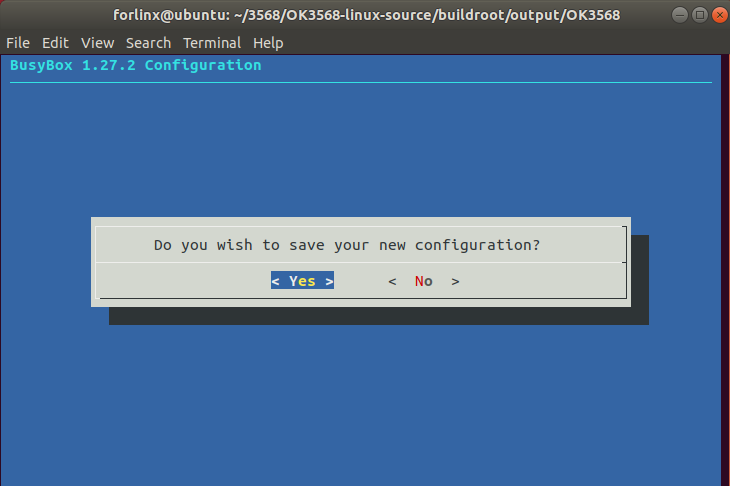

Press Esc to exit and select Yes to save the configuration.

Regenerate the file system.

forlinx@ubuntu:~/3568/OK3568-linux-source$ ./build.sh  buildroot

The generated busybox is located at /OK3568-linux-source/buildroot/output/OK3568/build/busybox-1.27.2/busybox-1.27.2.tar. Extract it to the root directory of the development board for use.

[root@ok3568:/home]# tar --help
BusyBox v1.27.2 (2024-08-01 16:11:32 CST) multi-call binary.

Usage: tar -[cxtzjhvO] [-X FILE] [-T FILE] [-f TARFILE] [-C DIR] [FILE]...

Create, extract, or list files from a tar file

Operation:
        c       Create
        x       Extract
        t       List
        f       Name of TARFILE ('-' for stdin/out)
        C       Change to DIR before operation
        v       Verbose
        z       (De)compress using gzip
        j       (De)compress using bzip2
        O       Extract to stdout
        h       Follow symlinks
        exclude File to exclude
        X       File with names to exclude
        T       File with names to include
