Qt-creator Remote Debug

Note: Set the virtual machine IP address and the development board IP address in the same network segment.

Virtual machine IP: 172.16.0.174

Development board IP: 172.16.0.169

Install debugging software in Ubuntu virtual machine.

sudo apt-get install gdb-multiarch

Modify the source code file.

/OK3568-linux-source/buildroot/output/OK3568/host/mkspecs/devices/linux-buildroot-g++/qmake.conf

Just comment out the variables as follows:

#QMAKE_CFLAGS_OPTIMIZE =

#QMAKE_CFLAGS_OPTIMIZE_DEBUG =

#QMAKE_CFLAGS_OPTIMIZE_FULL =

#QMAKE_CFLAGS_OPTIMIZE_SIZE =

#QMAKE_CFLAGS_DEBUG =

#QMAKE_CXXFLAGS_DEBUG =

#QMAKE_CFLAGS_RELEASE =

#QMAKE_CXXFLAGS_RELEASE =

Set development board ssh password.

Passwd: root

Enter the password “root” twice.

Add qmake.

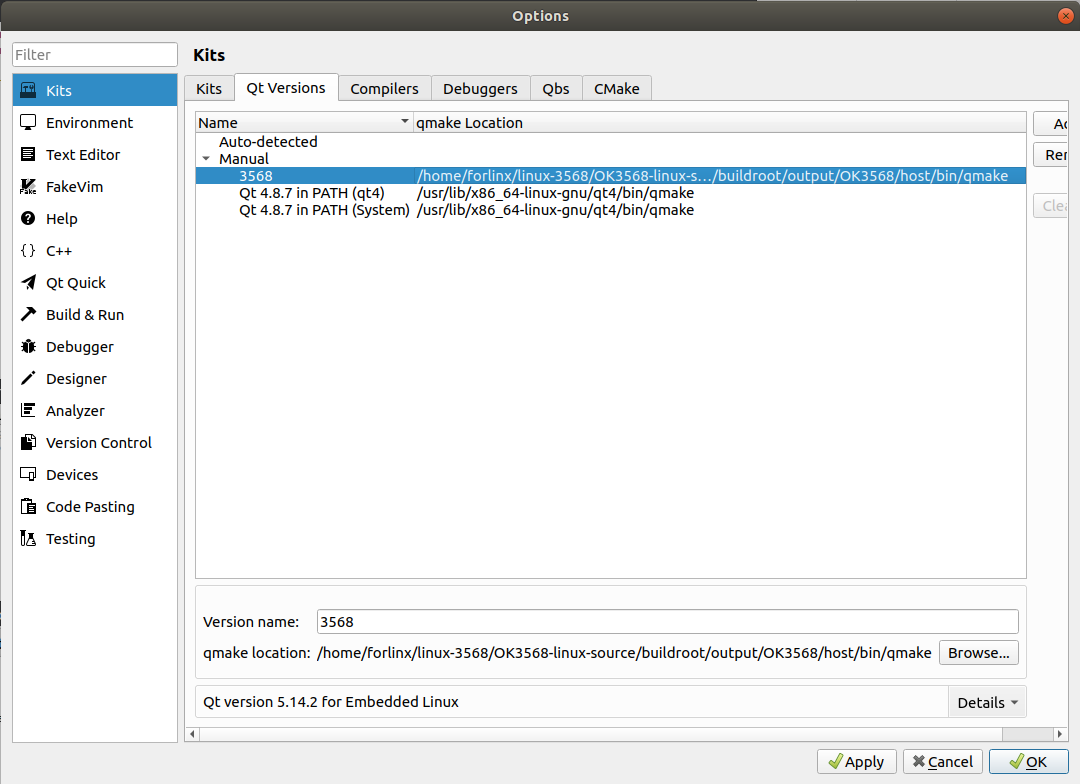

Tools->options->Kits->Compilers->Add（The red path is configured according to the customer path）

/home/forlinx/linux-3568/OK3568-linux-source/buildroot/output/OK3568/host/bin/qmake

Add gcc.

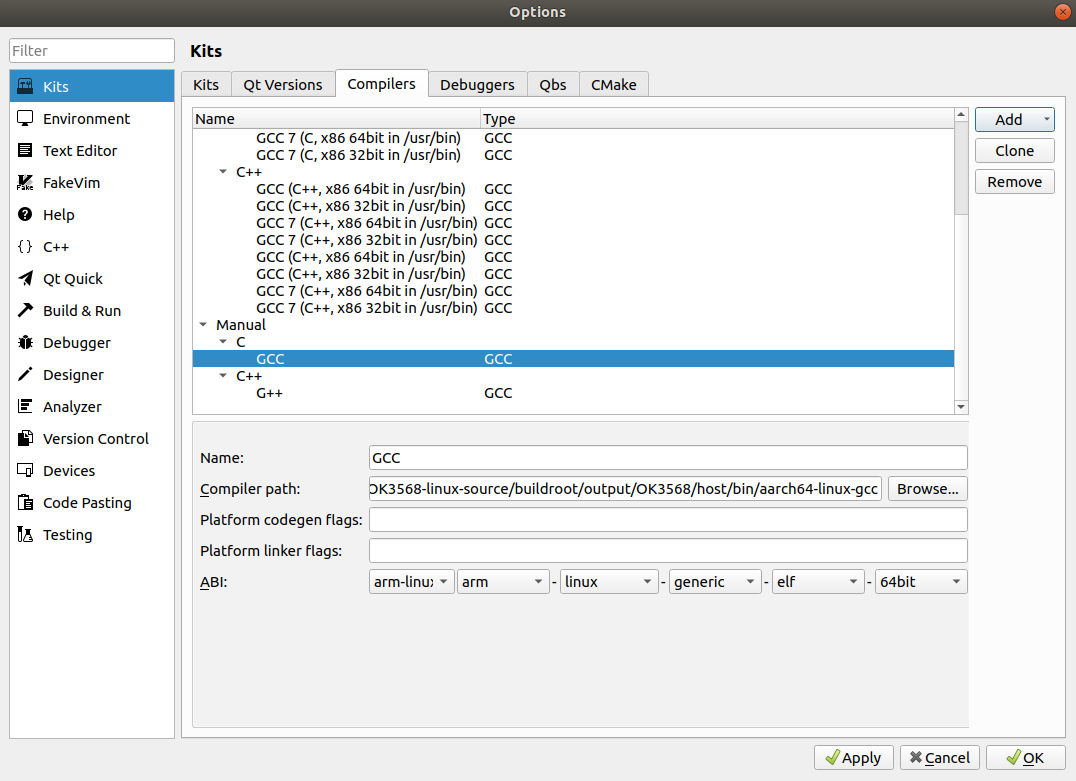

Tools->options->Kits->Compilers->Add（The red path is configured according to the customer path）

/home/forlinx/linux-3568/OK3568-linux-source/buildroot/output/OK3568/host/bin/aarch64-linux-gcc

Add g++.

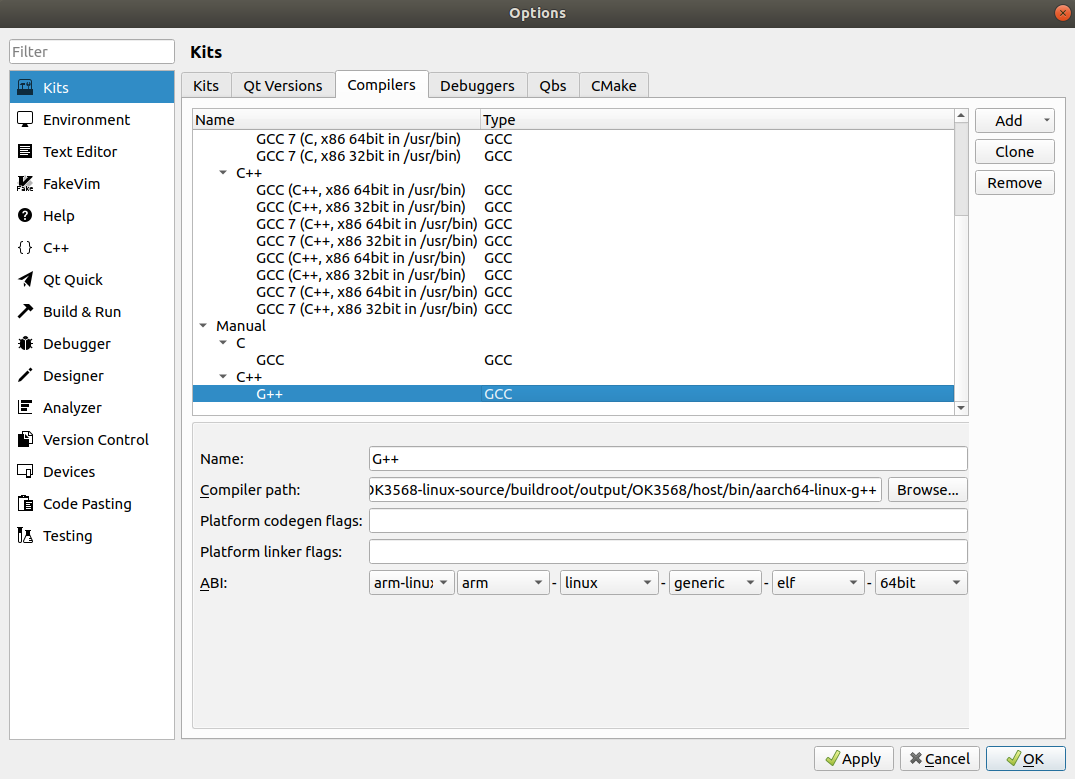

Tools->options->Kits->Compilers->Add（The red path is configured according to the customer path）

/home/forlinx/linux-3568/OK3568-linux-source/buildroot/output/OK3568/host/bin/aarch64-linux-g++

Add the gdb tool.

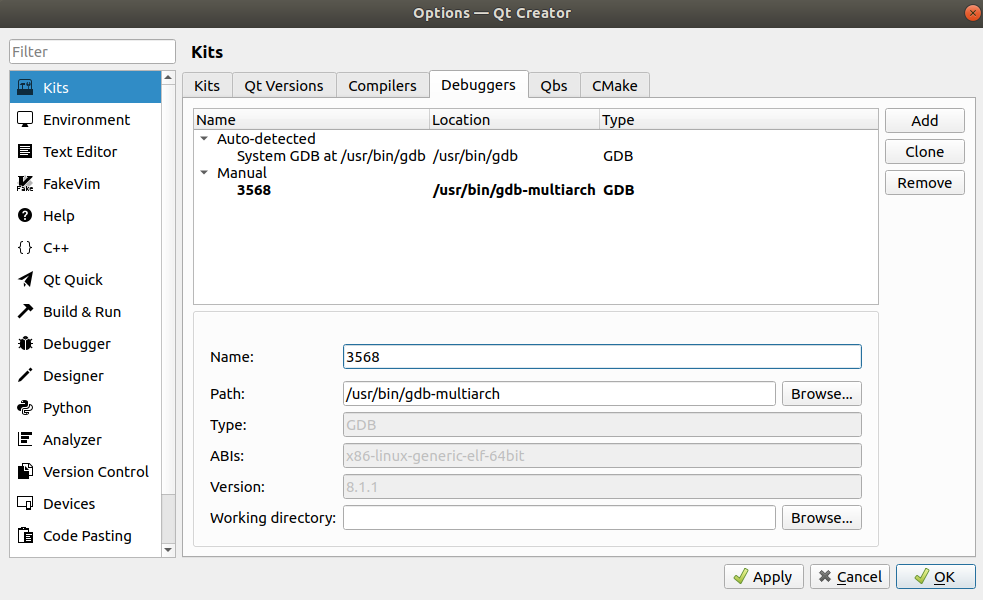

Tools->options->Kits->Debuggers->Add

Name: 3568

Path:/usr/bin/gdb-multiarch

Configure devices.

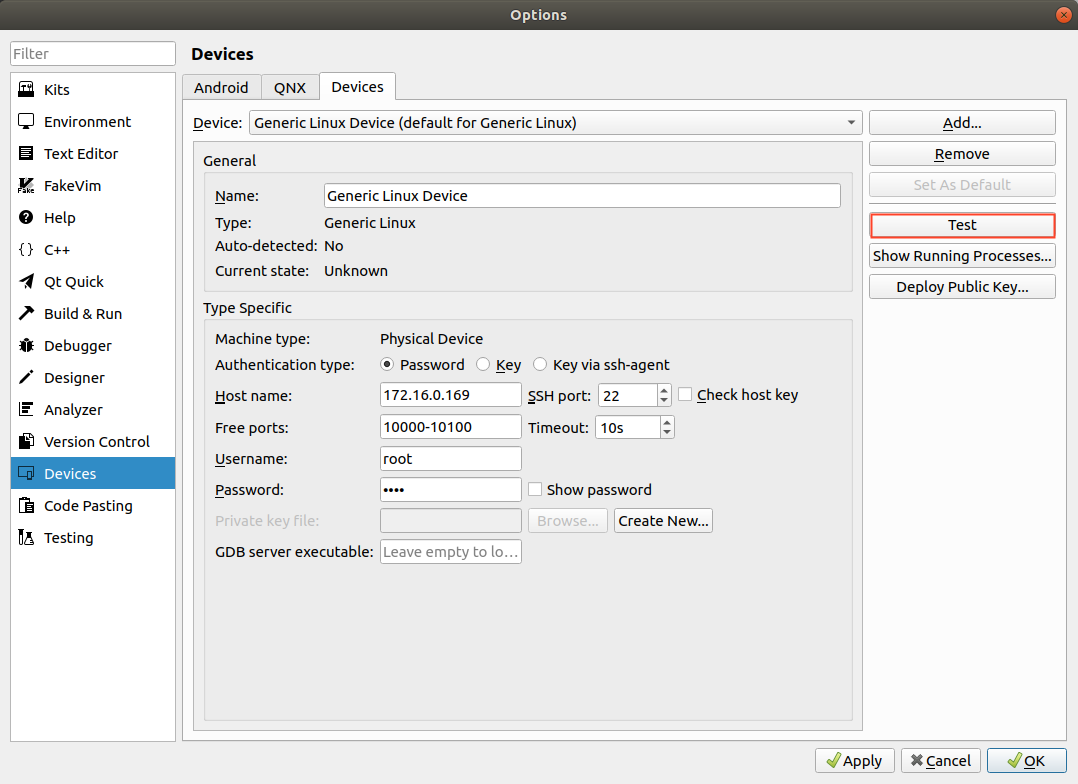

Configure complete test.

Note: To configure the development board and the computer virtual machine to be on the same network segment.

Host name: Development board IP address

SSH port：22

Username：root

Password：root

Then click “Test” to test the ssh communication.

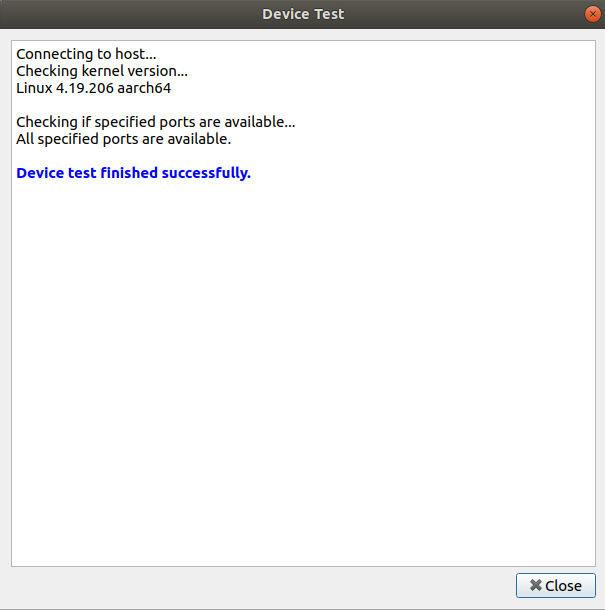

The diagram indicates a successful connection.

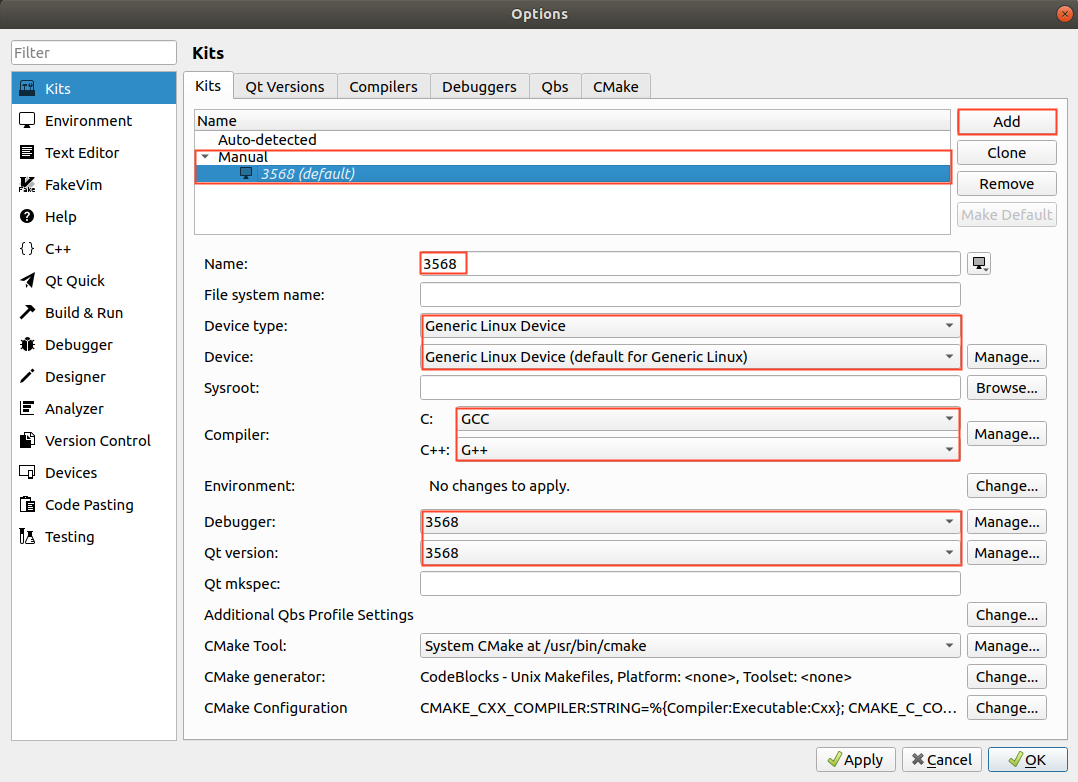

Configure the Kit Suite.

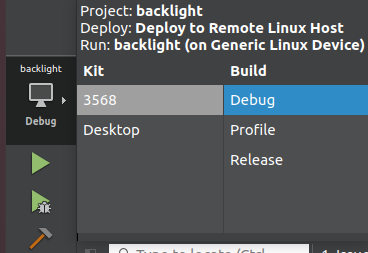

Select the previously configured Kit Suite 3568 for the project code.

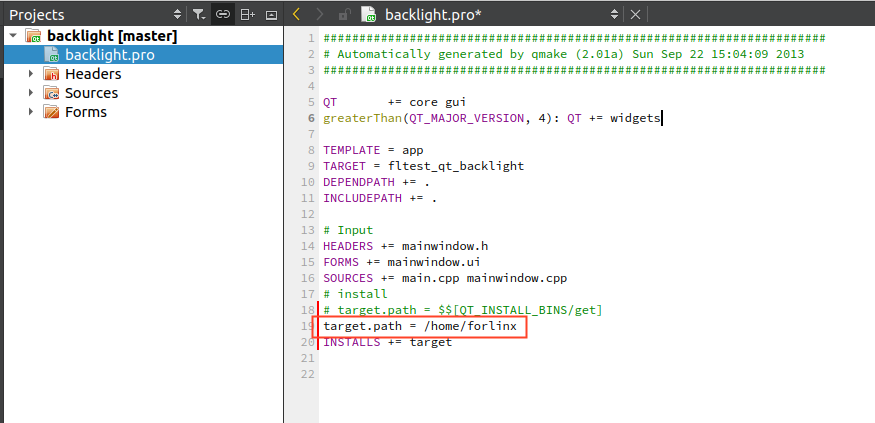

Specify the installation directory for the program on the development board: target.path = /home/forlinx

After configuration, the executable files can run on the development board.

Click the Run button:

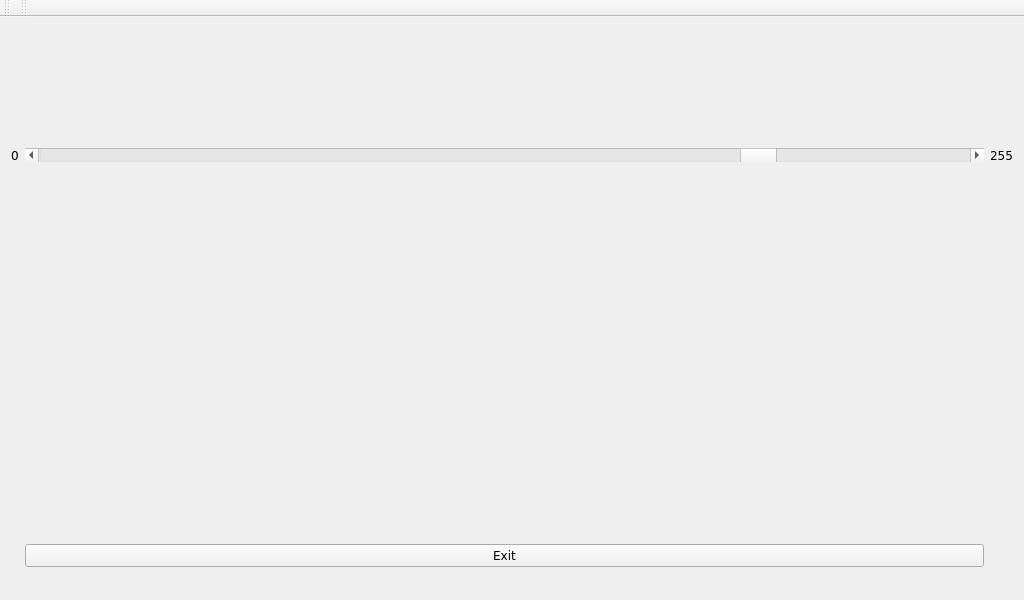

The development board displays the following:

To enable remote debugging of the development board application, proceed with the following settings:

Remote Debugging the Application.

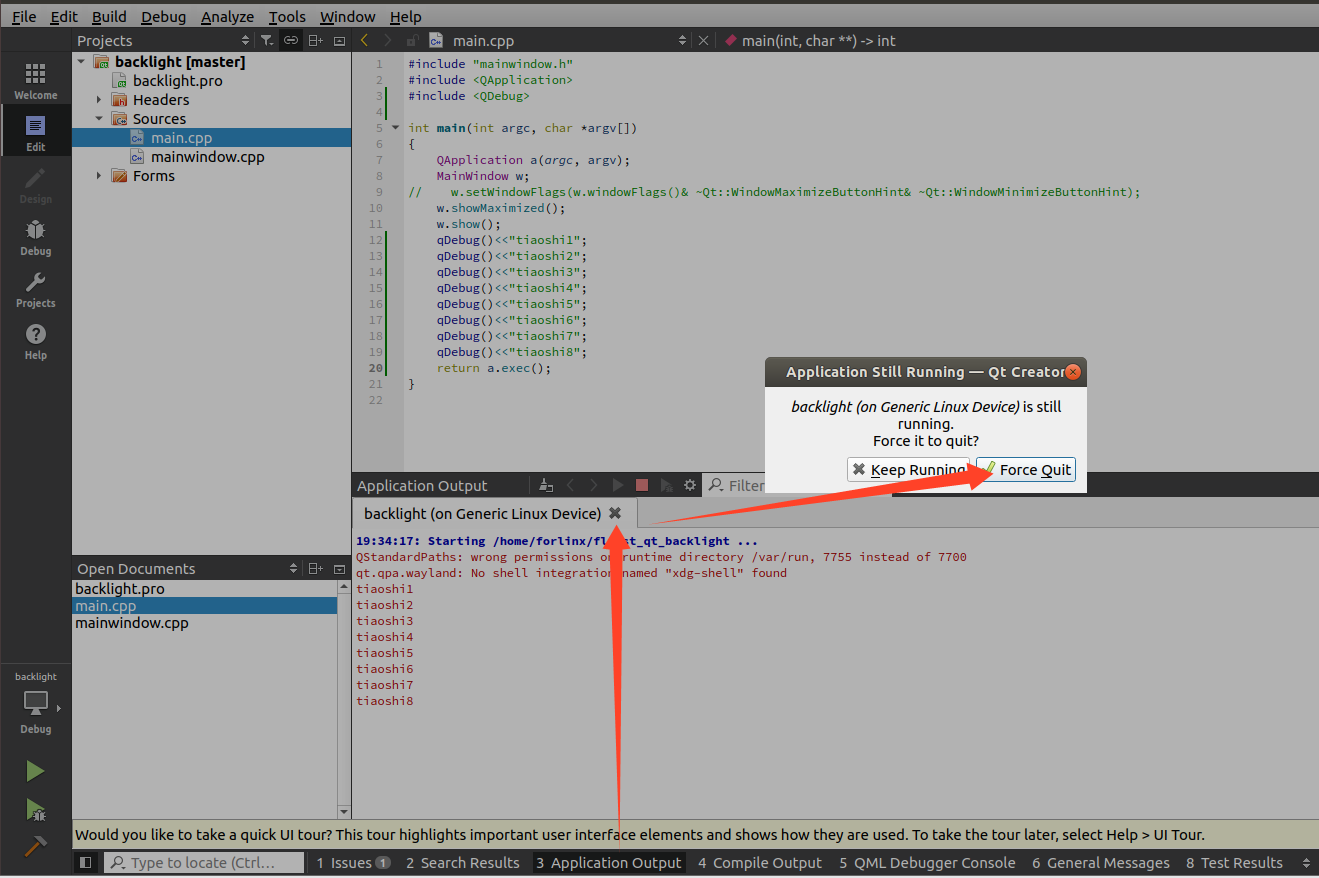

Close the application that was just launched on the development board.

Enter the following command on the development board to enter listening mode:

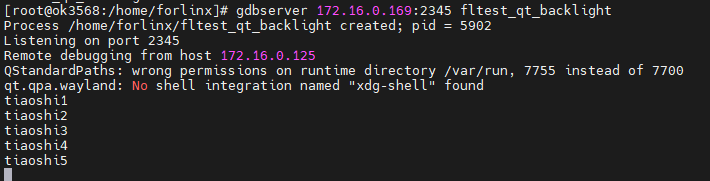

[root@ok3568:/home/forlinx]# gdbserver 172.16.0.169:2345 ./fltest_qt_backlight

On the virtual machine:

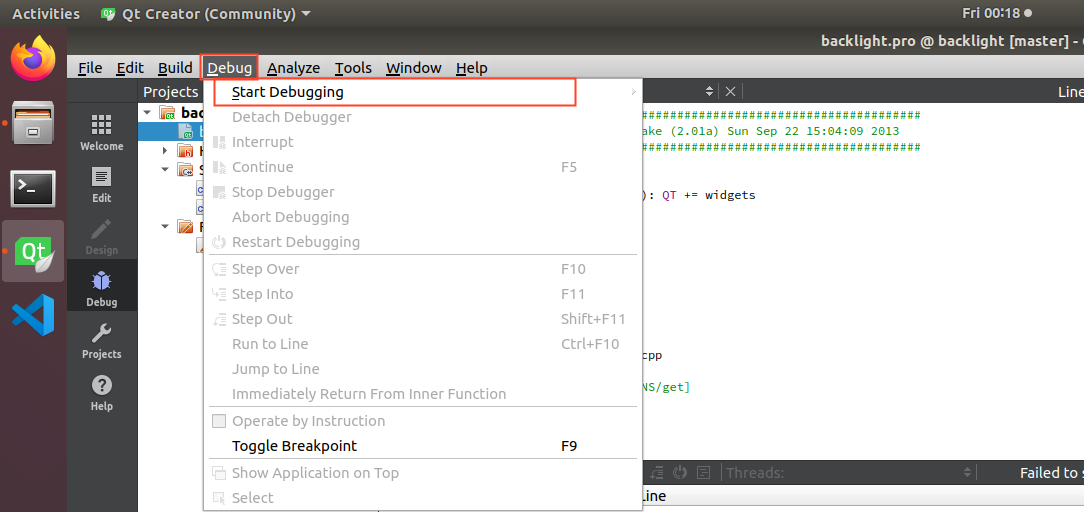

Debug->Start Debugging->Attach to Running Debug Server…

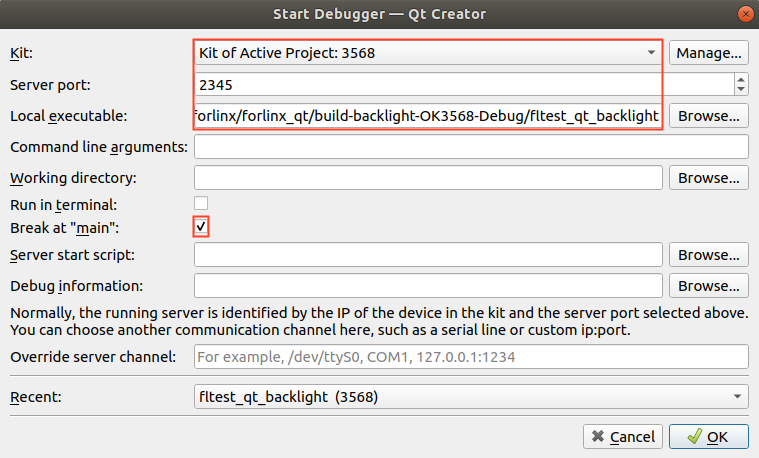

Connect to the development board service to enter debug mode.

Breakpoint Debugging Example:

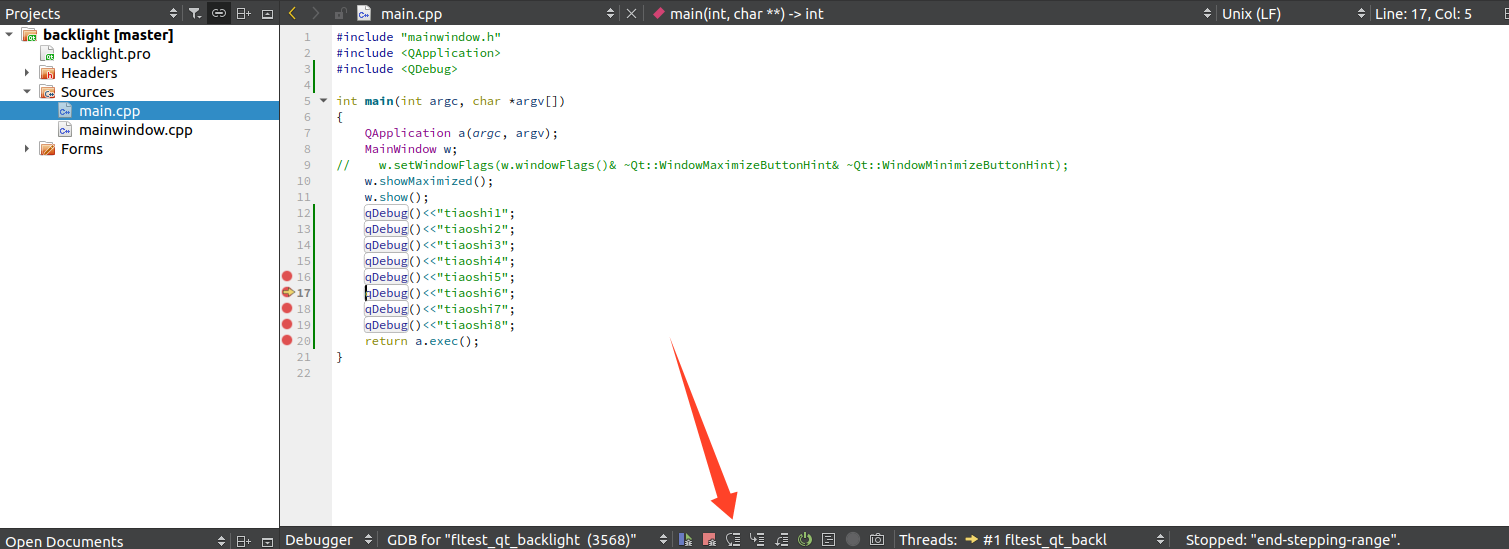

Set a breakpoint in the application, then click the Step Over button repeatedly.

The development board will output breakpoint debugging information.
