Nginx Installation
Install nginx by modifying the filesystem defconfig. Nginx is a high-performance web server and reverse proxy server, widely used in scenarios such as load balancing, HTTP caching, reverse proxy, and static file serving.

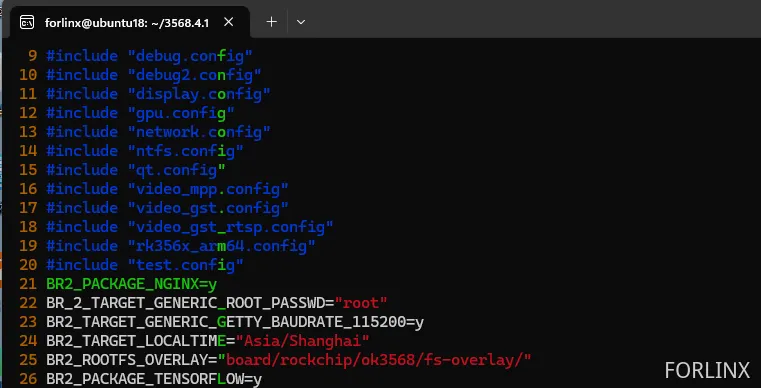

Modify the default configuration file.
File path: OK3568-linux-source/buildroot/configs/OK3568_defconfig
forlinx@ubuntu18:~/3568.4.19/OK3568-linux-source$ vi buildroot/configs/OK3568_defconfig
Add BR_PACKAGE_NGINX=y
Execute./build. sh build root to compile filesystem.
forlinx@ubuntu18:~/3568.4.19/OK3568-linux-source$ ./build.sh buildroot
processing option: buildroot
==========Start building buildroot==========
TARGET_BUILDROOT_CONFIG=OK3568
=========================================
Top of tree: /home/forlinx/3568.4.19/OK3568-linux-source
===========================================
#TARGET_BOARD=OK3568
#OUTPUT_DIR=output/OK3568
#CONFIG=OK3568_defconfig
===========================================
Found old config, override it? (y/n):y //Select y
2024-08-12T14:59:10 >>> nginx 1.12.2 Downloading
2024-08-12T14:59:23 >>> nginx 1.12.2 Extracting
2024-08-12T14:59:23 >>> nginx 1.12.2 Patching
2024-08-12T14:59:23 >>> nginx 1.12.2 Configuring
2024-08-12T14:59:29 >>> nginx 1.12.2 Building
Possible errors:
2024-08-12T15:12:52 rsync -a --ignore-times --exclude .svn --exclude .git --exclude .hg --exclude .bzr --exclude CVS --chmod=u=rwX,go=rX --exclude .empty --exclude '*~' package/skeleton-init-sysv//skeleton/ /home/forlinx/3568.4.19/OK3568-linux-source/buildroot/output/OK3568/target/
2024-08-12T15:12:52 cannot delete non-empty directory: var/log
2024-08-12T15:12:52 could not make way for new symlink: var/log
2024-08-12T15:12:52 rsync error: some files/attrs were not transferred (see previous errors) (code 23) at main.c(1196) [sender=3.1.2]
2024-08-12T15:12:52 package/pkg-generic.mk:310: recipe for target '/home/forlinx/3568.4.19/OK3568-linux-source/buildroot/output/OK3568/build/skeleton-init-sysv/.stamp_target_installed' failed
2024-08-12T15:12:52 make[1]: *** [/home/forlinx/3568.4.19/OK3568-linux-source/buildroot/output/OK3568/build/skeleton-init-sysv/.stamp_target_installed] Error 23
2024-08-12T15:12:52 /home/forlinx/3568.4.19/OK3568-linux-source/buildroot/output/OK3568/Makefile:16: recipe for target '_all' failed
2024-08-12T15:12:52 make: *** [_all] Error 2
Command exited with non-zero status 1
you take 8:30.06 to build builroot
ERROR: Running build_buildroot failed!
ERROR: exit code 1 from line 565:
/usr/bin/time -f "you take %E to build builroot" $COMMON_DIR/mk-buildroot.sh $BOARD_CONFIG
Delete buildroot/output/OK3568/target
forlinx@ubuntu18:~/3568.4.19/OK3568-linux-source$ rm -rf buildroot/output/OK3568/target
And then execute again.
forlinx@ubuntu18:~/3568.4.19/OK3568-linux-source$ ./build.sh buildroot
Flash the generated rootfs.ext2 into the development board in a single step.
forlinx@ubuntu18:~/3568.4.19/OK3568-linux-source$ cd buildroot/output/OK3568/images/
forlinx@ubuntu18:~/3568.4.19/OK3568-linux-source/buildroot/output/OK3568/images$ ls
rootfs.cpio rootfs.cpio.gz rootfs.ext2 rootfs.ext4 rootfs.squashfs rootfs.tar
